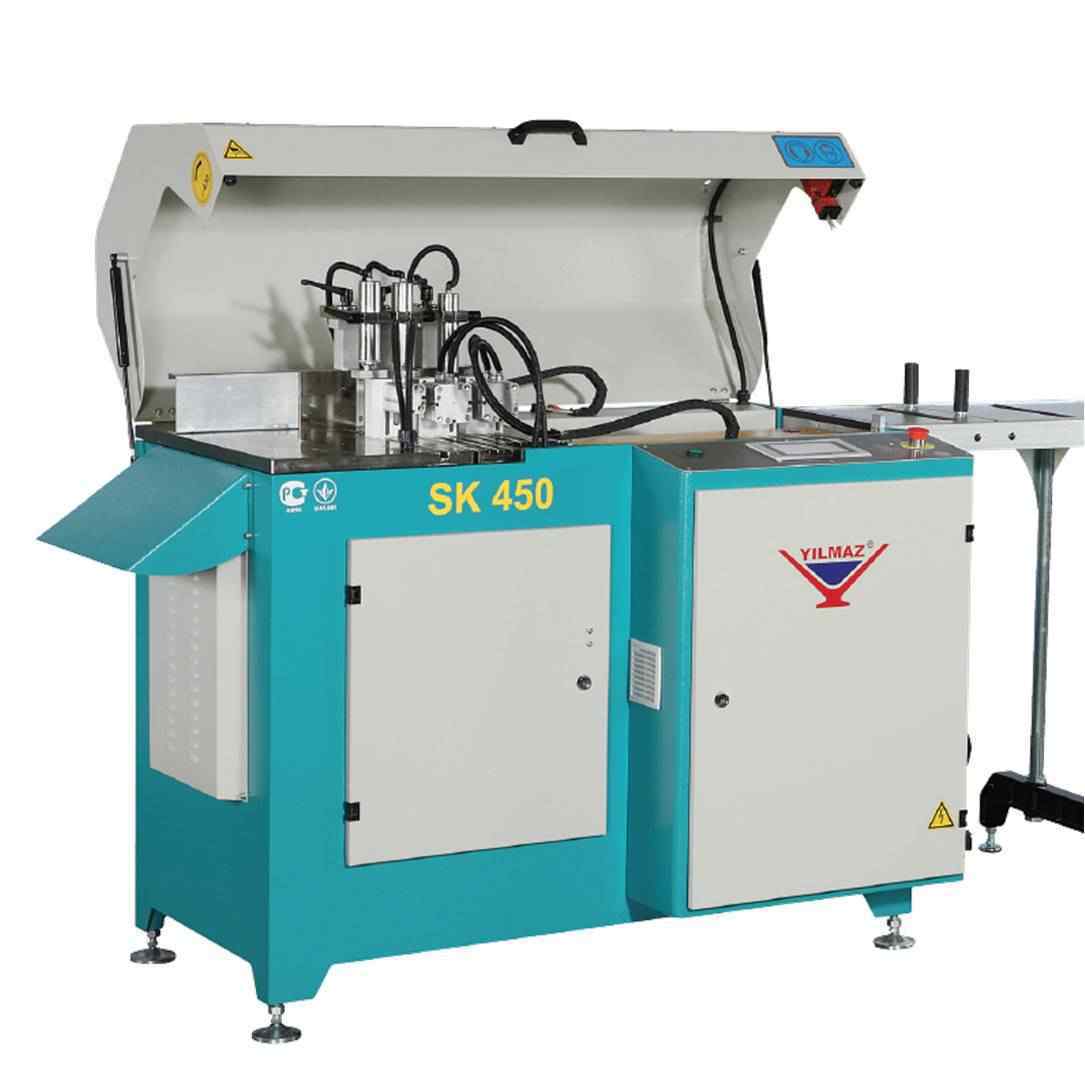

SK 450 is designed for the straight cutting operations of large profiles in PVC and aluminum by means of Ø450 mm saw blade at 90°. It is ideal for precision batch cutting operations.

• Suitable for high-volume cutting of aluminum profiles for window manufacturing and industrial applications
• High precision servo motors and internationally recognised components
• Time saving by means of servo controlled workpiece infeed speed and saw blade stroke
• Horizontal and vertical clamping of the workpiece during the sawing operation
• Automatic table retraction feature that moves the cut material a small amount after cutting to create a gap for the blade retraction to prevent 'back cutting'
• High cutting accuracy by means of the robust mechanical structure
• Programmable spray saw blade lubrication system via control panel
• Large memory capacity for cutting programs
• The machine shuts down automatically after reaching the requested quantity
• Operator safety guard equipped with interlock switch
• Feeding distance per cycle (5–600 mm) No limit for maximum dimension multifeed

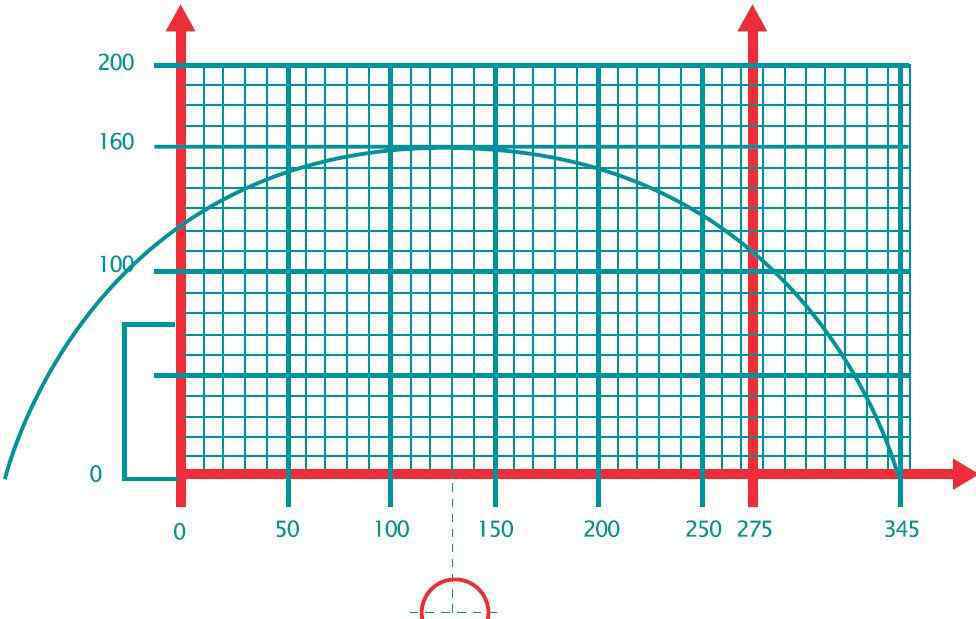

• Capacity: Height, 5mm - 170mm / Width 5mm - 270 mm

STANDARD ACCESSORIES

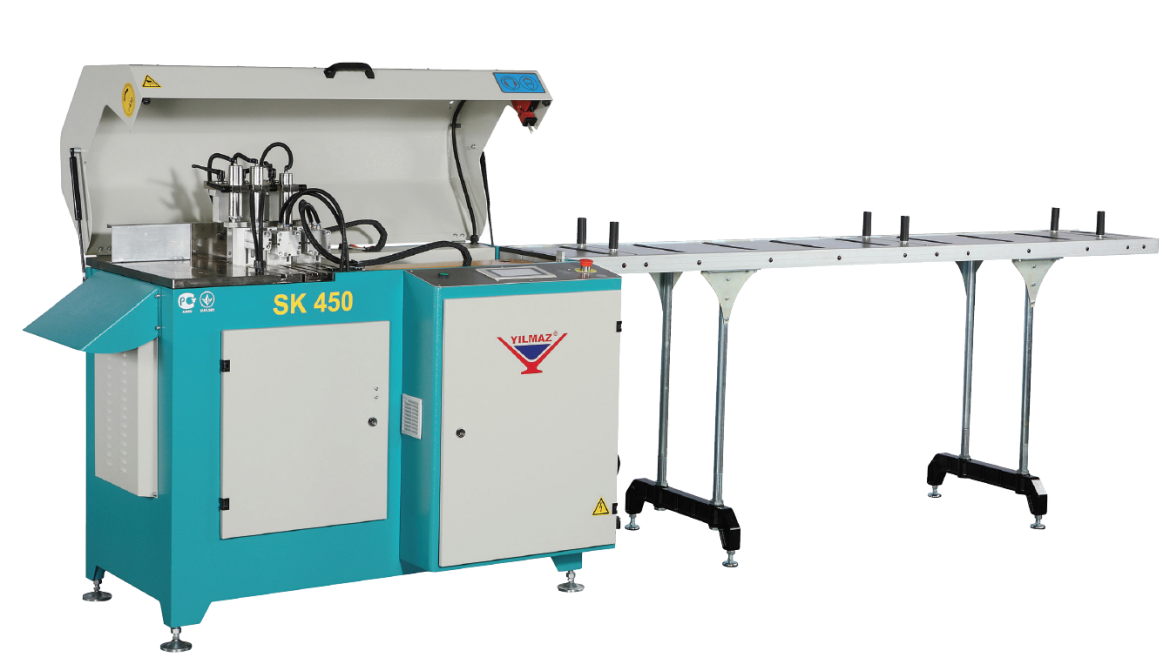

• Roller conveyor
• Equipped with saw blade Ø 450 mm
• Spray saw blade lubrication system
• Ball screw lubrication system
• Air gun
• 3x horizontal clamps
