Overview

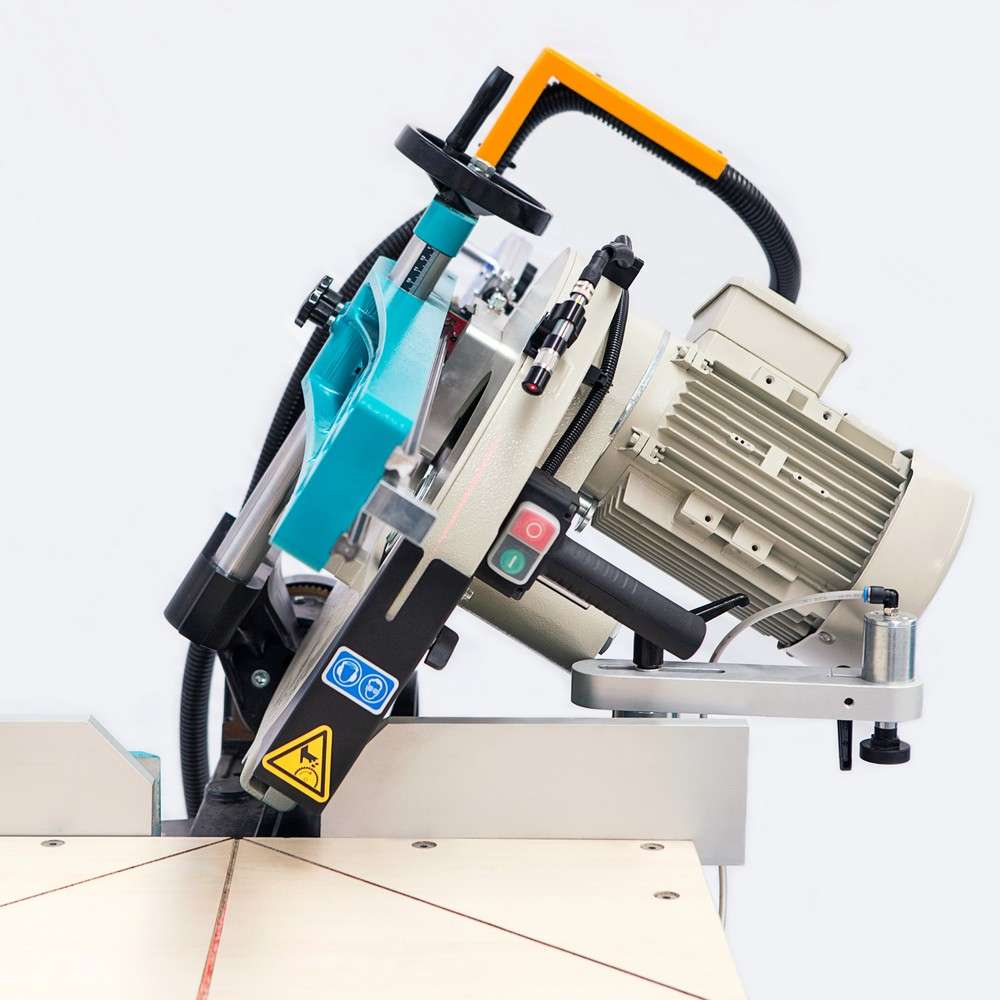

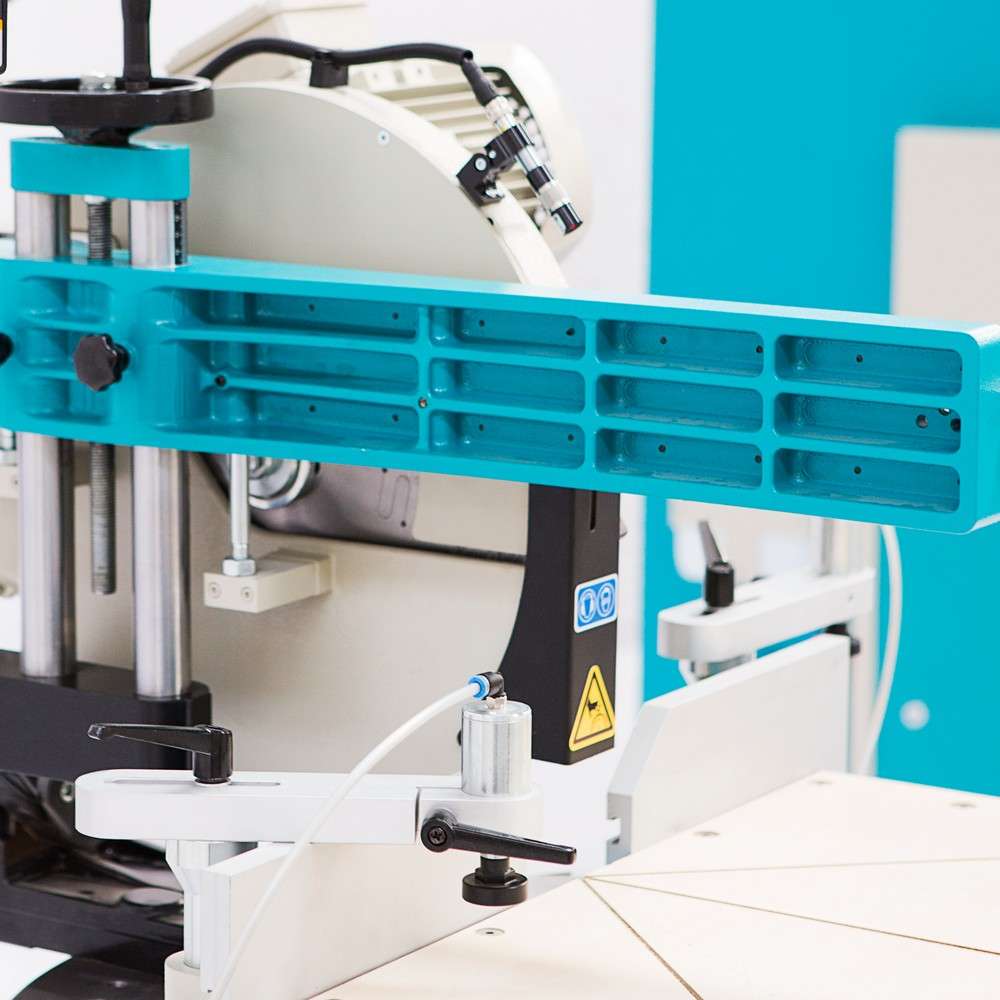

The YILMAZ RYK420 S Manual Radial Arm Circular Saw is designed for straight or angular cutting operations of aluminum and PVC materials by means of Ø 420mm diameter saw blade.
Standard Specification
- Allows straight and angular cuts by means of a rotating and tilting saw head.
- Powerful 2.2 kW, 3000 rpm motor
- Gas spring, linear bearings and ergonomic handle design provides smooth
- movement and high precision
- Heavy duty iron construction of the main body
- 2 x pneumatic vertical clamps
- Location points at -15°, -22.5°, -30°, -45°, -60°, -90°
- Pivoting range from 45° to 60° infinitely adjustable
- Tilting range from 90° to 45° left
- Spray saw blade lubrication system
- Dynamic motor brake unit (1.5 kW-7.5 kW)
- Laser line marker

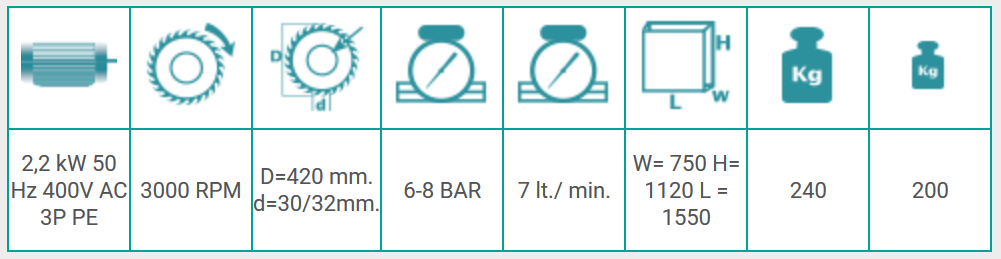

YILMAZ RYK420 S Technical Specifications
|
Manufacturer |
Yilmaz |
|
Machine Type |
Circular |
|
Operation Type |
Manual |
|
Material Type |
Aluminium |
|
Blade Size |
Ø420mm × 30/32 mm Bore |
|
Blade Speed |
2900 rpm |
|
Motor |
2.2 kW |
Notice: Function is_internal_meta_key was called incorrectly. Generic add/update/get meta methods should not be used for internal meta data, including "_weight". Use getters and setters. Backtrace: require('wp-blog-header.php'), require_once('wp-includes/template-loader.php'), include('/plugins/woocommerce/templates/single-product.php'), wc_get_template_part, load_template, require('/plugins/woocommerce/templates/content-single-product.php'), do_action('woocommerce_single_product_summary'), WP_Hook->do_action, WP_Hook->apply_filters, single_product_custom_template, prosaw_render_technical_specifications, prosaw_render_meta_row, prosaw_get_spec_value, WC_Data->get_meta, WC_Data->is_internal_meta_key, wc_doing_it_wrong Please see Debugging in WordPress for more information. (This message was added in version 3.2.0.) in /home/prosaw/public_html/wp-includes/functions.php on line 6260
|
Weight |
202255 |
|
Machine Dimensions |
1840 × 760 × 1590 mm |
|

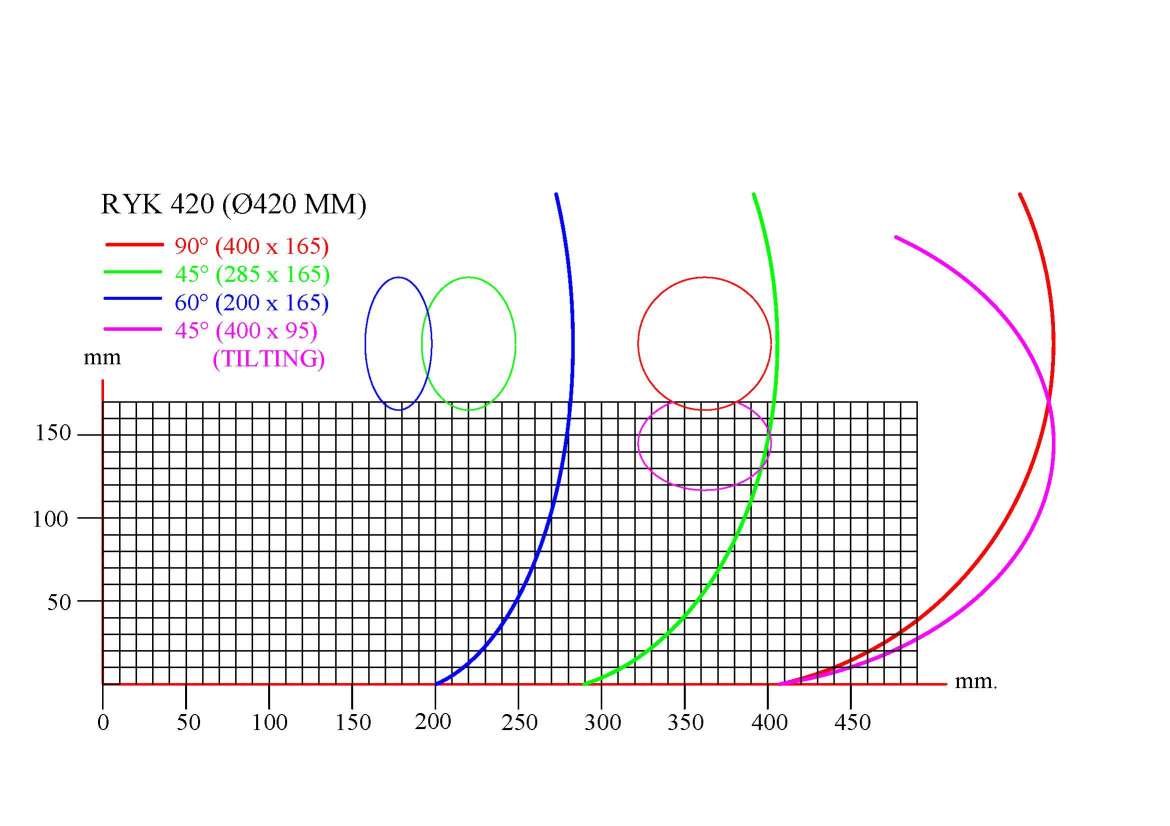

Material Type(s) |
Section |
|
90° |
45° Left |
45° Right |
60° Left |
60° Right |
|
Round Section (mm) |
165 mm |
|
|
|
|
|
Rectangular Section Horizontal (mm) |
400 x 165 mm |
285 x 165 mm |
|
200 x 165 mm |
|
