YILMAZ KD400PS
Machine Subcategory
Manual Circular Saws
Overview
The YILMAZ KD 400PS is designed for the straight or angular cutting operations of aluminum and PVC materials by means of Ø 400mm diameter saw blade.
Standard Specification
- 400 mm saw blade running at 3,000 rpm
- Location points at 45°-30°-22.5°-15°-0° both left and right
- 2 x pneumatic clamps
- Mist spray blade lubrication system
STANDARD ACCESSORIES
- Supplied complete with blade
Optional Features
- Additional saw blade Ø 400 mm
- Vertical pneumatic clamps
- Swarf Extractor
- Rollerways
- Measure stop
YILMAZ KD400PS Technical Specifications
| Manufacturer | Yilmaz |
|---|---|
| Machine Type | Circular Saw |
| Operation Type | Manual |
| Material Type | Aluminium |
| Material | Section |
| Blade Size | 400 |
| Blade Speed | 3,000 RPM |
| Motor | 2.2 kW |
| Weight | 159 |
| Machine Dimensions | 720 x 800X1490 |

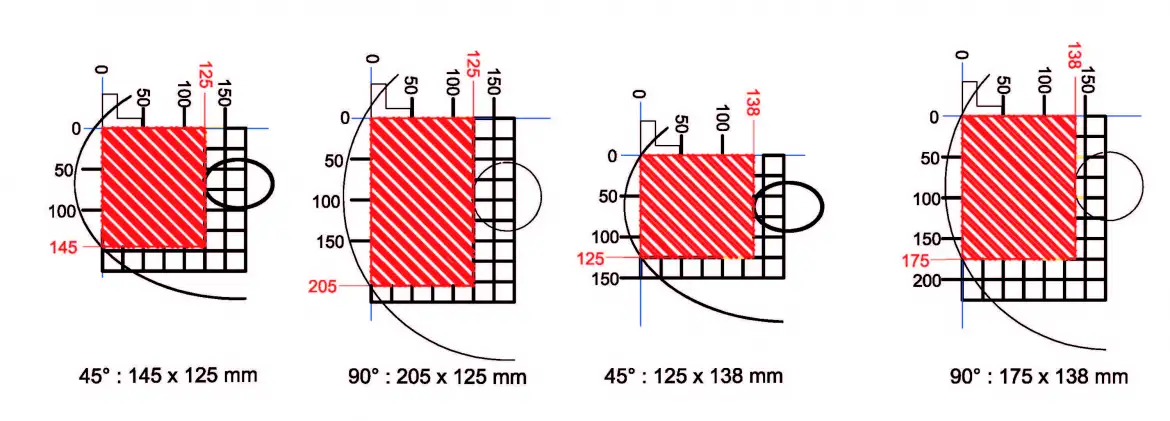

| 90° | 45° Left | 45° Right | 60° Left | 60° Right | |
| Round Section (mm) | 138 | 125 | 125 | ||
| Rectangular Section Horizontal (mm) | 205 x 125 | 145 x 125 | |||
| Rectangular Section Vertical (mm) |
|||||
| Square Section (mm) | 130 x 130 | 125 x 125 |
