AIM 3410 is 4-axis CNC controlled machining center which is designed for working of all kinds of aluminum & PVC profiles.

With the 4th axis feature, it can perform the machining operations on 3 surfaces of profiles. Quick tool changing is provided by the movable and in-line type magazine unite with 8 pcs of tool capacity.

The machine has automatic clamp recognition and positioning feature. The movable cabin of the machine is equipped with a door having a transparent polycarbonate window to facilitate the monitoring of the workpiece processing by the operator. Thus, the safe operation of the operator is ensured.

• Automation system providing CNC motion at 4-axis
• Tool magazine unite with the capacity of 7 pcs. of cutter tools and 1 pc. saw
  blade with Ø180 mm
• Automatic clamp recognition and positioning feature
• PLC controlled spray tool cooling unit
• 4 pcs. of automatic clamps to catch the workpieces firmly

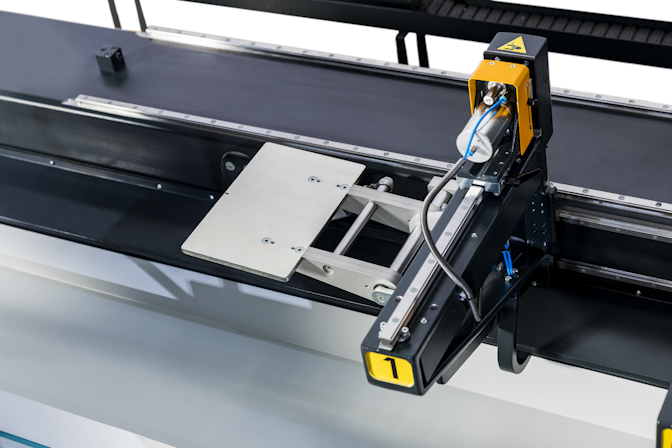

• 1x pneumatic rest used for resetting the workpiece in X direction (second is
  optional)
• Cartridge lubrication system for X, Y and Z axis
• Special CAM program developed by Yılmaz engineering team
• Operator safety barrier
• 15’’ colour touch screen
• Program import via USB flash memory stick
• Standard ISO ‘G’ code programming language
• Technical support capability via remote connection by computer
• Multi-language support
• Special sound insulation cabinet around the machining center
  Solid steel construction of the body and dynamic performance gantry
• LED lighting in the cabinet
