YILMAZ ACK420 S
Machine Subcategory
Semi-Auto Circular Saws
Overview
The YILMAZ ACK 420 S is designed for the straight or angular cutting operations of aluminum and PVC materials by means of Ø 420mm diameter saw blade.
Standard Specification
- 420 mm saw blade running at 3,000 rpm
- Two-hand safety operation
- Pivoting range from -75° left to +75°
- Stops at 75°,60°,45°,30°,22.5°,15°,0°, left and right
- Hydro-pneumatic saw feed
- Adjustable back fence for most effective use of the saw blade
- Adjustable blade feeding speed
- Manually opening safety guard
- Interior LED lighting
STANDARD ACCESSORIES

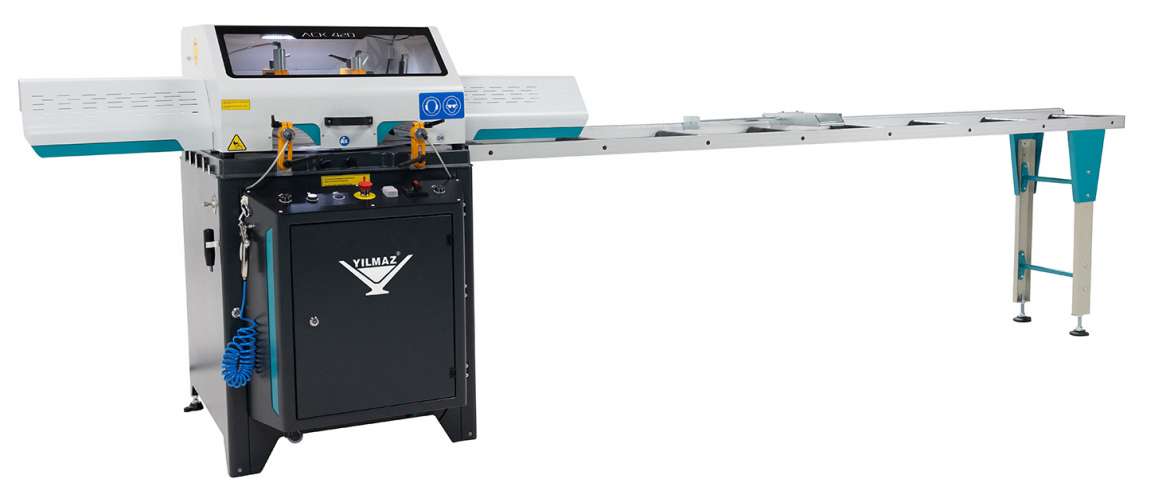

- 3m roller conveyor with manual stop
- 2 x vertical pneumatic clamps
- 2 x horizontal pneumatic clamps
- Mist spray blade lubrication system
- Air gun
- Supplied complete with blade
Optional Features
- Additional saw blade Ø 420 mm
- Ivision Iv3 Swarf extractor
- M330 Roller Conveyors
- Manual, DRO or NC Measuring

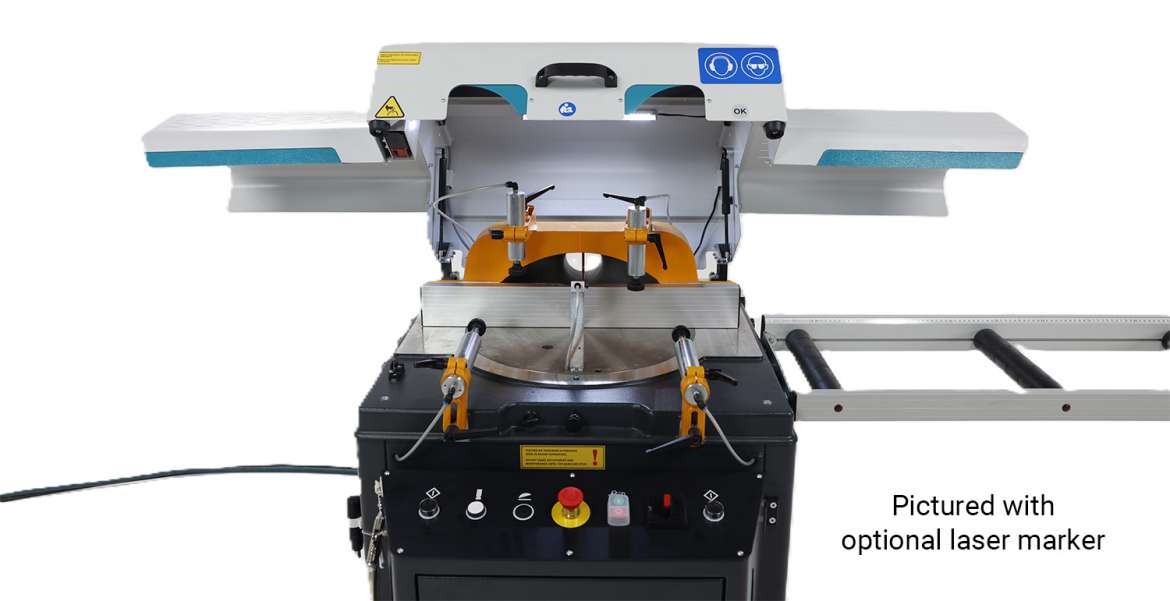

- Laser marker set for 90° of cutting operation
- Pneumatically working top guard

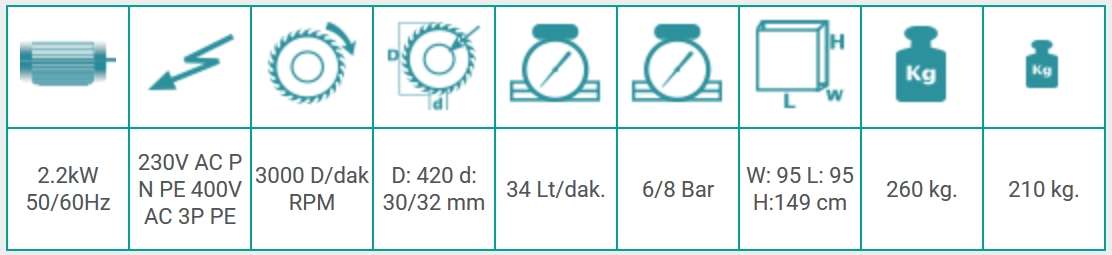

YILMAZ ACK420 S Technical Specifications
| Manufacturer | Yilmaz |
|---|---|
| Machine Type | Circular Saw |
| Operation Type | Semi-Automatic |
| Material | Section |
| Blade Size | 420 x 30/32 |
| Blade Speed | 3,000 rpm |
| Motor | 2.2kW |
| Weight | 210 |
