Waytrain UE460DSAE
Machine Subcategory
Semi-Automatic Horizontal Bandsaw
Overview
Semi-Automatic bandsaw with two way mitre up to 60 degrees. Variable blade speed, Hydraulic Vices and Powered Bow raise all as standard.
Standard Specification

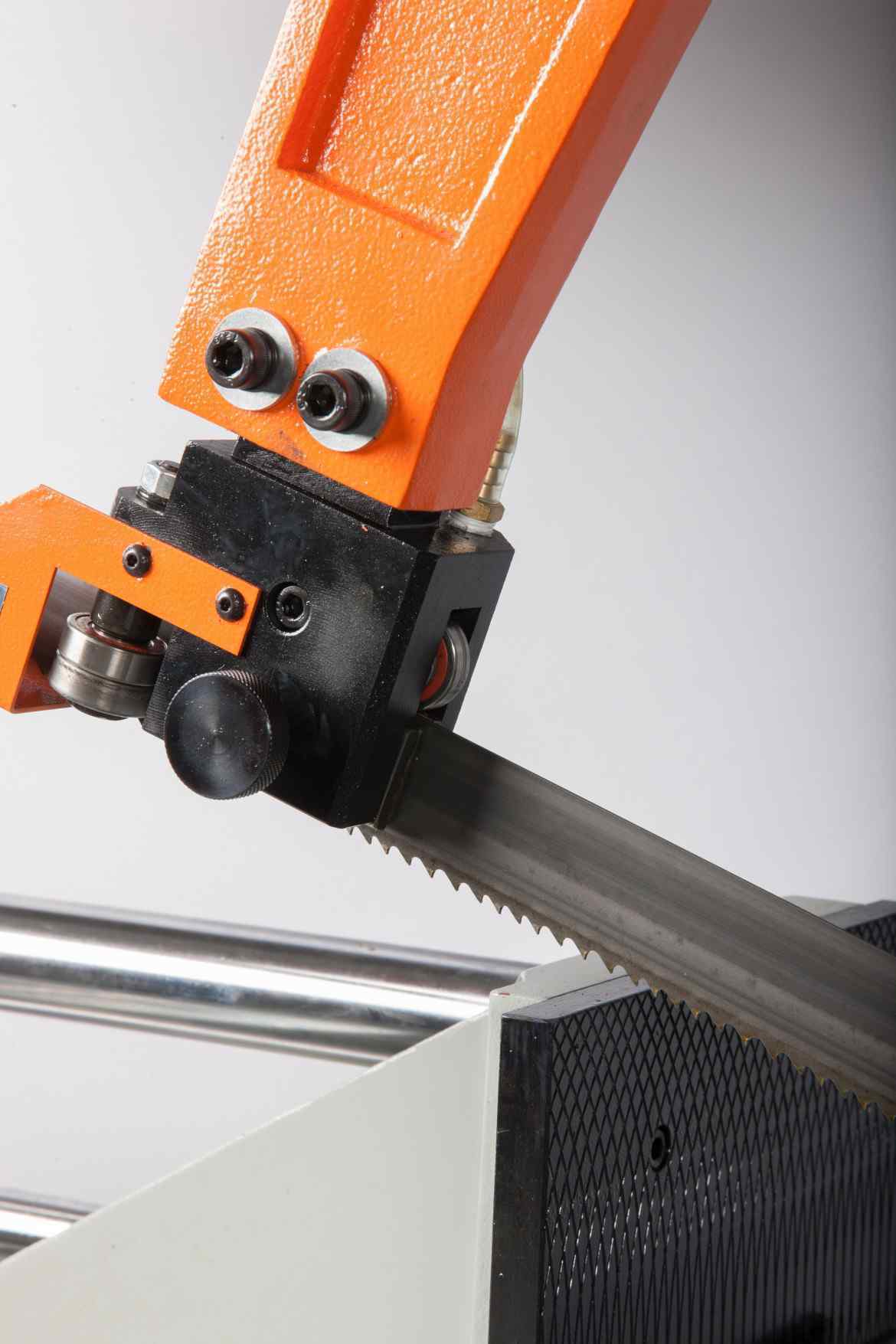

- Heavy duty bow, cast guide arms with carbide pads for fast accurate cutting
- Easy mitre 60° - 0 - 60°
- Full stoke hydraulic vice with vice pressure reduction
- Automatic head height setting
- Infinitely variable blade speed 26 – 80m/min
- Blade speed readout
- Variable downfeed control
- Laser line for accurate material positioning

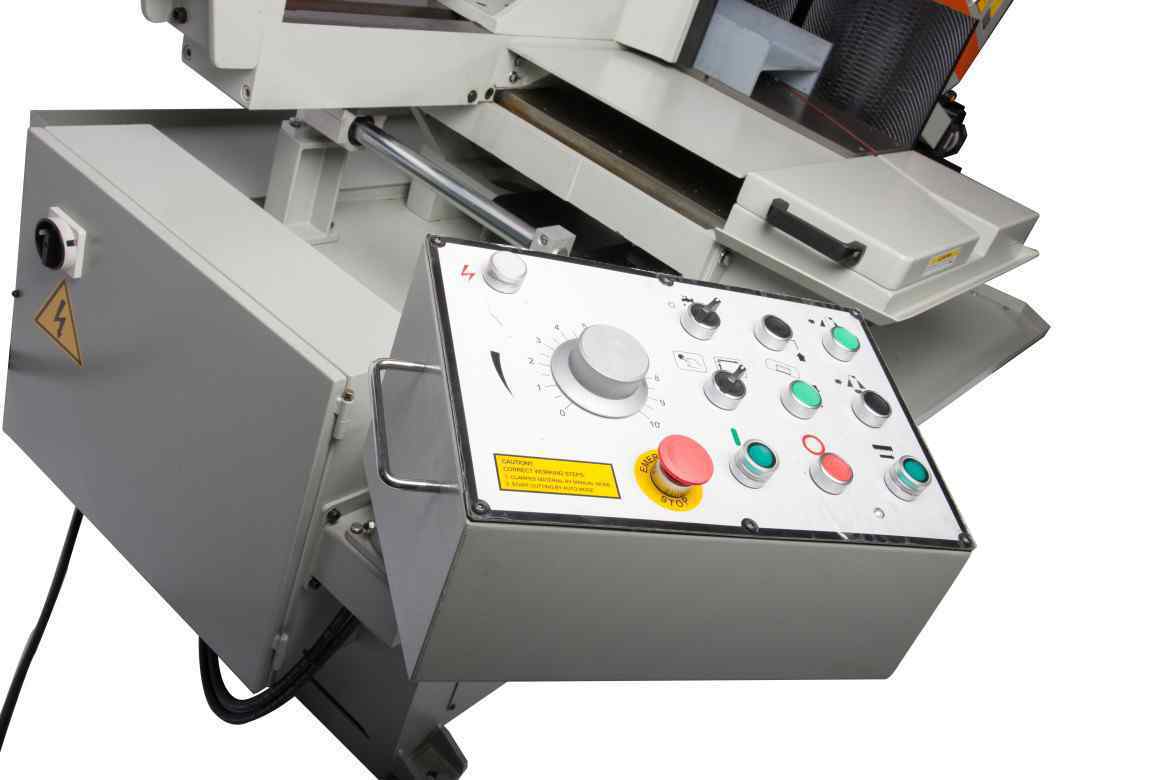

- Swivelling control box
- Motor driven chip brush
Get in touch +44 (0)1536 410999
Waytrain UE460DSAE Technical Specifications
| Manufacturer | Temelsan |
|---|---|
| Machine Type | Bandsaw |
| Blade Size | 5330mm × 41mm × 1.3mm |
| Blade Speed | Variable speed - 26~80m/min |
| Table Height | 880mm |
| Motor | 3.7kW |
| Hydraulic Tank | 15 litres |
| Coolant Tank | 55 litres |
| Weight | 1320 |
| Material Type(s) | Section |
| Material(s) | Sections |
| 90° | 45° Left | 45° Right | 60° Left | 60° Right | |
|---|---|---|---|---|---|
| Round Section (mm) | 460mm | 445mm | 445mm | 295mm | 295mm |
| Rectangular Section Horizontal (mm) | 640x360mm | ||||
| Rectangular Section Vertical (mm) | 600x440mm | ||||
| Square Section (mm) | 460x460mm | 445x445mm | 445x445mm | 295x295mm | 295x295mm |
