WAYTRAIN UE331DSAE
Machine Subcategory

Semi-Automatic Horizontal Bandsaw

Overview

Semi-Automatic bandsaw with two way mitre up to 60 degrees. Variable blade speed, Hydraulic Vices and Powered Bow raise all as standard.

Standard Specification

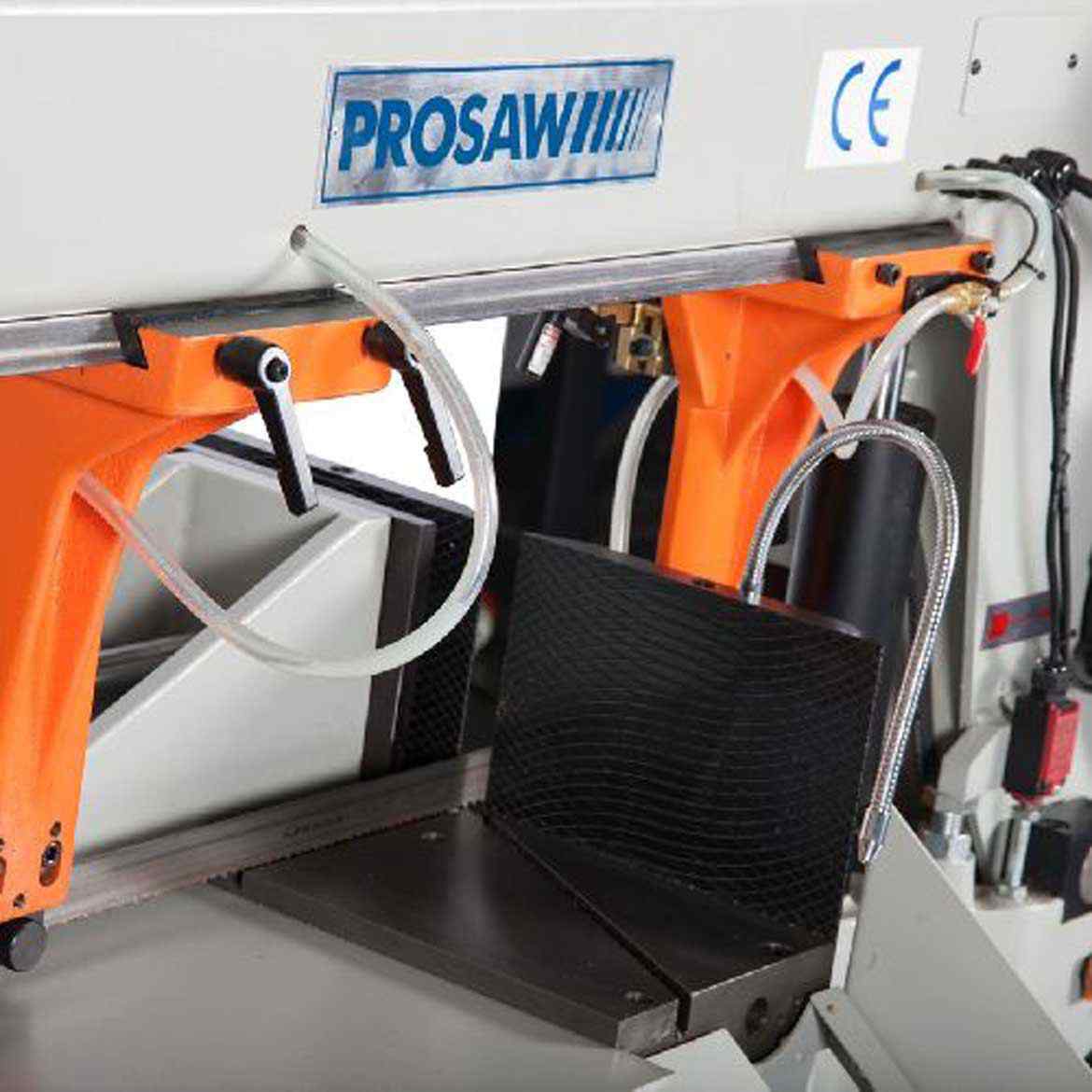

  • Heavy duty bow, cast guide arms with carbide pads for fast accurate cutting
  • Easy mitre 60° - 0 - 60°
  • Full stoke hydraulic vice with vice pressure reduction
  • Automatic head height setting

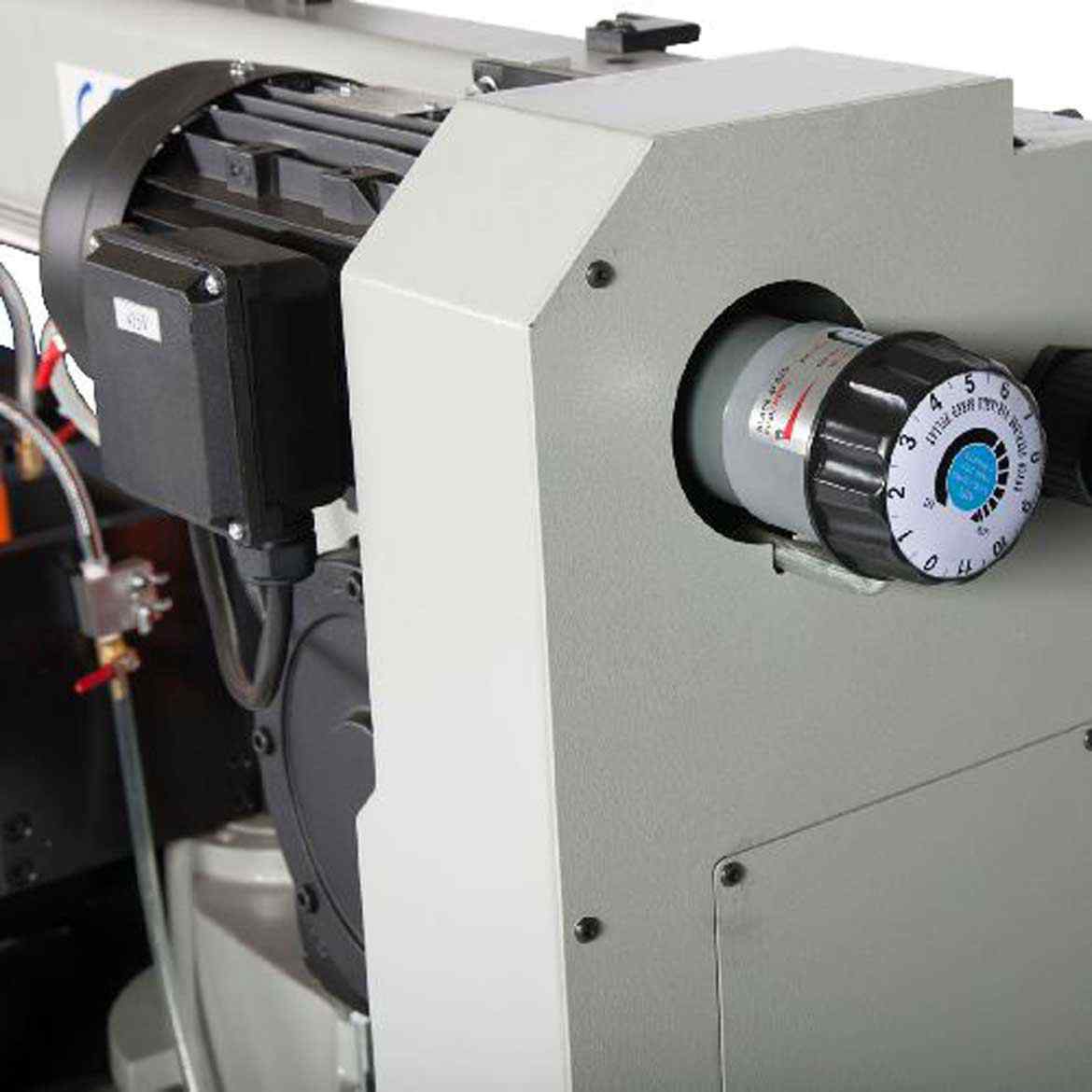

  • Infinitely variable blade speed 32 – 96m/min
  • Blade speed readout
  • Variable downfeed control
  • Swivelling control box
  • Motor driven chip brush
Get in touch +44 (0)1536 410999
WAYTRAIN UE331DSAE Technical Specifications

Notice: Function is_internal_meta_key was called incorrectly. Generic add/update/get meta methods should not be used for internal meta data, including "_weight". Use getters and setters. Backtrace: require('wp-blog-header.php'), require_once('wp-includes/template-loader.php'), include('/plugins/woocommerce/templates/single-product.php'), wc_get_template_part, load_template, require('/plugins/woocommerce/templates/content-single-product.php'), do_action('woocommerce_single_product_summary'), WP_Hook->do_action, WP_Hook->apply_filters, single_product_custom_template, prosaw_render_technical_specifications, prosaw_render_meta_row, prosaw_get_spec_value, WC_Data->get_meta, WC_Data->is_internal_meta_key, wc_doing_it_wrong Please see Debugging in WordPress for more information. (This message was added in version 3.2.0.) in /home/prosaw/public_html/wp-includes/functions.php on line 6260
Manufacturer Temelsan
Machine Type Bandsaw
Blade Size 4180mm × 34mm × 1.1mm
Blade Speed Variable speed - 26~80m/min
Motor 2.2kW
Hydraulic Tank 12 litres
Coolant Tank 52 litres
Weight 850
Material Type(s) Section
Material(s) Sections
90° 45° Left 45° Right 60° Left 60° Right
Round Section (mm) 331mm 315mm 215mm
Rectangular Section Horizontal (mm) 510x260mm 315x195mm
Rectangular Section Vertical (mm) 485x320mm
Square Section (mm) 315x315mm
SKU: 135 Category:
