WAYTRAIN UE330SA
Machine Subcategory
Semi-Automatic Horizontal Bandsaw
Overview
A Heavy Duty manual bandsaw with an array of features including Powered Bow Raise, Variable Blade Speed, 34mm wide blade and Laser Cutting Line.
Standard Specification

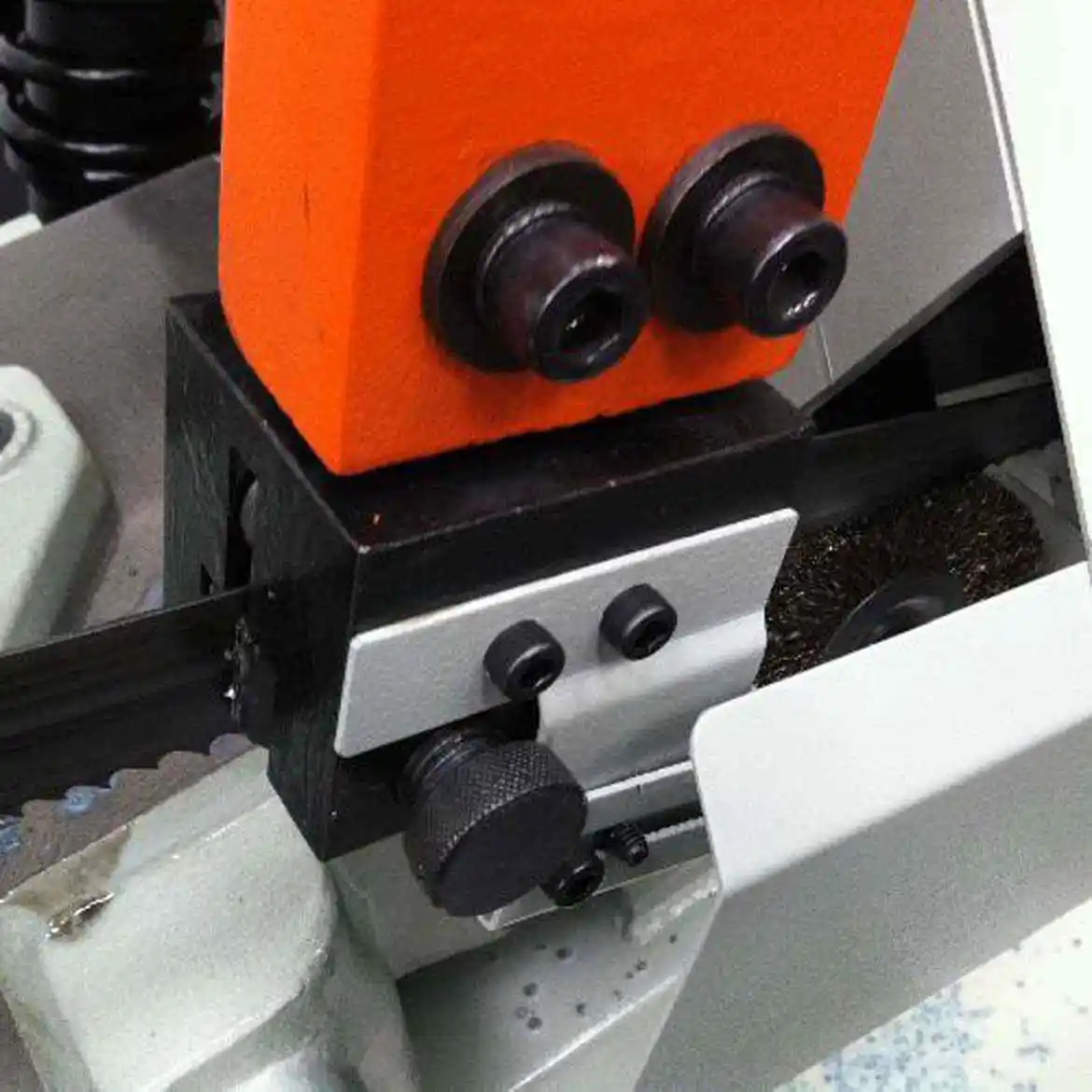

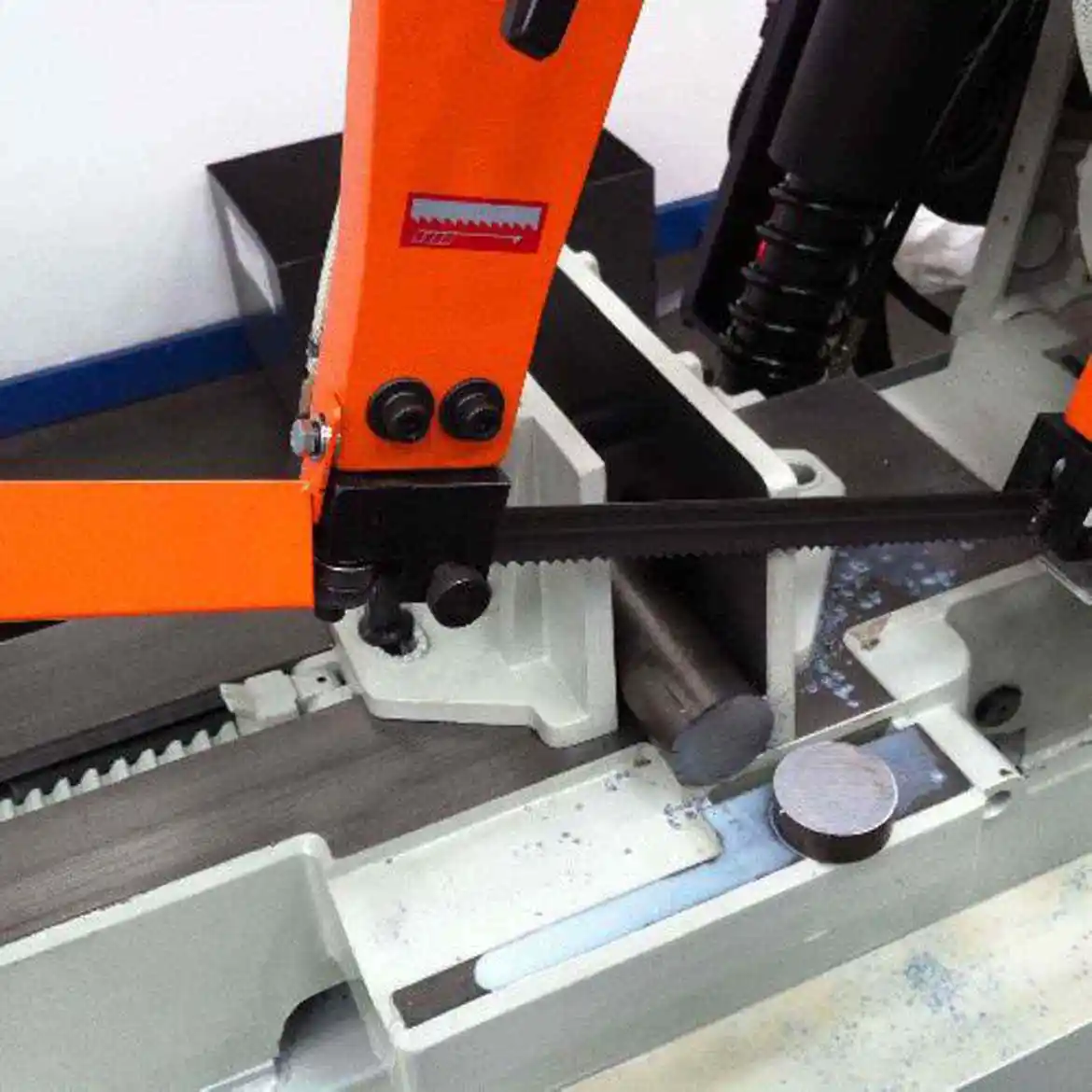

- 34mm blade combined with cast guide arms and carbide pads for fast, accurate cutting

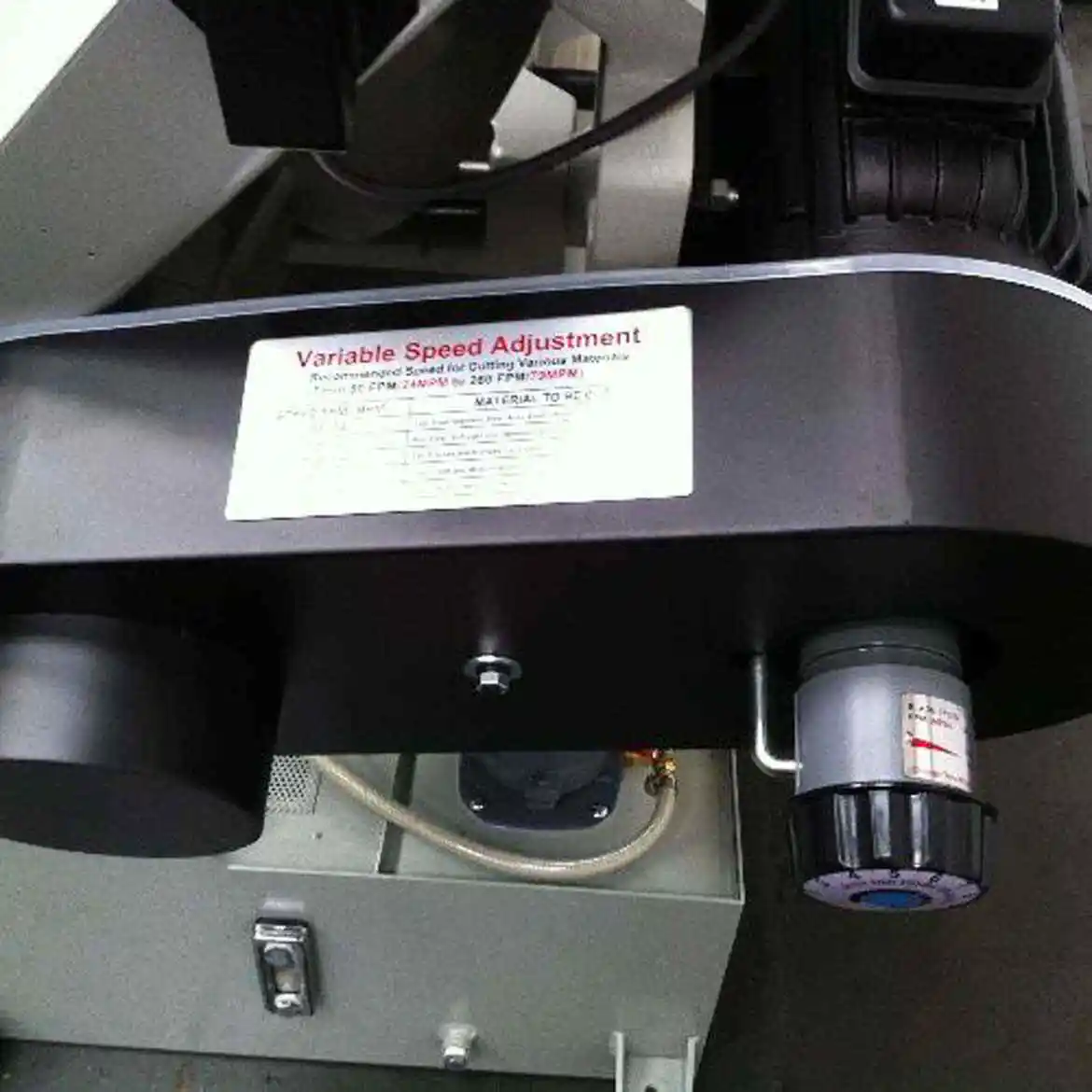

- Infinitely variable blade speed
- Variable downfeed control
- Powered bow lift
- Laser for precise material positioning
- Rigid heavy bow assists smooth descent

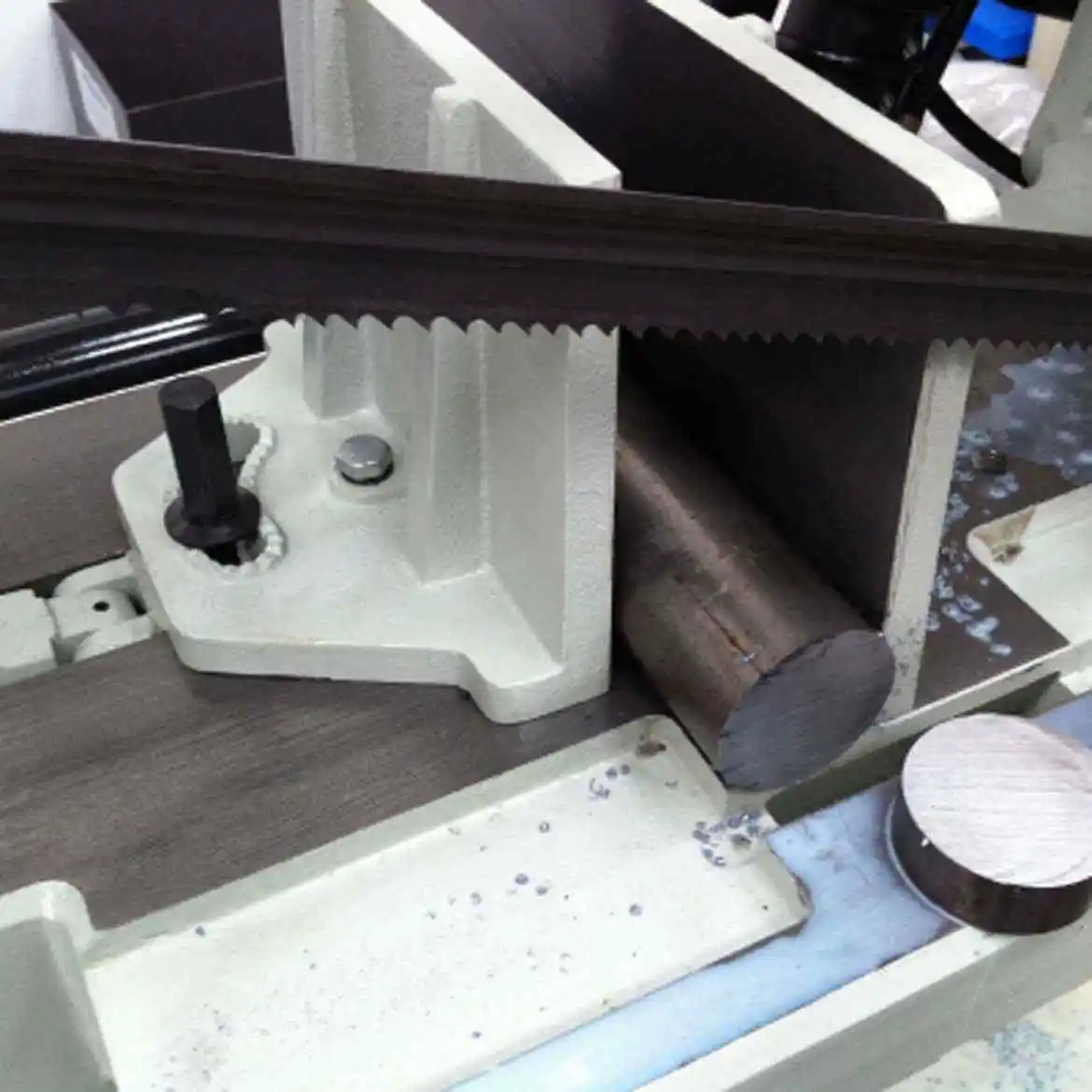

- Quick action vice with rack & pawl system for fast clamping
- Roller bearings and carbide pads ensure accurate straight cuts

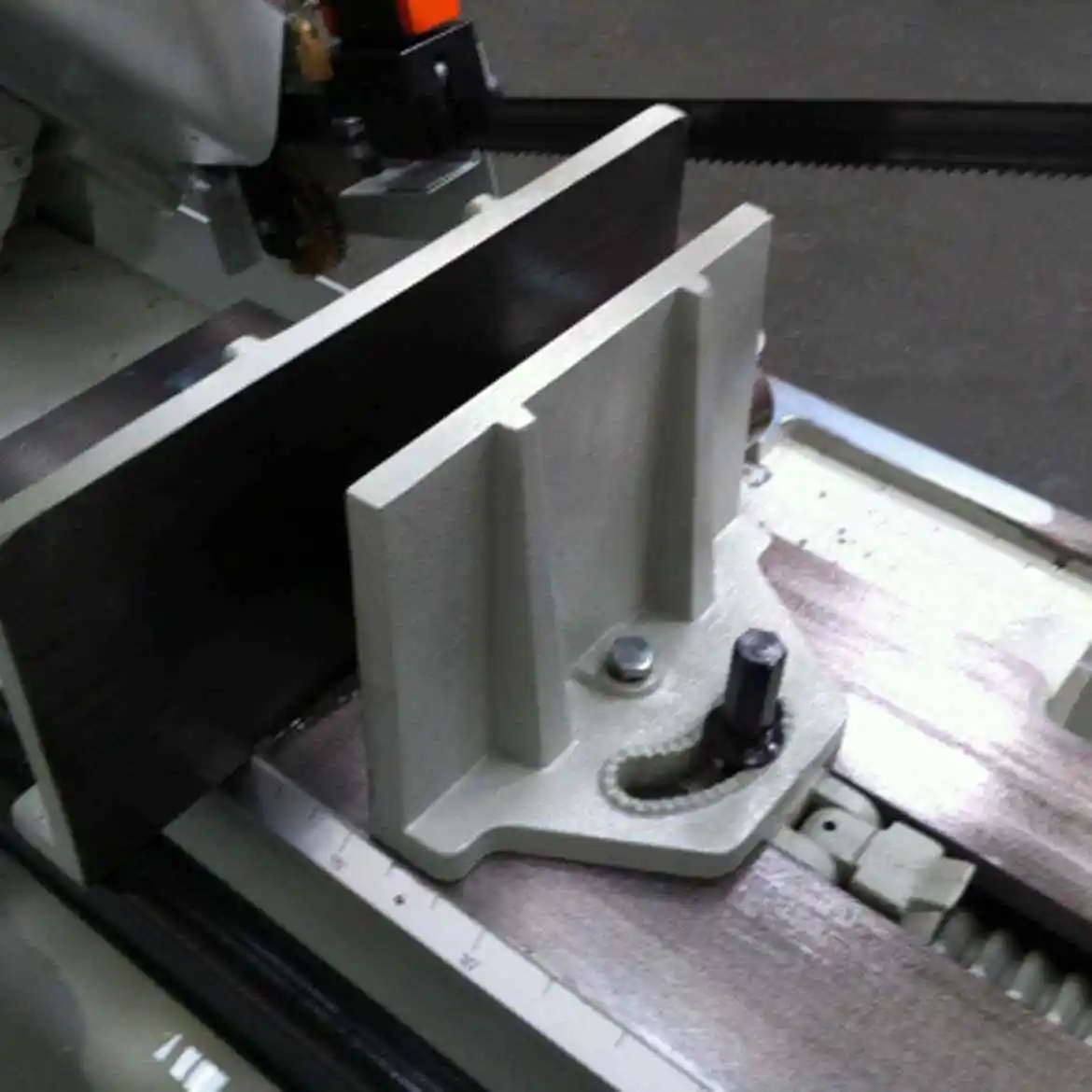

- Vices swivel to 45° mitre

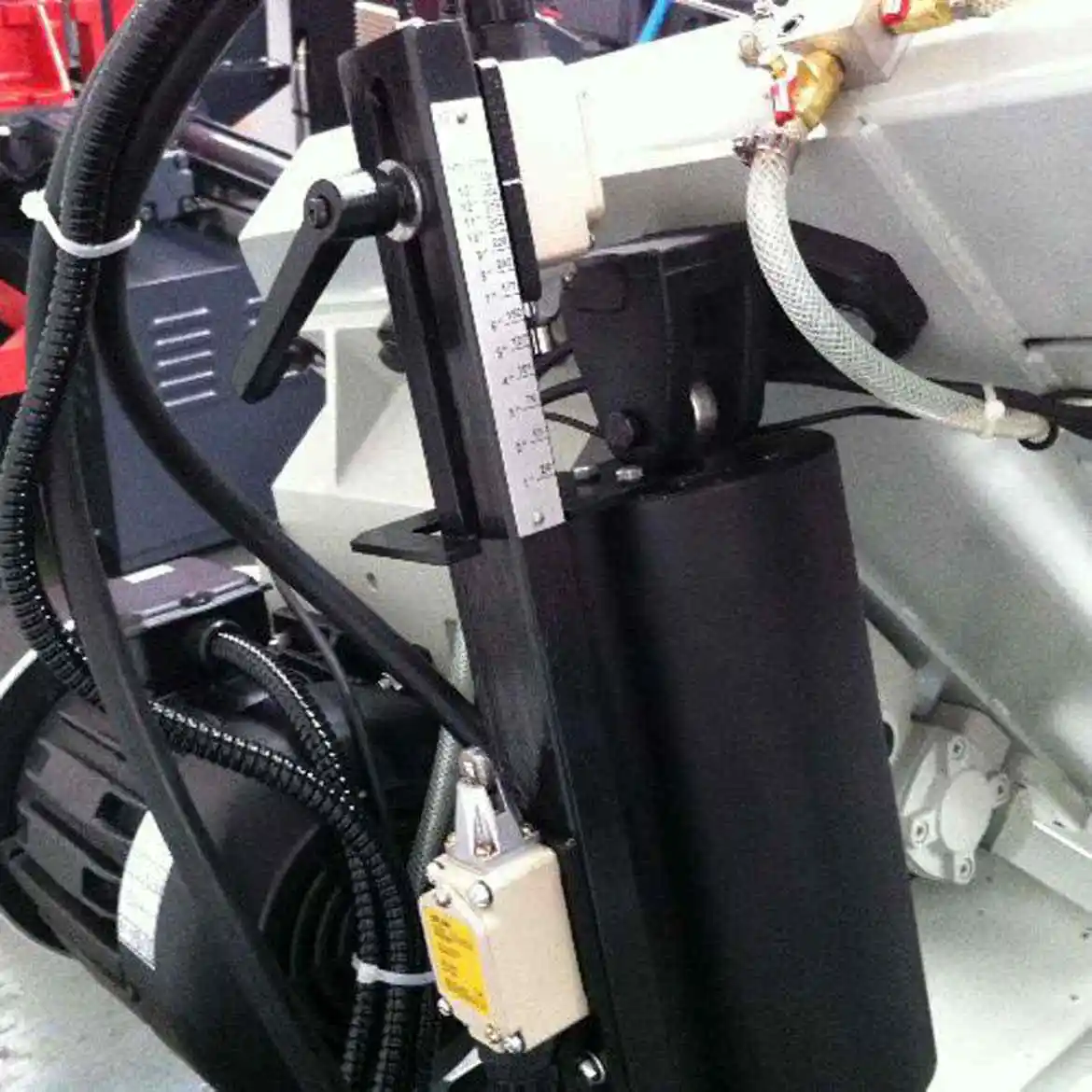

- Large downfeed control cylinder for precise cutting control

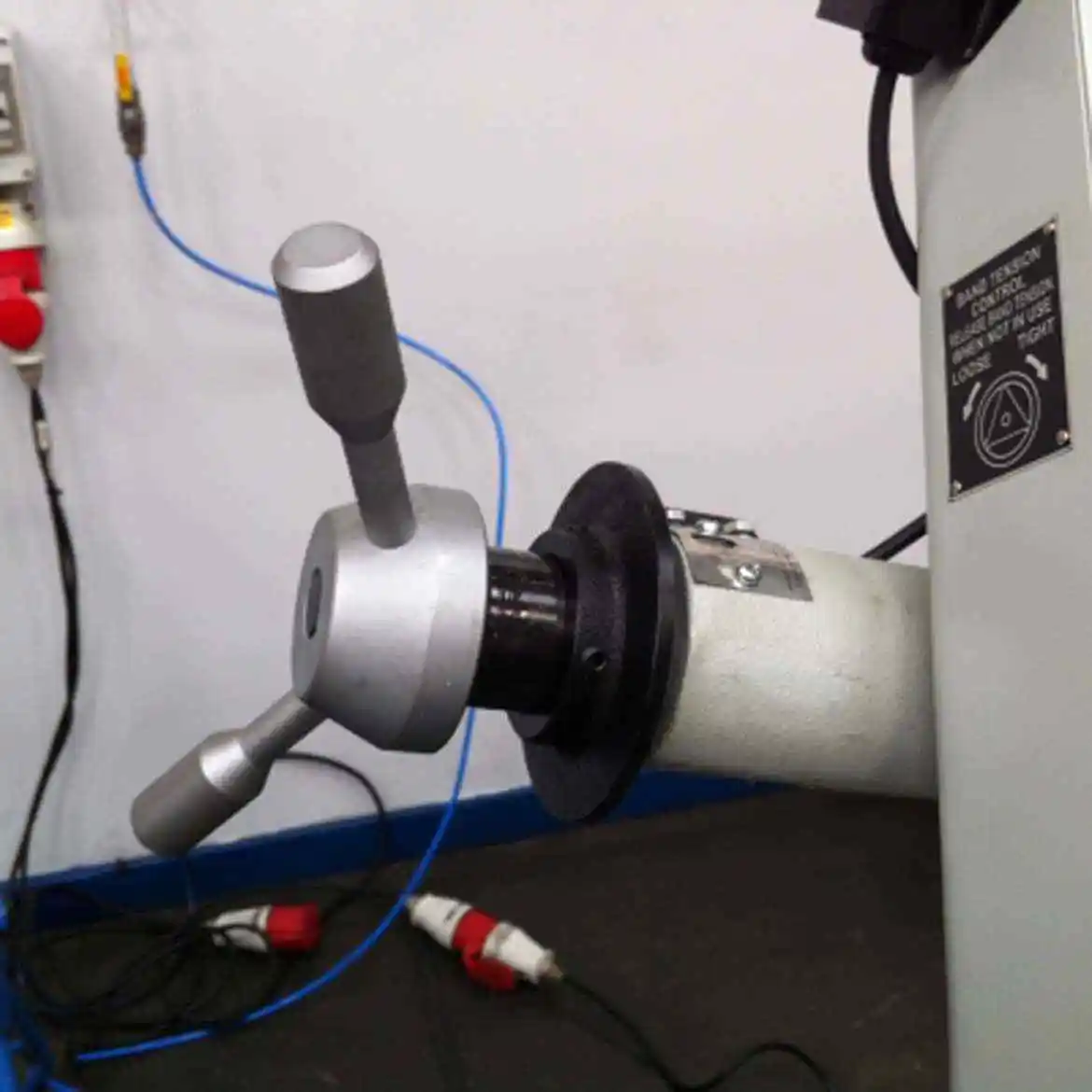

- Heavy duty blade tension assembly, with marker for correct setting
- Electrically interlocked blade guards
Get in touch +44 (0)1536 410999
WAYTRAIN UE330SA Technical Specifications
| Manufacturer | Temelsan |
|---|---|
| Machine Type | Bandsaw |
| Blade Size | 4100mm × 34mm × 1.1mm |
| Blade Speed | Variable speed 20~80 m/min |
| Table Height | 725mm |
| Motor | 3hp |
| Weight | 600 |
| Material Type(s) | Section, Solid |
| Material(s) | Sections, Solids |
| 90° | 45° Left | 45° Right | 60° Left | 60° Right | |
|---|---|---|---|---|---|
| Round Section (mm) | 330mm | 255mm | |||
| Rectangular Section Horizontal (mm) | 530x225mm | 280x255mm | |||
| Rectangular Section Vertical (mm) | 480x330mm |
