WAYTRAIN UE250V
Machine Subcategory
Manual Horizontal Bandsaw
Overview
Heavy duty horizontal bandsaw with mitre cutting
Standard Specification
- Rigid heavy bow assists smooth descent
- Strong, cast guide arms – both adjustable according to material size

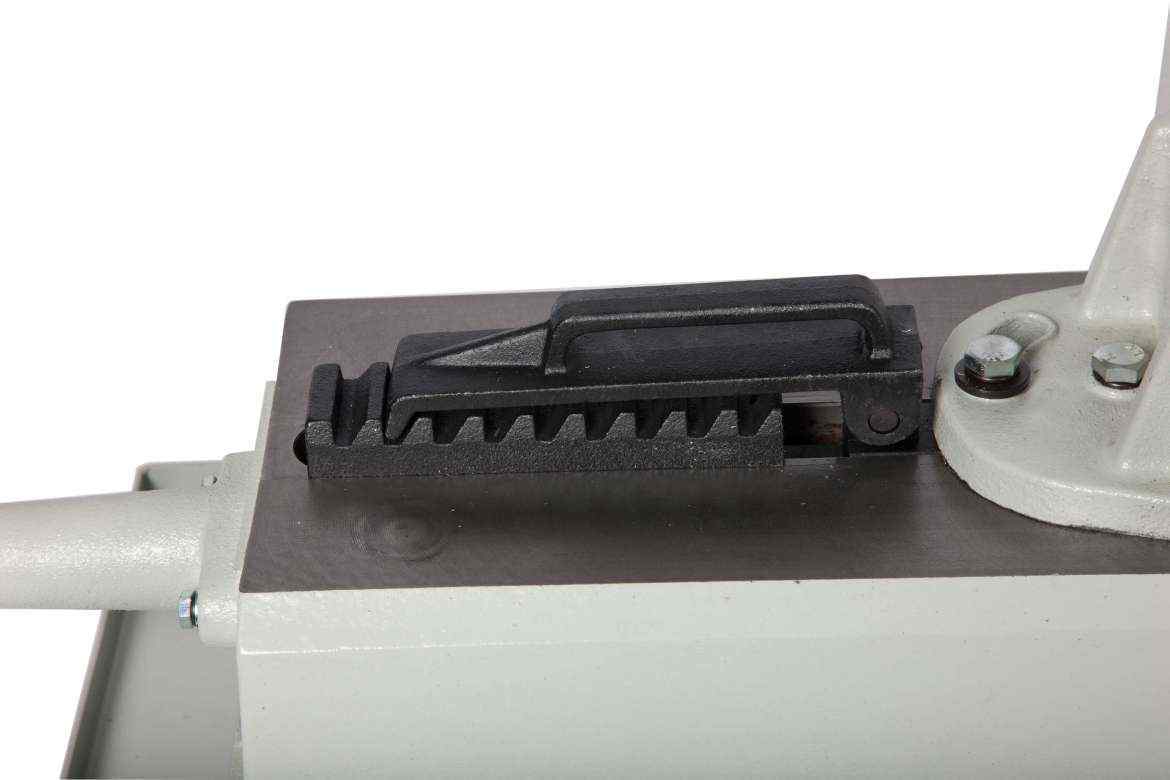

- Quick action vice with rack & pawl system for fast clamping
- Roller bearings and carbide pads ensure accurate straight cuts

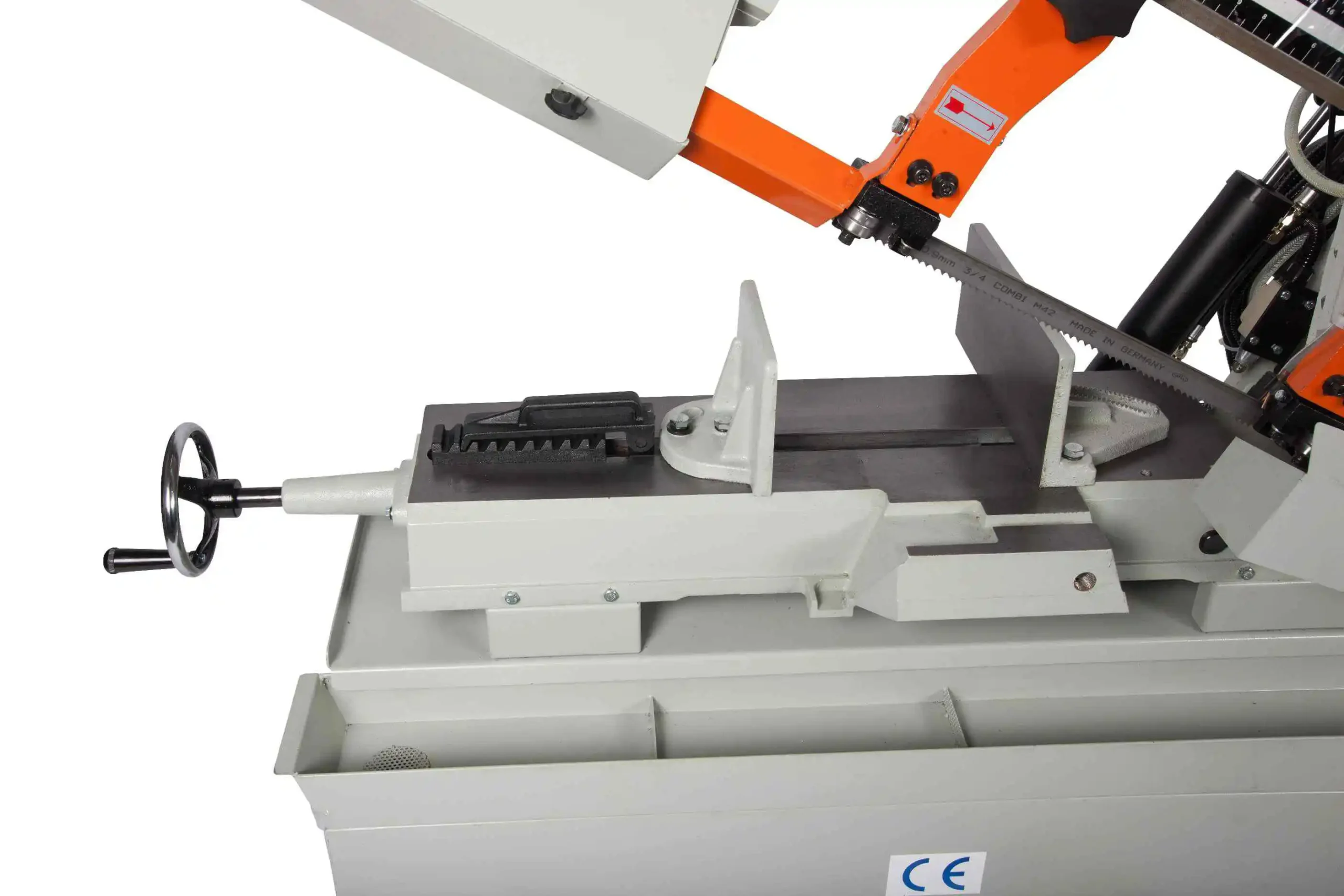

- Vices swivel to 45° mitre
- Large downfeed control cylinder for precise cutting control
- Heavy duty blade tension assembly, with marker for correct setting

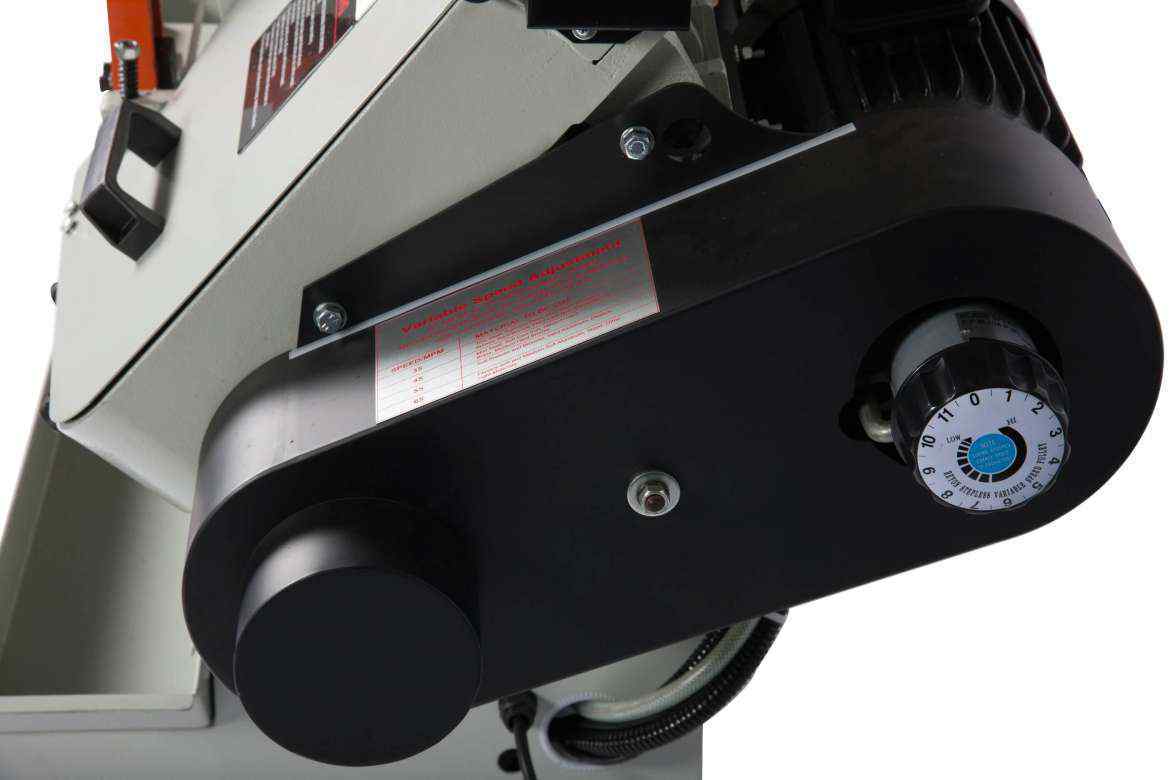

- Blade speeds: 25~75m/min
- Electrically interlocked blade guards
WAYTRAIN UE250V Technical Specifications
| Manufacturer | Waytrain |
|---|---|
| Machine Type | Bandsaw |
| Operation Type | Manual |
| Material Types | Ferrous, Non-Ferrous, Sections, Solids |
| Material | Solid |
| Blade Size | 3300 x 27 x 0.9 |
| Blade Speed | 25~75 m/min |
| Table Height | 600mm |
| Motor | 2hp |
| Weight | 320 |
| 90° | 45° Left | 45° Right | 60° Left | 60° Right | |
| Round Section (mm) | 250 | 190 | |||
| Rectangular Section Horizontal (mm) | 450 x 200 | 250 x 190 | |||
| Rectangular Section Vertical (mm) |
415 x 250 | ||||
| Square Section (mm) |
