Overview

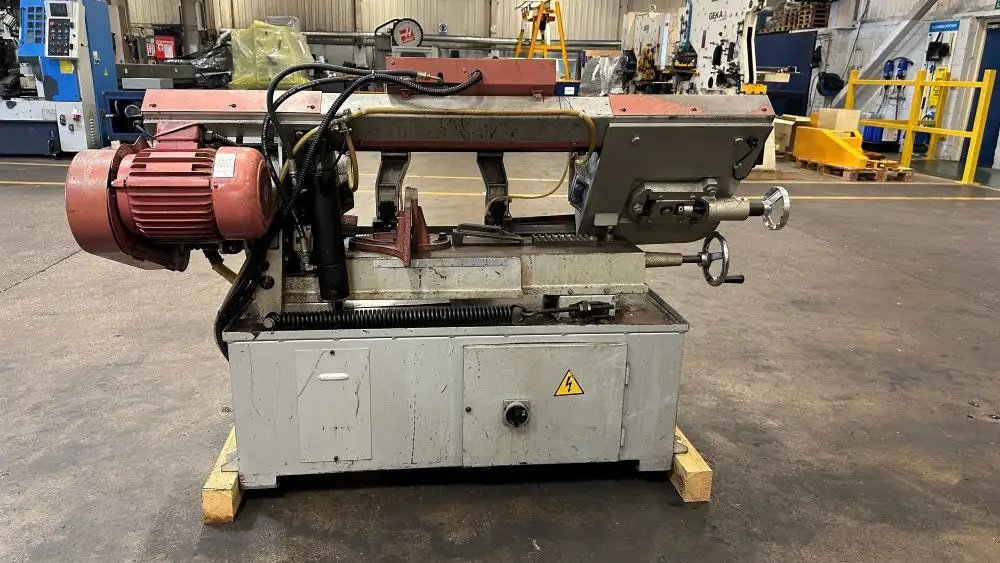

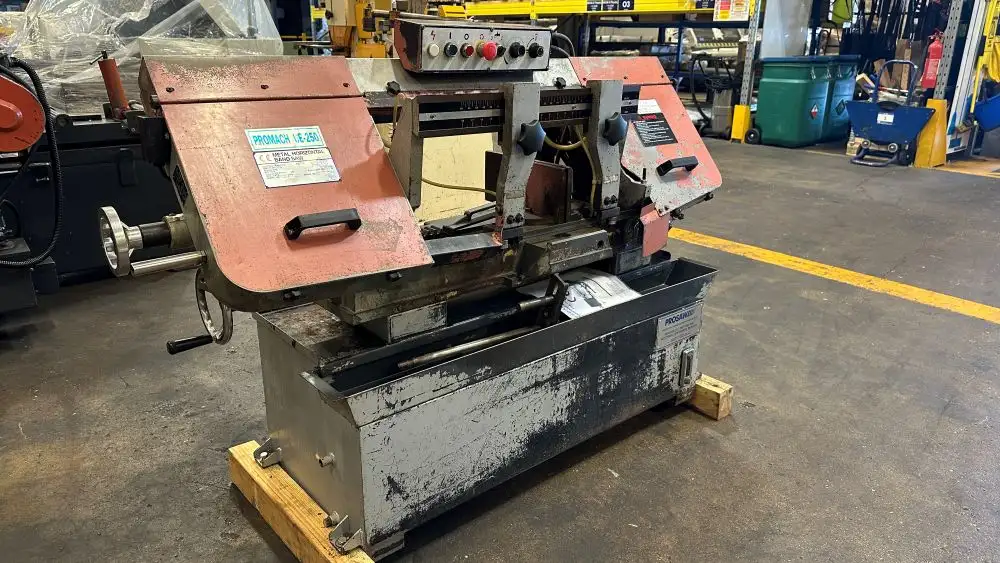

Used Waytrain UE250A Manual Bandsaw. Serial No. 08012176 Year. 2008
Standard Specification
- Rigid heavy bow assists smooth descent
- Strong, cast guide arms – both adjustable according to material size
- Quick action vice with rack & pawl system for fast clamping
- Roller bearings and carbide pads ensure accurate straight cuts
- Vices swivel to 45° mitre
- Large downfeed control cylinder for precise cutting control
- Heavy duty blade tension assembly, with marker for correct setting
- Blade speeds: 21, 33, 43 & 59m/min
- Electrically interlocked blade guards
Used Waytrain UE250A Bandsaw Technical Specifications
|
Manufacturer |
JLH |
|
Machine Type |
Bandsaw |
|
Operation Type |
Manual |
|
Material Type |
Solid, section |
|
Blade Size |
3300 × 27 × 0.9 |
|
Blade Speed |
21,33,43 & 59 m/min |
Notice: Function is_internal_meta_key was called incorrectly. Generic add/update/get meta methods should not be used for internal meta data, including "_weight". Use getters and setters. Backtrace: require('wp-blog-header.php'), require_once('wp-includes/template-loader.php'), include('/plugins/woocommerce/templates/single-product.php'), wc_get_template_part, load_template, require('/plugins/woocommerce/templates/content-single-product.php'), do_action('woocommerce_single_product_summary'), WP_Hook->do_action, WP_Hook->apply_filters, single_product_custom_template, prosaw_render_technical_specifications, prosaw_render_meta_row, prosaw_get_spec_value, WC_Data->get_meta, WC_Data->is_internal_meta_key, wc_doing_it_wrong Please see Debugging in WordPress for more information. (This message was added in version 3.2.0.) in /home/prosaw/public_html/wp-includes/functions.php on line 6260
|
Machine Dimensions |
1750 × 570 × 1080 |
|
90° |
45° Left |
45° Right |
60° Left |
60° Right |
|
Round Section (mm) |
250mm |
|
190mm |
|
|
|
Rectangular Section Horizontal (mm) |
450x200mm |
|
250x190mm |
|
|
|
Rectangular Section Vertical (mm) |
415x250mm |
|
|
|
|
|
Solid Round 90 |
250mm |
