Used MEGA CS-150S Carbide Saw

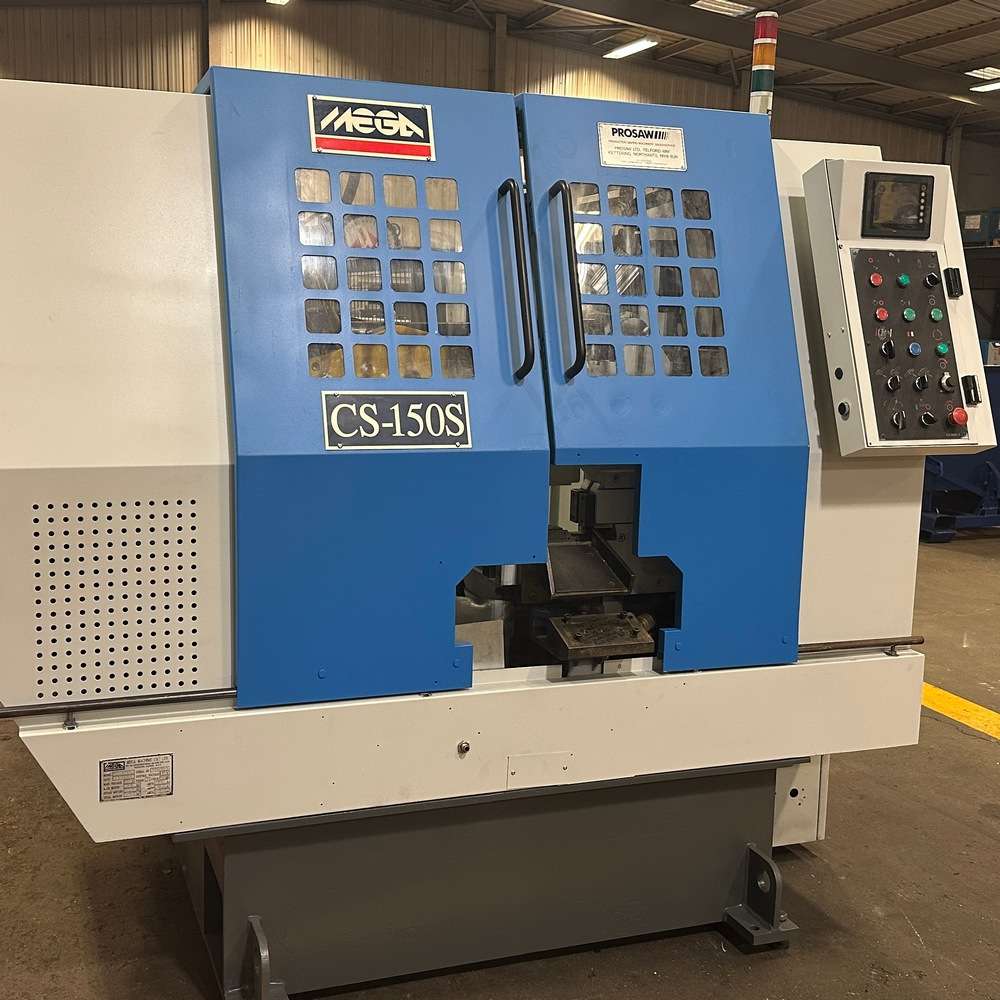

Used MEGA CS-150S Carbide Saw

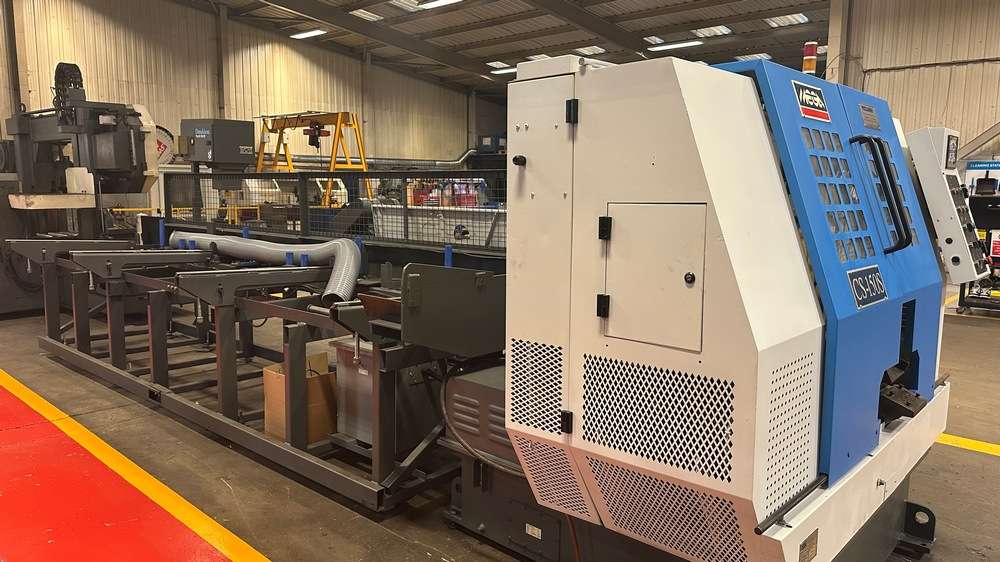

Used MEGA CS-150S Carbide Saw - Image 2

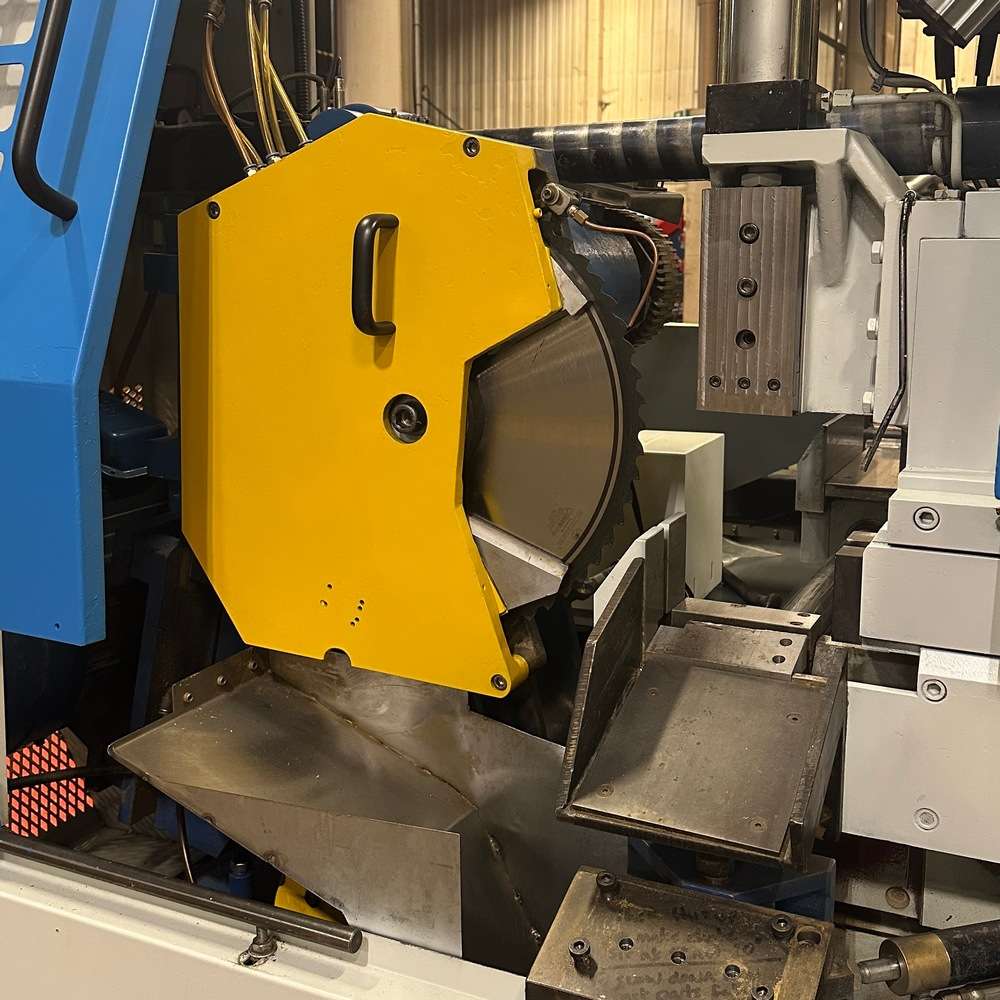

Used MEGA CS-150S Carbide Saw - Image 3
Overview

Used MEGA CS-150S Cabide Saw. Serial No. 080909 Year 2008.

Standard Specification

Cutting head - Heavy duty gear transmission specifically designed for carbide blade sawing

Continuous lubrication - Unique design to minimise vibration improving quality of cut and blade life

Motor - Powerful 20HP motor (415v, 3ph., 50c) Efficient gear train reduces power consumption to a minimum. Constant power read-out on main control panel. Overload protection

Material feed - NC servo motor and ball screw feeder for precision accuracy. Floating rear vice assembly. Standard feed length 10-600mm, multipass standard

Magazine table - Integrated material loading station. Inclined rack with easy adjustment for different sizes. Standard length 6 metres

Material output - Swivel offtake chute separates trim cut and scrap pieces

Controls - Simple push-button controls operate main machine functions. Touch screen, graphic control panel for programme setting. Screen displays continuous machine functions, power consumption and production data. Diagnostics and fault finding display

Blades - Designed to operate with narrow carbide blades. Standard size 460 x 50 x 2.7mm. Blade speed 60-90 r.p.m.

Coolant - Oil-mist spray coolant directed at the blade. Avoids contamination and environmental problems of traditional flood coolant

Swarf conveyor - High rise swarf conveyor transports chips from base of saw to external collection point. Chain belt system (shown as option on brochure – but standard equipment in U.K.)

Top clamp - Overhead material clamp – reduces vibration during sawing operation. Enables 2 bar cutting to be carried out

Get in touch +44 (0)1536 410999
Used MEGA CS-150S Carbide Saw Technical Specifications

Notice: Function is_internal_meta_key was called incorrectly. Generic add/update/get meta methods should not be used for internal meta data, including "_weight". Use getters and setters. Backtrace: require('wp-blog-header.php'), require_once('wp-includes/template-loader.php'), include('/plugins/woocommerce/templates/single-product.php'), wc_get_template_part, load_template, require('/plugins/woocommerce/templates/content-single-product.php'), do_action('woocommerce_single_product_summary'), WP_Hook->do_action, WP_Hook->apply_filters, single_product_custom_template, prosaw_render_technical_specifications, prosaw_render_meta_row, prosaw_get_spec_value, WC_Data->get_meta, WC_Data->is_internal_meta_key, wc_doing_it_wrong Please see Debugging in WordPress for more information. (This message was added in version 3.2.0.) in /home/prosaw/public_html/wp-includes/functions.php on line 6260
Machine Type Circular
Operation Type Automatic
Blade Size 460mm × 50mm × 2.7mm
Blade Speed 60 - 90 RPM
Motor 20 Hp
90° 45° Left 45° Right 60° Left 60° Right
Solid Round 90 50-150
Solid Square 90 70-110
SKU: 361 Category:
Download Datasheet

Download the datasheet for the Used MEGA CS-150S Carbide Saw
