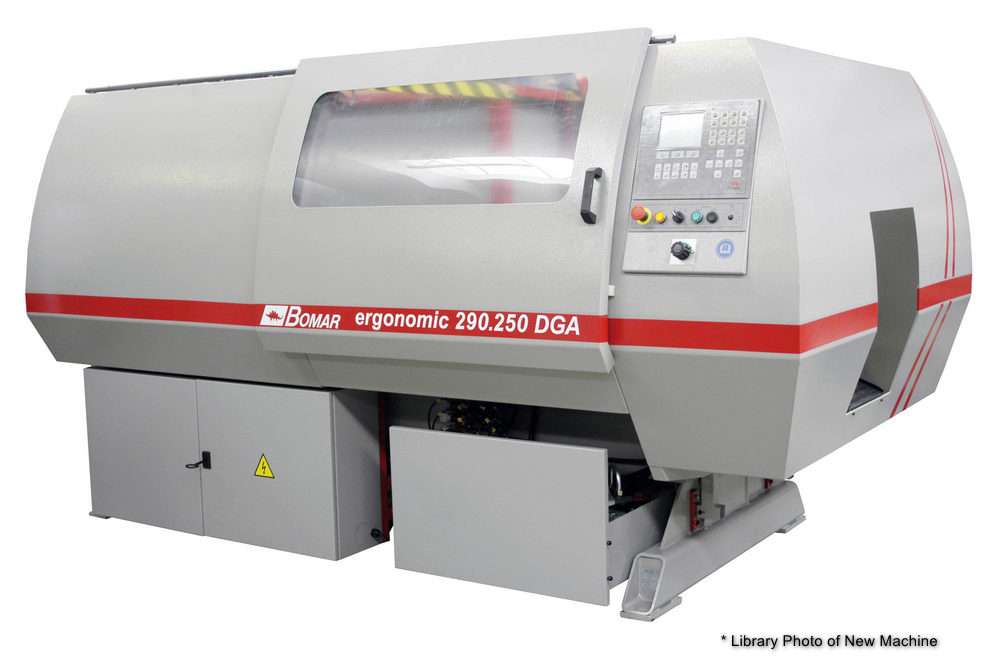

Used Bomar 290.250 DGANC
Machine Subcategory
Automatic Two Way Mitre, Horizontal Bandsaw
Overview
Used Bomar 290.250DGA 2-Way Mitre, Automatic Bandsaw, Serial No 130 Yr: 2017
The Bomar Ergonomic 290.250DGA is an automatic two-way mitre-cutting bandsaw (–45° to +60°) and is a fully NC controlled machine. It is designed for automated medium to high quantity cutting of steel sections with straight and mitre cuts.
Standard Specification
- Robust, one piece, cast iron saw bow
- NC Controls
- 99 lines for programming, fault diagnostics, machine status report
- Automatic rotation of mitre angle
- Positive hydraulic downfeed with automatic pressure sensing control
- 1500mm single pass vice feed length, multiple feed for longer lengths
- Fast approach ‘T Bar’ to reduce cycle times
- Tungsten Carbide pads and roller bearings for accurate cuts
- Swarf brush assembly for cleaning blade
- Heavy duty blade tensioning unit with indicator
- Heavy duty, 3 phase motor
- Recirculating coolant pump
- Moveable guide arm adjustable according to section size
- Heavy duty gear train
- Steplessly variable blade speed 20-120 m/min
Get in touch +44 (0)1536 410999
Used Bomar 290.250 DGANC Technical Specifications
| Manufacturer | JLH |
|---|---|
| Machine Type | Bandsaw |
| Operation Type | Automatic |
| Blade Size | 2910 × 27 × 0.9 |
| Blade Speed | Inverter controlled varaible speed 20 ~ 120 m/min |
| Feeding Stroke | 1500mm |
| Weight | 820 |
| 90° | 45° Left | 45° Right | 60° Left | 60° Right | |
|---|---|---|---|---|---|
| Round Section (mm) | 240mm | 220mm | 180mm | 135mm | |
| Rectangular Section Horizontal (mm) | 325x160mm | 220x120mm | 230x60mm | 130x100mm | |
| Rectangular Section Vertical (mm) | 220x300mm | 120x220mm | 115x200mm | 100x130mm | |
| Square Section (mm) | 210mm | 155mm | 195mm | 95mm |
