PROSAW SJ1220T
Machine Subcategory
Manual Horizontal Bandsaw
Overview

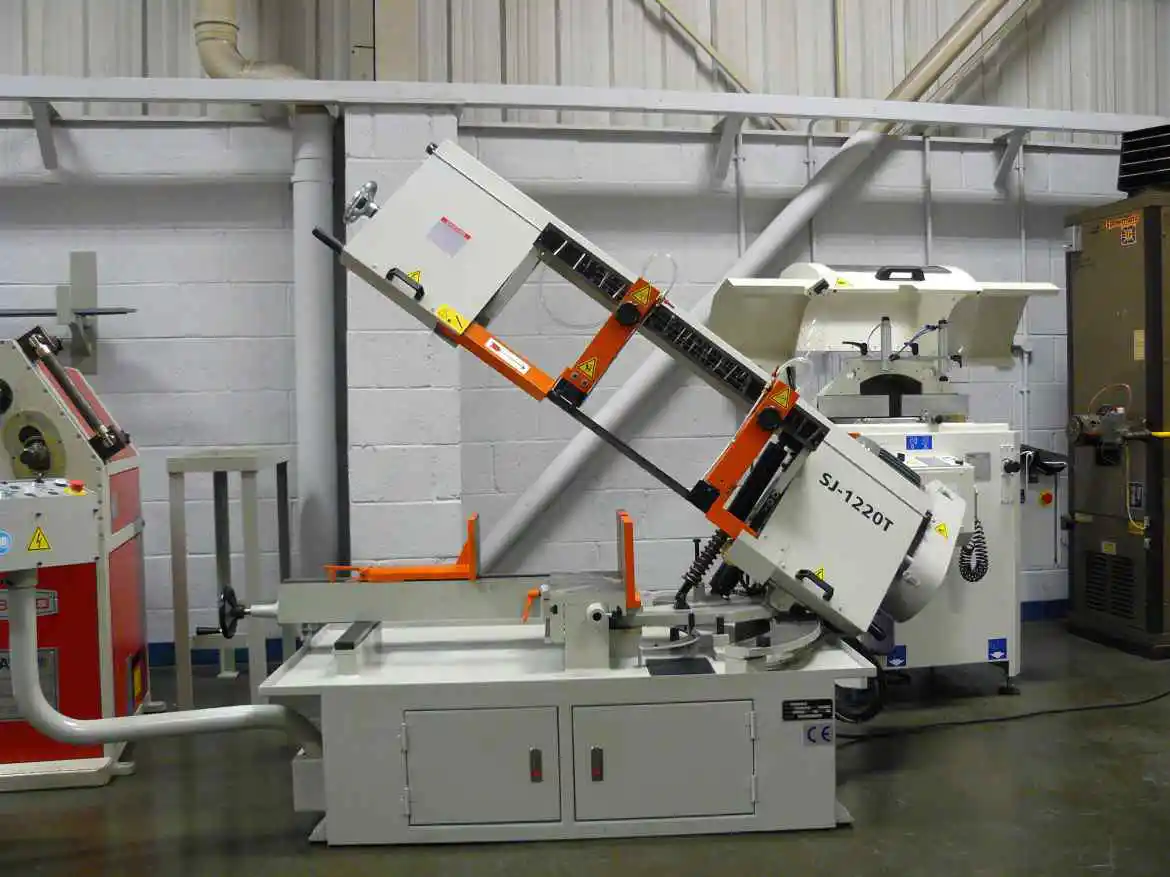

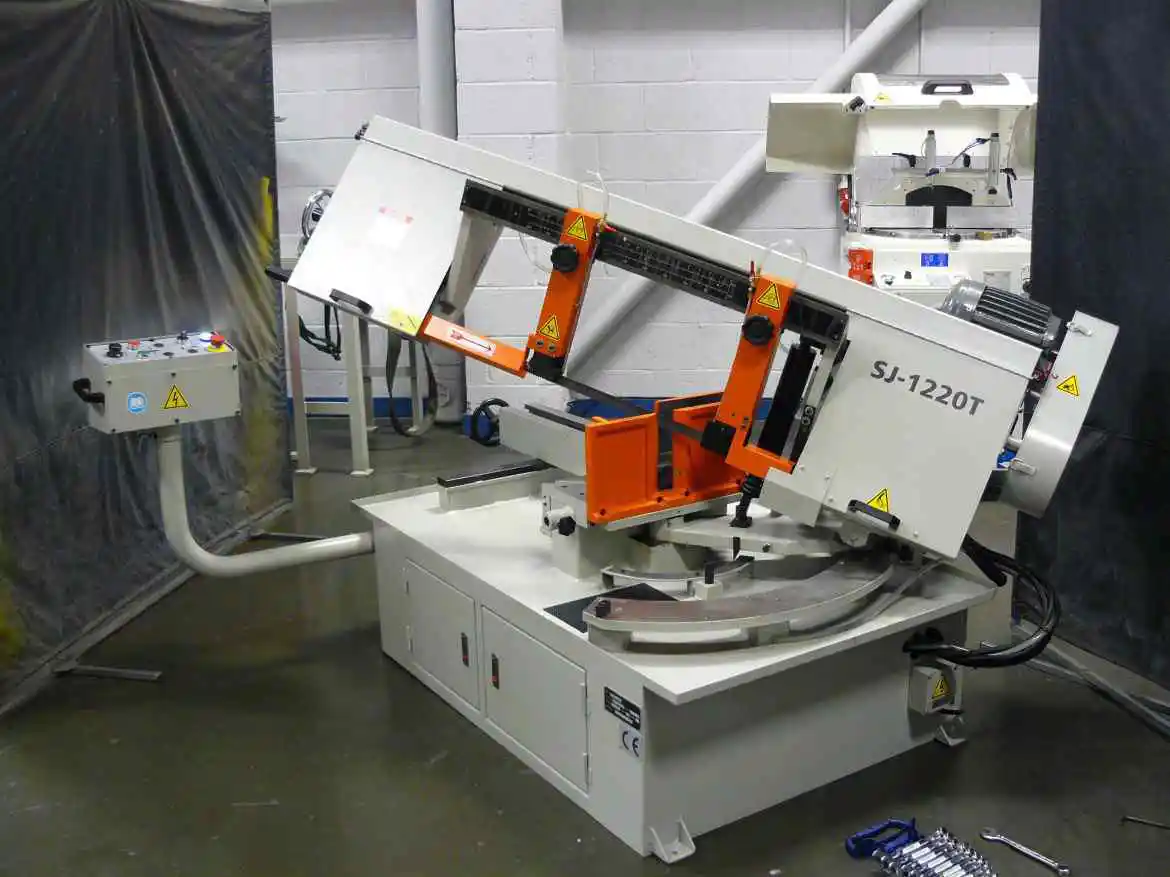

Heavy duty manual horizontal bandsaw with mitre cutting 45°left, 60° right with 500mm maximum capacity.
Standard Specification
- Heavy duty construction - one piece bow
- Precision controlled hydraulic downfeed
- Bow rotates, material remains stationary
- Double mitres, 45°left, 60° right
- Easy to read mitre scale

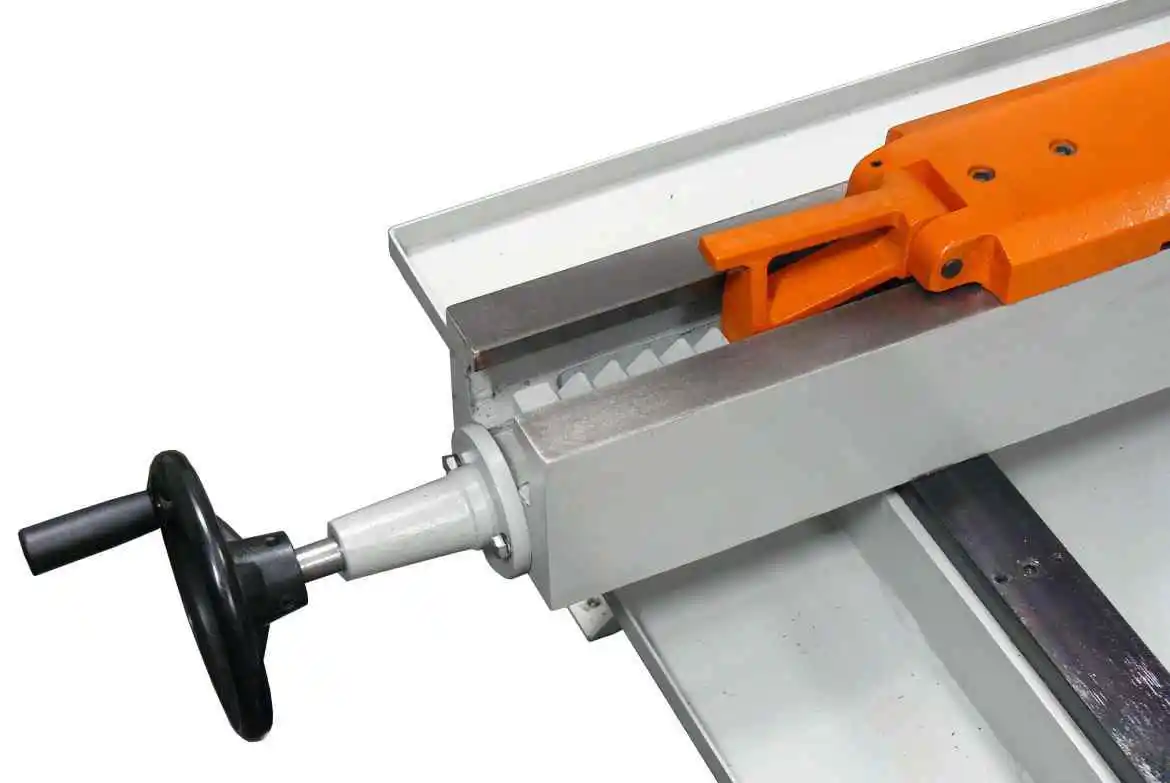

- Quick set vice operation

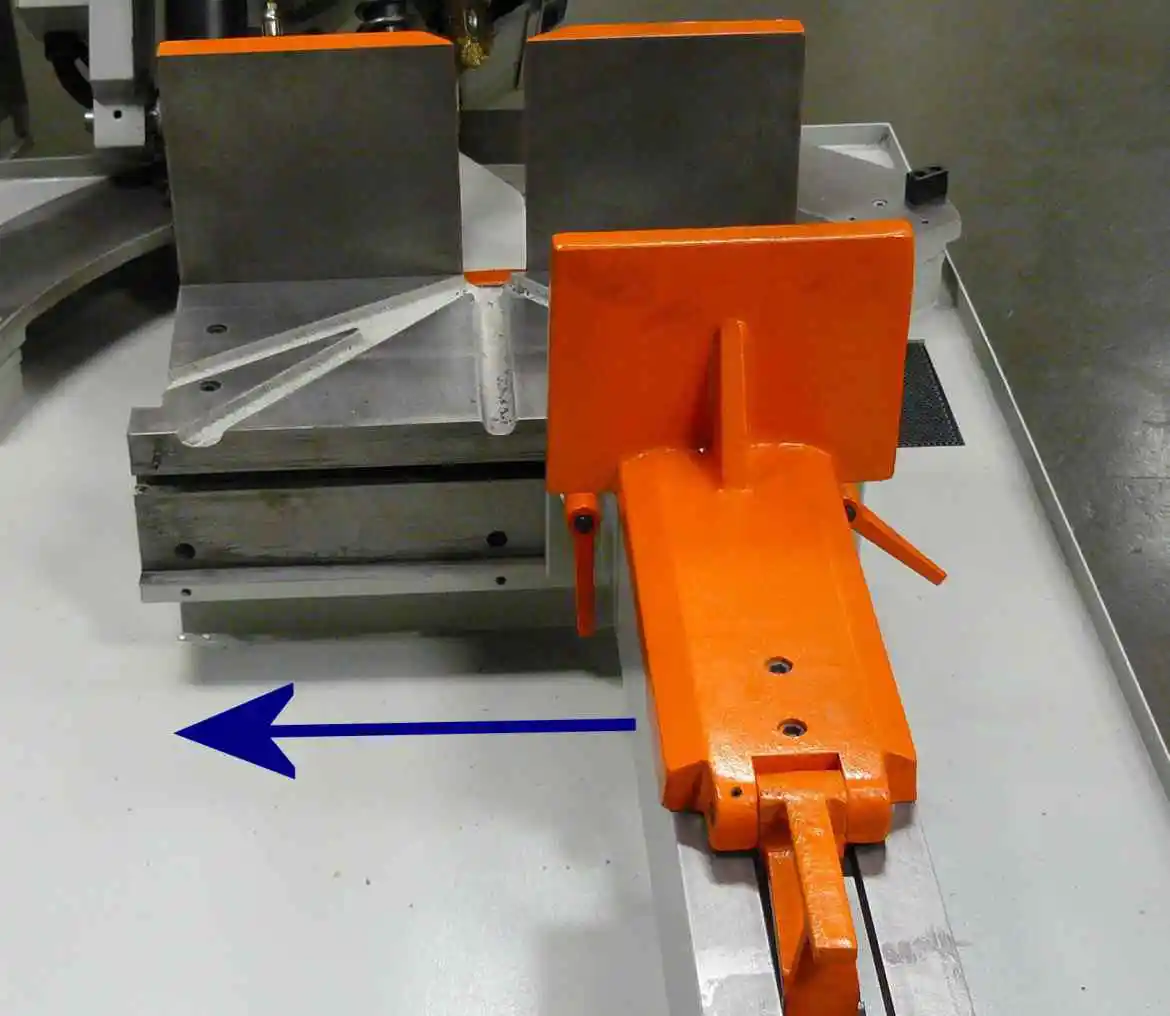

- Dovetail sliding vice for left & right mitres
- Blade guide pads and roller bearings
- Recirculating coolant pump
- Swarf brush assembly for cleaning blade
- Heavy duty gearbox

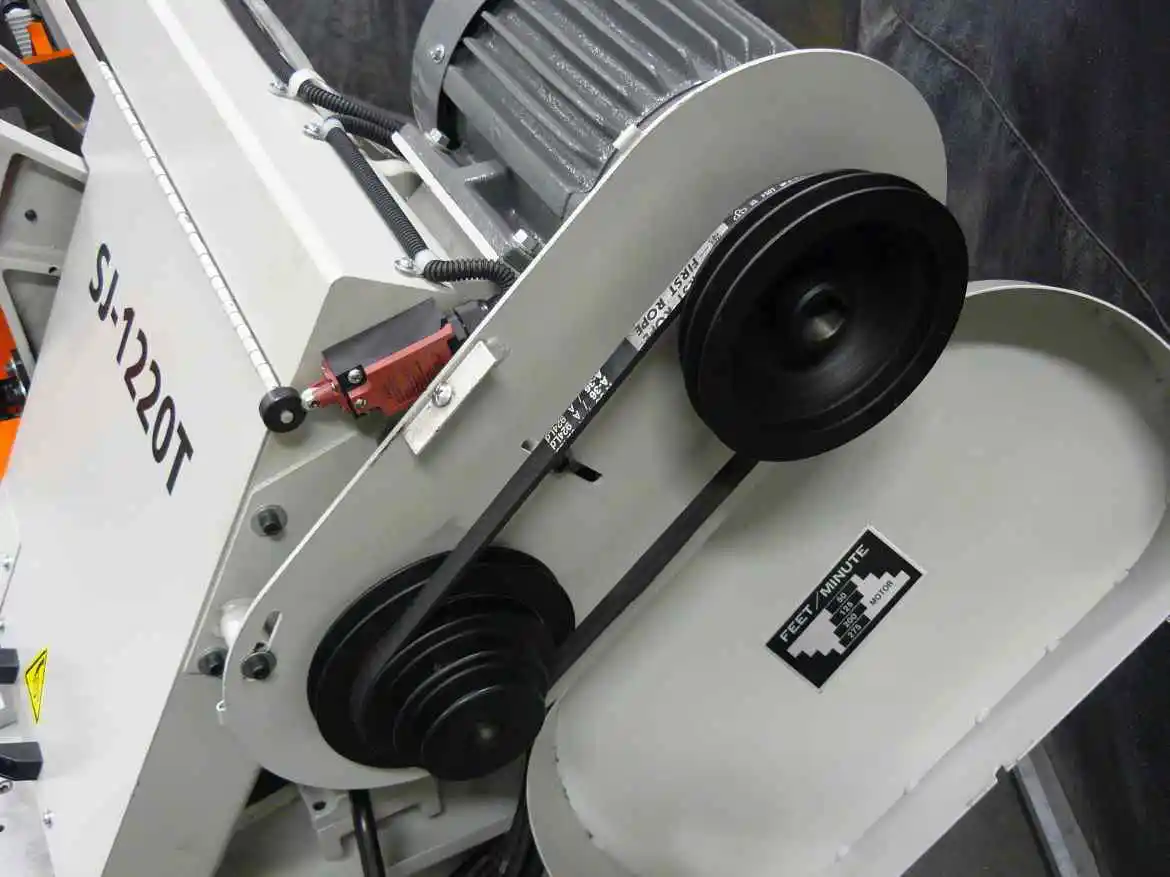

- Selectable speeds of 15, 38, 61 & 84m/min
- Length stop included
PROSAW SJ1220T Technical Specifications
| Manufacturer | Prosaw |
|---|---|
| Machine Type | Bandsaw |
| Operation Type | Manual |
| Material Type | Sections |
| Material | Section |
| Blade Size | 3820 x 27 x 0.9 |
| Blade Speed | 4 speeds 15/38/61/84 m/min |
| Table Height | 575mm |
| Weight | 540 |
| 90° | 45° Left | 45° Right | 60° Left | 60° Right | |
| Round Section (mm) | 305 | 305 | 200 | ||
| Rectangular Section Horizontal (mm) | 500 x 305 | 305 x 305 | 200 x 160 | ||
| Rectangular Section Vertical (mm) |
|||||
| Square Section (mm) | 305 | 305 | 185 |
