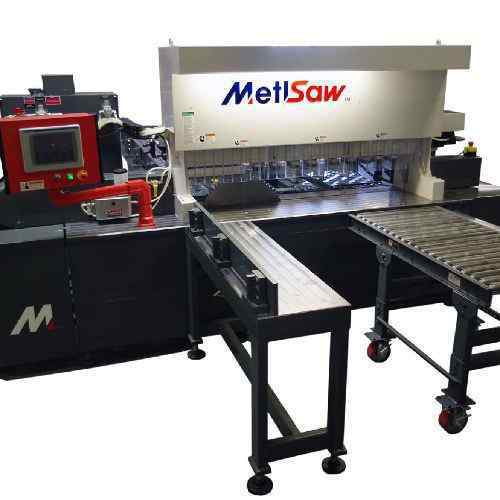

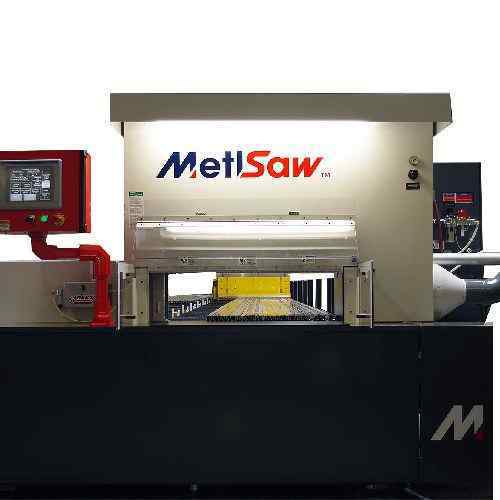

High Precision Automatic Aluminium Extrusion Saw, with Heavy Duty construction. Made in America.

The CS range of extrusion saws for non-ferrous material can saw aluminium, copper, brass and plastics to very tight tolerances. It is the cut off saw of choice at metal service centres worldwide.

Known industry-wide by all extrusion companies as the highest production, highest precision cut to length saw available. With many options customizable to this saw, the Metlsaw CS extrusion saw delivers decades of precision sawing with simple and easy maintenance. It can deliver cut to length tolerances of +/- 0.075mm.

• Fully automatic sawing system
• Up to 355mm thickness cutting capacity
• Eliminates/Reduces secondary machining of parts
• Material Handling options for loading and unloading
• Cuts Extrusions, Tubes or Rounds
• Precision positioning tolerances to +/- 0.075mm

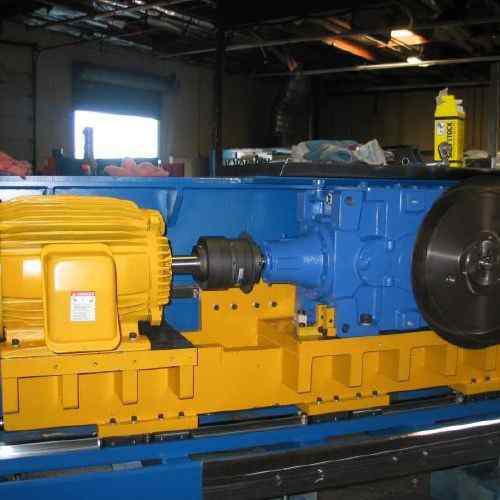

• 30 HP Arbor With Variable Motor
• Universal Clamping for single or stack cutting
• Touch screen operator interface

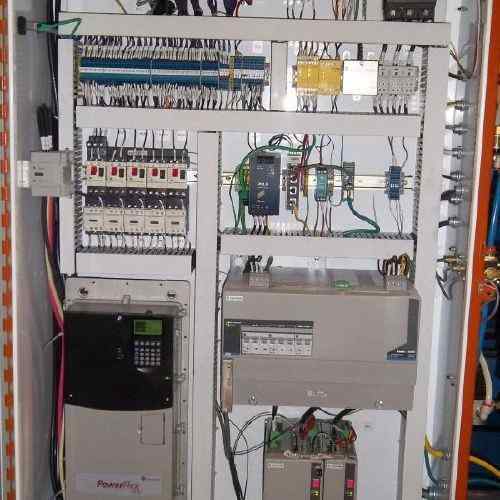

• Controls by Rockwell Automation (AB)
• Easy blade change
• Backguage lengths from 3.6 Metre to 24 Metre
