The MEP TIGER 352 NC 5.0 is a heavy duty vertical column action automatic circular saw designed for high-volume straight and mitre cutting, sections & solids.

The hydro-pneumatic operation of the saw head provides a smooth vertical downfeed rate for fast cutting and optimum blade life. It has mitre cutting capabilities in both directions and has speed optimization for best torque with invertor & mechanical gear change

• Designed for high-volume straight and mitre cutting, sections & solids.

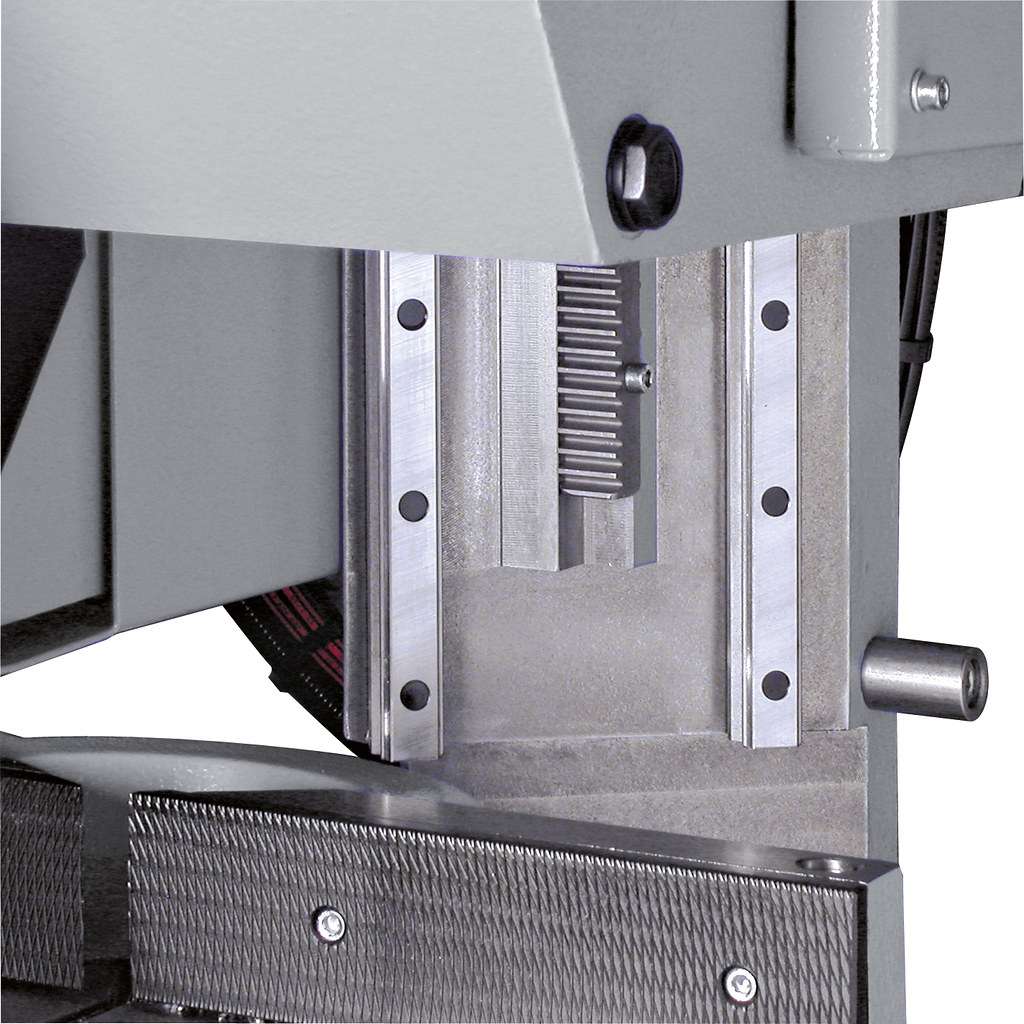

• Column action cutting on linear guides
• Operates in automatic and semi-automatic modes
• -45° to +60° range.
• 350mm HSS blade with 3.0 kW motor
• Horizontal and vertical pneumatic clamping of the workpiece for precise cutting
• 600mm Bar feeder with ball screw and stepper motor
• Speed optimization for best torque with invertor & mechanical gear change

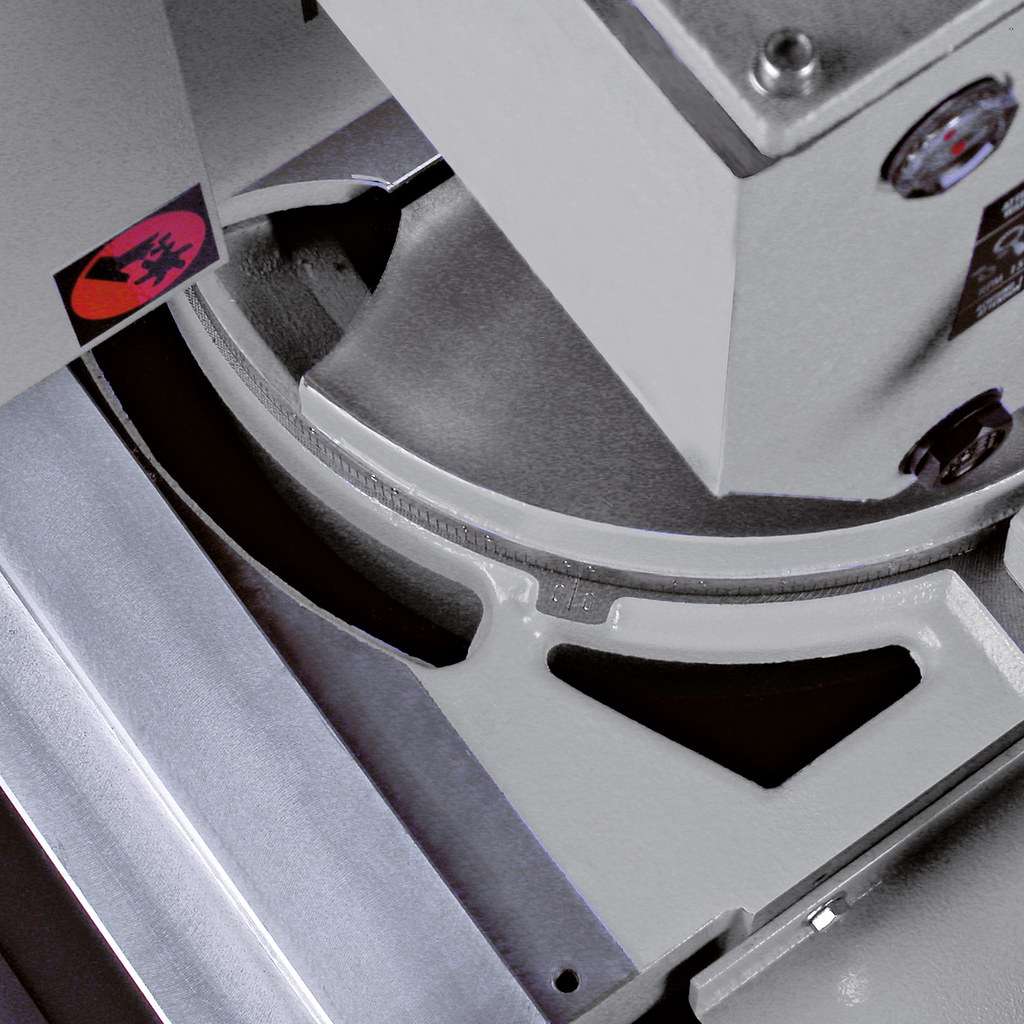

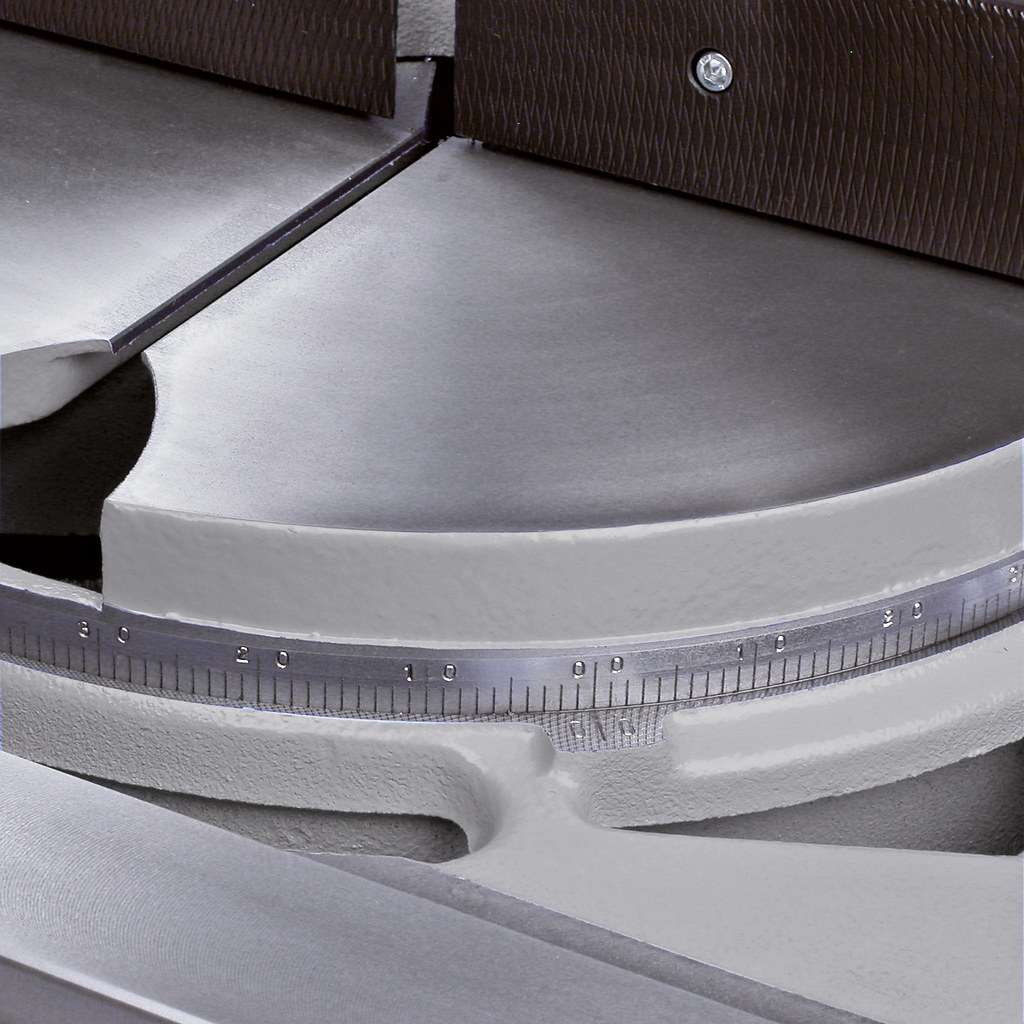

• Rotating table on a center pin with axial bearing
  which allows high precision on the angle set
• Interlocked safety guards
• Windows-based industrial PC with 7’’ LCD colour touch screen HMI mounted on articulated arm
