MEGA H400GA+
Machine Subcategory
Automatic Bandsaw
Overview
Heavy duty, twin column, vice feed automatic bandsaw, with touch screen NC control console, swarf conveyor and bundle clamps as standard.
Standard Specification
- Heavy duty machine with high specification

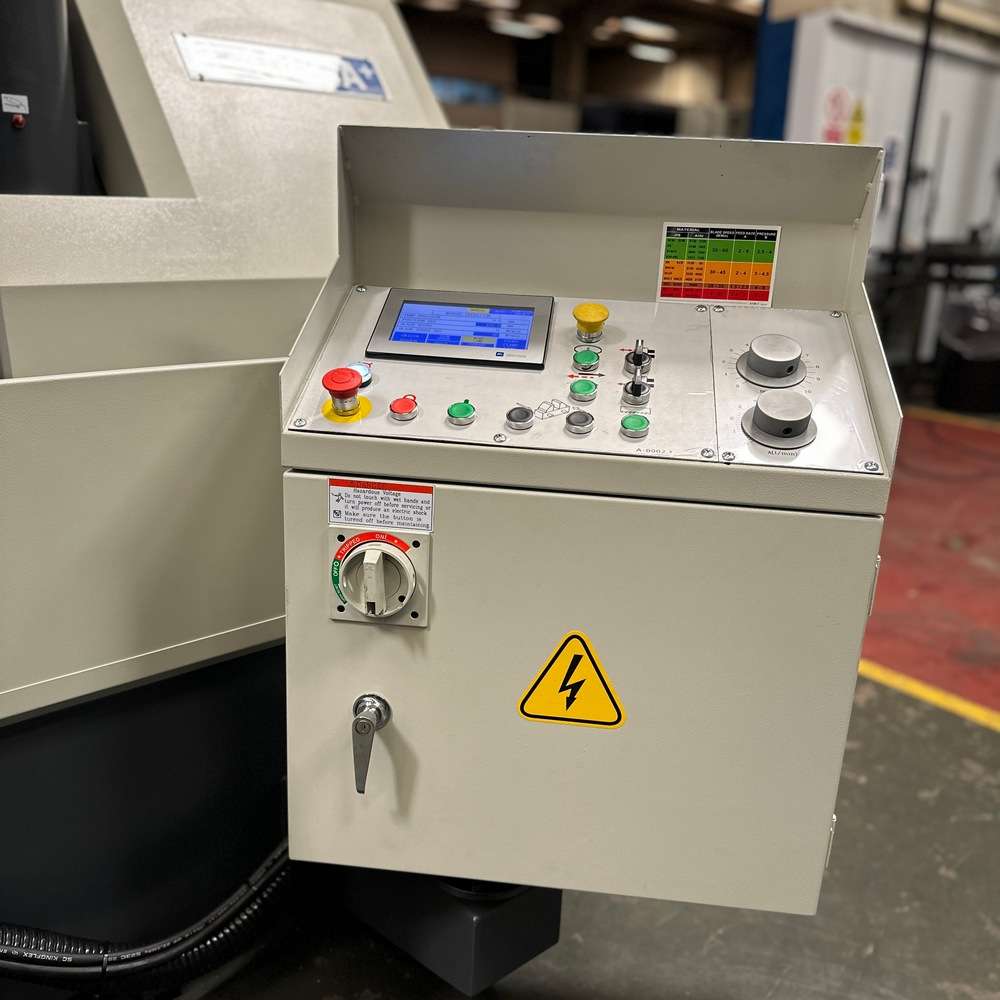

- NC programmable touch screen controls
- Variable blade speed control via touchscreen
- Independent control for cutting rate & pressure

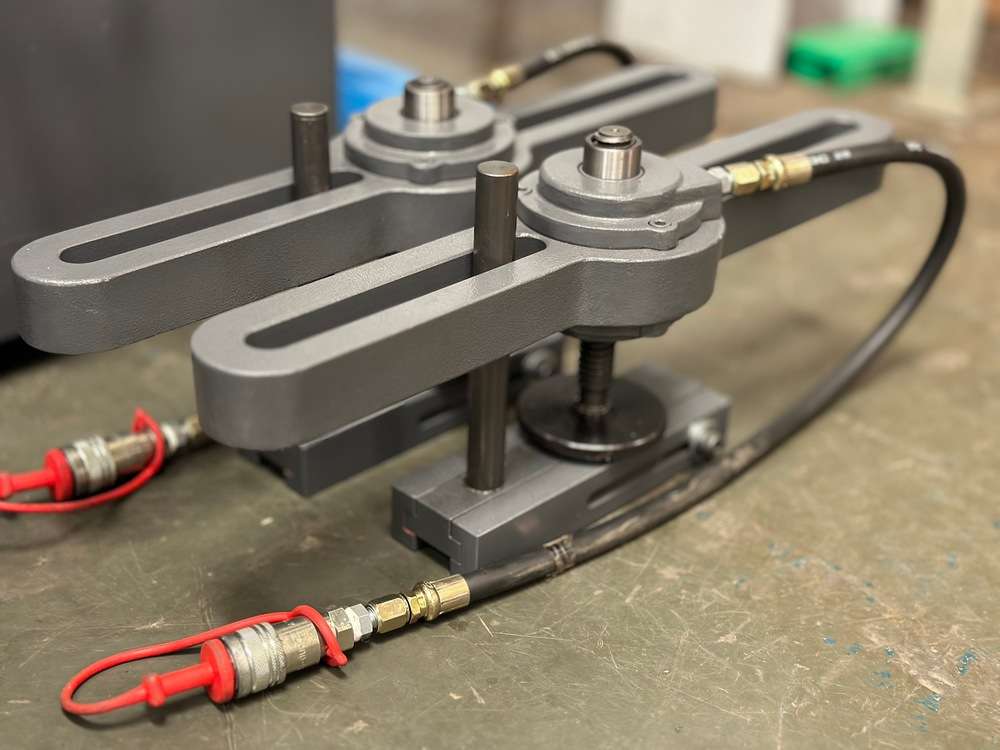

- Bundle clamps fitted as standard to both front and
rear vice for multiple bar cutting - Automatic multi pass to facilitate the cutting of
components that are longer than the 400mm material feed stroke - Hydraulic swarf conveyor

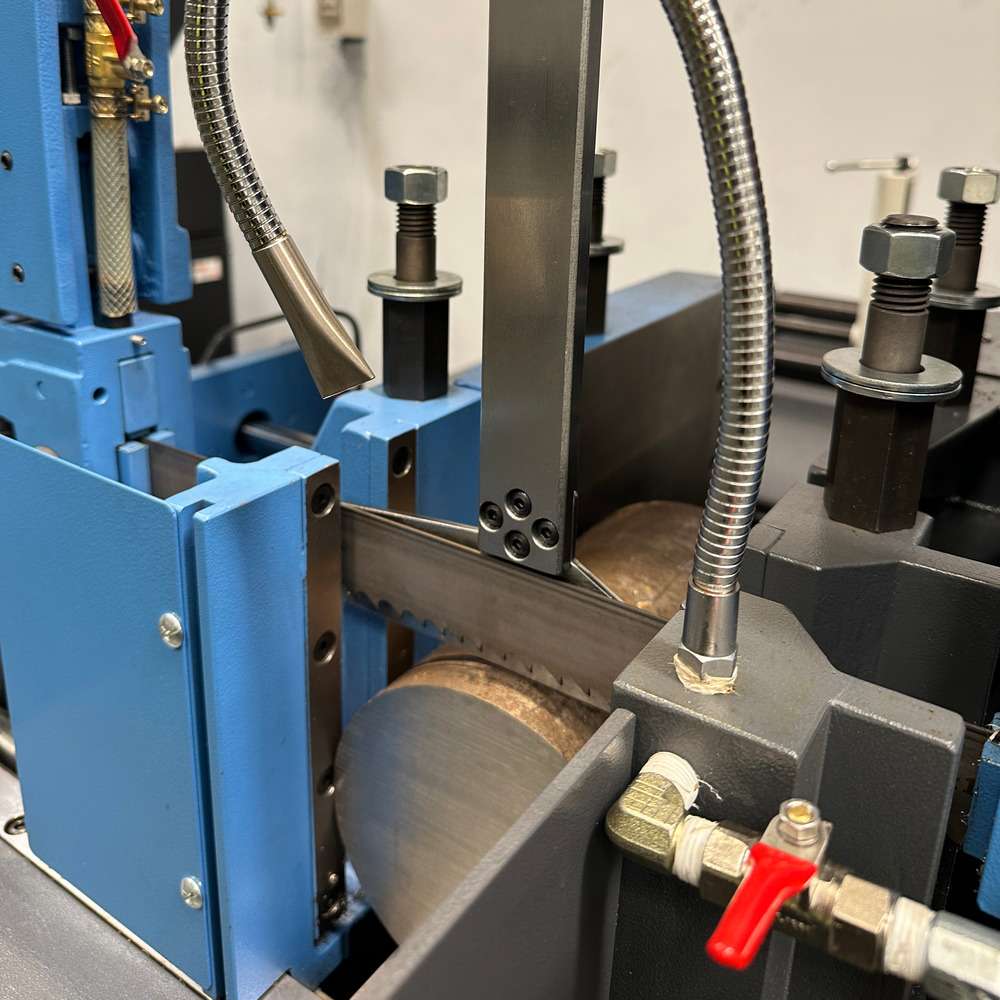

- Split front vice to minimise burr by securing both sides of the material either side of the blade.
- Blade monitor to automatically stop the machine in the event of a blade break/jam.
- 41mm wide blade
- Cuts solids and sections including stainless steel
- Hydraulic blade tension
- Easy operation with full stroke hydraulic vices
- High accuracy on squareness and cut length repeatability
Get in touch +44 (0)1536 410999
MEGA H400GA+ Technical Specifications
| Manufacturer | Prosaw |
|---|---|
| Machine Type | Bandsaw |
| Operation Type | Automatic |
| Material Type | Solids |
| Materials | Stainless Steel, nickel based alloys |
| Blade Size | 4800 × 41 × 1.3 |
| Blade Speed | 20 - 120 m/min |
| Motor | 7.5 |
| Weight | 3000 |
| Machine Dimensions | 2700 mm × 2280 mm × 1990 mm |
| Material Type(s) | Solid |
| Material(s) | Solids, Aluminium, Nickel Alloys, Non-Ferrous, Ferrous |
| 90° | 45° Left | 45° Right | 60° Left | 60° Right | |
|---|---|---|---|---|---|
| Solid Round 90 | 400 mm | ||||
| Solid Rectangle 90 | 400 x 400 mm | ||||
| Solid Square 90 | 400 mm | ||||
