Mega CS-160N
Machine Subcategory
Automatic Carbide Circular Saws
Overview

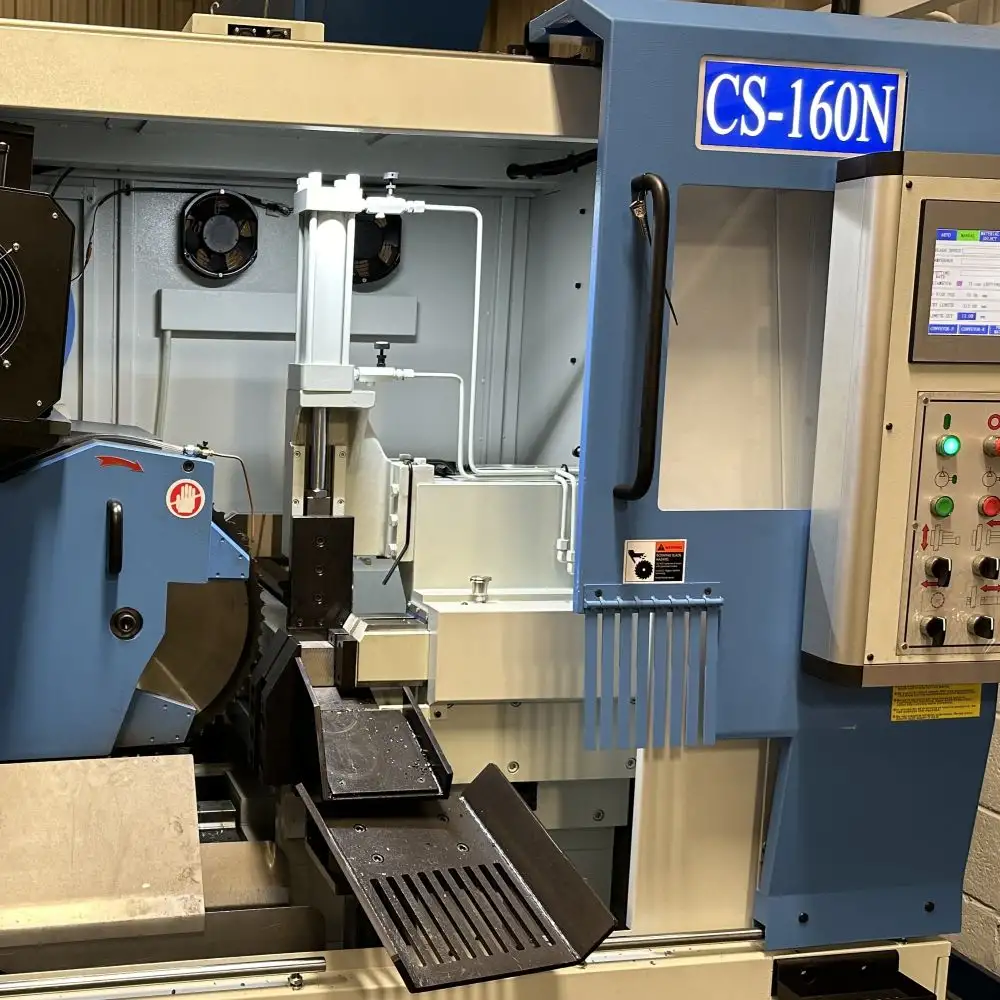

The ‘NEW’ Mega CS-160N is a extra heavy duty powerful precision cutting machine with excellent repeatability by means of an NC controlled servo motor.
Designed for fast cutting of solid bar and tube, providing a clean, swarf free billets.
Standard Specification

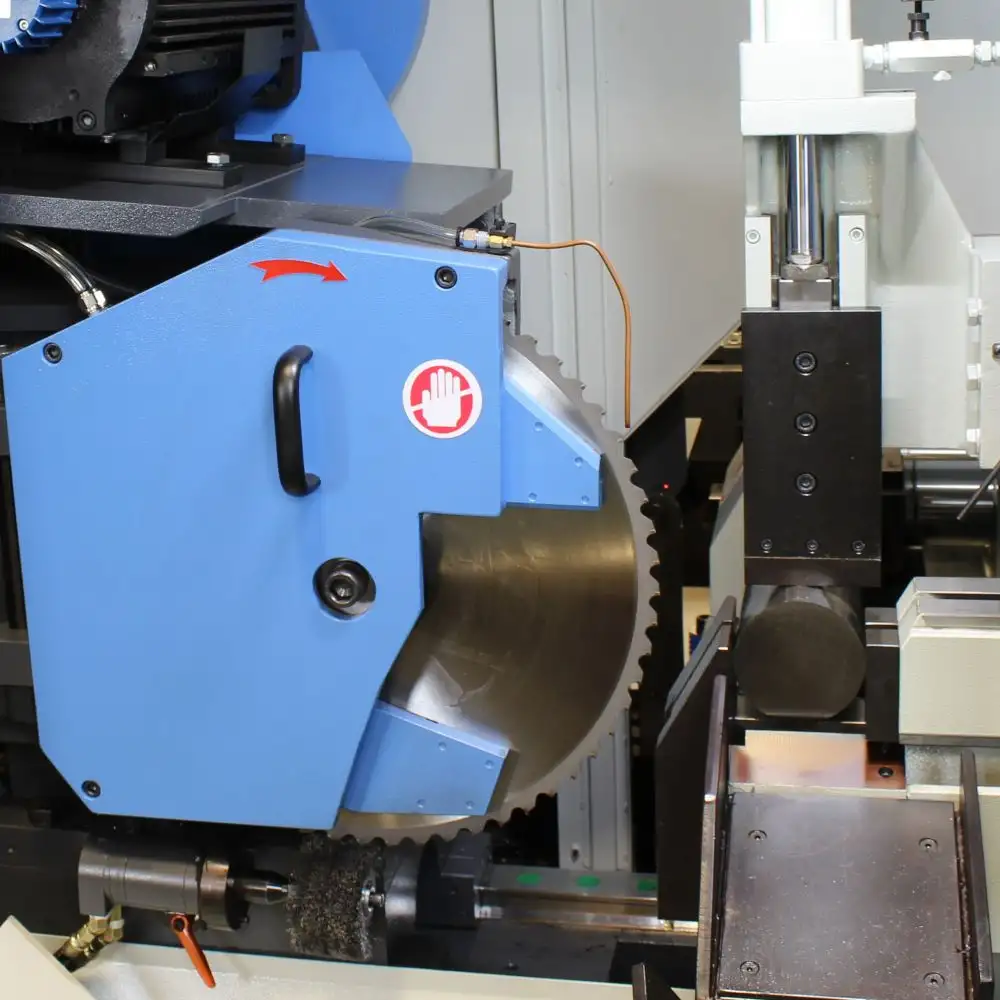

- Heavy duty gear transmission designed for high speed carbide blade sawing
- Anti backlash gearbox specifically designed for carbide sawing to minimize vibration for optimum cut quality and blade life
- NC servo motor and ball screw feeder for precision accuracy and quick set up
- Integrated magazine feeder with easy adjustment of material size
- Oil mist spray for virtually dry cut and superb finish
- Automatic trim cut separation chute
- Top clamp to enable 2 bar cuttting and reduce vibration

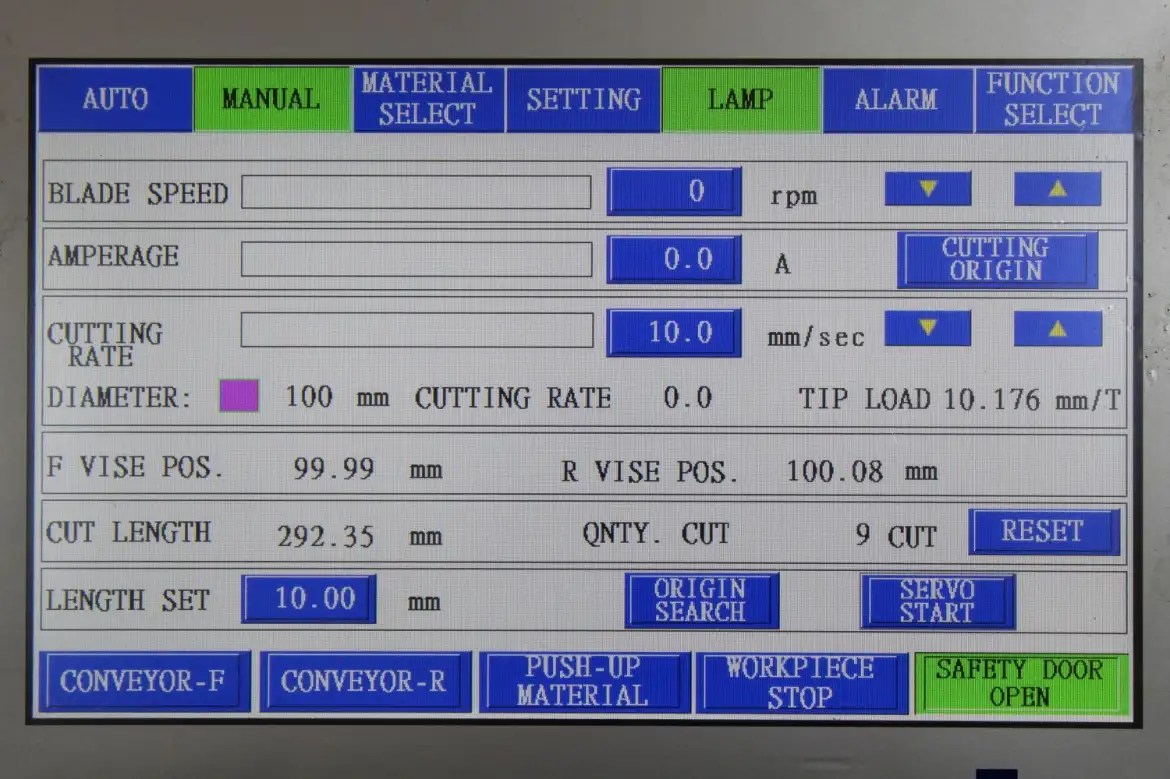

- Colour touch screen control with preset material library
- Hydraulic rear vice assembly mounted on chrome rails.
NC servo motor and ball screw feeder for precision & accuracy
Get in touch +44 (0)1536 410999
Mega CS-160N Technical Specifications
| Manufacturer | Prosaw |
|---|---|
| Machine Type | Bandsaw |
| Blade Size | 460mm Ø × 50mm bore × 2.7mm |
| Blade Speed | 60 ~ 150 RPM |
| Feeding Stroke | 20~600mm Single Feed |
| Material Type(s) | Solid |
| 90° | 45° Left | 45° Right | 60° Left | 60° Right | |
|---|---|---|---|---|---|
| Solid Round 90 | 25~160 | ||||
| Solid Rectangle 90 | 25~120 | ||||
