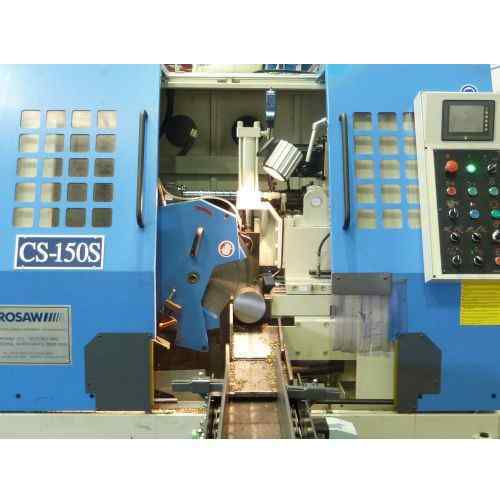

MEGA CS-150S
Machine Subcategory
Automatic Carbide Circular Saws
Overview

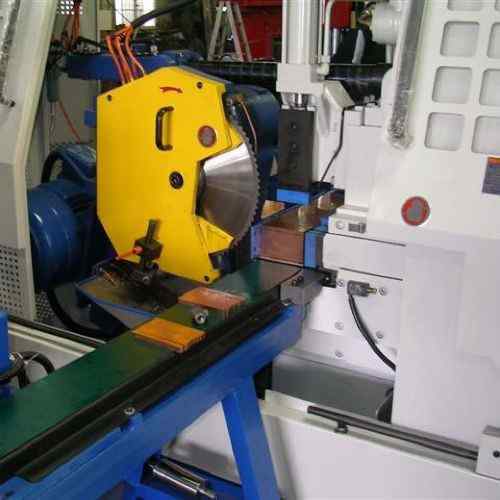

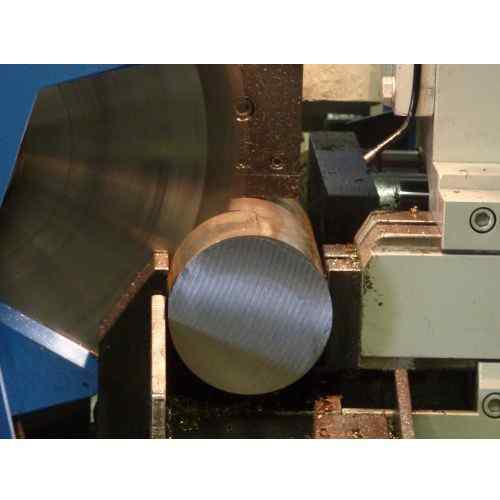

NC High Speed Automatic Carbide Circular Sawing machine, designed for very fast cutting of solid bar providing a clean, swarf free billet
Standard Specification
- Heavy duty gear transmission designed for high speed carbide blade sawing
- Disc braked transmission to eliminate gearbox 'backlash'
- Designed to minimize vibration for optimum cut quality and blade life
- NC servo motor and ball screw feeder for precision accuracy and quick set up
- Integrated magazine feeder with easy adjustment of material size
- Oil mist spray for virtually dry cut and superb finish
- Automatic trim cut separation chute
Get in touch +44 (0)1536 410999
MEGA CS-150S Technical Specifications
| Manufacturer | Prosaw |
|---|---|
| Machine Type | Circular |
| Blade Size | 460mm Ø × 50mm bore × 2.7mm |
| Blade Speed | 60-90 R.P.M. |
| Feeding Stroke | 6~600mm Single Feed |
| Weight | 3650 |
| Material Type(s) | Solid |
| 90° | 45° Left | 45° Right | 60° Left | 60° Right | |
|---|---|---|---|---|---|
| Solid Round 90 | 50~150mm | ||||
| Solid Square 90 | 70~110mm | ||||
