MEGA BS330GA
MEGA BS330GA
MEGA BS330GA - Image 2
MEGA BS330GA - Image 3
MEGA BS330GA - Image 4
MEGA BS330GA - Image 5
MEGA BS330GA - Image 6
Machine Subcategory

Automatic Horizontal Bandsaw

Overview

This vice feed automatic bandsaw complete with bundle clamps is possibly the UK's most popular automatic bandsaw, now with NC controls!

Standard Specification
  • Heavy duty machine with high specification

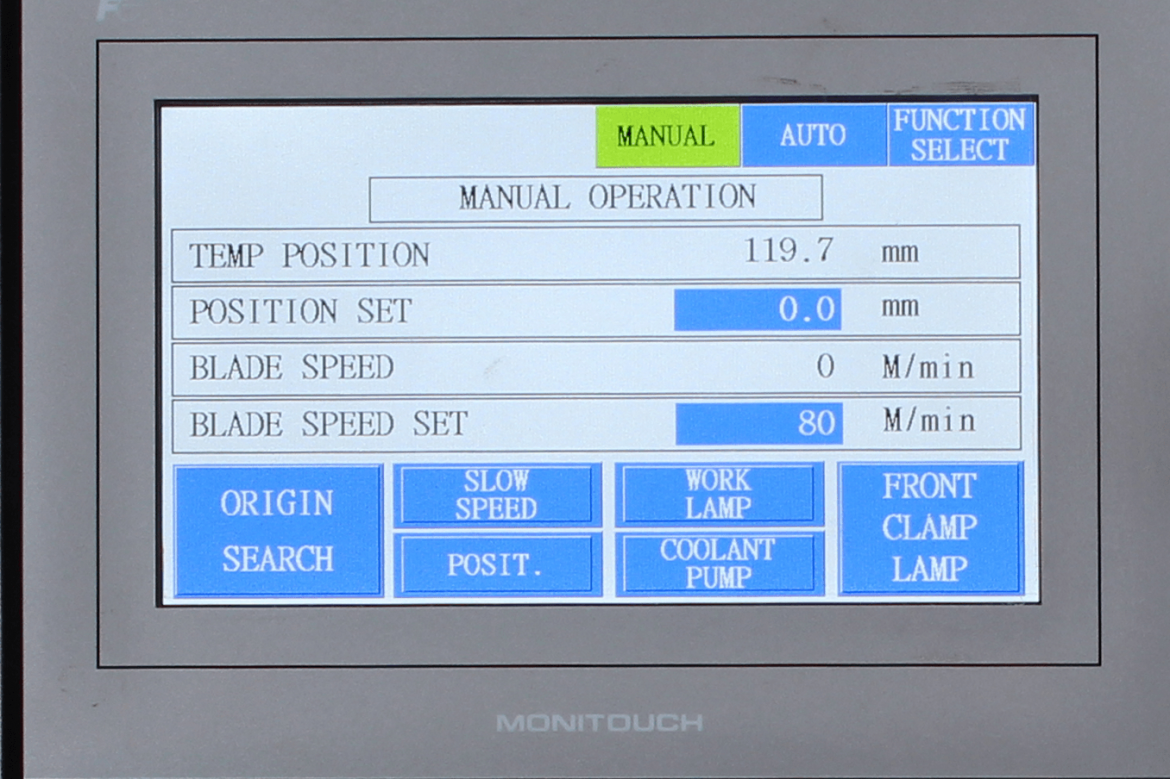

  • NC programmable touch screen controls
  • Variable blade speed control via touchscreen
  • Independent control for cutting rate & pressure

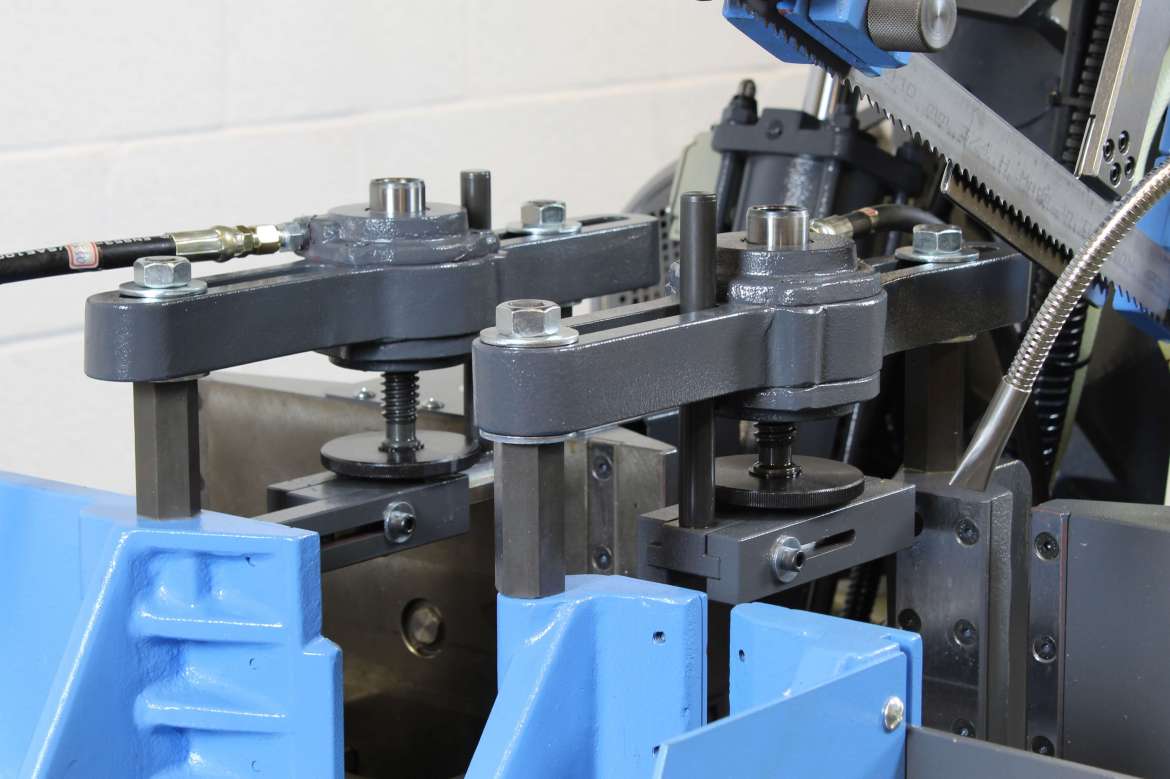

  • Bundle clamps fitted as standard to both front and rear vice for multiple bar cutting
  • Automatic multi pass to facilitate the cutting of components that are longer than the 400mm material feed stroke
  • Split front vice to minimise burr by securing both sides of the material either side of the blade

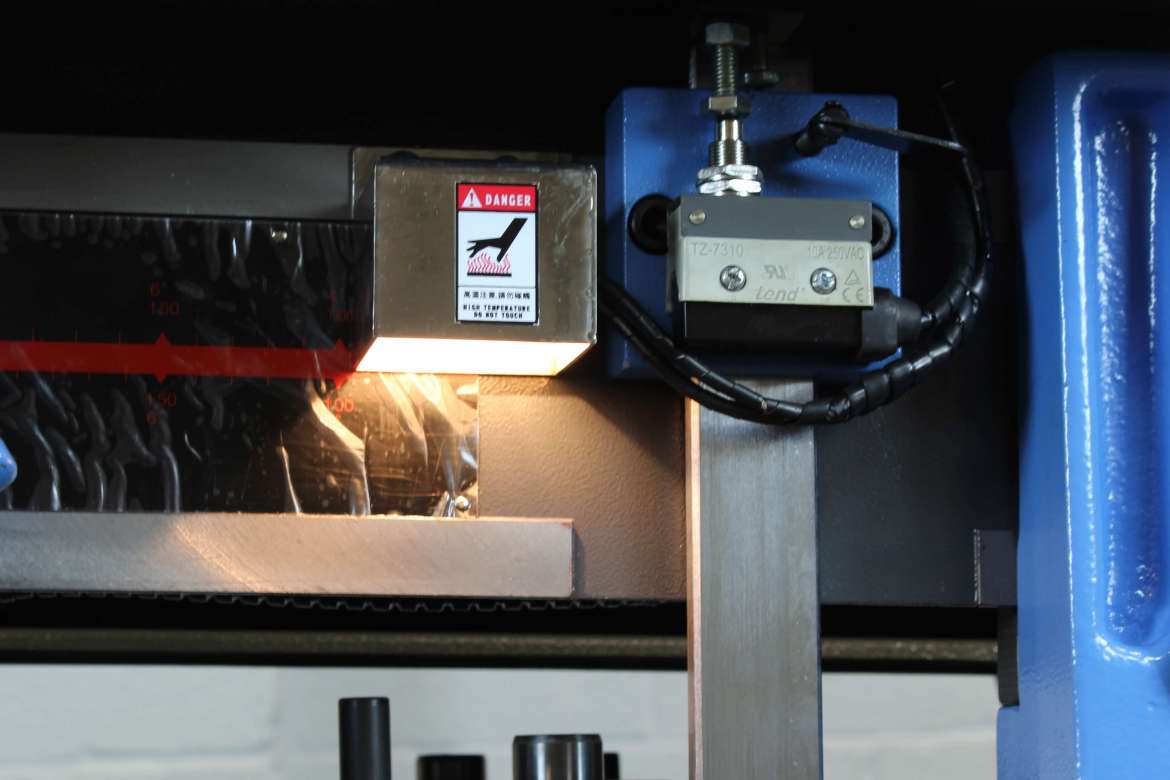

  • Blade monitor to automatically stop the machine in the event of a blade break/jam.
  • 34mm wide blade
  • Cuts solids and sections including stainless steel
  • Hydraulic blade tension

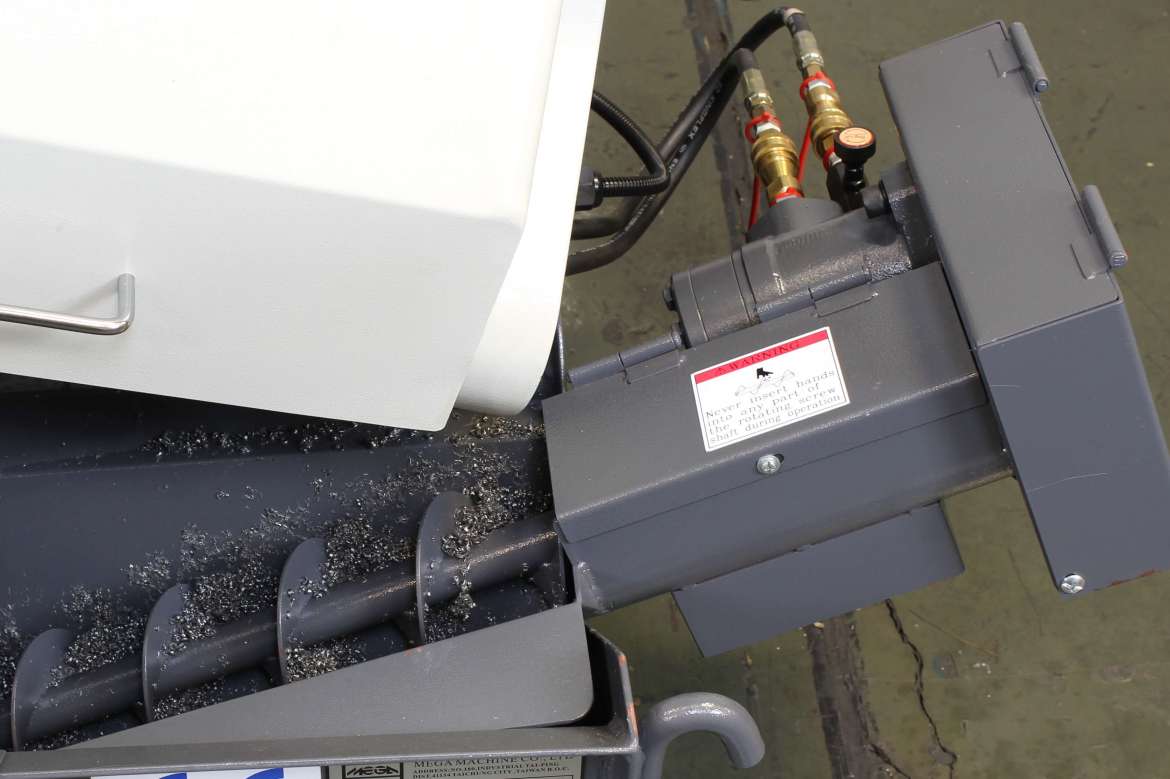

  • Hydraulic swarf conveyor
  • Easy operation with full stroke hydraulic vices
  • High accuracy on squareness and cut length repeatability
Get in touch +44 (0)1536 410999
MEGA BS330GA Technical Specifications

Notice: Function is_internal_meta_key was called incorrectly. Generic add/update/get meta methods should not be used for internal meta data, including "_weight". Use getters and setters. Backtrace: require('wp-blog-header.php'), require_once('wp-includes/template-loader.php'), include('/plugins/woocommerce/templates/single-product.php'), wc_get_template_part, load_template, require('/plugins/woocommerce/templates/content-single-product.php'), do_action('woocommerce_single_product_summary'), WP_Hook->do_action, WP_Hook->apply_filters, single_product_custom_template, prosaw_render_technical_specifications, prosaw_render_meta_row, prosaw_get_spec_value, WC_Data->get_meta, WC_Data->is_internal_meta_key, wc_doing_it_wrong Please see Debugging in WordPress for more information. (This message was added in version 3.2.0.) in /home/prosaw/public_html/wp-includes/functions.php on line 6260
Manufacturer Prosaw
Machine Type Bandsaw
Operation Type Automatic
Material Type Solid & Section
Blade Size 3820mm × 34mm × 1.1mm
Blade Speed 25-80 M/Min
Table Height 593mm
Weight 1410
Material Type(s) Solid
Material(s) Solids, Aluminium, Nickel Alloys, Non-Ferrous, Ferrous
90° 45° Left 45° Right 60° Left 60° Right
Solid Round 90 330mm
Solid Rectangle 90 350x250mm
Solid Square 90 300x300mm
SKU: 296 Category:
Download Datasheet

Download the datasheet for the MEGA BS330GA

Contact Us

Call us during office hours (8:30am – 5pm, Mon – Fri) for assistance with choosing the best machine for the job

Blades & Consumables

Order blades for the MEGA BS330GA direct from Prosaw
