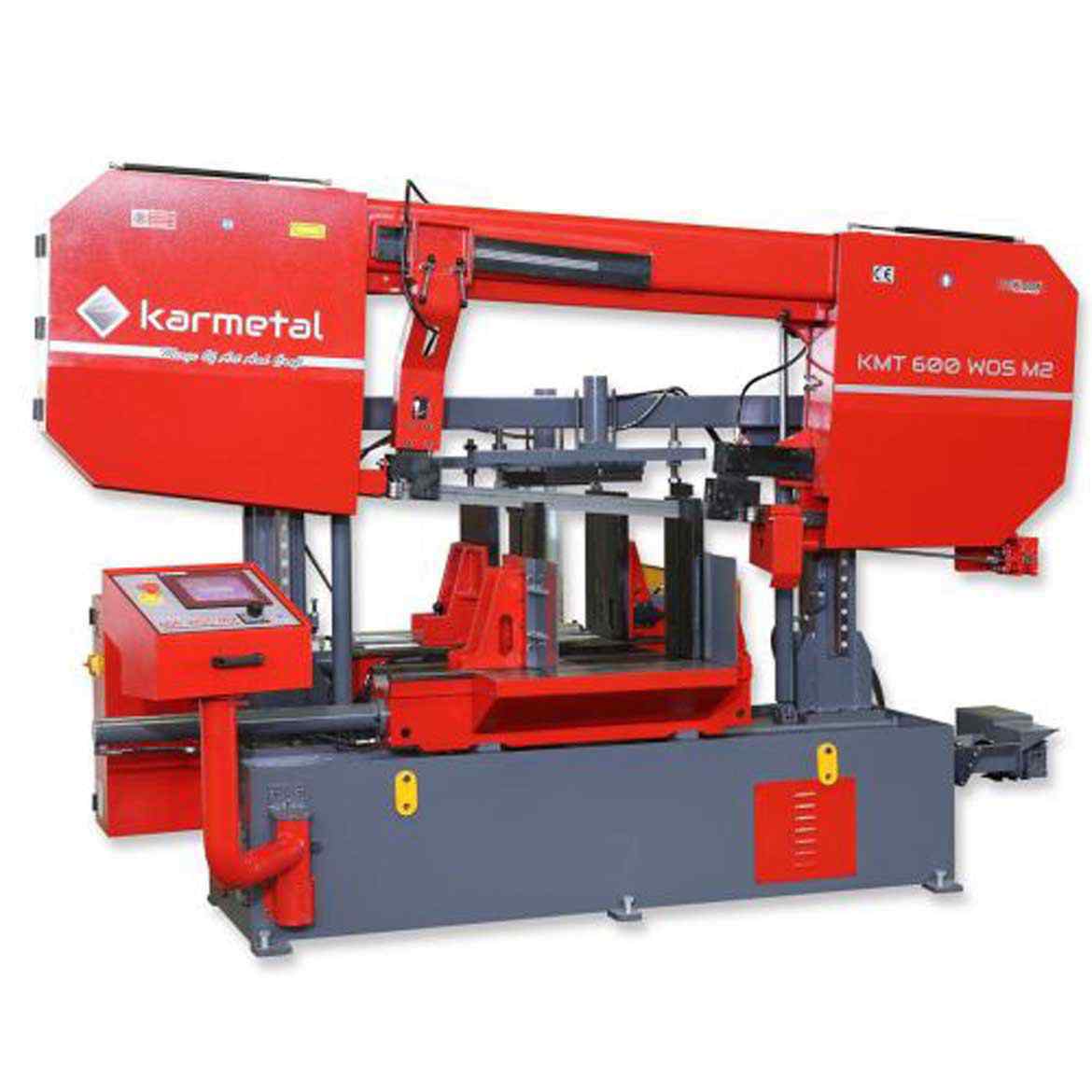

KARMETAL WOS 600×700
KARMETAL WOS 600x700
KARMETAL WOS 600x700 - Image 2
Machine Subcategory

Automatic Horizontal Bandsaw

Overview

Very Heavy duty large capacity Vice Feed Automatic Bandsaw with bundle clamps. Touch Screen Controls and Roller table as Standard.

Standard Specification
  • Very heavy duty twin column construction
  • Split full stroke hydraulic vices, clamps material on either side of cut
  • Inverter controlled blade speed from 22 to 100m/min
  • Powerful 5.5kW drive motor
  • 675mm feed stroke (multi-indexing)
  • Variable Vice pressure
  • Hydraulic bundle clamps
  • PLC control unit, programmable controls
  • Robust, simple to use controls
  • Material specification compensation valve
  • Powered swarf brush
  • Powered swarf conveyor
  • Rotary encoder for material component length
  • Hydraulic blade tension
  • Precise, adjustable hydraulic regulation of the bow descent

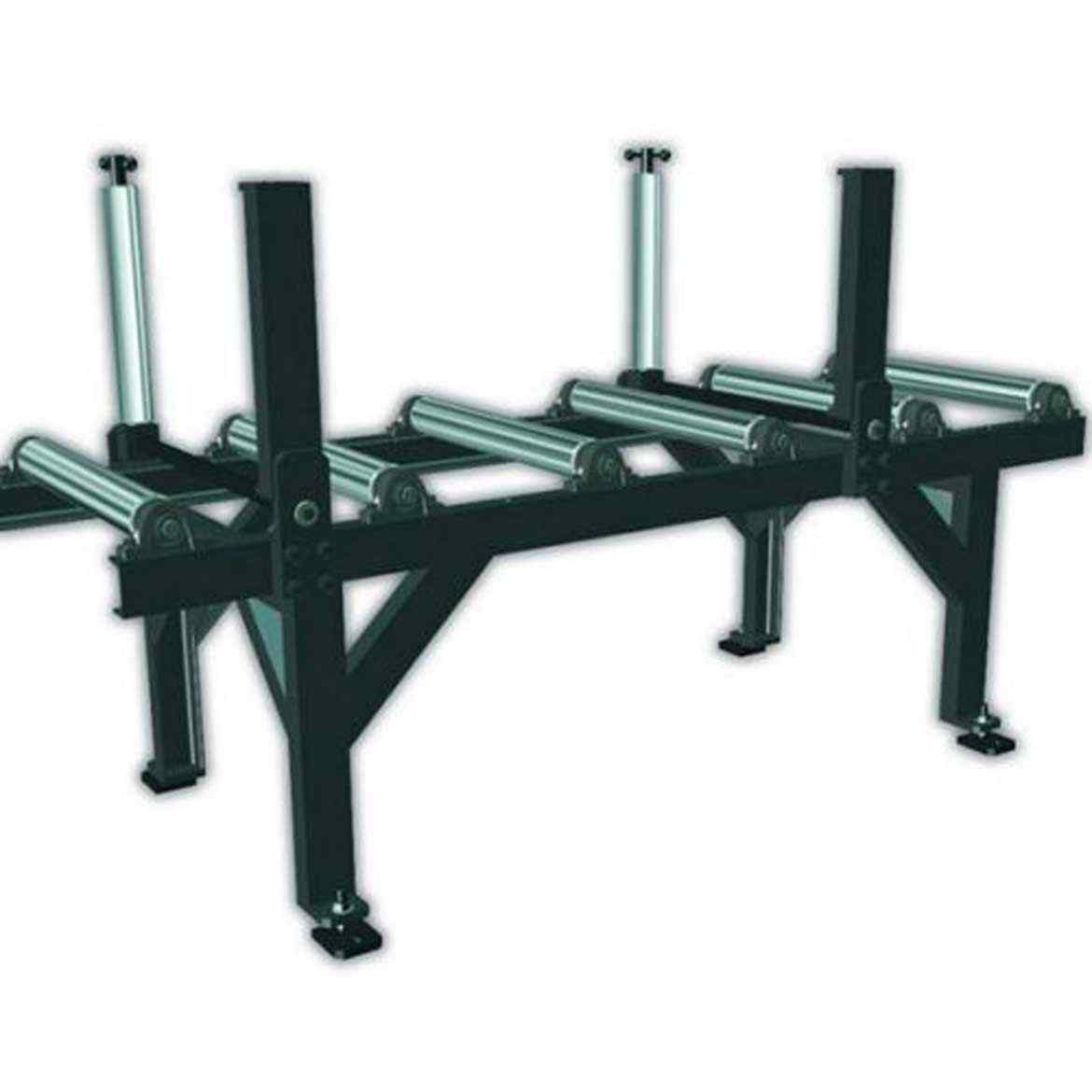

  • Material support conveyor with adjustable vertical rollers
Get in touch +44 (0)1536 410999
KARMETAL WOS 600x700 Technical Specifications

Notice: Function is_internal_meta_key was called incorrectly. Generic add/update/get meta methods should not be used for internal meta data, including "_weight". Use getters and setters. Backtrace: require('wp-blog-header.php'), require_once('wp-includes/template-loader.php'), include('/plugins/woocommerce/templates/single-product.php'), wc_get_template_part, load_template, require('/plugins/woocommerce/templates/content-single-product.php'), do_action('woocommerce_single_product_summary'), WP_Hook->do_action, WP_Hook->apply_filters, single_product_custom_template, prosaw_render_technical_specifications, prosaw_render_meta_row, prosaw_get_spec_value, WC_Data->get_meta, WC_Data->is_internal_meta_key, wc_doing_it_wrong Please see Debugging in WordPress for more information. (This message was added in version 3.2.0.) in /home/prosaw/public_html/wp-includes/functions.php on line 6260
Machine Type Bandsaw
Blade Size 6700mm × 54mm × 1.6mm
Blade Speed Inverter controlled variable speed 22 ~ 100 m/min
Table Height 750mm
Motor 5.5kW
Coolant Motor 0.2kW
Feeding Stroke 675mm
Weight 3800
90° 45° Left 45° Right 60° Left 60° Right
Round Section (mm) 600mm
Rectangular Section Vertical (mm) 580x700mm
Square Section (mm) 580mm
SKU: 194 Category:
Download Datasheet

Download the datasheet for the KARMETAL WOS 600x700
