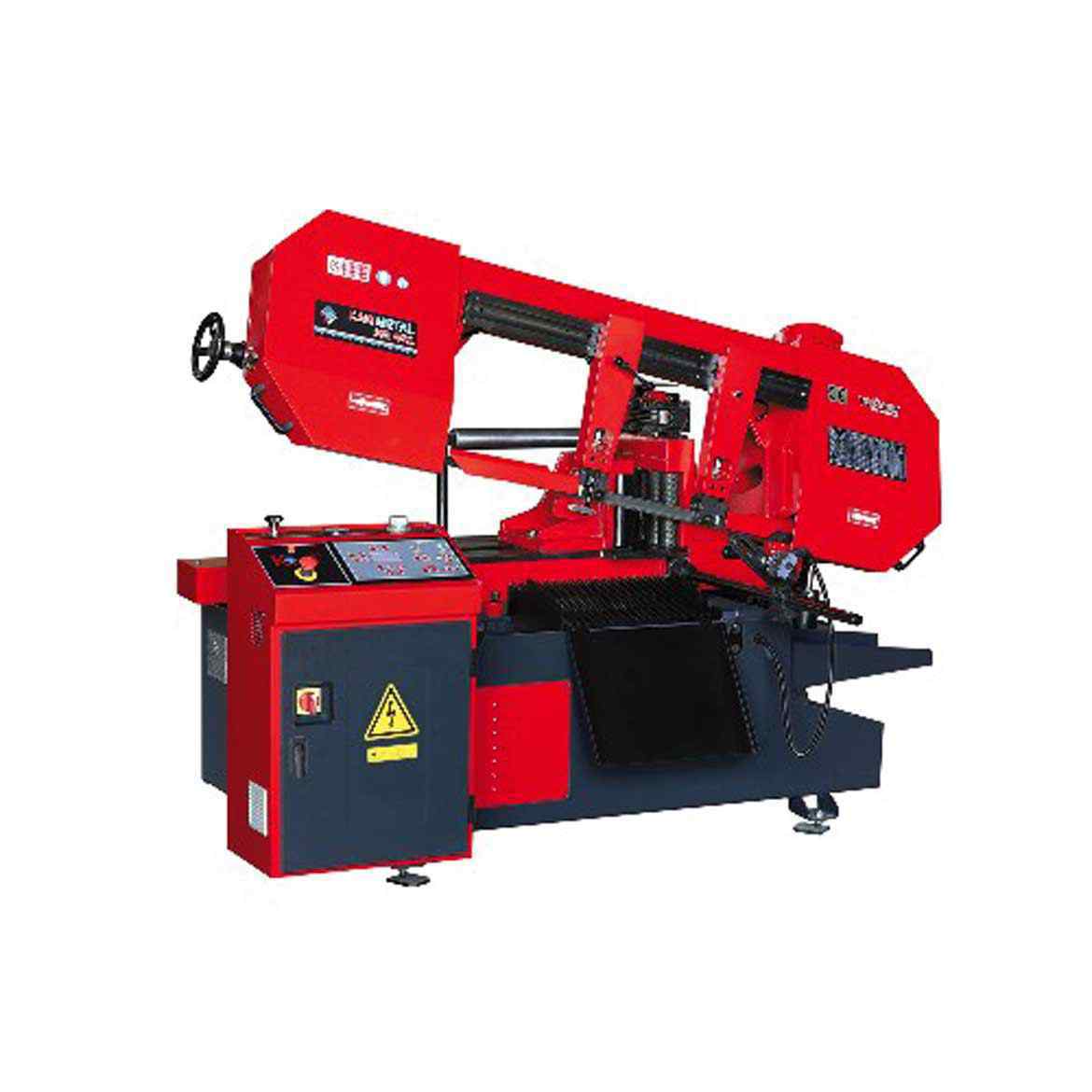

KARMETAL OSA 350×450
Machine Subcategory

Automatic Horizontal Bandsaw

Overview

Roller Feed Automatic Bandsaw with Hydraulic Vice & Pressure Reduction, PLC Digital Control panel and Roller Stand as Standard.

Standard Specification
  • Heavy duty construction
  • Hydraulic vice
  • Variable blade speed 25~90m/min
  • Variable Vice pressure
  • Adjustable manual top roller
  • Digital Control Panel
  • Robust, simple to use controls
  • Rotary encoder for material component length
  • Hydromechanical band tension
  • Precise, adjustable hydraulic regulation of the bow descent
  • Material support conveyor with adjustable vertical rollers
Get in touch +44 (0)1536 410999
KARMETAL OSA 350x450 Technical Specifications

Notice: Function is_internal_meta_key was called incorrectly. Generic add/update/get meta methods should not be used for internal meta data, including "_weight". Use getters and setters. Backtrace: require('wp-blog-header.php'), require_once('wp-includes/template-loader.php'), include('/plugins/woocommerce/templates/single-product.php'), wc_get_template_part, load_template, require('/plugins/woocommerce/templates/content-single-product.php'), do_action('woocommerce_single_product_summary'), WP_Hook->do_action, WP_Hook->apply_filters, single_product_custom_template, prosaw_render_technical_specifications, prosaw_render_meta_row, prosaw_get_spec_value, WC_Data->get_meta, WC_Data->is_internal_meta_key, wc_doing_it_wrong Please see Debugging in WordPress for more information. (This message was added in version 3.2.0.) in /home/prosaw/public_html/wp-includes/functions.php on line 6260
Machine Type Bandsaw
Blade Size 4300mm × 34mm × 1.1mm
Blade Speed Inverter controlled variable speed 25 ~ 90 m/min
Table Height 730mm
Motor 4kW
Coolant Motor 0.12kW
Weight 995
90° 45° Left 45° Right 60° Left 60° Right
Round Section (mm) 350mm
Rectangular Section Horizontal (mm) 330x450mm
Square Section (mm) 330mm
SKU: 188 Category:
