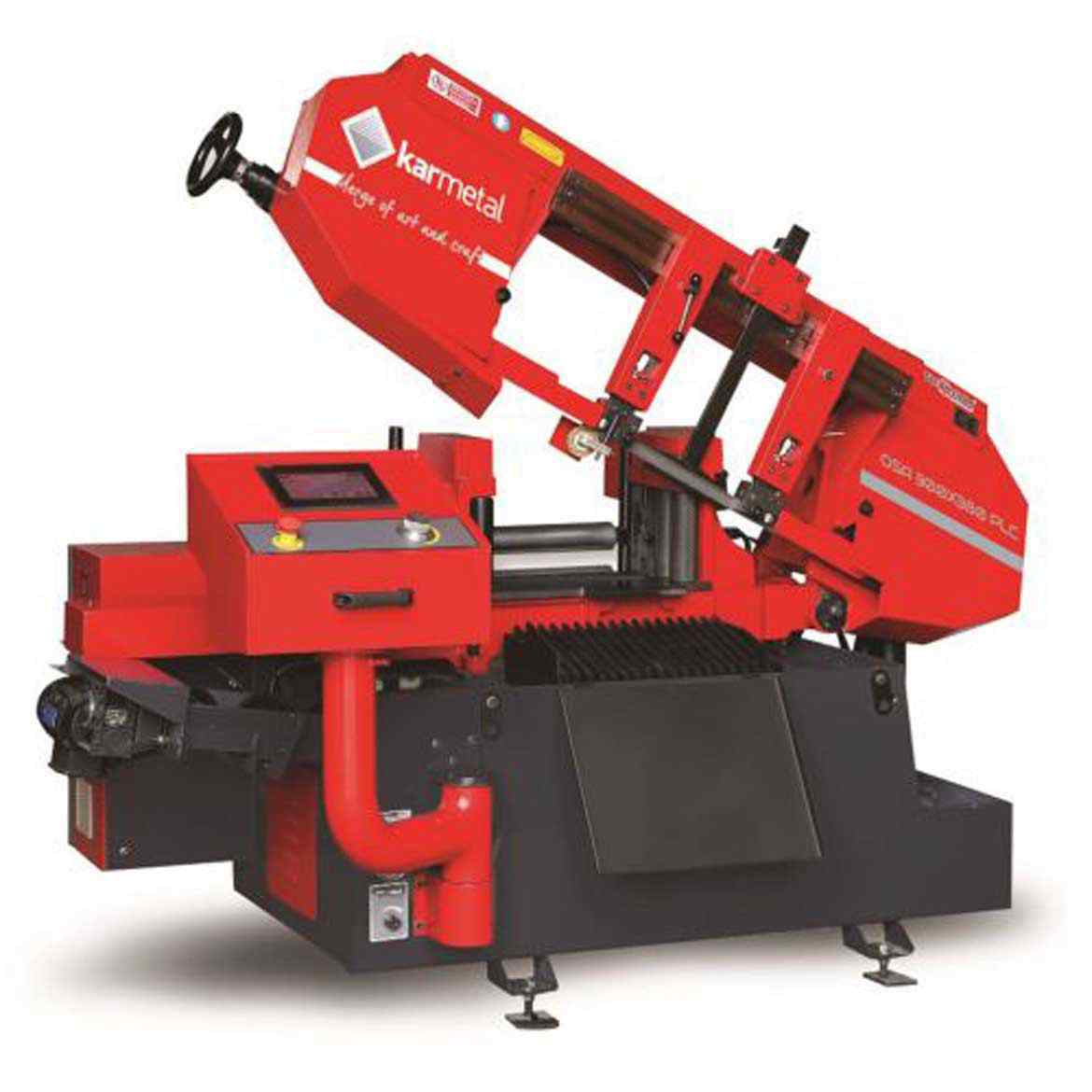

KARMETAL OSA 350×450 PLC
Machine Subcategory
Automatic Horizontal Bandsaw
Overview
Roller Feed Automatic Bandsaw with Hydraulic Vice & Pressure Reduction, PLC Digital Control panel and Roller Stand as Standard.
Standard Specification
- NC programmable control
- Heavy duty construction
- Hydraulic vice
- Variable blade speed 25~90m/min
- Variable Vice pressure
- Powered swarf conveyor
- Adjustable manual top roller
- Digital Control Panel
- Robust, simple to use controls
- Rotary encoder for material component length
- Hydromechanical band tension
- Precise, adjustable hydraulic regulation of the bow descent
- Material support conveyor with adjustable vertical rollers
Get in touch +44 (0)1536 410999
KARMETAL OSA 350x450 PLC Technical Specifications
| Machine Type | Bandsaw |
|---|---|
| Blade Size | 4300mm × 34mm × 1.1mm |
| Blade Speed | Inverter controlled variable speed 25 ~ 90 m/min |
| Table Height | 730mm |
| Motor | 4kW |
| Coolant Motor | 0.12kW |
| Weight | 995 |
| 90° | 45° Left | 45° Right | 60° Left | 60° Right | |
|---|---|---|---|---|---|
| Round Section (mm) | 350mm | ||||
| Rectangular Section Horizontal (mm) | 330x450mm | ||||
| Square Section (mm) | 330mm |
