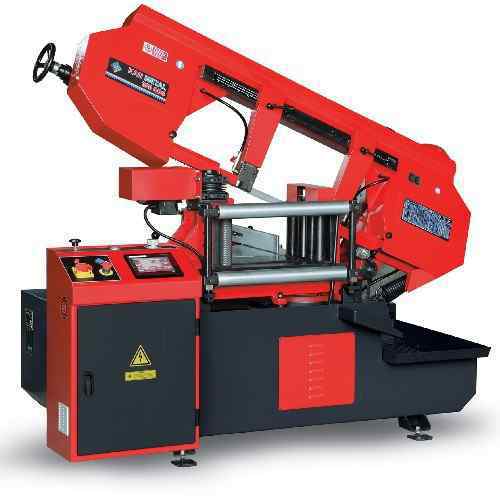

KARMETAL ODG 350×400 PLC
Machine Subcategory
Automatic Horizontal Bandsaw
Overview
Roller Feed Automatic Bandsaw with One-Way Mitre. Vice Pressure Reduction, Touch Screen Controls and Roller Stand as Standard.
Standard Specification
- Heavy duty construction
- One way mitre
- Hydraulic vice
- Variable blade speed 25~90m/min
- Powerful 4.0kW drive motor

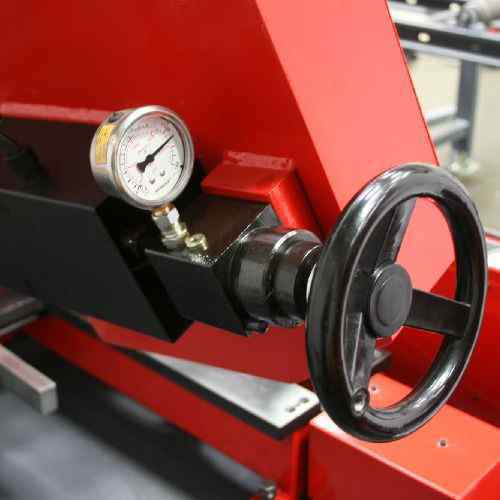

- Variable Vice pressure
- Adjustable manual top roller

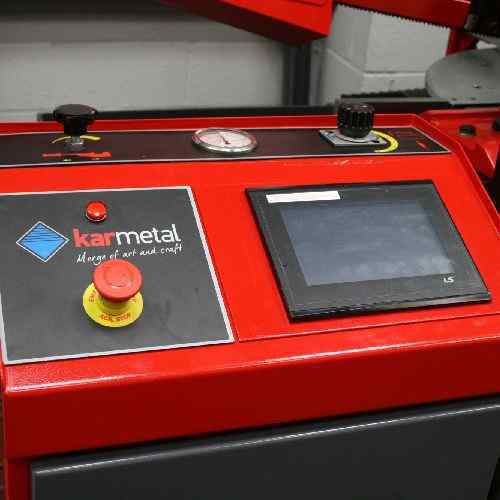

- PLC Control
- Robust, simple to use controls
- Powered swarf conveyor
- Rotary encoder for material component length
- Hydromechanical band tension
- Precise, adjustable hydraulic regulation of the bow descent

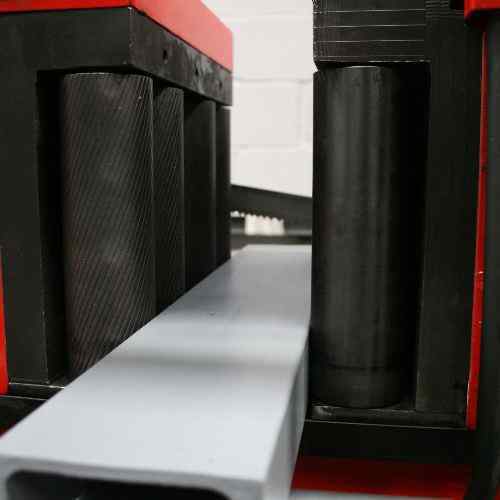

- Material support conveyor with adjustable vertical rollers
Get in touch +44 (0)1536 410999
KARMETAL ODG 350x400 PLC Technical Specifications
| Machine Type | Bandsaw |
|---|---|
| Blade Size | 4350mm × 34mm × 1.1mm |
| Blade Speed | Inverter controlled variable speed 25 ~ 90 m/min |
| Table Height | 750mm |
| Motor | 4Kw |
| Coolant Motor | 0.12kW |
| Weight | 1350 |
| 90° | 45° Left | 45° Right | 60° Left | 60° Right | |
|---|---|---|---|---|---|
| Round Section (mm) | 350mm | 300mm | 180mm | ||
| Rectangular Section Horizontal (mm) | 330x400mm | 270x300mm | 150x180mm | ||
| Square Section (mm) | 330mm | 280mm | 160mm |
