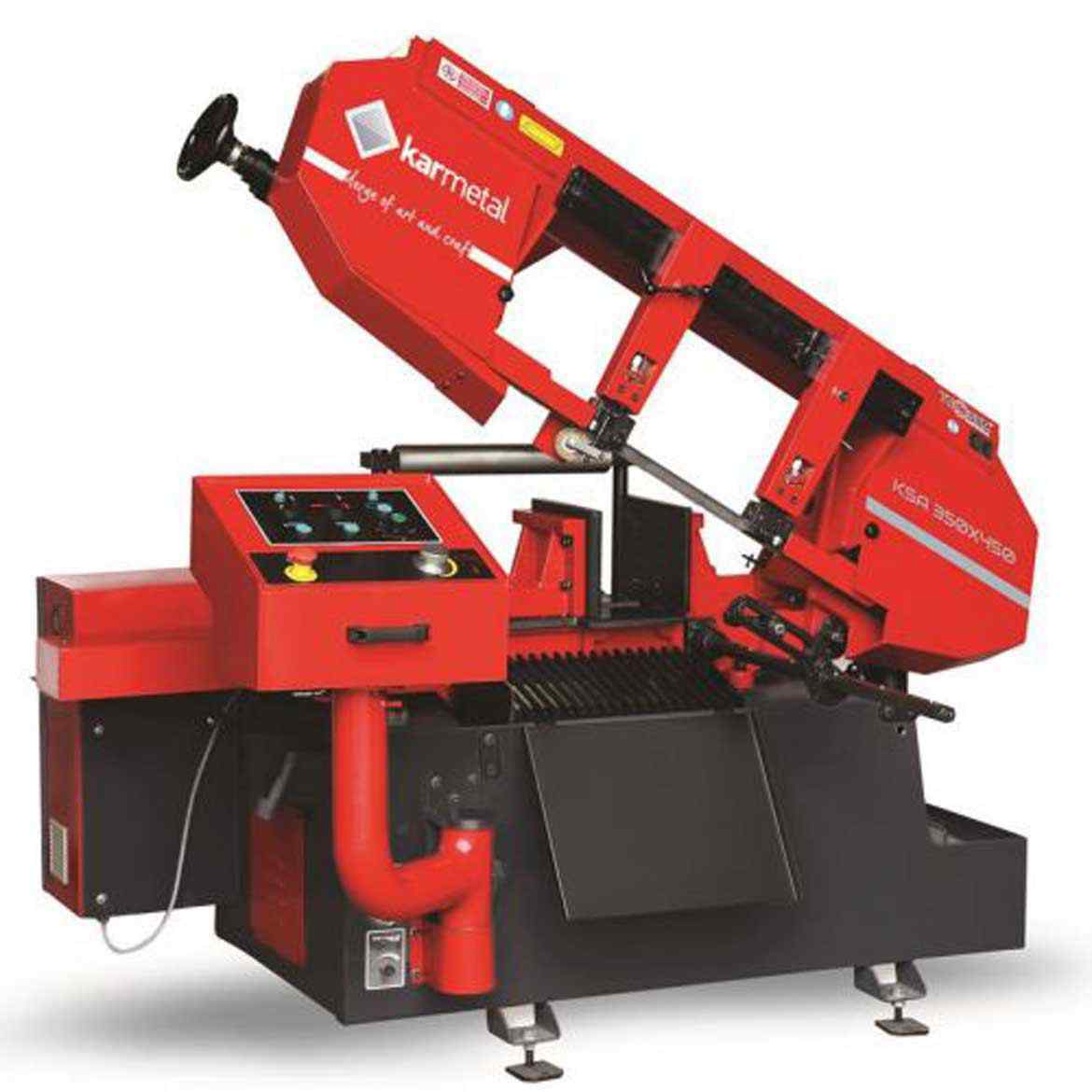

KARMETAL KSA 350×450
Machine Subcategory

Semi Automatic Horizontal Bandsaw

Overview

Semi-Automatic bandsaw designed for straight cutting sections and solid materials

Standard Specification
  • Hydraulic vice for fast clamping
  • Heavy duty blade tensioning unit with indicator
  • Powerful 4.0kW drive motor
  • Inverter controlled variable blade speed from 25 to 90 m/min
  • Precision control hydraulic downfeed
  • Heavy duty one-piece cast bow
  • Roller blade guides and carbide pads ensure accurate, straight cuts
  • Adjustable guide arm
  • Re-circulating coolant pump
  • Simple, robust controls
  • Blade guard with electrical cut-out switch
  • Heavy, stable machine base
  • Material Infeed Table
Get in touch +44 (0)1536 410999
KARMETAL KSA 350x450 Technical Specifications

Notice: Function is_internal_meta_key was called incorrectly. Generic add/update/get meta methods should not be used for internal meta data, including "_weight". Use getters and setters. Backtrace: require('wp-blog-header.php'), require_once('wp-includes/template-loader.php'), include('/plugins/woocommerce/templates/single-product.php'), wc_get_template_part, load_template, require('/plugins/woocommerce/templates/content-single-product.php'), do_action('woocommerce_single_product_summary'), WP_Hook->do_action, WP_Hook->apply_filters, single_product_custom_template, prosaw_render_technical_specifications, prosaw_render_meta_row, prosaw_get_spec_value, WC_Data->get_meta, WC_Data->is_internal_meta_key, wc_doing_it_wrong Please see Debugging in WordPress for more information. (This message was added in version 3.2.0.) in /home/prosaw/public_html/wp-includes/functions.php on line 6260
Machine Type Bandsaw
Blade Size 4300mm × 34mm × 1.1mm
Blade Speed Inverter controlled variable speed 25 ~ 100 m/min
Table Height 750mm
Motor 4kW
Coolant Motor 0.09kW
Weight 995
90° 45° Left 45° Right 60° Left 60° Right
Round Section (mm) 350mm
Rectangular Section Horizontal (mm) 350x450mm
Square Section (mm) 350mm
SKU: 127 Category:
