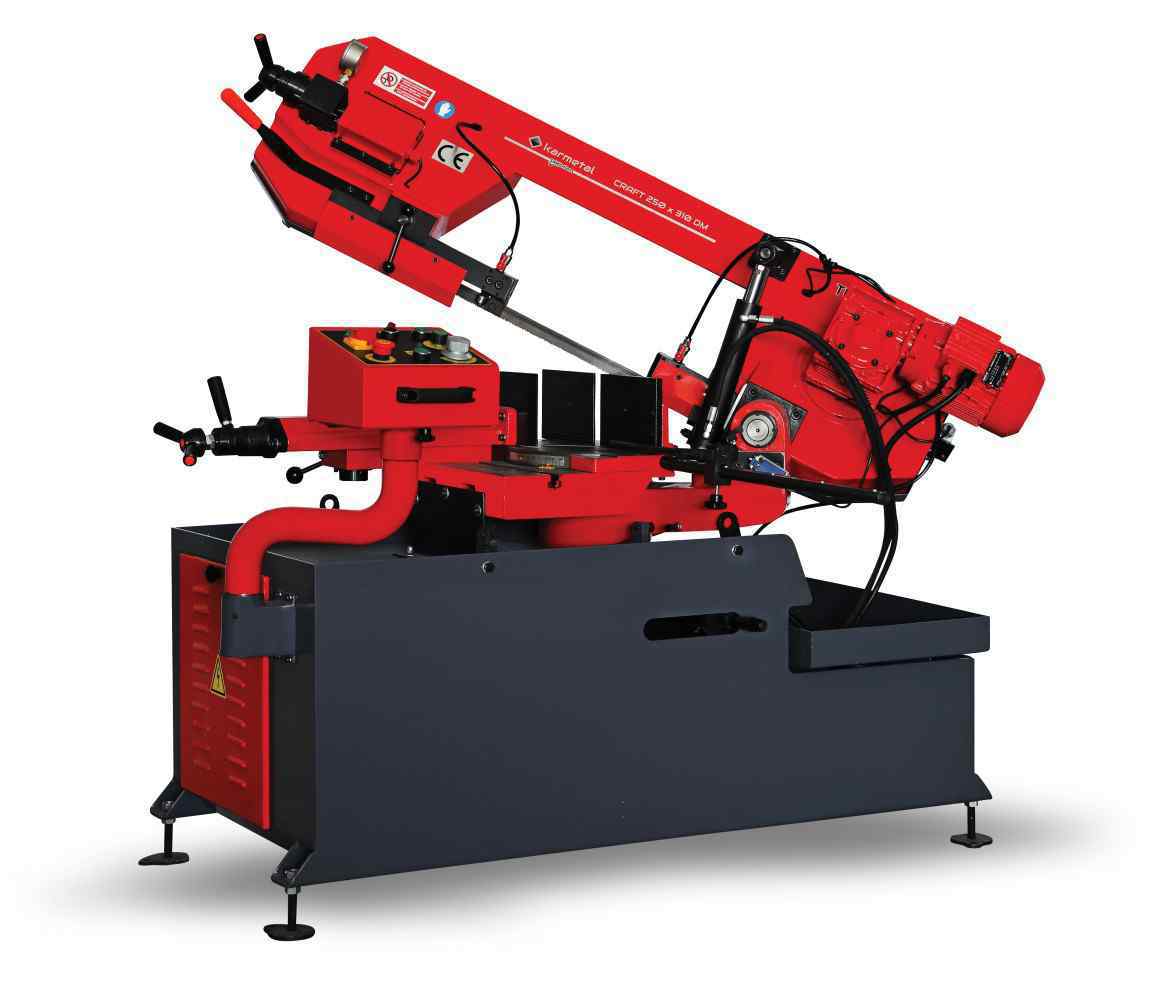

KARMETAL KMT CRAFT 250×310 DM
KARMETAL KMT CRAFT 250x310 DM
KARMETAL KMT CRAFT 250x310 DM - Image 2
KARMETAL KMT CRAFT 250x310 DM - Image 3
KARMETAL KMT CRAFT 250x310 DM - Image 4
KARMETAL KMT CRAFT 250x310 DM - Image 5
Machine Subcategory

Manual Horizontal Bandsaw

Overview

Compact Manual Mitre Cutting Bandsaw with Turntable Bed

Standard Specification
  • Adjustable 500mm Length Setting Bar
  • Adjustable Tension Band Wheel

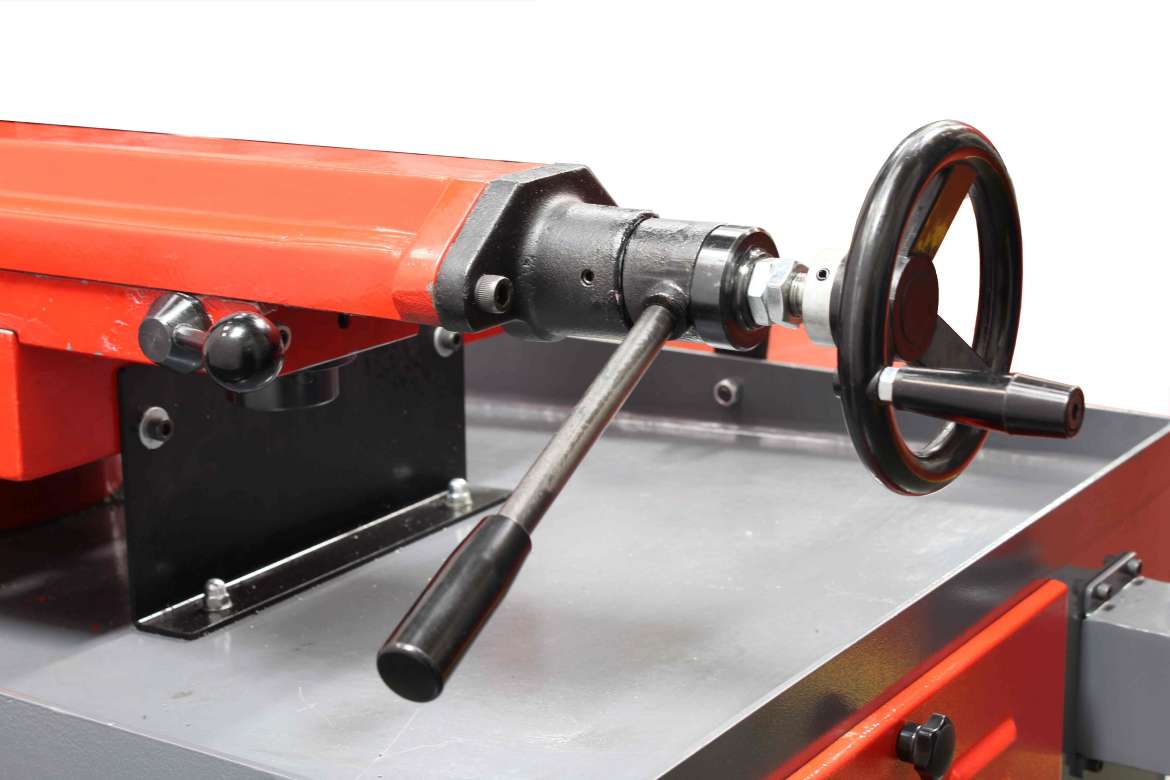

  • Quick action vice for fast clamping

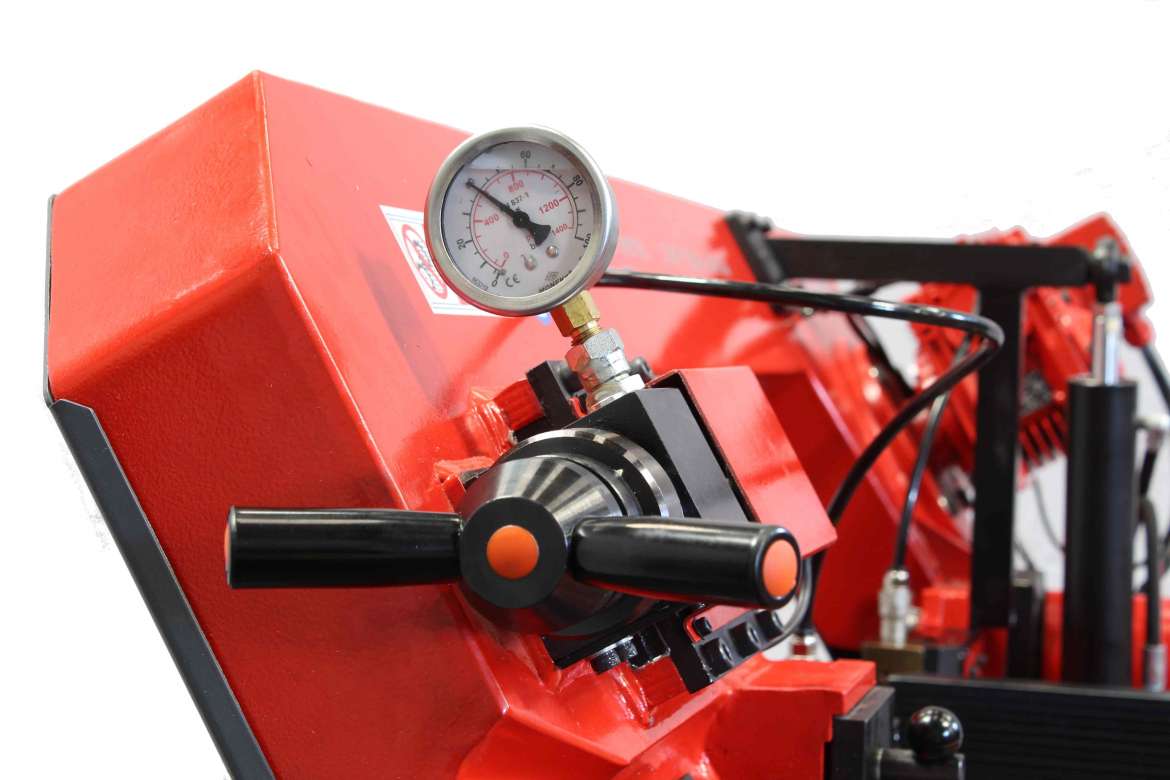

  • Heavy duty blade tensioning unit with indicator
  • Inverter controlled variable blade speed from 25 to 90 m/min
  • Bow swivels up to 45° left, 60° right with easy mitre
  • Precision control hydraulic downfeed
  • Heavy duty one-piece cast bow
  • Turntable bed with easy to read mitre scale
  • Substantial vices, quick set lever operation
  • Roller blade guides and carbide pads ensure accurate, straight cuts
  • Adjustable guide arm
  • Re-circulating coolant pump

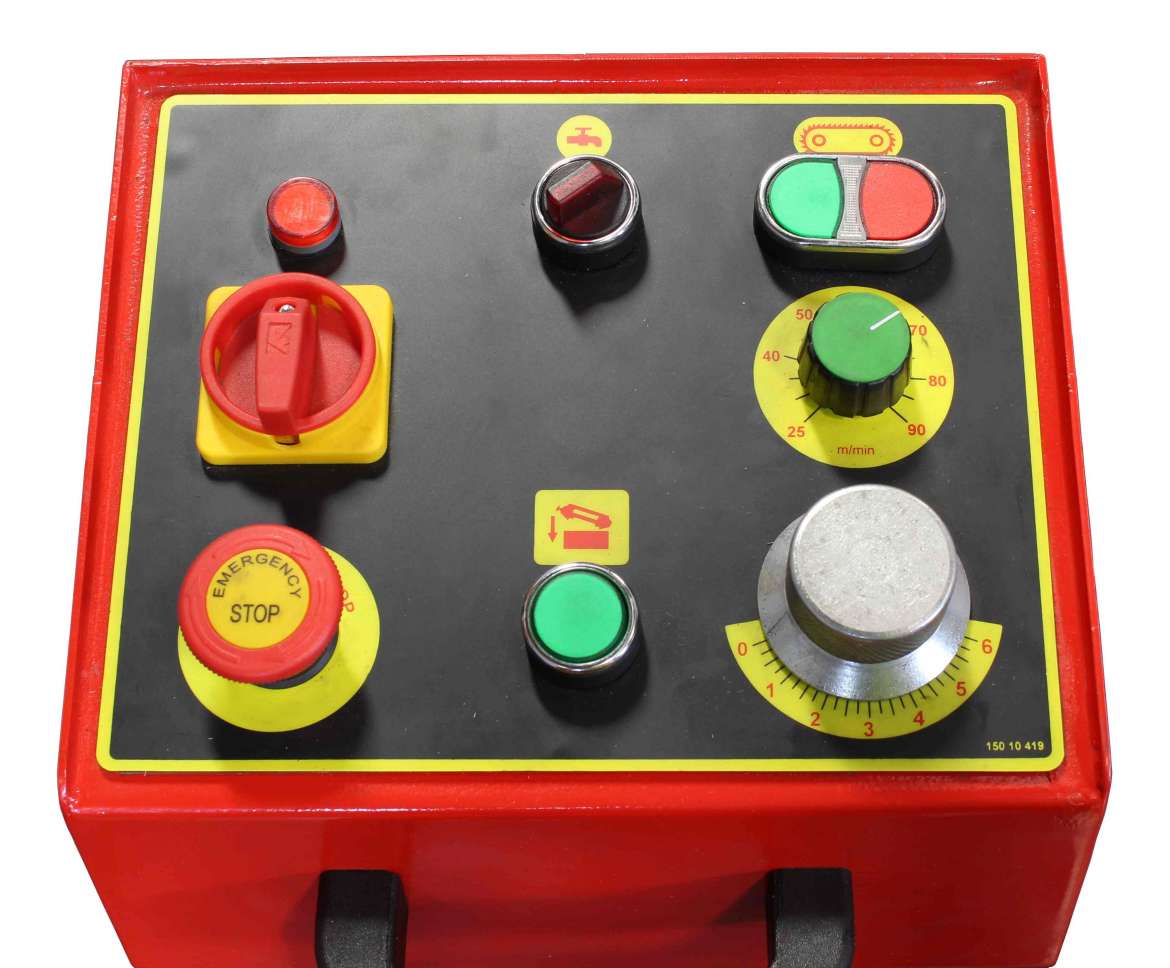

  • Simple, robust controls
  • Blade guard with electrical cut-out switch
  • Heavy, stable machine base
Get in touch +44 (0)1536 410999
KARMETAL KMT CRAFT 250x310 DM Technical Specifications

Notice: Function is_internal_meta_key was called incorrectly. Generic add/update/get meta methods should not be used for internal meta data, including "_weight". Use getters and setters. Backtrace: require('wp-blog-header.php'), require_once('wp-includes/template-loader.php'), include('/plugins/woocommerce/templates/single-product.php'), wc_get_template_part, load_template, require('/plugins/woocommerce/templates/content-single-product.php'), do_action('woocommerce_single_product_summary'), WP_Hook->do_action, WP_Hook->apply_filters, single_product_custom_template, prosaw_render_technical_specifications, prosaw_render_meta_row, prosaw_get_spec_value, WC_Data->get_meta, WC_Data->is_internal_meta_key, wc_doing_it_wrong Please see Debugging in WordPress for more information. (This message was added in version 3.2.0.) in /home/prosaw/public_html/wp-includes/functions.php on line 6260
Manufacturer Waytrain
Machine Type Bandsaw
Blade Size 3140mm × 27mm × 0.9mm
Blade Speed Invertor variable speed 25~90 m/min
Table Height 730mm
Motor 1.5kW
Coolant Motor 0.09kW
Weight 480
Material Type(s) Section
Material(s) Sections
90° 45° Left 45° Right 60° Left 60° Right
Round Section (mm) 250mm 180mm 190mm 120mm
Rectangular Section Horizontal (mm) 250x310mm 100x250mm 190x150mm 120x140mm
Square Section (mm) 250mm 150mm 190mm 120mm
SKU: 138 Category:
Download Datasheet

Download the datasheet for the KARMETAL KMT CRAFT 250x310 DM
