KARMETAL KDG 560×1050 DM
KARMETAL KDG 560x1050 DM
KARMETAL KDG 560x1050 DM - Image 2
KARMETAL KDG 560x1050 DM - Image 3
KARMETAL KDG 560x1050 DM - Image 4
KARMETAL KDG 560x1050 DM - Image 5
KARMETAL KDG 560x1050 DM - Image 6
Machine Subcategory

Semi Automatic Horizontal Bandsaw

Overview

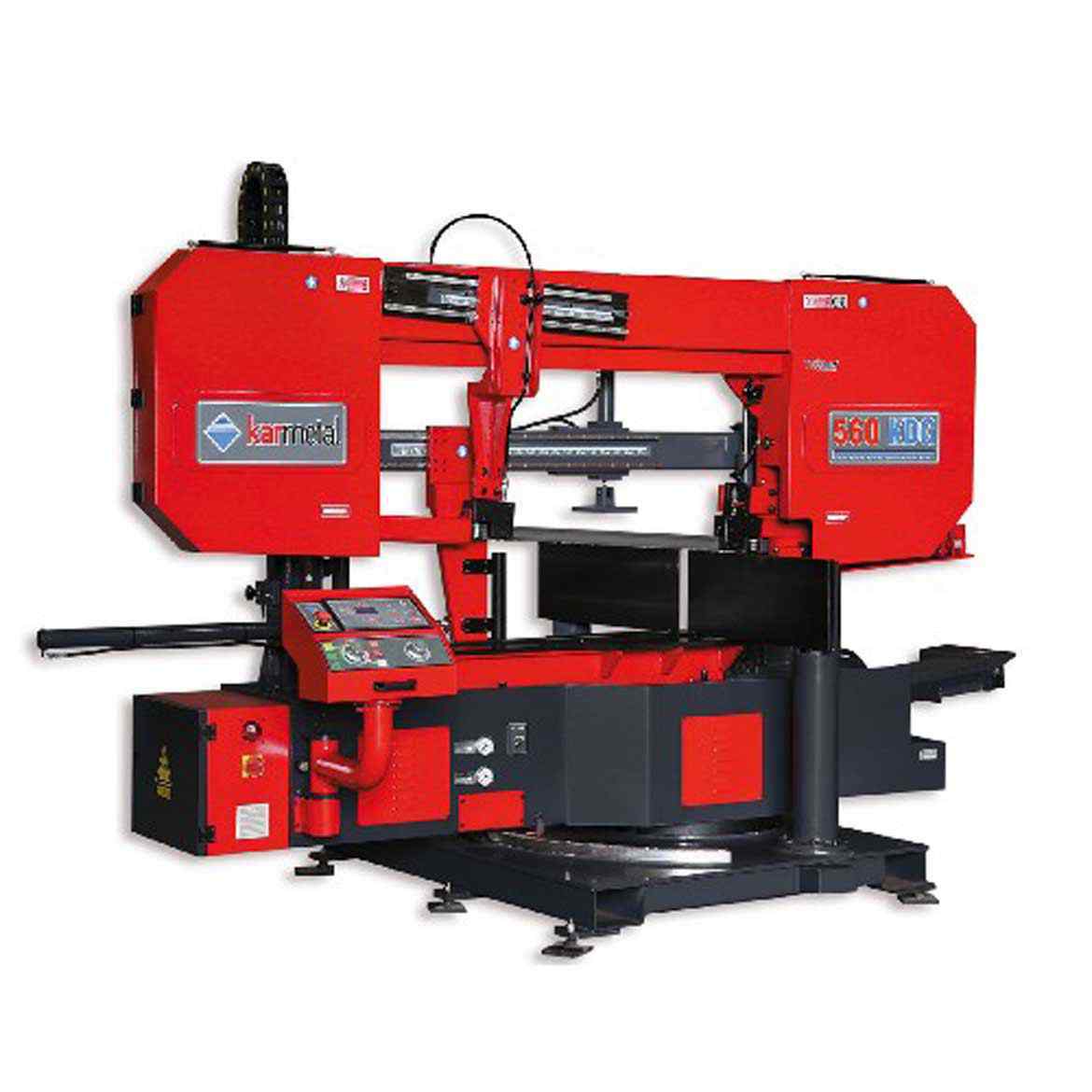

The Karmetal KMT 560 KDG is a semi-automatic twin column band saw for cutting section material with Turntable Bed.

Standard Specification
  • Hydraulic vice for fast clamping
  • Hydraulic top clamp

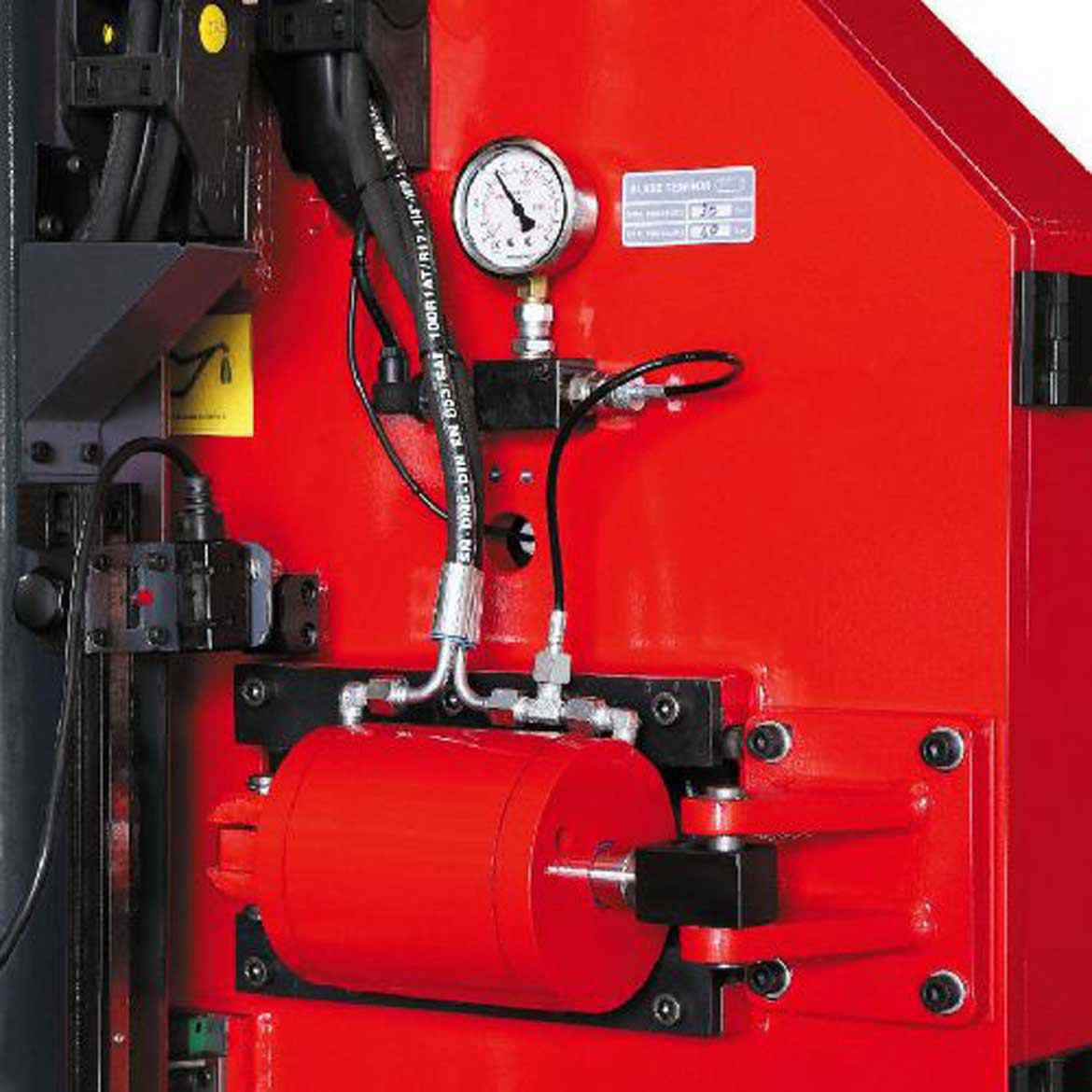

  • Heavy duty Hydraulic blade tensioning unit
  • Inverter controlled variable blade speed from 25 to 100 m/min
  • Bow swivels up to 45° left & 60° right with easy mitre
  • Precision control hydraulic downfeed
  • Turntable bed with easy to read mitre scale

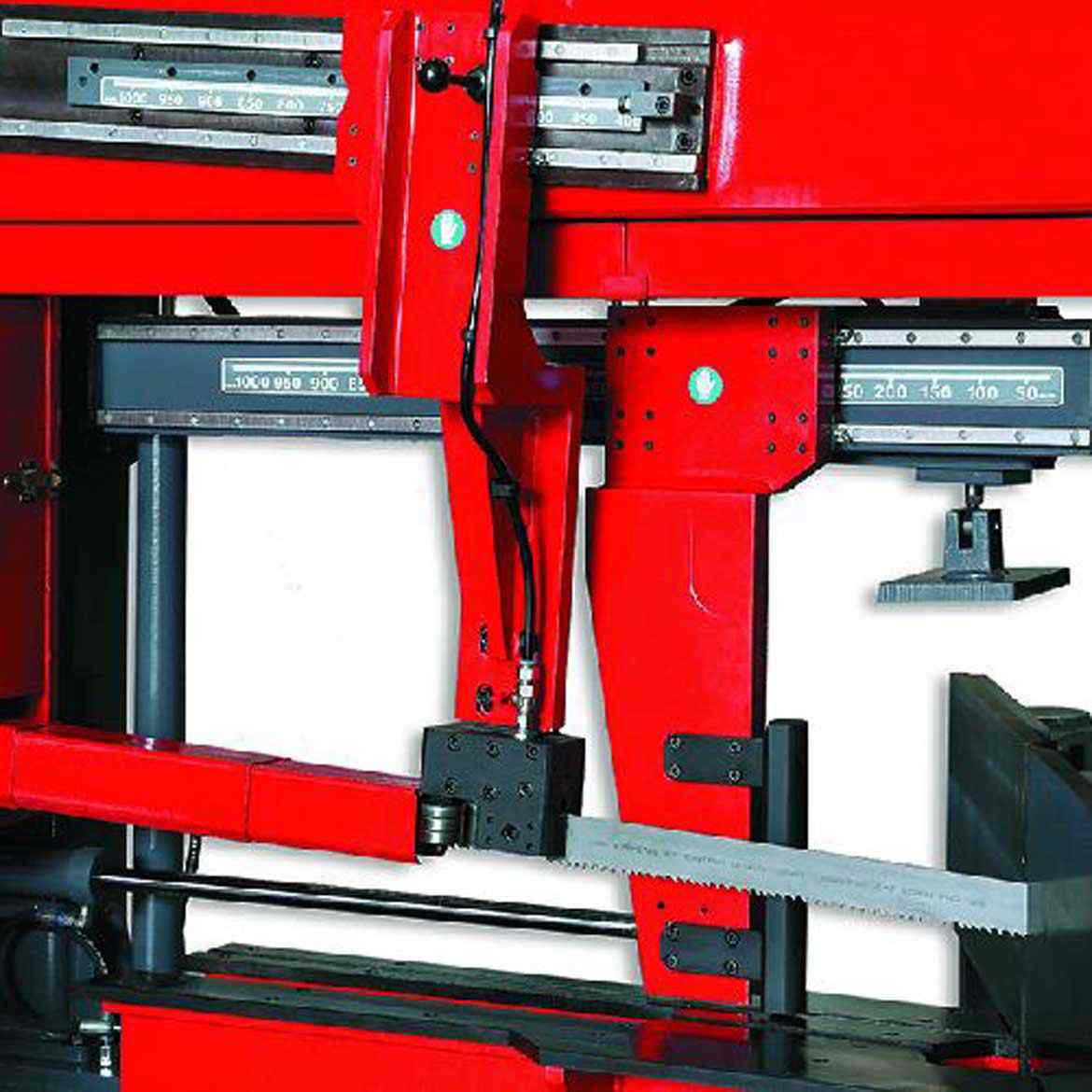

  • Roller blade guides and carbide pads ensure accurate, straight cuts
  • Adjustable guide arm mounted on linear bearings
  • Re-circulating coolant pump
  • Motorised swarf brush

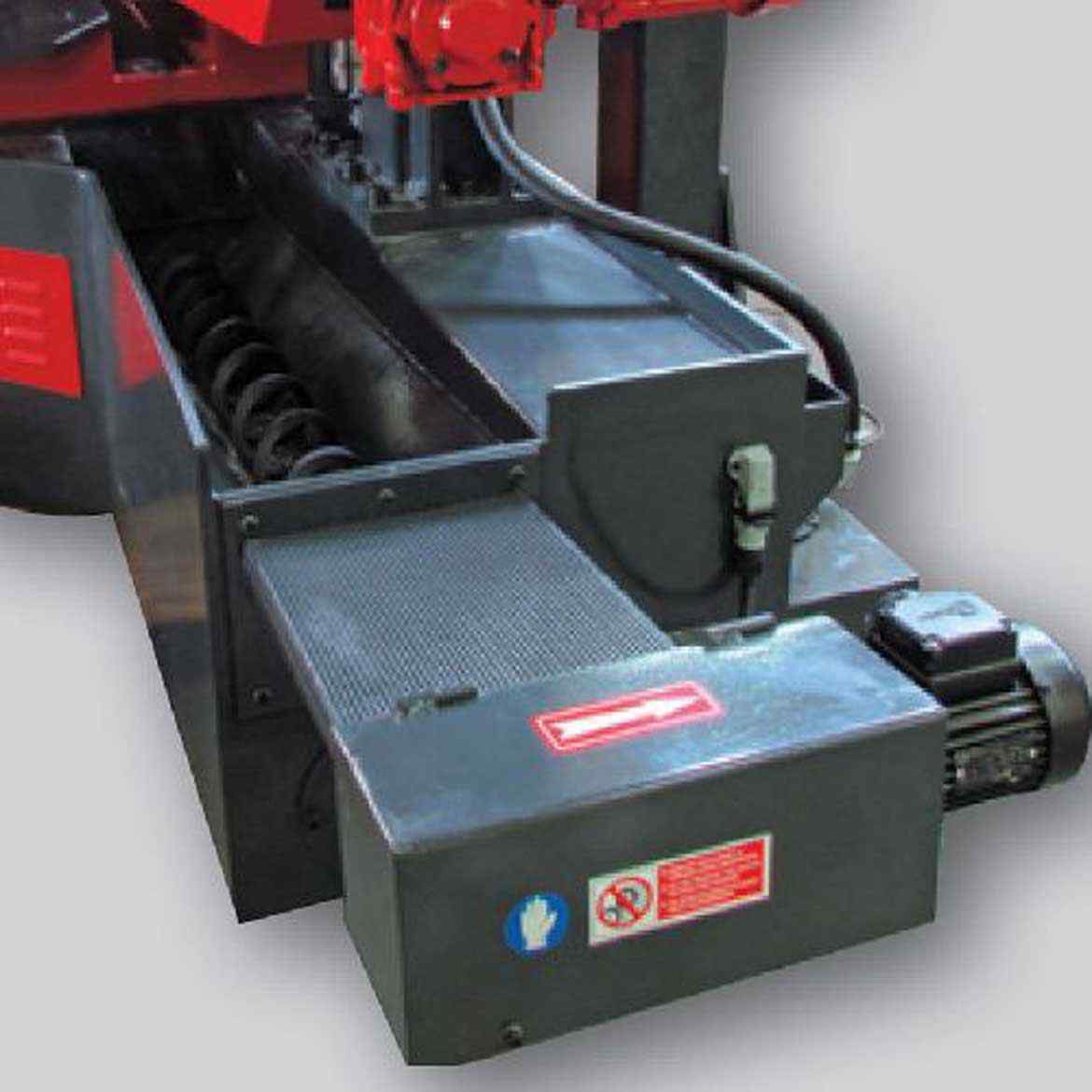

  • Chip Conveyor

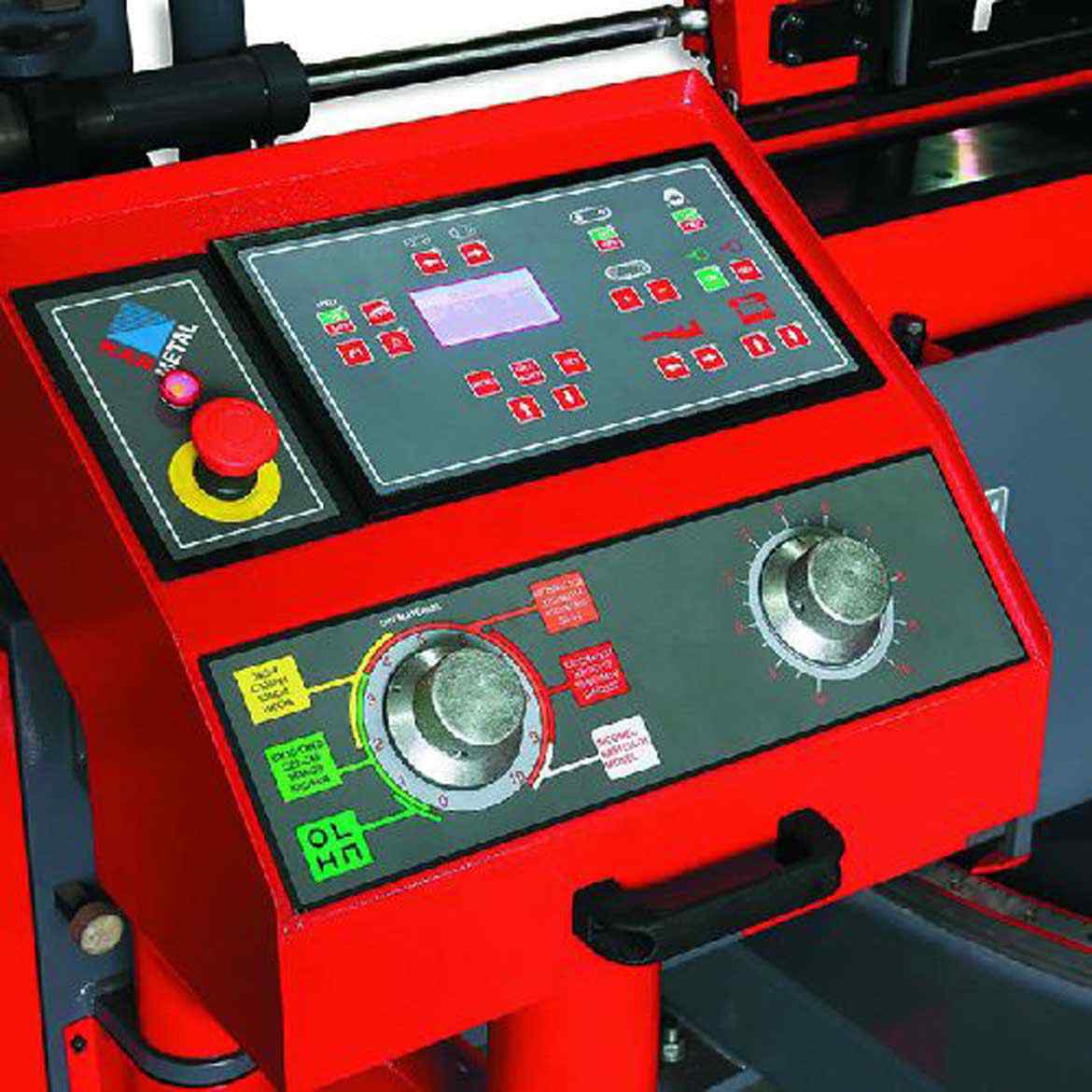

  • Dıgıtal Control Panel
  • Controls for sensitive downfeed pressure, inverter and hydraulic brake
  • Blade guard with electrical cut-out switch
  • Heavy, stable machine base
Get in touch +44 (0)1536 410999
KARMETAL KDG 560x1050 DM Technical Specifications

Notice: Function is_internal_meta_key was called incorrectly. Generic add/update/get meta methods should not be used for internal meta data, including "_weight". Use getters and setters. Backtrace: require('wp-blog-header.php'), require_once('wp-includes/template-loader.php'), include('/plugins/woocommerce/templates/single-product.php'), wc_get_template_part, load_template, require('/plugins/woocommerce/templates/content-single-product.php'), do_action('woocommerce_single_product_summary'), WP_Hook->do_action, WP_Hook->apply_filters, single_product_custom_template, prosaw_render_technical_specifications, prosaw_render_meta_row, prosaw_get_spec_value, WC_Data->get_meta, WC_Data->is_internal_meta_key, wc_doing_it_wrong Please see Debugging in WordPress for more information. (This message was added in version 3.2.0.) in /home/prosaw/public_html/wp-includes/functions.php on line 6260
Machine Type Bandsaw
Blade Size 7140mm × 54mm × 1.6mm
Blade Speed Inverter controlled varaible speed 25 ~ 100 m/min
Table Height 885mm
Motor 5.5kW
Motor 1.5kW
Hydraulic Tank 1.5kW
Coolant Motor 0.2kW
Weight 3500
90° 45° Left 45° Right 60° Left 60° Right
Round Section (mm) 560mm 560mm 500mm 380mm
Rectangular Section Horizontal (mm) 560x1050mm 560x800mm 560x680mm 380x560mm
Square Section (mm) 560mm 560mm 500mm 380mm
SKU: 166 Category:
Download Datasheet

Download the datasheet for the KARMETAL KDG 560x1050 DM
