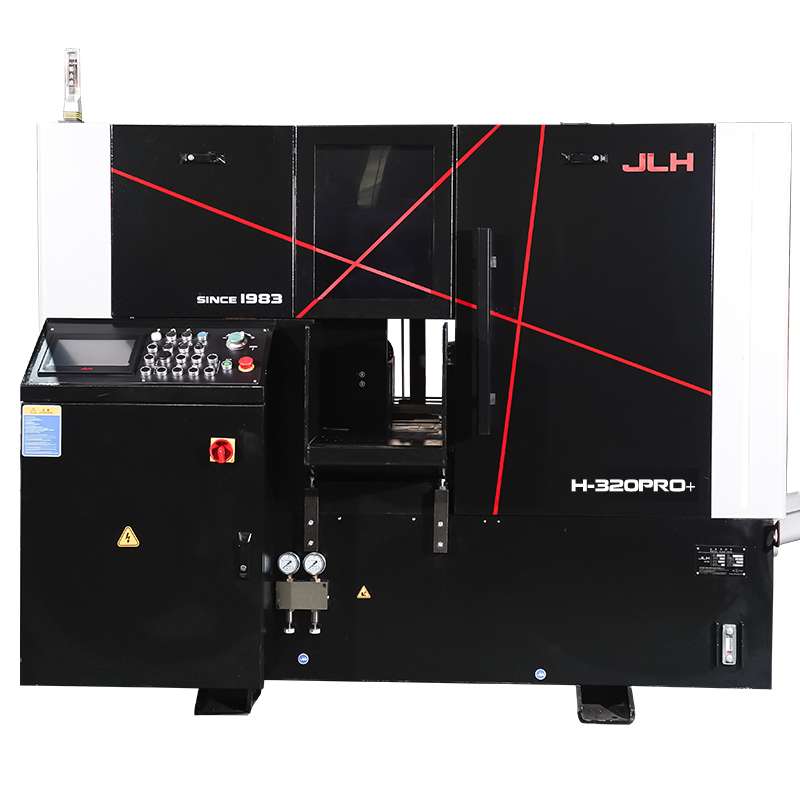

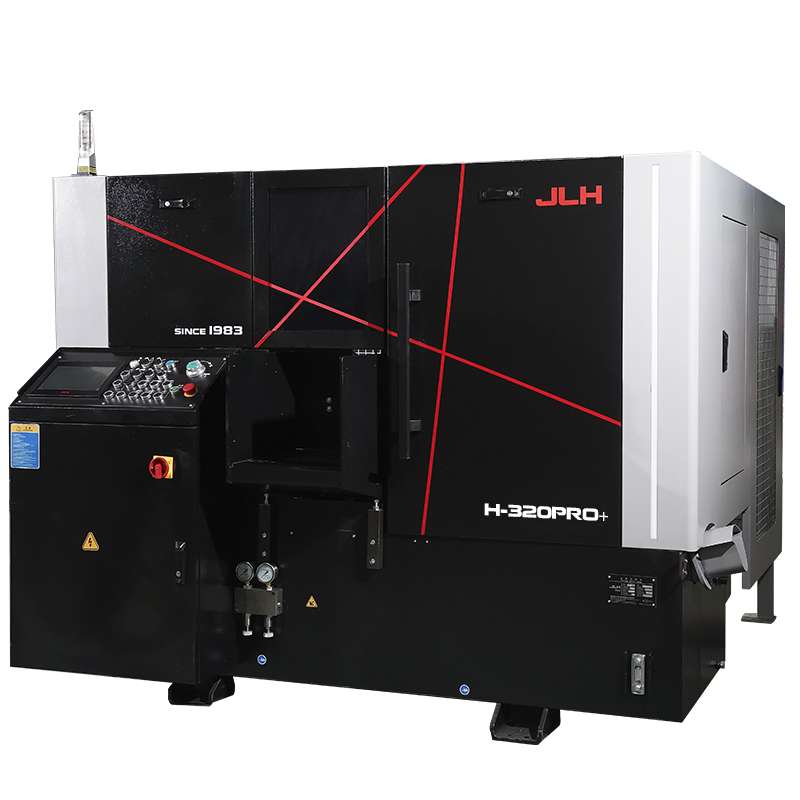

JLH H320 PRO+
Machine Subcategory
Automatic Bandsaw
Overview
Heavy duty, vice feed automatic bandsaw complete with fully enclosed guarding.
Standard Specification

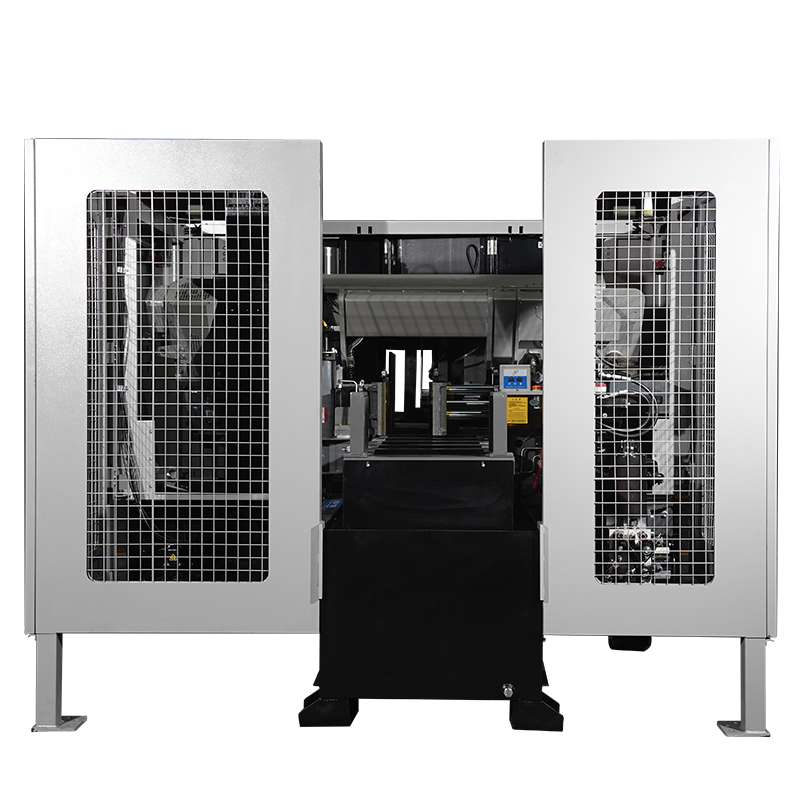

- Fully enclosed guarding
- N.C controls for cutting length via 10” touch screen HMI, up to 100 programs can be saved
- Preprogrammed feed and pressure controls relative to the grade of the material.
- Multi pass to facilitate the cutting of components that are longer than the 500mm material feed stroke
- Split front vice to minimise burr by securing both sides of the material either side of the blade
- Blade monitor to automatically stop the machine in the event of a blade break/jam.
- Automatic swarf conveyor
- 34mm wide blade
- Vice pressure regulation
- LED worklamp

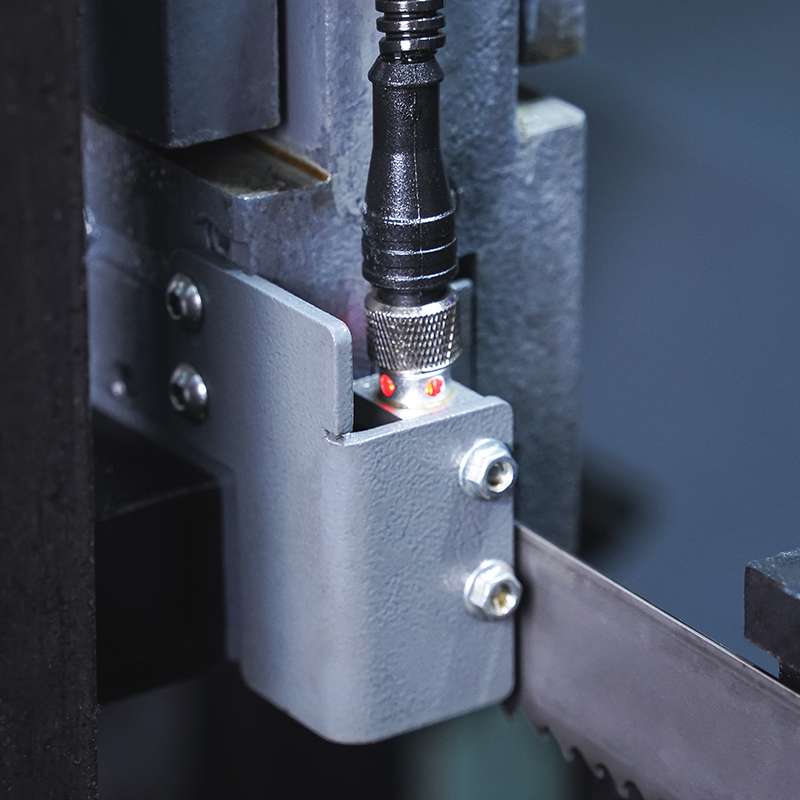

- Blade deviation monitor

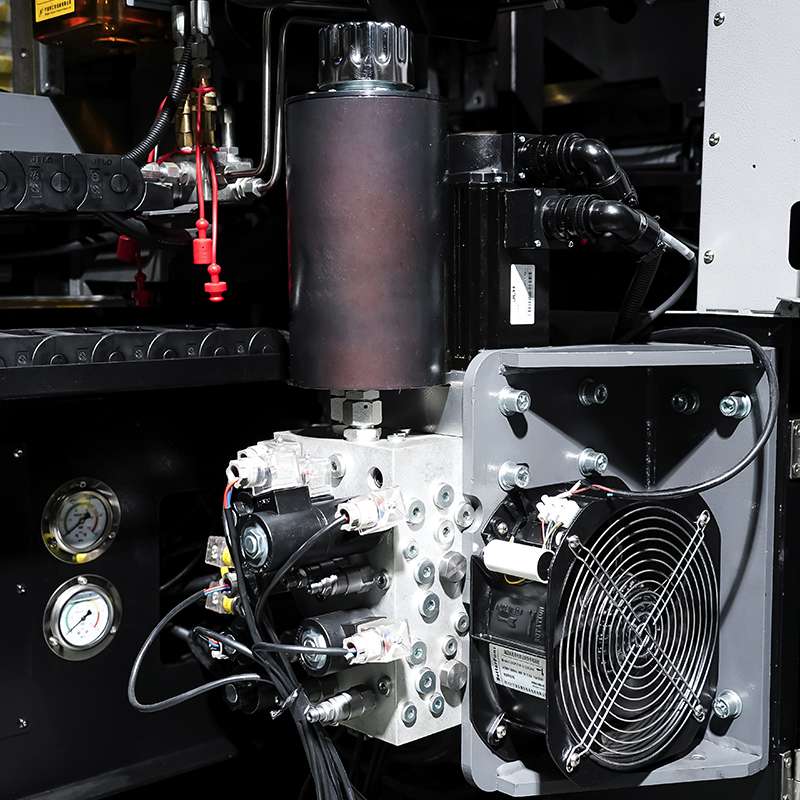

- Hydraulic blade tension for fast cutting

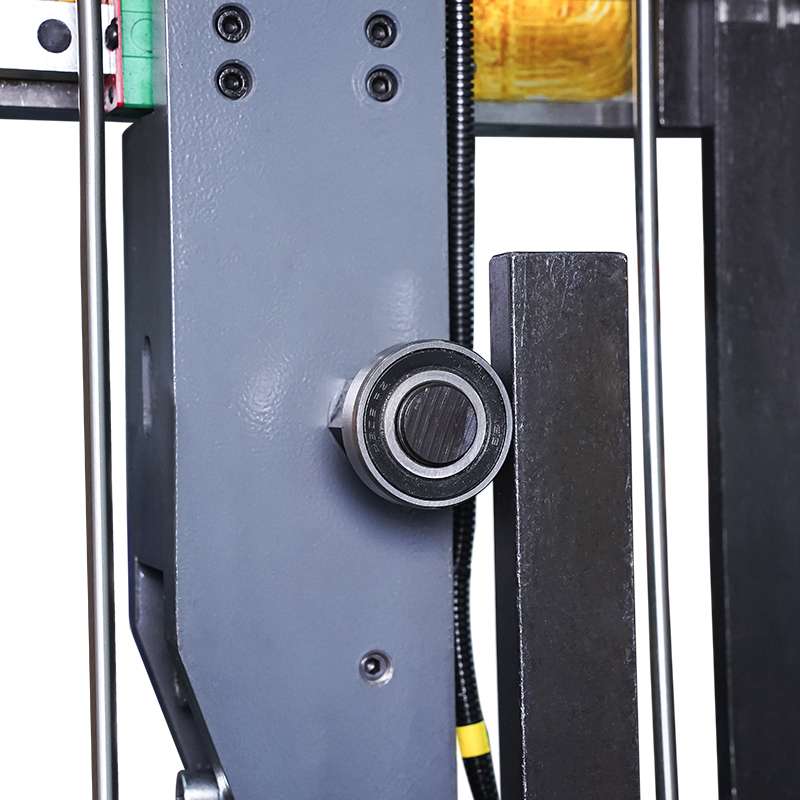

- Automatic guide arm on linear rails
Get in touch +44 (0)1536 410999
JLH H320 PRO+ Technical Specifications
| Manufacturer | 001 Inactive |
|---|---|
| Machine Type | Bandsaw |
| Operation Type | Twin Column |
| Blade Size | 4115mm × 34mm × 1.1mm |
| Blade Speed | 20 - 80 m/min |
| Power Input | 8.2 kW (Total connected load) |
| Table Height | 830 mm |
| Motor | 5 kW |
| Motor | 0.75 kW |
| Feeding Stroke | 500 mm |
| Weight | 1900 |
| Machine Dimensions | 2250 mm × 2630 mm × 1980 mm |
| Material Type(s) | Solid |
| Material(s) | Solids, Nickel Alloys |
| 90° | 45° Left | 45° Right | 60° Left | 60° Right | |
|---|---|---|---|---|---|
| Solid Round 90 | 320mm | ||||
| Solid Rectangle 90 | 320x320mm | ||||
| Solid Square 90 | 320x320mm | ||||
