ILERI TEKNIK V350
Machine Subcategory

Manual Circular Saws

Overview

This heavy duty Ileri Teknik V350 is operated by a pull down handle and offers easy mitre cutting for general cutting requirements in the workshop or toolroom. It features a self-centring double split vice to grip material on both sides and has two cutting speeds to cope with a range of materials from mild steel to stainless.

Standard Specification
  • Very heavy duty

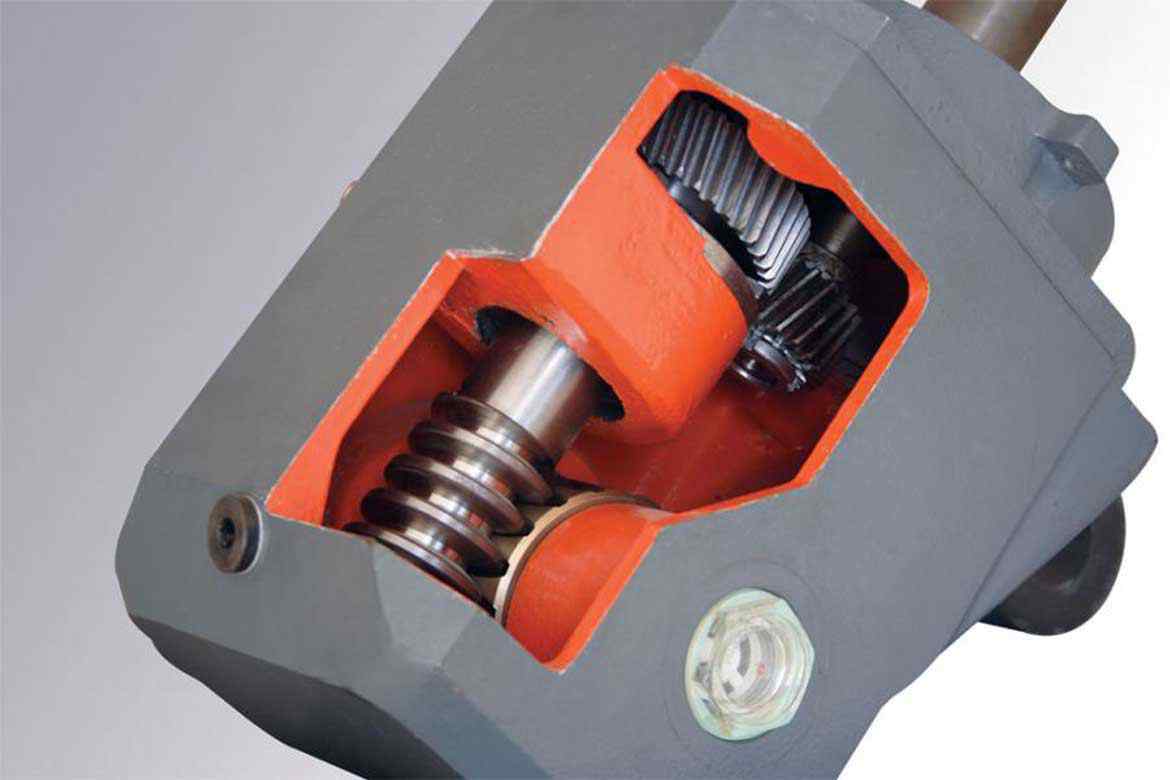

  • 2 stage helical gearbox
  • Nickel bronze gear with precision ground & hardened worm drive screw
  • Robust, double hinged pivot
  • Low voltage switch within the pull-down handle grip
  • Double counterbalance springs
  • Easy, positive ±45° mitre
  • Double split vice to grip material on both sides
  • Self-centring of vice optimises cutting position
  • 2 Speed main motor
  • Adjustable bar stop 400mm
  • Large, square, integral base for stability
  • Internal electric coolant pump
  • Coolant tank with integral chip tray
Optional Features
  • Pneumatic vice
  • Mist spray lubrication system
ILERI TEKNIK V350 Technical Specifications
Manufacturer Ileri Teknik
Machine Type Circular Saw
Operation Type Manual
Material Section
Blade Size 350 x 32bore
Blade Speed 45 & 90 r.p.m.
Motor 1.8kW
Coolant Motor 0.06kW
Weight 210
90° 45° Left 45° Right 60° Left 60° Right
Round Section (mm) 115 110
Rectangular Section Horizontal (mm) 120 x 80 90 x 90
Rectangular Section
Vertical (mm)
Square Section (mm) 100 x 100 90 x 90
