ILERI TEKNIK V315 HX
ILERI TEKNIK V315 HX

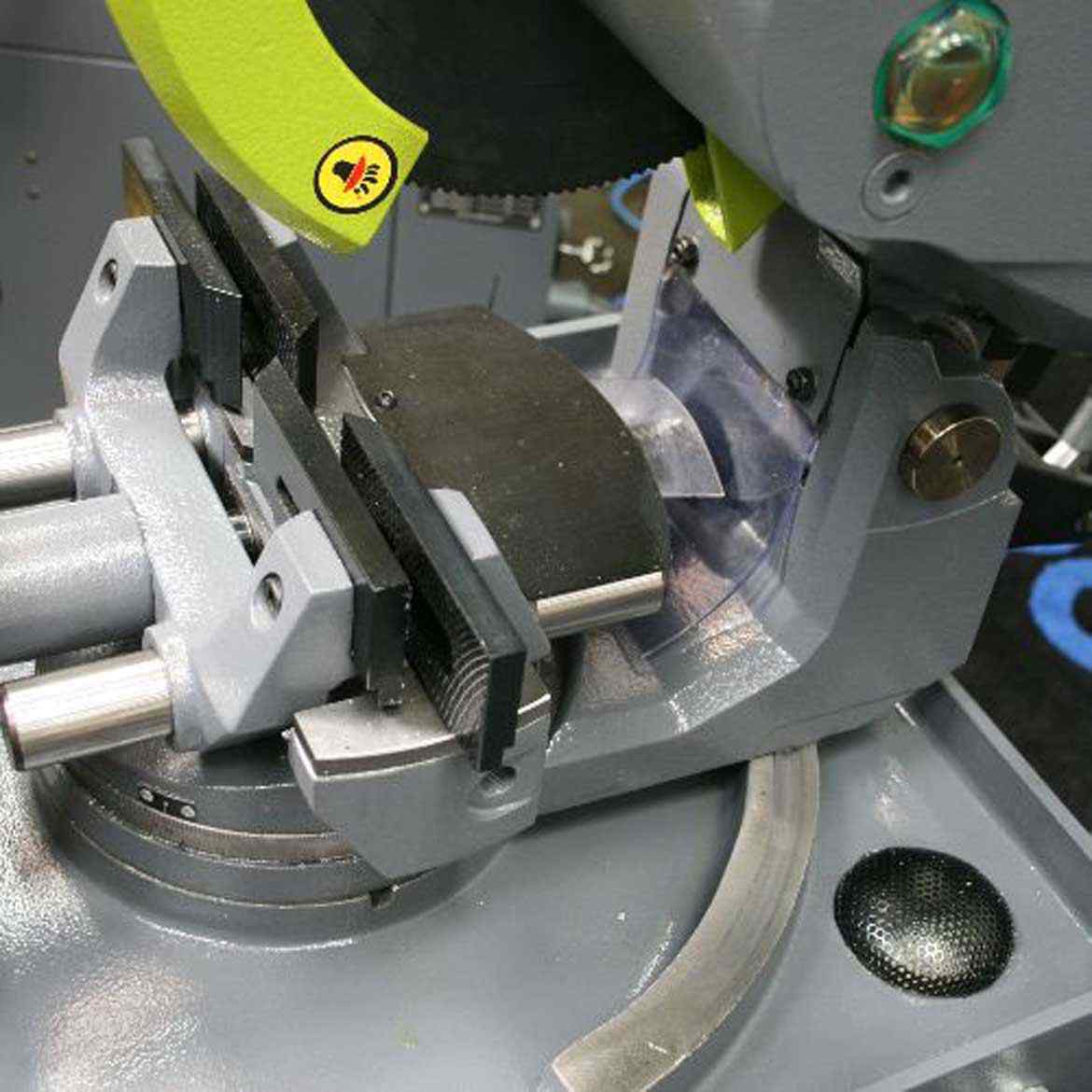

ILERI TEKNIK V315 HX - Image 2

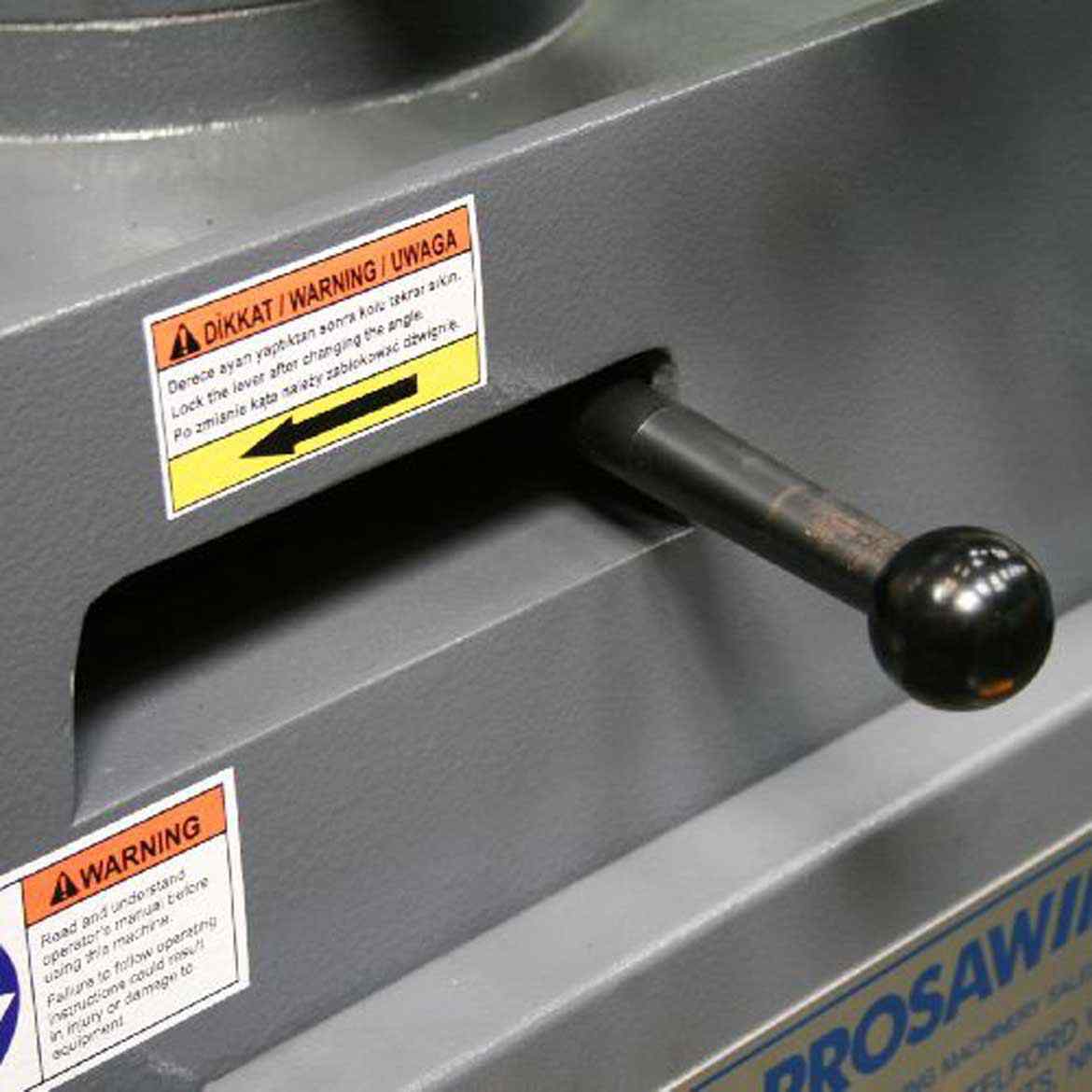

ILERI TEKNIK V315 HX - Image 3

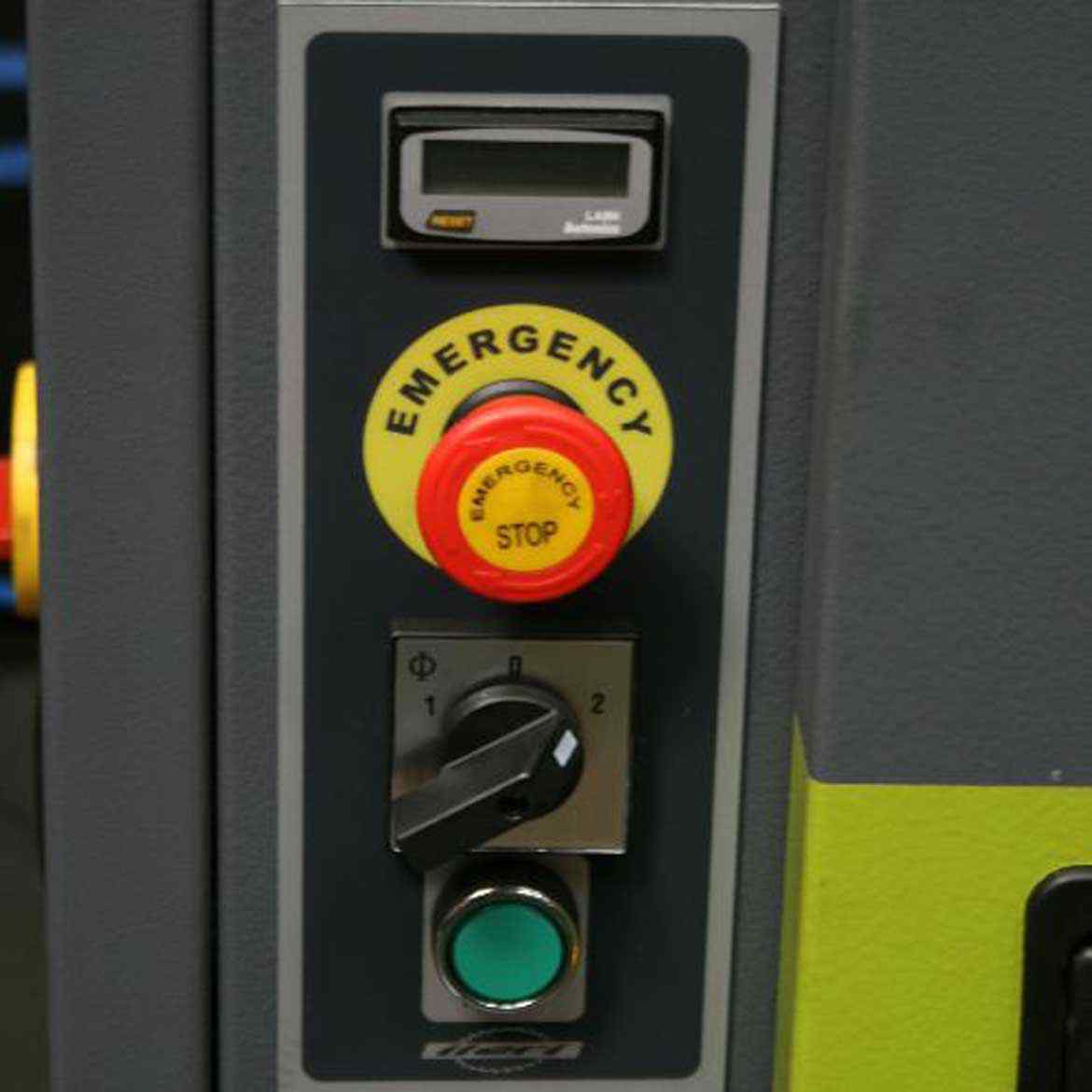

ILERI TEKNIK V315 HX - Image 4

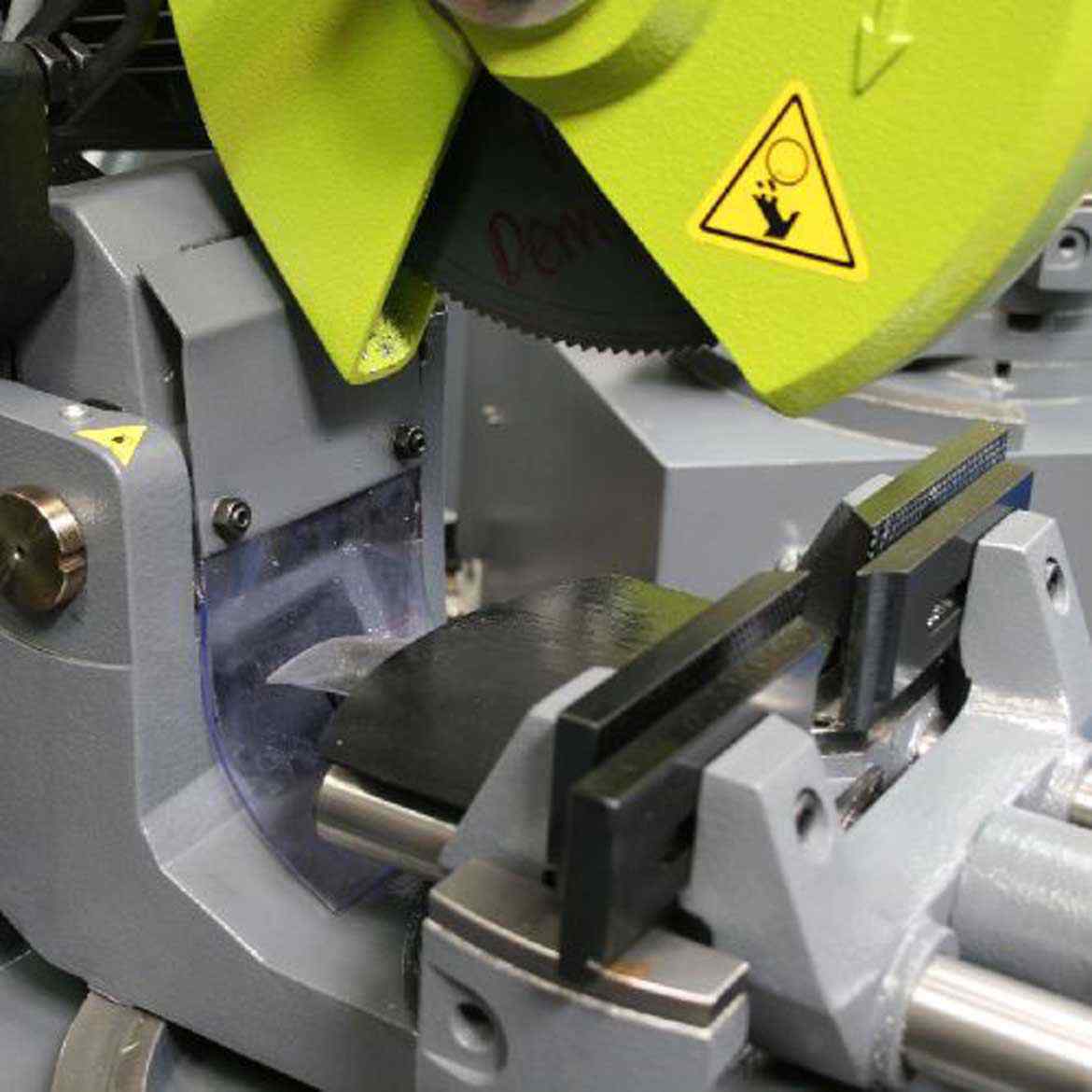

ILERI TEKNIK V315 HX - Image 5

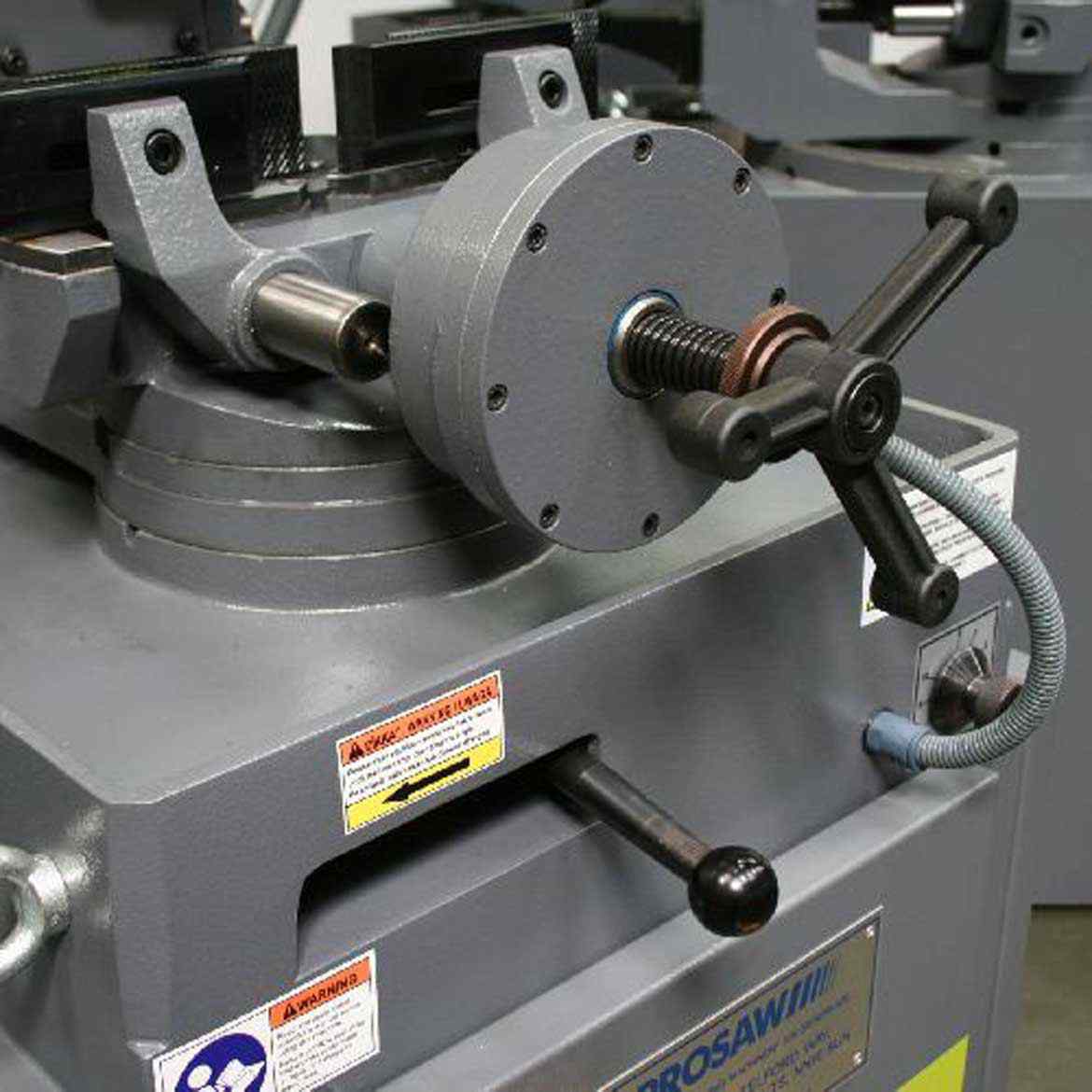

ILERI TEKNIK V315 HX - Image 6

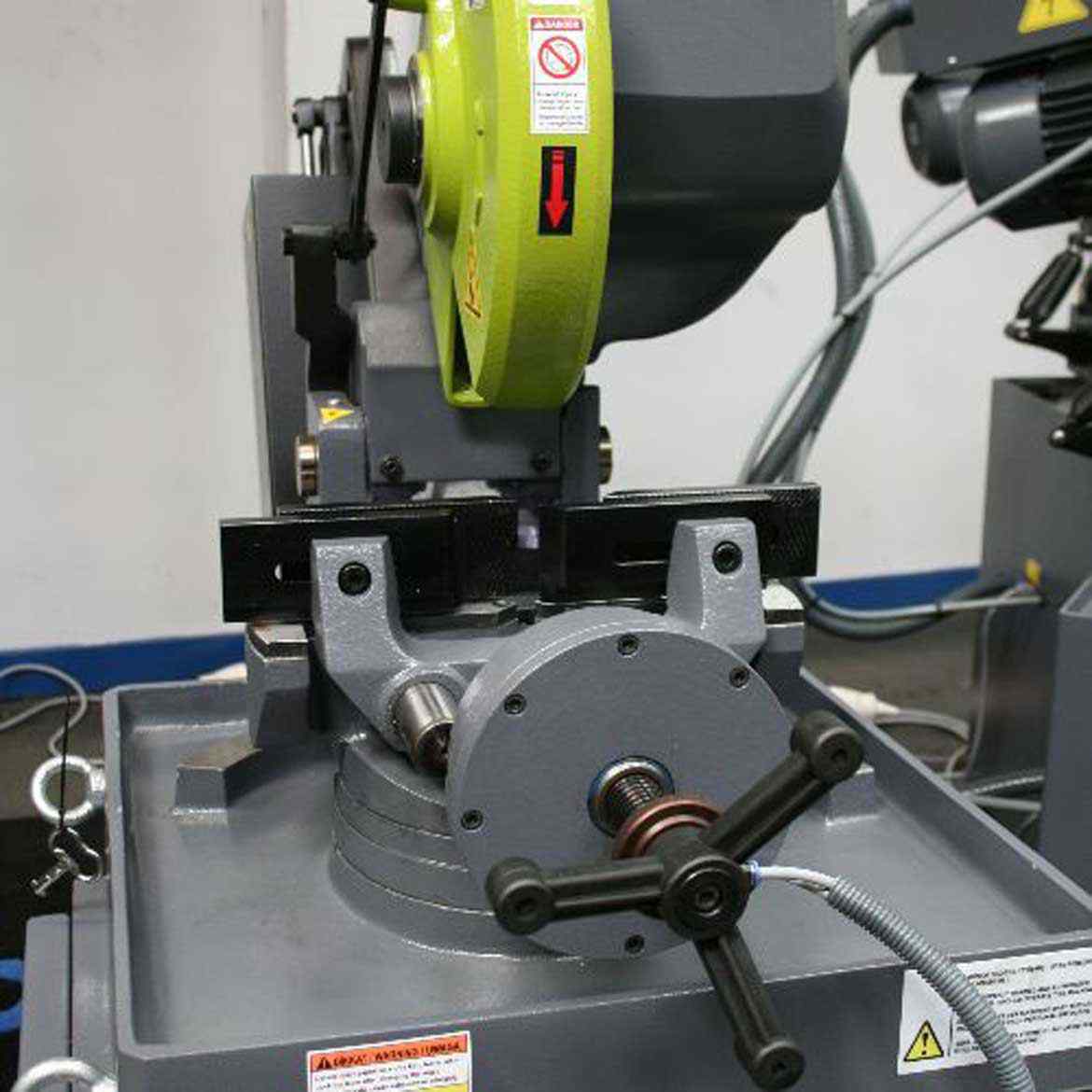

ILERI TEKNIK V315 HX - Image 7
ILERI TEKNIK V315 HX - Image 8
Machine Subcategory

Semi-Auto Circular Saws

Overview

The Ileri Teknik V315HX is a heavy duty semi-automatic circular saw designed for fast cutting of different sizes of metal sections for small to medium quantity batch production. The hydro-pneumatic operation of the saw head provides a smooth downfeed rate for fast cutting and optimum blade life. It has mitre cutting capabilities in both directions and is fitted with a cutting speed regulator.

Standard Specification
  • Very heavy duty
  • Foot switch actuation
  • Automatic head stroke, can be adjusted for different material sizes

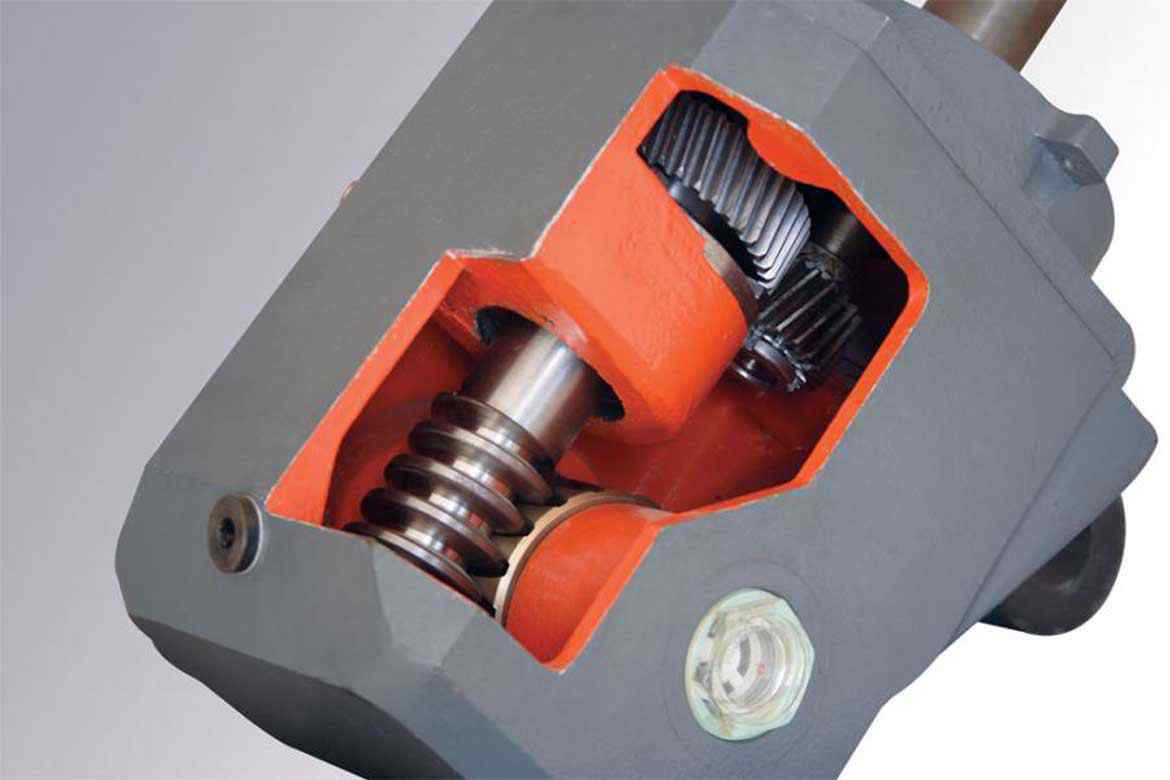

  • Heavy duty gearbox with double set of helical gears
  • Robust, double-hinged pivot
  • Easy, positive 45° mitre left and right
  • Automatic pneumatic vice
  • Split vice construction ensures material is gripped on both sides of the cut
  • Self-centring of vice optimises cutting position
  • 2 Speed main motor
  • Adjustable bar stop 400mm
  • Internal recirculating coolant pump
  • Comprehensive safety specification
  • Coolant tank with integral chip tray
Get in touch +44 (0)1536 410999
ILERI TEKNIK V315 HX Technical Specifications

Notice: Function is_internal_meta_key was called incorrectly. Generic add/update/get meta methods should not be used for internal meta data, including "_weight". Use getters and setters. Backtrace: require('wp-blog-header.php'), require_once('wp-includes/template-loader.php'), include('/plugins/woocommerce/templates/single-product.php'), wc_get_template_part, load_template, require('/plugins/woocommerce/templates/content-single-product.php'), do_action('woocommerce_single_product_summary'), WP_Hook->do_action, WP_Hook->apply_filters, single_product_custom_template, prosaw_render_technical_specifications, prosaw_render_meta_row, prosaw_get_spec_value, WC_Data->get_meta, WC_Data->is_internal_meta_key, wc_doing_it_wrong Please see Debugging in WordPress for more information. (This message was added in version 3.2.0.) in /home/prosaw/public_html/wp-includes/functions.php on line 6260
Manufacturer Metlsaw
Machine Type Circular
Blade Size 315mm × 32mm bore
Blade Speed 40 & 80 r.p.m.
Motor 2.2kW
Coolant Motor 0.06kW
Weight 290
Material Type(s) Section
90° 45° Left 45° Right 60° Left 60° Right
Round Section (mm) 100mm 90mm
Rectangular Section Horizontal (mm) 120x60mm 90x60mm
Square Section (mm) 85x85mm 80x80mm
SKU: 90 Category:
Download Datasheet

Download the datasheet for the ILERI TEKNIK V315 HX
