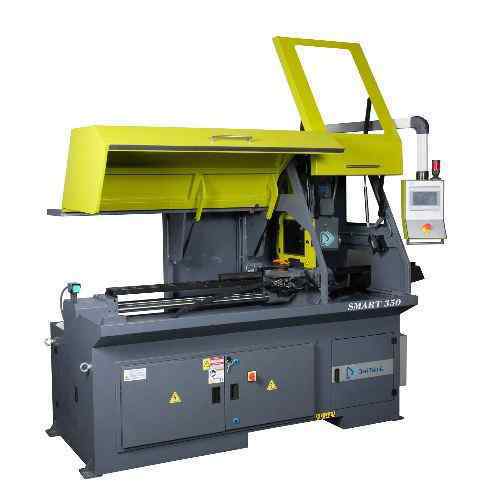

ILERI TEKNIK Smart 350 CNC
Machine Subcategory
Automatic Circular Saws
Overview
Vertical Action Coldsaw with Full CNC Control. Programmable entry and exit speed of cut.
Standard Specification
- Fully automatic machine for straight tube cutting

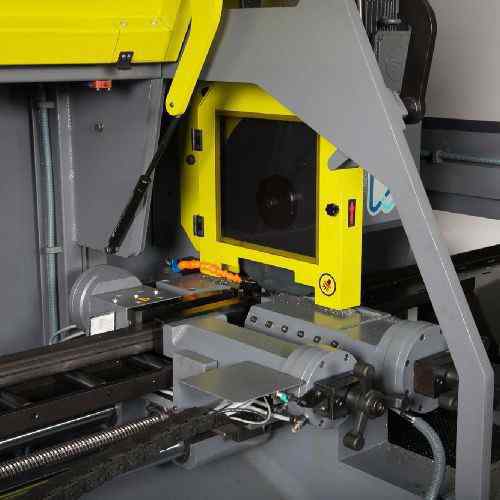

- Servo motor controlled material feeding system with ball screw
- Servo motor controlled vertical cutting system with ball screw
- PLC controlled colour type touch screen display

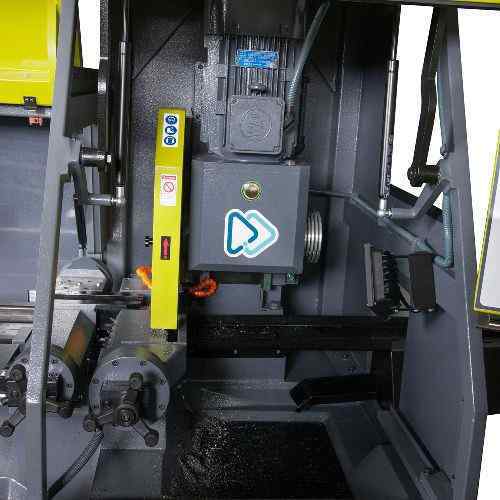

- Heavy duty, helical gear and worm gear sets in gearbox
- Head descends on hardened roller type linear guides
- Back lash reduction for prolonged blade life
- 200 programs to save all parameters for repetitive cutting orders
- Invertor controlled Variable blade speed from 20 rpm to 100 rpm
- 1000mm feeding length
- Multi feeding for over 1000mm cut lengths
- 10 different cutting length adjustment in one material
- ± 0.2 mm cutting length precision
- Coolant tank with box to collect chips and electric pump for blade
- Lubrication and cooling
- Cuts all material types
- Fully enclosed safety cabinet
Get in touch +44 (0)1536 410999
ILERI TEKNIK Smart 350 CNC Technical Specifications
| Manufacturer | Metlsaw |
|---|---|
| Machine Type | Circular |
| Blade Size | 350mm × 32mm bore |
| Blade Speed | Invertor controlled variable speed 20 ~ 100 r.p.m. |
| Motor | 4kW |
| Coolant Motor | 0.09kW |
| Feeding Stroke | 1000mm |
| Weight | 1370 |
| Material Type(s) | Section, Solid |
| 90° | 45° Left | 45° Right | 60° Left | 60° Right | |
|---|---|---|---|---|---|
| Round Section (mm) | 110mm | ||||
| Rectangular Section Horizontal (mm) | 120x90mm | ||||
| Square Section (mm) | 100x100mm |
