ILERI TEKNIK DT315DXS
ILERI TEKNIK DT315DXS
ILERI TEKNIK DT315DXS - Image 2
ILERI TEKNIK DT315DXS - Image 3
Machine Subcategory

Semi-Auto Circular Saws

Overview

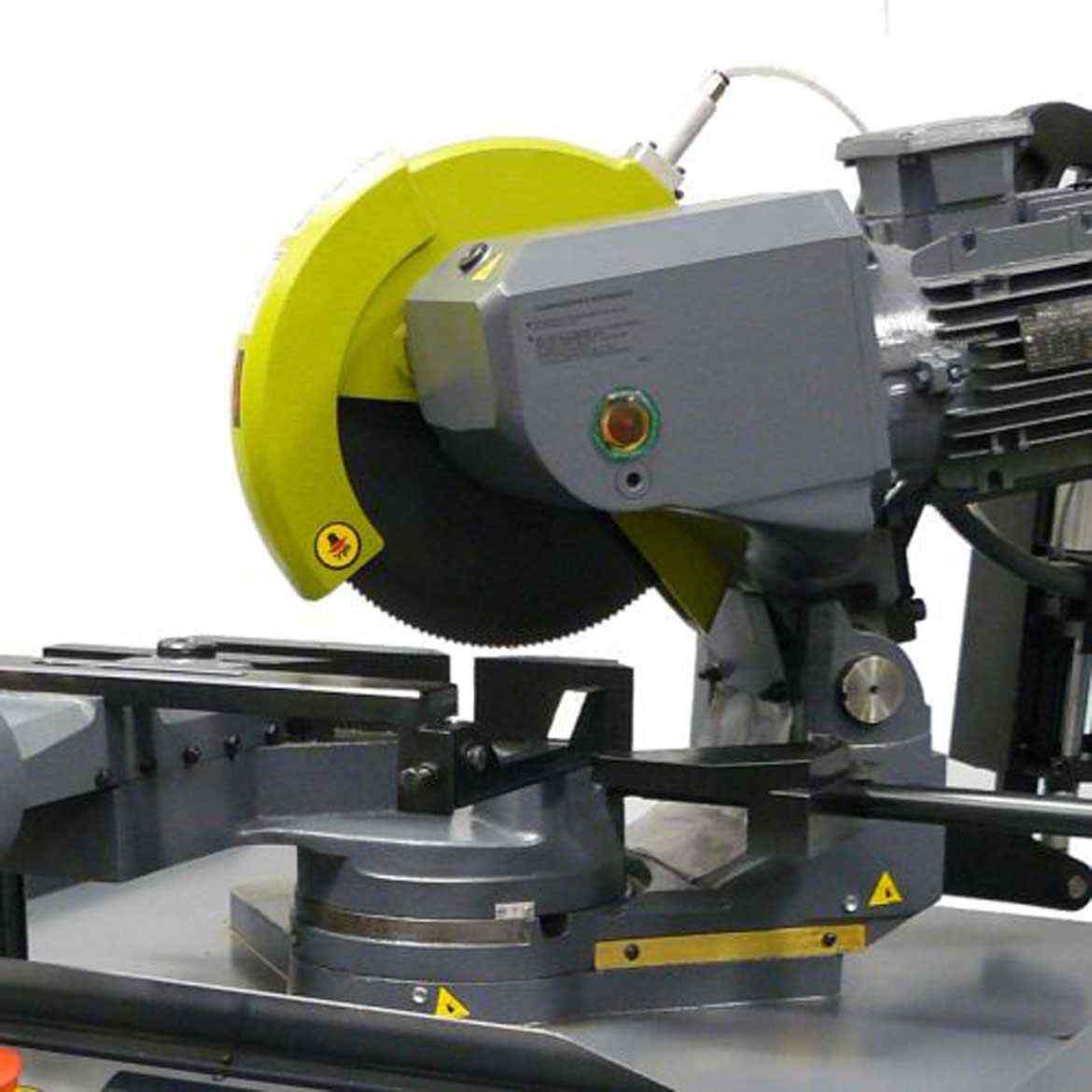

The Ileri Teknik DT 315DXS is a heavy duty semi-automatic circular saw designed for fast cutting with programmable powered mitre positioning between 45° Left and 45° Right. Especially useful for production work requiring opposing mitres.

Standard Specification
  • Very heavy duty
  • Foot switch or push button actuation
  • Automatic mitre ±45°
  • Automatic head stroke, can be adjusted to material height
  • Hydro-pneumatic operation of saw head, smooth descent for optimum cut
  • Heavy duty gearbox with double set of helical gears
  • Robust, double hinged pivot
  • Pneumatic vice
  • Anti-burr device to grip material on both sides of the cut

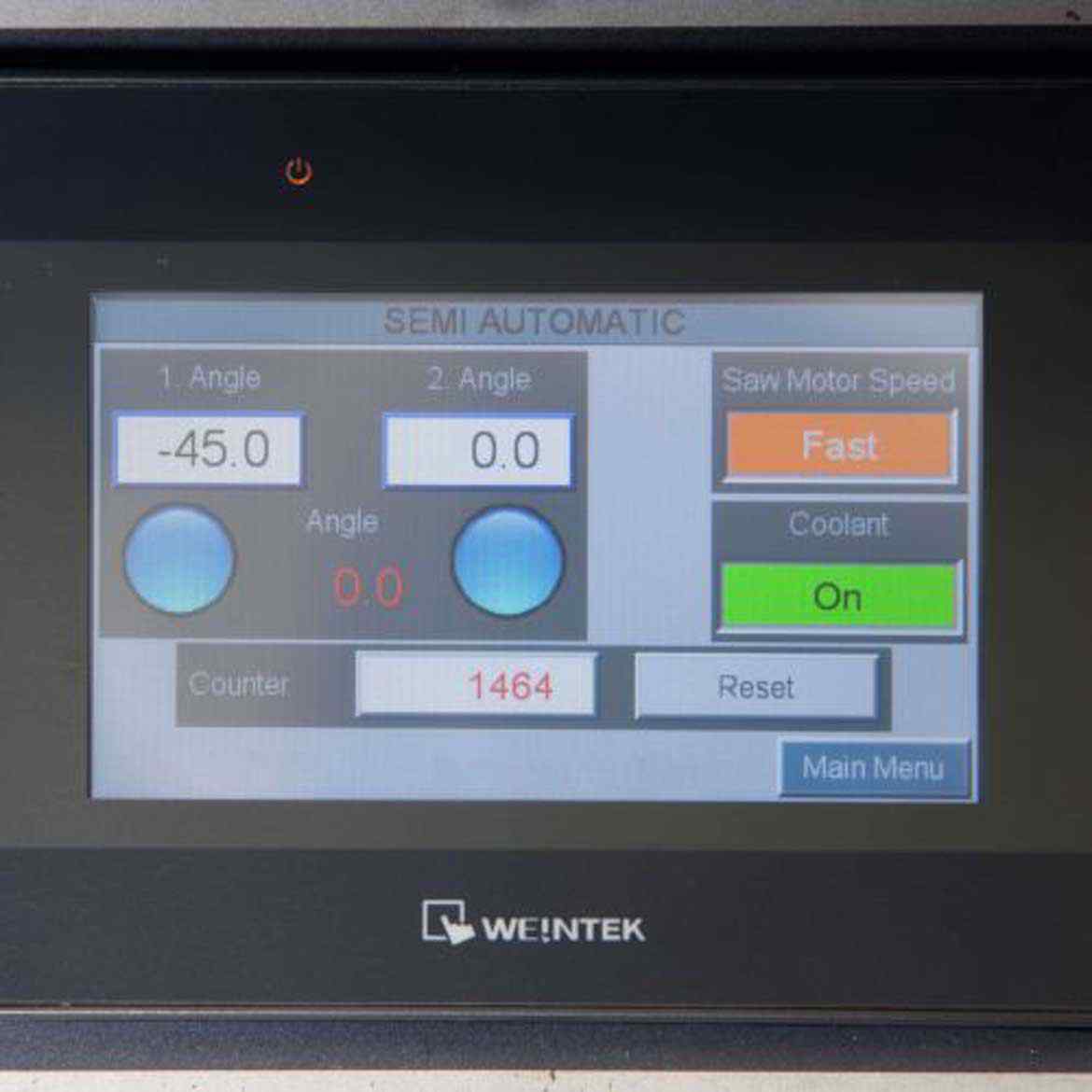

  • PLC colour touch screen display
  • Save and load Programs in the memory
  • 2 Speed main motor
  • Large, square, integral base for stability
  • Spray mist blade lubrication
Get in touch +44 (0)1536 410999
ILERI TEKNIK DT315DXS Technical Specifications

Notice: Function is_internal_meta_key was called incorrectly. Generic add/update/get meta methods should not be used for internal meta data, including "_weight". Use getters and setters. Backtrace: require('wp-blog-header.php'), require_once('wp-includes/template-loader.php'), include('/plugins/woocommerce/templates/single-product.php'), wc_get_template_part, load_template, require('/plugins/woocommerce/templates/content-single-product.php'), do_action('woocommerce_single_product_summary'), WP_Hook->do_action, WP_Hook->apply_filters, single_product_custom_template, prosaw_render_technical_specifications, prosaw_render_meta_row, prosaw_get_spec_value, WC_Data->get_meta, WC_Data->is_internal_meta_key, wc_doing_it_wrong Please see Debugging in WordPress for more information. (This message was added in version 3.2.0.) in /home/prosaw/public_html/wp-includes/functions.php on line 6260
Manufacturer Metlsaw
Machine Type Circular
Blade Size 315mm × 32mm bore
Blade Speed 40 & 80 r.p.m.
Motor 2.2kW
Weight 460
Material Type(s) Section
90° 45° Left 45° Right 60° Left 60° Right
Round Section (mm) 90mm 85mm 85mm
Rectangular Section Horizontal (mm) 11x60mm 80x50mm 80x50mm
Square Section (mm) 80x80mm 70x70mm 70x70mm
SKU: 174 Category:
Download Datasheet

Download the datasheet for the ILERI TEKNIK DT315DXS
