Saw Finder
HYDMECH VW18-2
HYDMECH VW18-2
HYDMECH VW18-2 - Image 2
HYDMECH VW18-2 - Image 3
HYDMECH VW18-2 - Image 4
HYDMECH VW18-2 - Image 5
Machine Subcategory

Vertical bandsaw

Overview

The new, upgraded VW-18-2 is a semi-automatic, vertical band saw with the ability to mitre from 60° left to 60° right.

Featuring a 558mm-H x 457mm-W capacity, 3.75kW motor, and 34mm blade, the VW18-2 is a reliable choice for all your light to medium-duty, vertical metal cutting applications.

Upgraded features from the VW-18 include:

Repositioned Datum to the back - for improved efficiency.

Enhanced Head Rigidity - providing enhanced stability during cutting operations for superior performance.

Upgraded Vise Rigidity - a more robust and reliable overall system.

Powered Hydraulic Guide Arm - This innovative addition elevates the machine’s capabilities, offering a seamless and efficient operation.

Standard Specification
  • Adjustable 3° canted head
  • Double articulating, control console

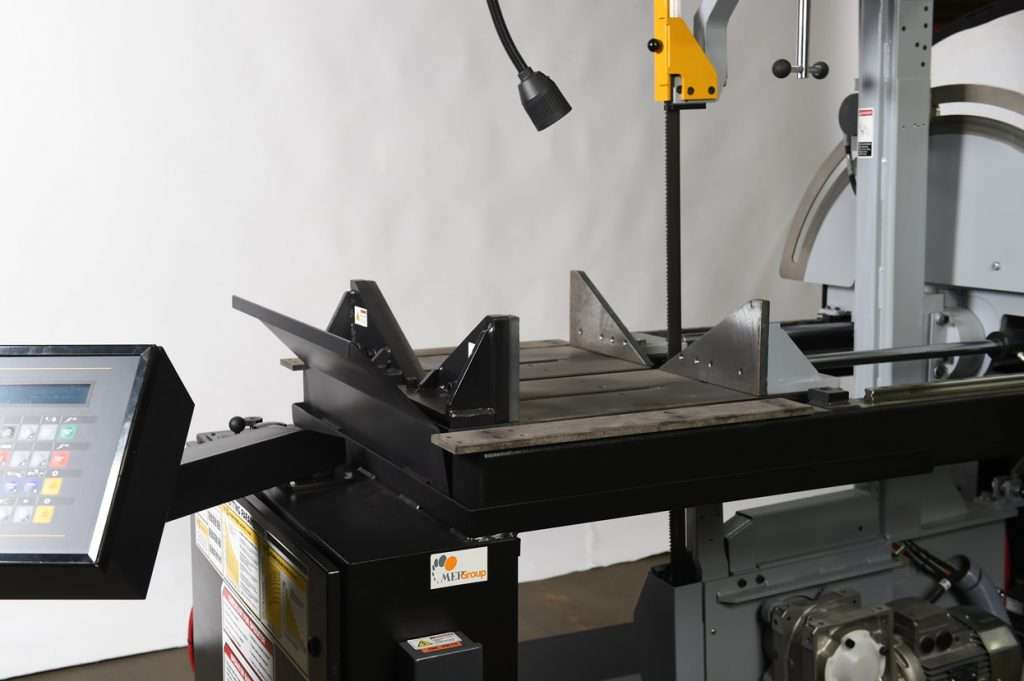

  • Two full stroking hydraulic vises
  • Manual precise head positioning from 60° left to 60° right
  • Digital angle display with a protractor

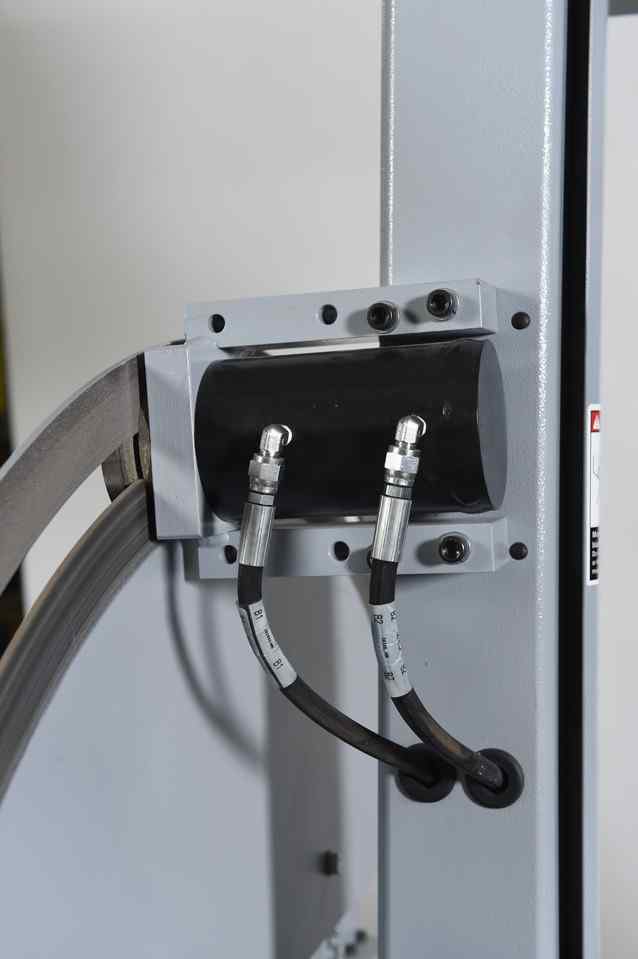

  • Hydraulic powered guide arm
  • On-demand hydraulics save energy
  • 3.75kW VFD. True direct blade drive – no belts/pulleys
  • Hydraulic positive down feed
  • Cast iron band wheels
  • Replaceable blade brush
  • Robust steel base

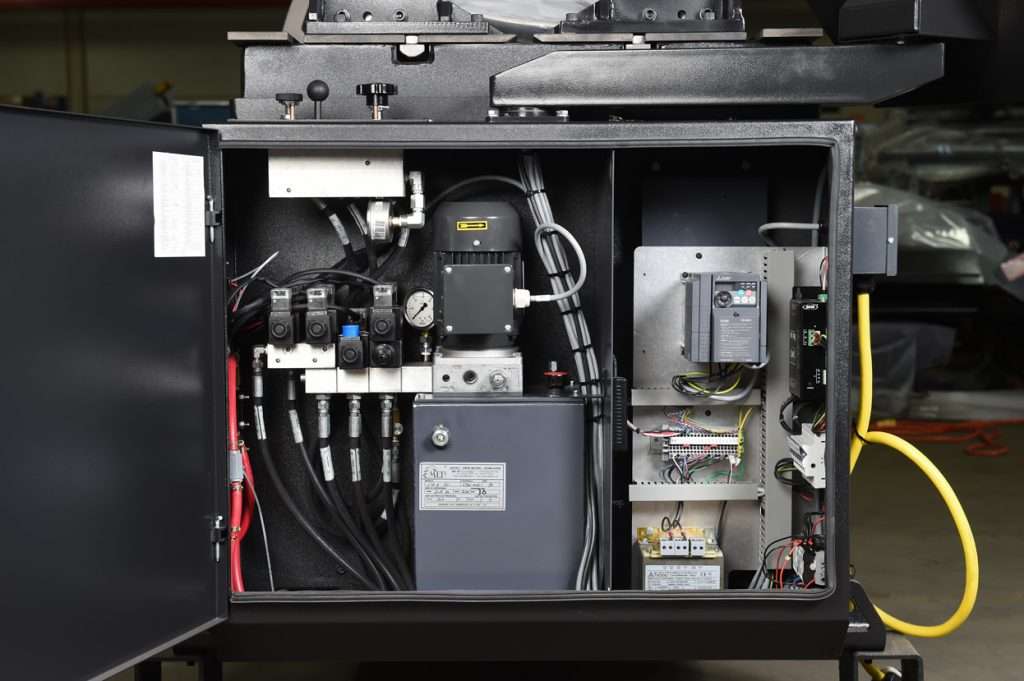

  • Easy access electrical panel and hydraulics
  • Blade breakage switch
  • Mechanical band tensioning with digital readout
  • Replaceable carbide guide inserts
  • 0.37kW hydraulic pump provides system pressure
  • Safety door interlocks
  • Flood coolant with wash down hose
  • Laser light and work light
  • Variable vice pressure
Get in touch +44 (0)1536 410999
HYDMECH VW18-2 Technical Specifications

Notice: Function is_internal_meta_key was called incorrectly. Generic add/update/get meta methods should not be used for internal meta data, including "_weight". Use getters and setters. Backtrace: require('wp-blog-header.php'), require_once('wp-includes/template-loader.php'), include('/plugins/woocommerce/templates/single-product.php'), wc_get_template_part, load_template, require('/plugins/woocommerce/templates/content-single-product.php'), do_action('woocommerce_single_product_summary'), WP_Hook->do_action, WP_Hook->apply_filters, single_product_custom_template, prosaw_render_technical_specifications, prosaw_render_meta_row, prosaw_get_spec_value, WC_Data->get_meta, WC_Data->is_internal_meta_key, wc_doing_it_wrong Please see Debugging in WordPress for more information. (This message was added in version 3.2.0.) in /home/prosaw/public_html/wp-includes/functions.php on line 6260
Manufacturer Gentiger
Machine Type Bandsaw
Blade Size 4953mm × 34mm × 1.1mm
Blade Speed Inverter variable speed 19~117m/min
Table Height 927mm
Motor 3.7kW
Coolant Tank 45 litres
Weight 1227
Material Type(s) Section
Material(s) Sections, Non-Ferrous, Ferrous
90° 45° Left 45° Right 60° Left 60° Right
Round Section (mm) 438mm 381mm 260mm
Rectangular Section Horizontal (mm) 558x457mm 381x457mm 260x457mm
SKU: 241 Categories: ,
Download Datasheet

Download the datasheet for the HYDMECH VW18-2

Contact Us

Call us during office hours (8:30am – 5pm, Mon – Fri) for assistance with choosing the best machine for the job

Blades & Consumables

Order blades for the HYDMECH VW18-2 direct from Prosaw
