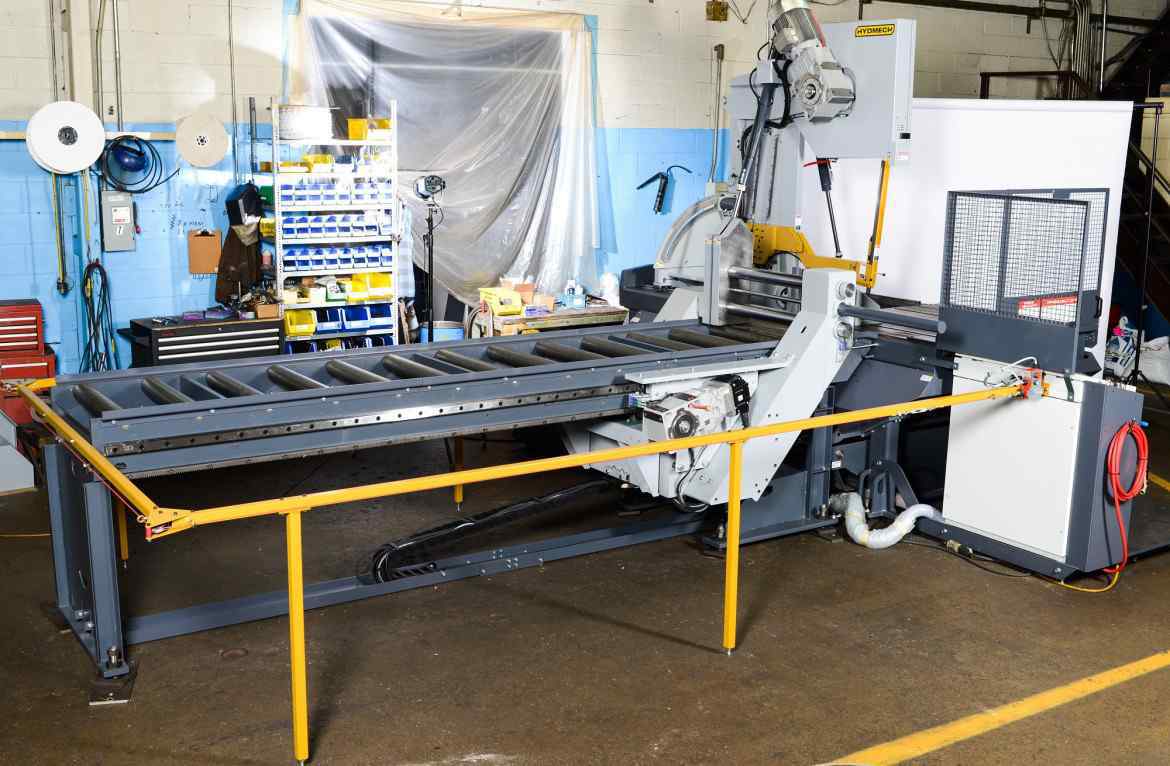

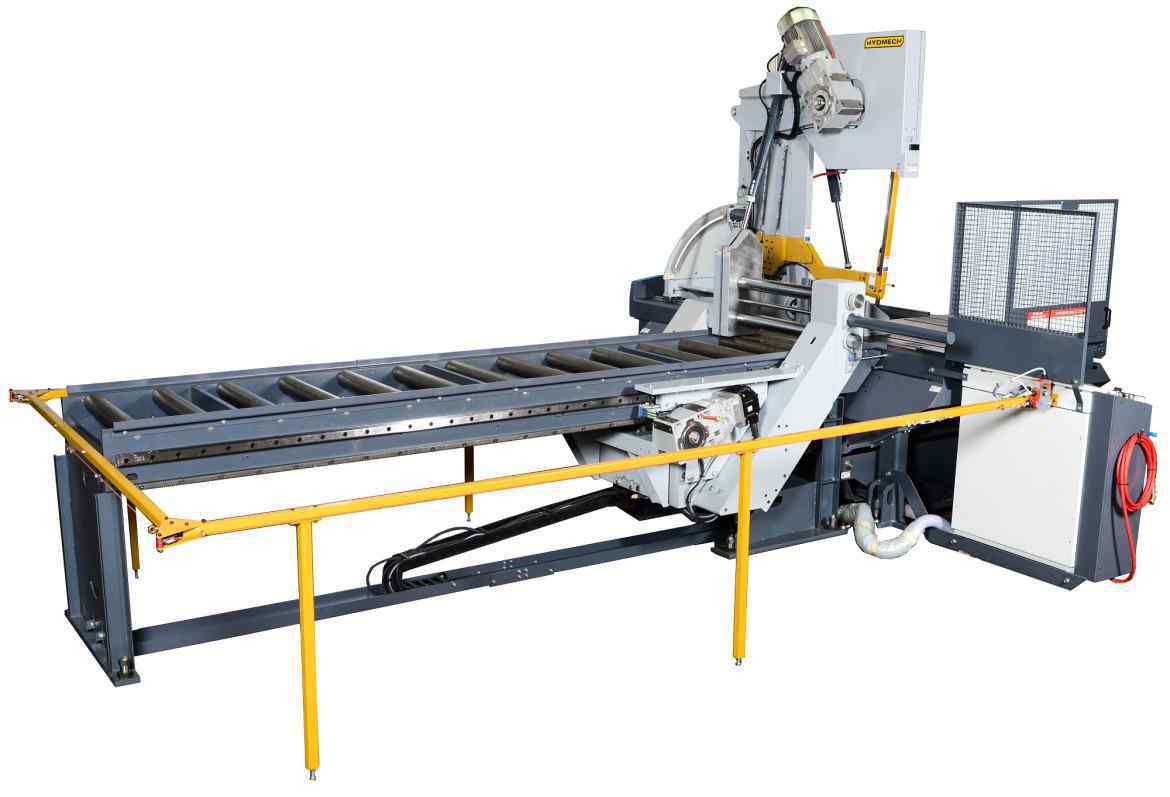

Automatic vertical band saw with the ability to mitre from 60° left to 60° right.

A heavy duty vertical saw, the V-25APC efficiently cuts both solid and structural material and is extremely versatile for many different types of sawing applications.

Featuring a large 30″H x 25″W capacity, 10 HP motor, and 1 1/2″ blade, the V-25APC is a reliable choice for all your automated vertical metal cutting applications.

• 6° canted head allows for efficient cutting and improved blade life
• 60” bar feed, left side
• Shuttle features automatic multi-indexing up to 60” (120” optional) in a single stroke with automatic kerf compensation. Powered by a rack and pinion servo drive
• Automatic programmable mitring with “go to” angle functionality from 60° left to 60° right
• Hydraulic head tilt
• Cast iron band wheels

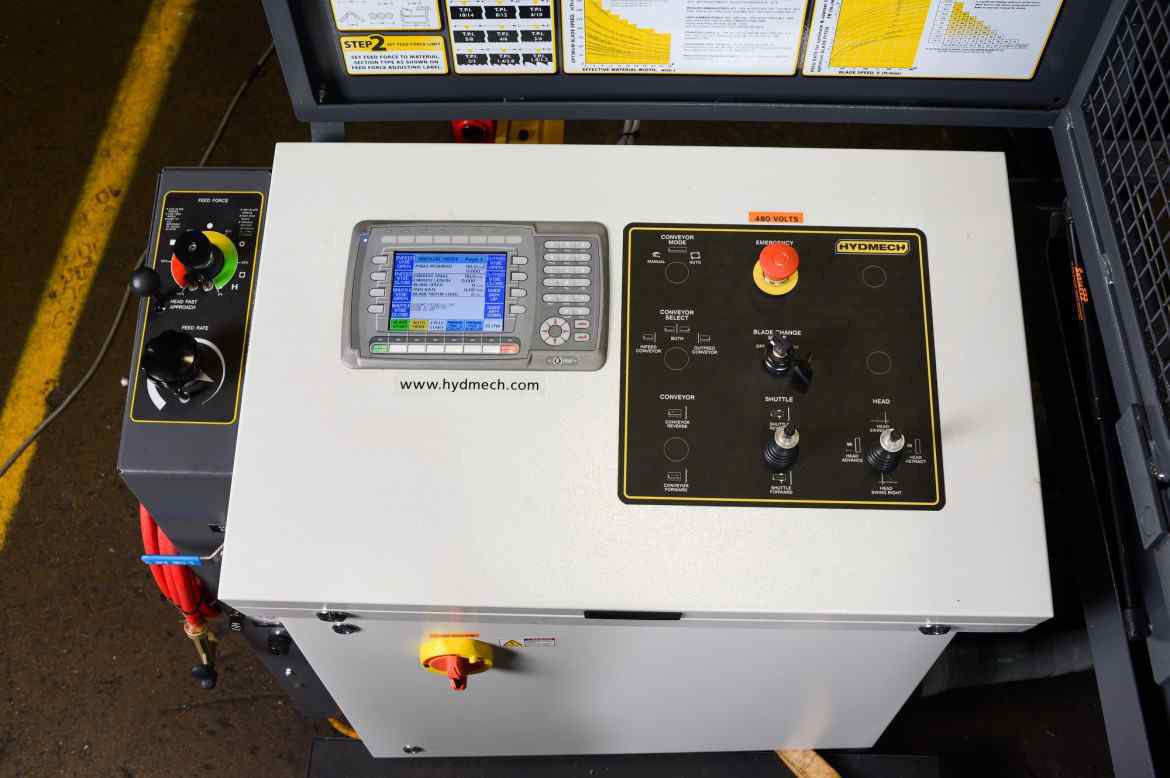

• Automatic PLC, touch screen control programmable up to 1000 jobs with 20 in queue
• Two full stroking hydraulic vices

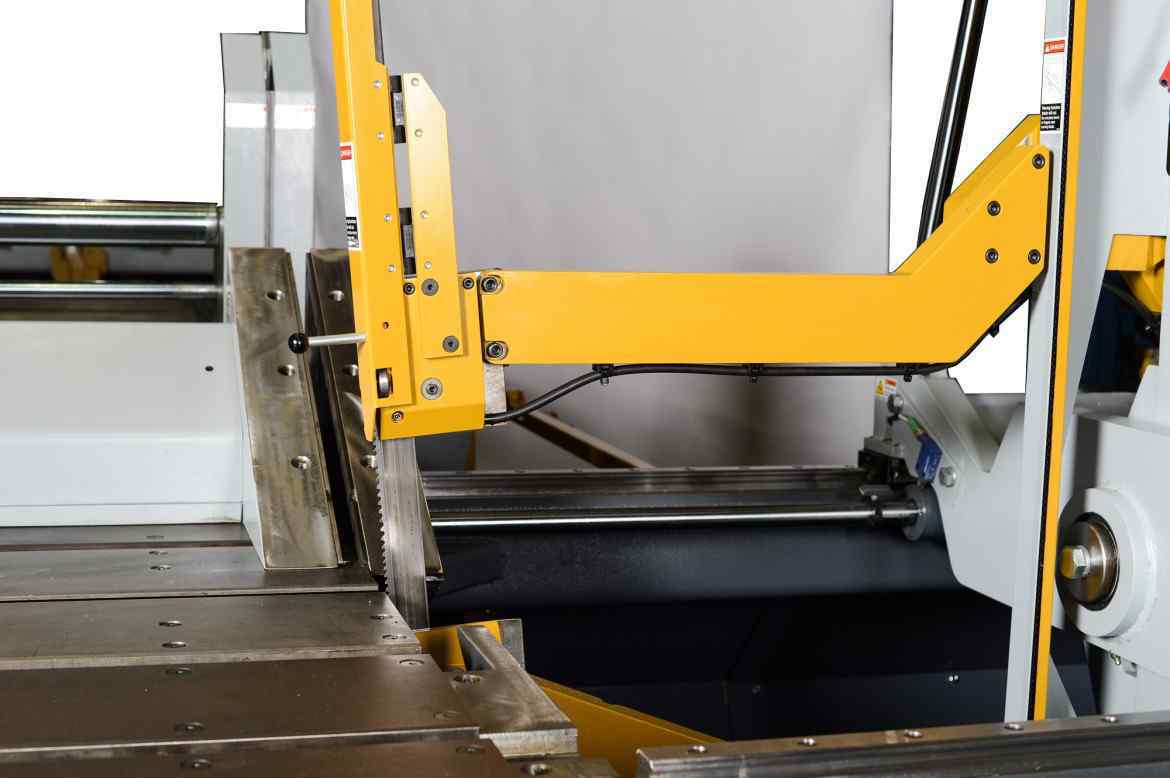

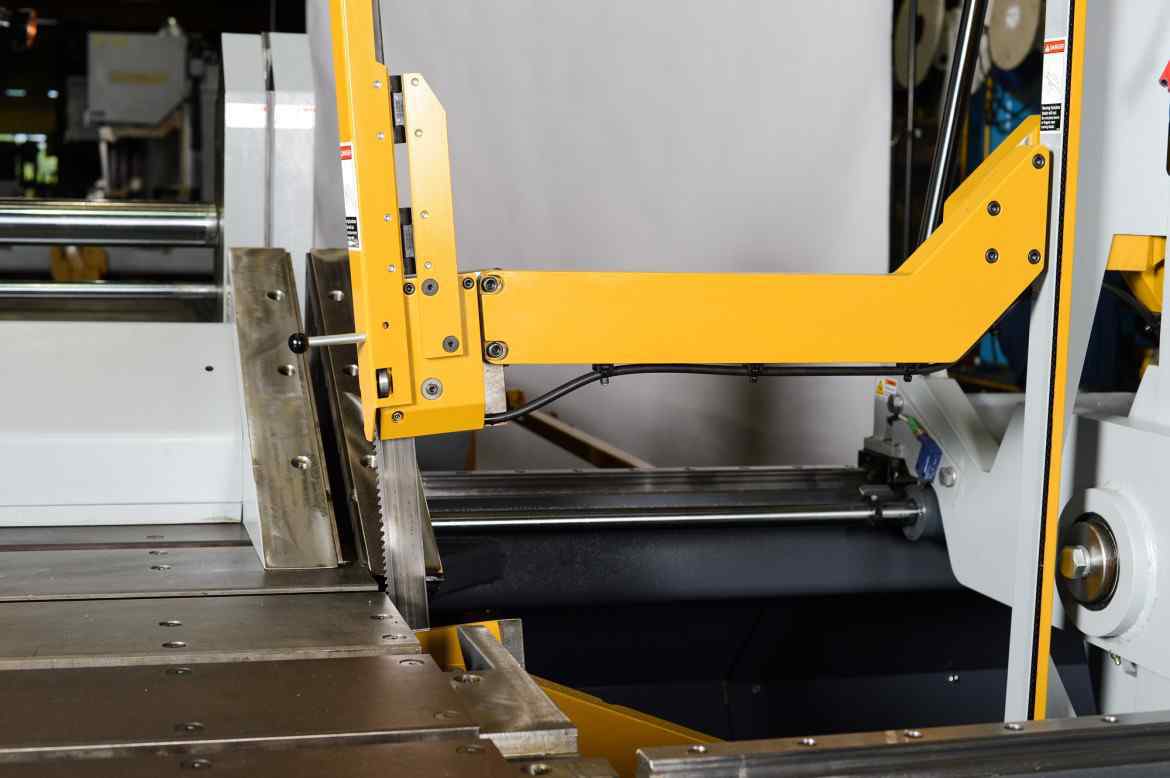

• Hydraulically powered, programmable guide arm attached
• 10 HP VFD. True direct blade drive
• Blade chamber separates material from cut part
• Hydraulic chip conveyor efficiently removes chips from saw base
• Replaceable blade brush
• Robust steel base
• Out of stock switch
• Blade breakage switch
• Easy access electrical and hydraulics
• Pop-up feed roller – one opposite bar feed
• Hydraulic band tensioning with digital readout
• Replaceable carbide guide inserts
• 3 HP hydraulic pump provides system pressure
• Safety door interlocks
• Flood coolant with wash down hose
• Laser light
• Work light
• Variable vise pressure
