HYDMECH V25

Machine Subcategory

Vertical Bandsaw

Overview

Vertical band saw with the ability to mitre from 60° left to 60° right.
Its standard 6° degree fixed canted head, recommended when cutting larger beams, structural steel, and bundles of square tubing allows for more efficient cutting and improved blade life.

A heavy duty vertical saw, the V-25 efficiently cuts both solid and structural material and is extremely versatile for many different types of sawing applications.

Standard Specification

6° canted head allows for efficient cutting and improved blade life
Control provides hydraulic powered mitring from 60° left to 60° right
Digital angle display
Two full stroking hydraulic vises
Powered movable guide arm

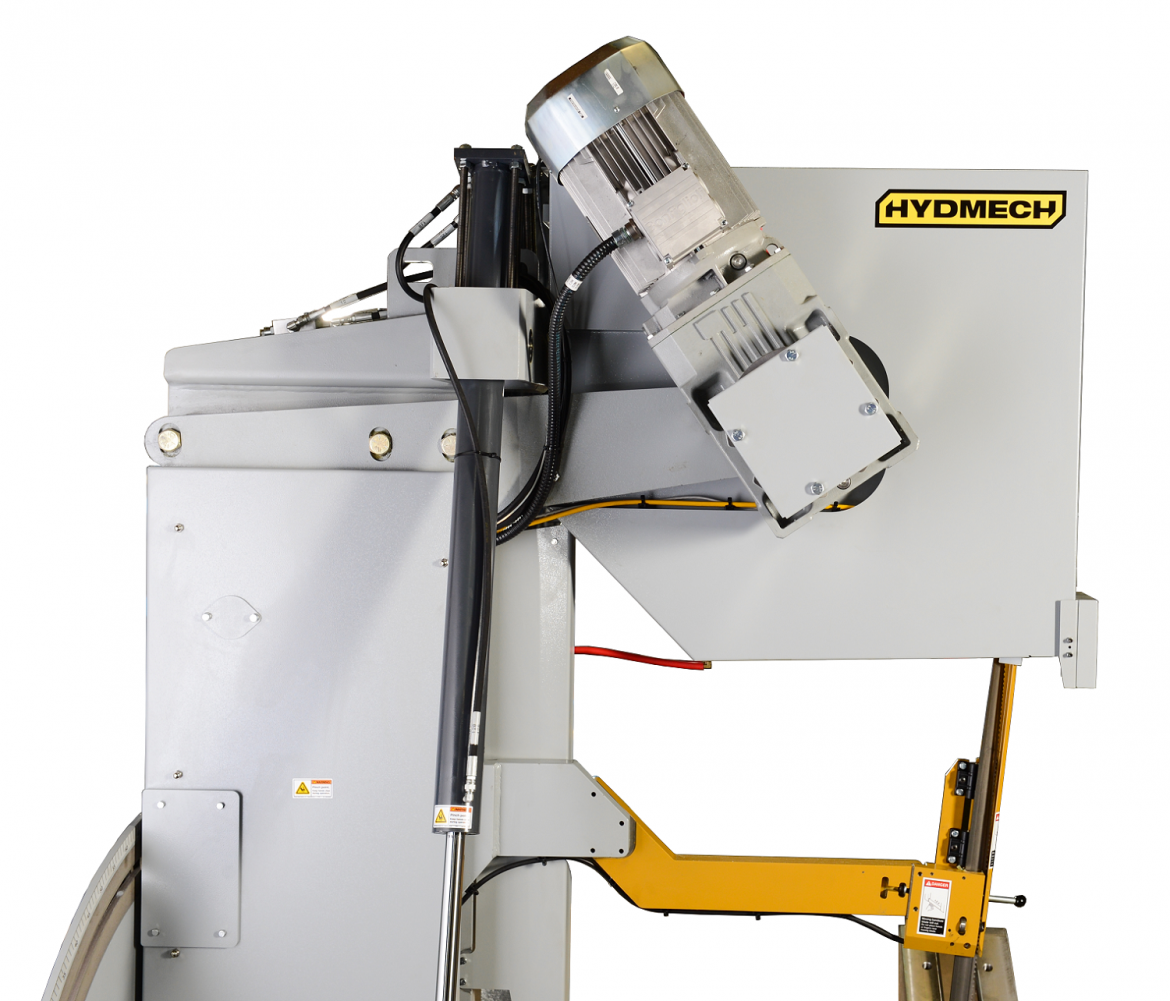

10 HP VFD. True direct blade drive – no belts/pulleys
Cast iron band wheels
Replaceable blade brush
Robust steel base
Easy access electrical panel and hydraulics
Blade breakage switch
Hydraulic band tensioning with digital readout
Replaceable carbide guide inserts
3 HP hydraulic pump provides system pressure
Safety door interlocks
Flood coolant with wash down hose
Laser light
Work light
Variable vice pressure

Optional Features

Chip bucket with pump
Hydraulic overhead bundling
Mist lubrication
Pop-up feed roller
Tall square vice inserts
Hydraulic chip conveyor
Hydraulically positioned datum line vertical rollers
Bridge/interface bracket
Powered bridge/interface bracket
Idler conveyors
Powered conveyors

HYDMECH V25 Technical Specifications

Manufacturer	Hydmech
Blade Size	6413 x 41 x 1.3
Blade Speed	Inverter variable speed 22~106m/min
Table Height	1117mm
Motor	7.5kW
Weight	4545

	90°	45° Left	45° Right	60° Left	60° Right
Round Section (mm)	635		533	368	342
Rectangular Section Horizontal (mm)	762 x 635		533 x 635	368 x 635	342 x 635
Rectangular Section Vertical (mm)
Square Section (mm)
