HYDMECH V18
HYDMECH V18
HYDMECH V18 - Image 2
HYDMECH V18 - Image 3
HYDMECH V18 - Image 4
Machine Subcategory

Vertical bandsaw

Overview

A manual vertical band saw with the ability to mitre from 45° left to 45° right.
A 2 HP driven hydraulic pump supplies system pressure through three position directional valves controlling all vice, head advance/retract, blade tension, and guide arm movement.

Its optional 6° degree fixed canted head, recommended when cutting larger beams, structural steel, and bundles of square tubing allows for more efficient cutting and improved blade life.

Standard Specification

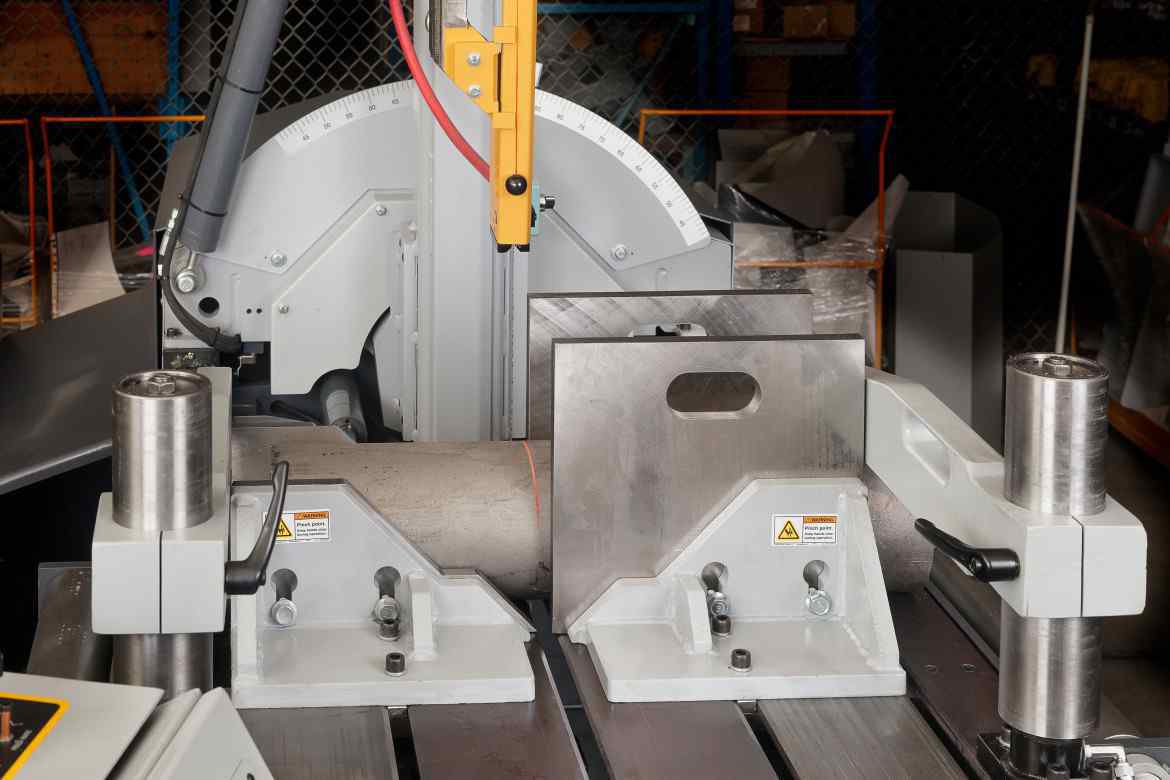

  • Two full stroking hydraulic vices
  • Select left or right side control panel
  • Powered movable guide arm

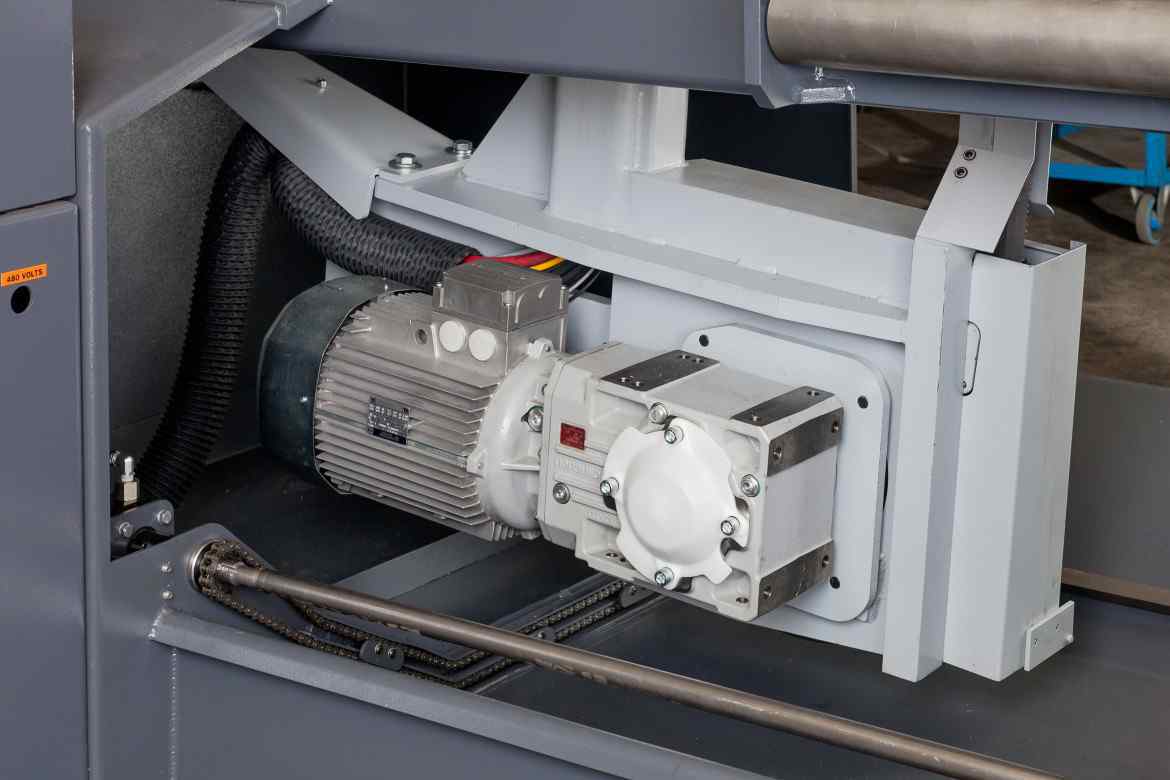

  • 7.5 HP True direct blade drive – no belts/pulleys
  • Hydraulic positive down feed
  • Cast iron band wheels
  • Replaceable blade brush
  • Robust steel base
  • Easy access electrical panel and hydraulics
  • Blade breakage switch
  • Hydraulic band tensioning with digital readout
  • Replaceable carbide guide inserts
  • 2 HP hydraulic pump provides system pressure
  • Safety door interlocks
  • Flood coolant with wash down hose
  • Laser light and work light
  • Variable vise pressure
Get in touch +44 (0)1536 410999
HYDMECH V18 Technical Specifications

Notice: Function is_internal_meta_key was called incorrectly. Generic add/update/get meta methods should not be used for internal meta data, including "_weight". Use getters and setters. Backtrace: require('wp-blog-header.php'), require_once('wp-includes/template-loader.php'), include('/plugins/woocommerce/templates/single-product.php'), wc_get_template_part, load_template, require('/plugins/woocommerce/templates/content-single-product.php'), do_action('woocommerce_single_product_summary'), WP_Hook->do_action, WP_Hook->apply_filters, single_product_custom_template, prosaw_render_technical_specifications, prosaw_render_meta_row, prosaw_get_spec_value, WC_Data->get_meta, WC_Data->is_internal_meta_key, wc_doing_it_wrong Please see Debugging in WordPress for more information. (This message was added in version 3.2.0.) in /home/prosaw/public_html/wp-includes/functions.php on line 6260
Manufacturer Gentiger
Machine Type Bandsaw
Blade Size 4547mm × 34mm × 1.1mm
Blade Speed Inverter variable speed 19~117m/min
Table Height 965mm
Motor 5.6kW
Coolant Tank 75 litres
Weight 2041
90° 45° Left 45° Right 60° Left 60° Right
Round Section (mm) 444mm 444mm
Rectangular Section Vertical (mm) 787x457mm 533x457mm
SKU: 129 Category:
Download Datasheet

Download the datasheet for the HYDMECH V18
