HYDMECH H-22A
HYDMECH H-22A
HYDMECH H-22A - Image 2
HYDMECH H-22A - Image 3
HYDMECH H-22A - Image 4
HYDMECH H-22A - Image 5
Machine Subcategory

Automatic Horizontal Bandsaw

Overview

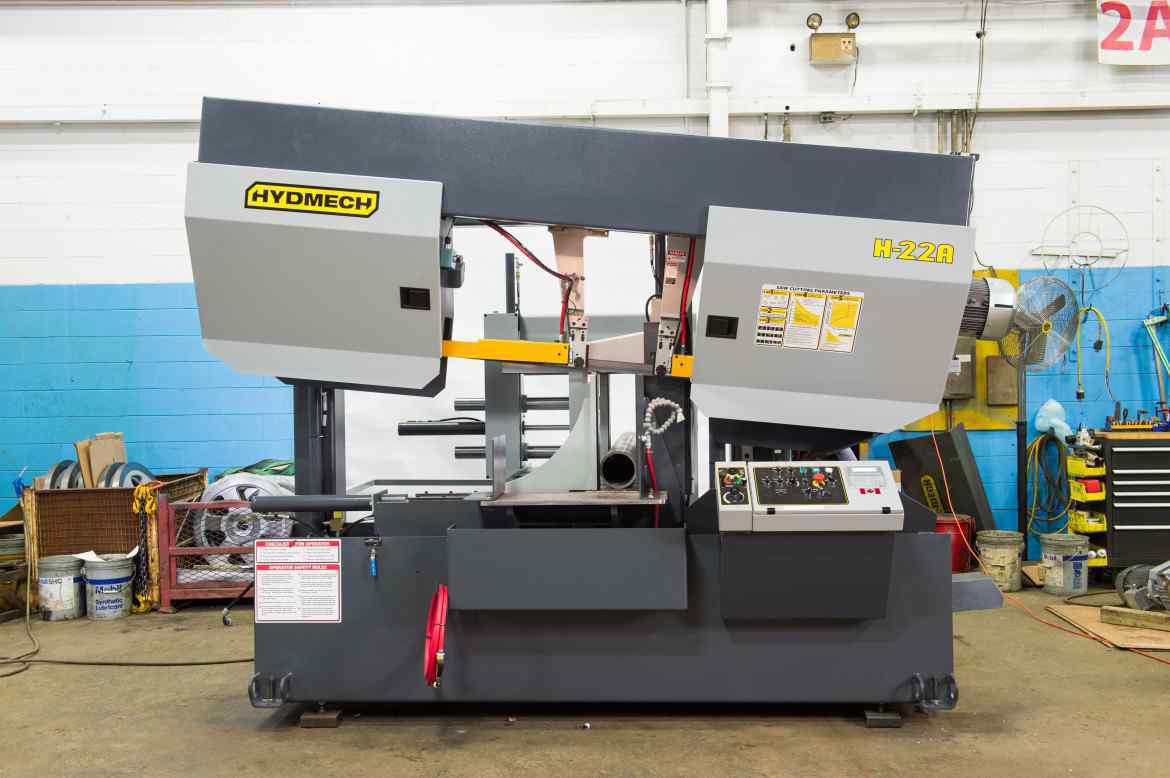

The H-22A is an automatic horizontal band saw providing accurate 90° metal cutting for heavy-duty applications.

The H-22A is fast, with its high speed shuttle feed indexing up to 863mm in a single movement. Its optional 6° degree canted head, recommended when cutting larger beams, structural steel, and bundles of square tubing allows for more efficient cutting and improved blade life.

Featuring a 558mm x 558mm capacity, 7.5kW motor, and 54mm blade, the H-22A is a reliable choice for all your heavy-duty horizontal metal cutting applications.

Standard Specification
  • One piece design – no alignment necessary
  • Spilt front vice allows for short remnant length

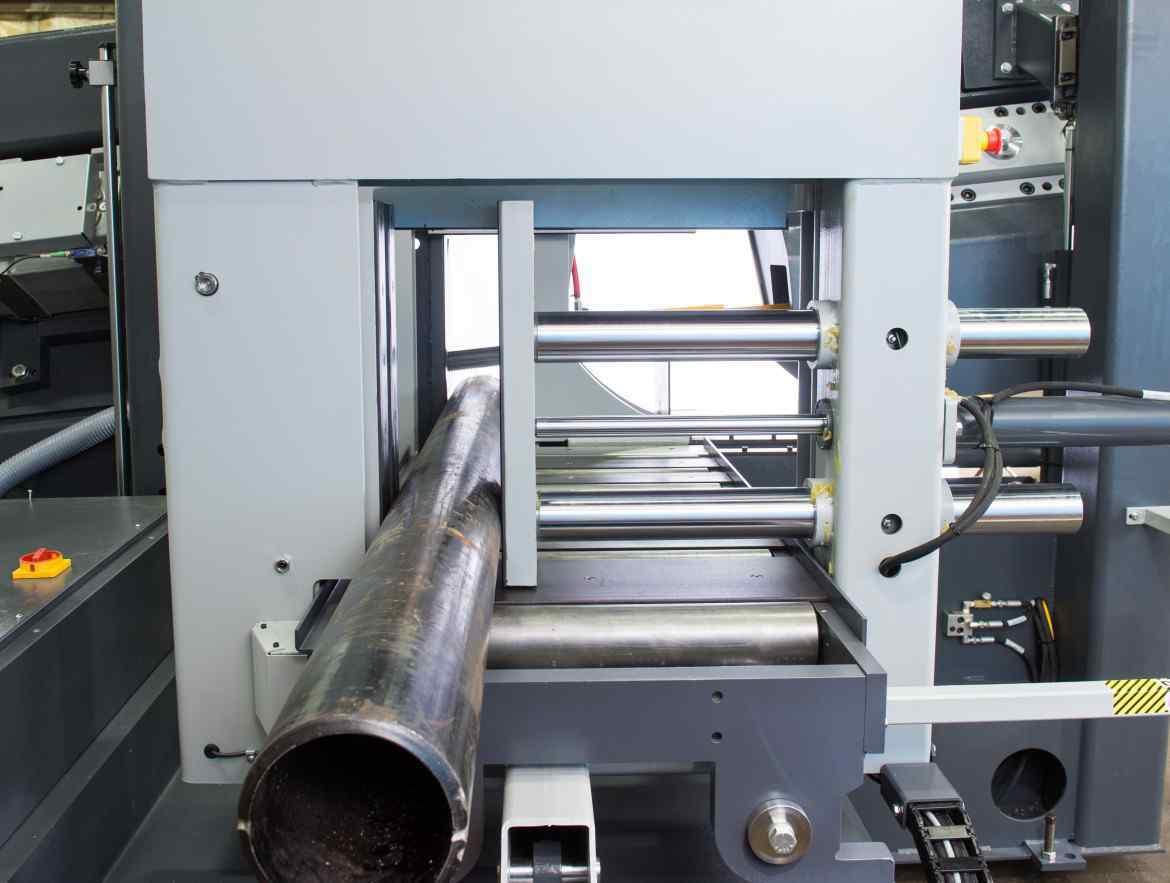

  • Shuttle features automatic multi-indexing up to 863mm in a single stroke with automatic kerf compensation

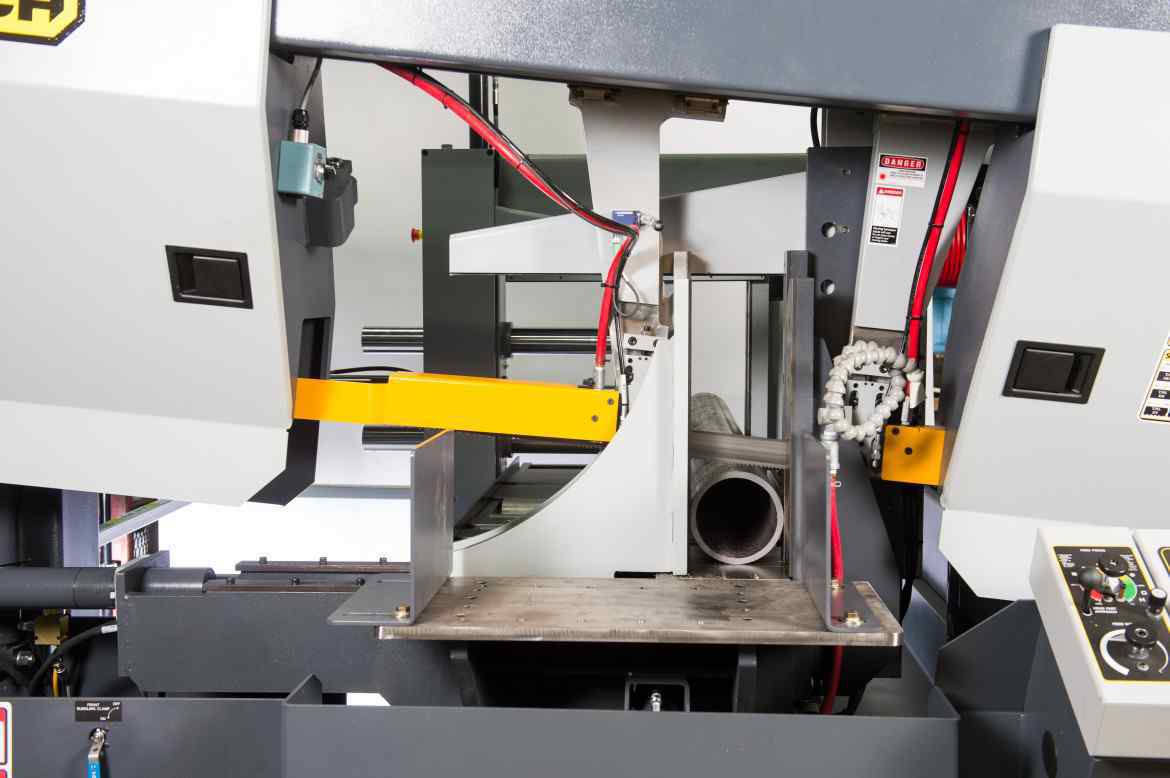

  • Steel guide arms. The idler side guide arm is mechanically connected to the front vice moveable jaw for proper guide arm spacing at all times
  • Hydraulic positive down feed
  • Blade chamber separates material from cut part
  • 7.5kW True direct blade drive – no belts/pulleys Full capacity, full stroking hydraulic vices
  • High resolution feed rate valve allows for constant feed rate when cutting special alloys
  • Cast iron band wheels

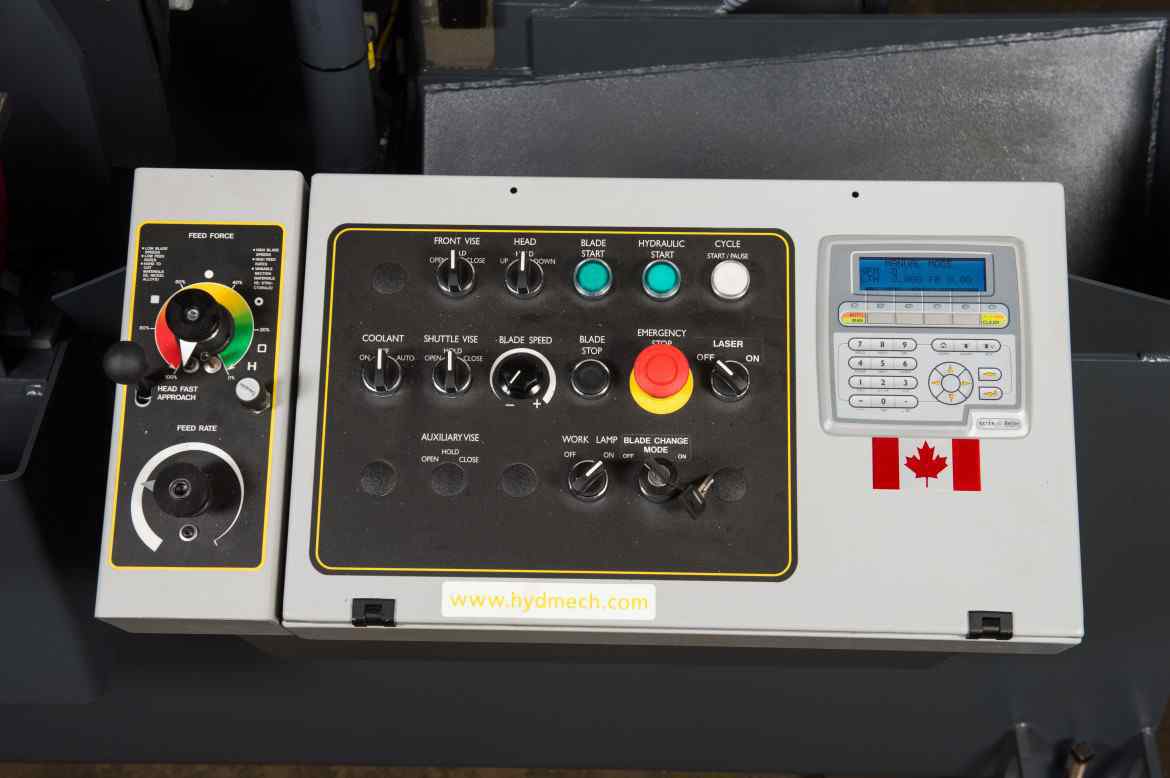

  • Automatic PLC control programmable up to 99 jobs with 5 in queue
  • Replaceable blade brush
  • Robust steel base
  • Automatic chip removal auger
  • Out of stock switch
  • Easy access electrical panel and hydraulics
  • Blade breakage switch
  • Hydraulic band tensioning with digital readout
  • Hydraulic carbide guide tensioning
  • Hardened, replaceable wear plates
  • Safety door interlocks
  • Flood coolant with wash down hose
  • Work light
  • Variable vise pressure
Get in touch +44 (0)1536 410999
HYDMECH H-22A Technical Specifications

Notice: Function is_internal_meta_key was called incorrectly. Generic add/update/get meta methods should not be used for internal meta data, including "_weight". Use getters and setters. Backtrace: require('wp-blog-header.php'), require_once('wp-includes/template-loader.php'), include('/plugins/woocommerce/templates/single-product.php'), wc_get_template_part, load_template, require('/plugins/woocommerce/templates/content-single-product.php'), do_action('woocommerce_single_product_summary'), WP_Hook->do_action, WP_Hook->apply_filters, single_product_custom_template, prosaw_render_technical_specifications, prosaw_render_meta_row, prosaw_get_spec_value, WC_Data->get_meta, WC_Data->is_internal_meta_key, wc_doing_it_wrong Please see Debugging in WordPress for more information. (This message was added in version 3.2.0.) in /home/prosaw/public_html/wp-includes/functions.php on line 6260
Manufacturer Gentiger
Machine Type Bandsaw
Blade Size 6858mm × 54mm × 1.6mm
Blade Speed Inverter variable speed 12~91m/min
Table Height 787mm (Canted 889mm)
Motor 7.5kW
Feeding Stroke 864mm
Weight 5670
Material Type(s) Solid
Material(s) Solids, Aluminium, Nickel Alloys, Non-Ferrous, Ferrous
90° 45° Left 45° Right 60° Left 60° Right
Solid Round 90 560mm
Solid Square 90 560x560mm
SKU: 109 Category:
