Gentiger GT-A4H
Machine Subcategory
CNC High Speed Automatic Bandsaw
Overview

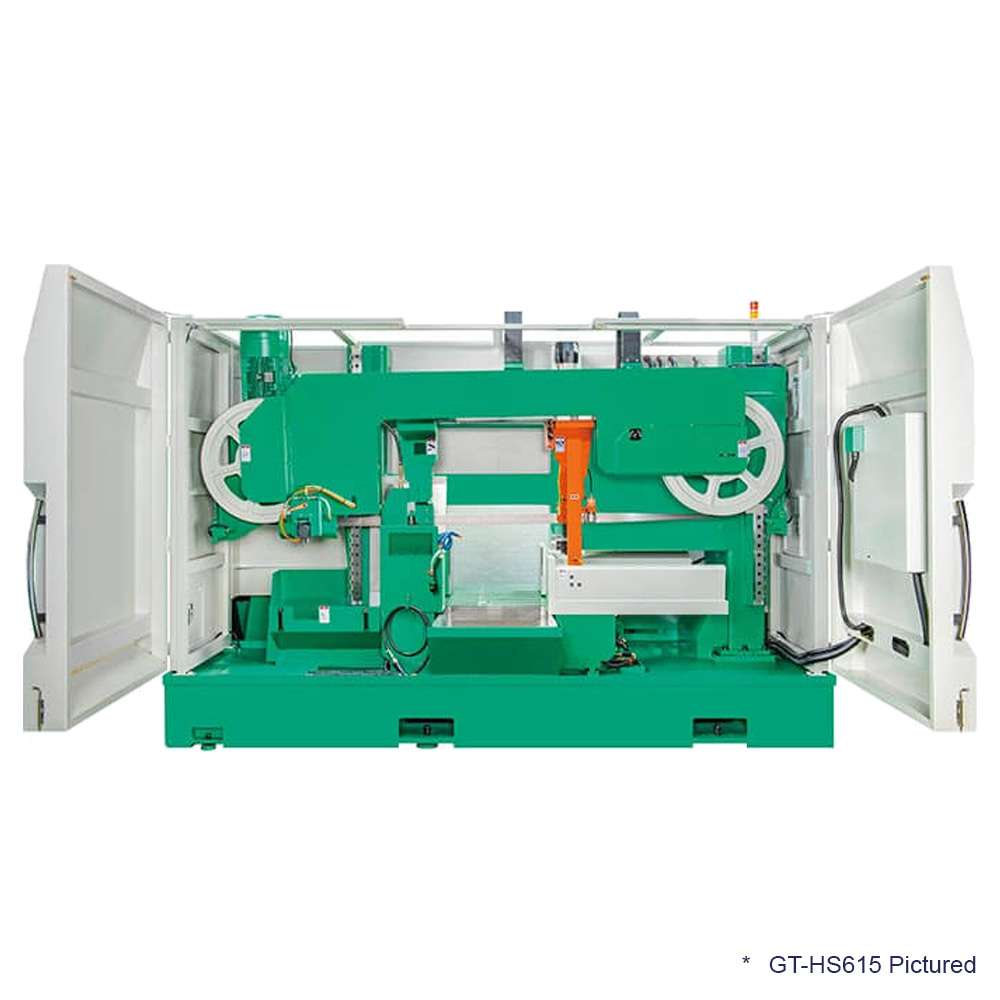

CNC High-Speed Horizontal Band Saw Machine featuring a twin column machine structure. This structure design enables the machine to exhibit exceptional stability and smoothness in high-speed cutting.
Standard Specification
- Automatic feed system with servo controlled cutting feed
- lnvertor controlled variable blade speed

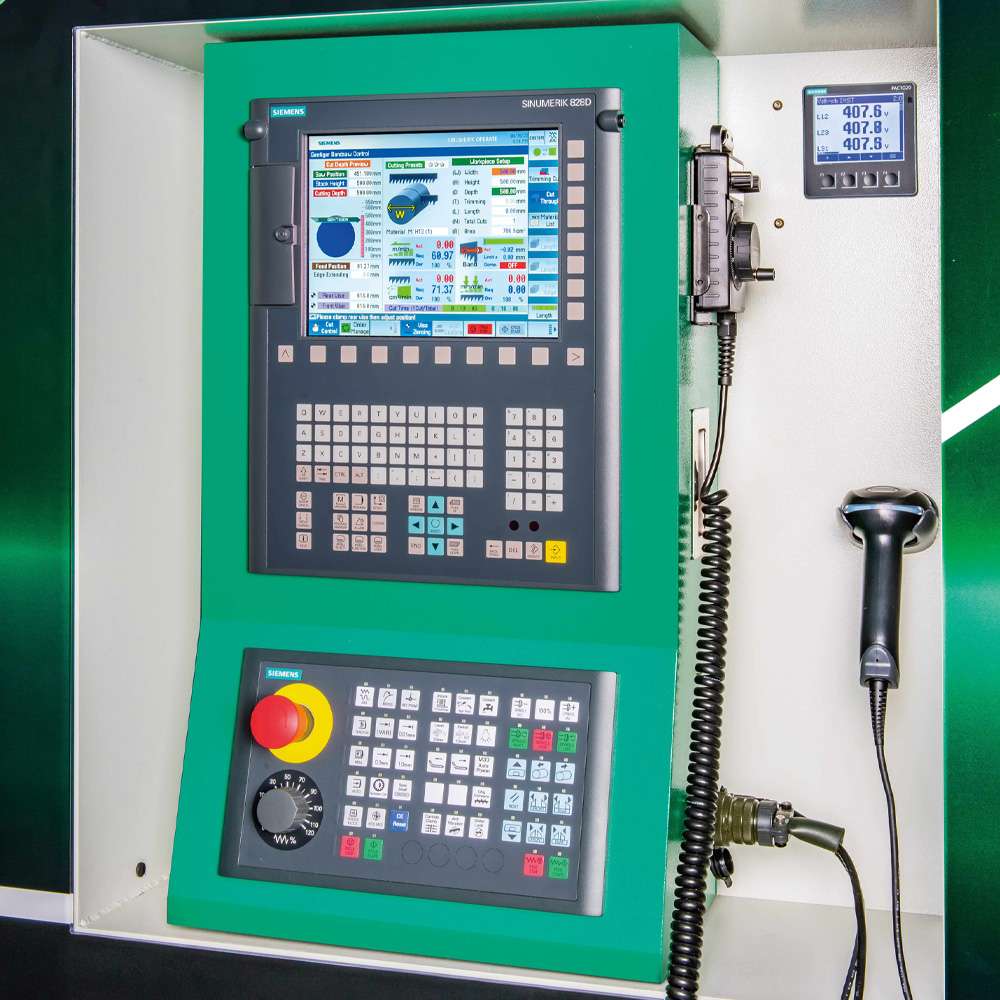

- Swiveling control box with HMI
- Material and sawblade database
- Graphical conversation for cutting mode control
- One-piece bed and roller type material feed
- Hydraulic blade vibration suppressing mechanism
- Cutting data record check export function
- Cutting data remote reading export function
- Link chain type and screw type chip conveyor
- IE3 high efficiency spiral bevel gear reducer
- Highly rigid hydraulic blade tension mechanism
- Hydraulic blade vibration suppressing mechanism

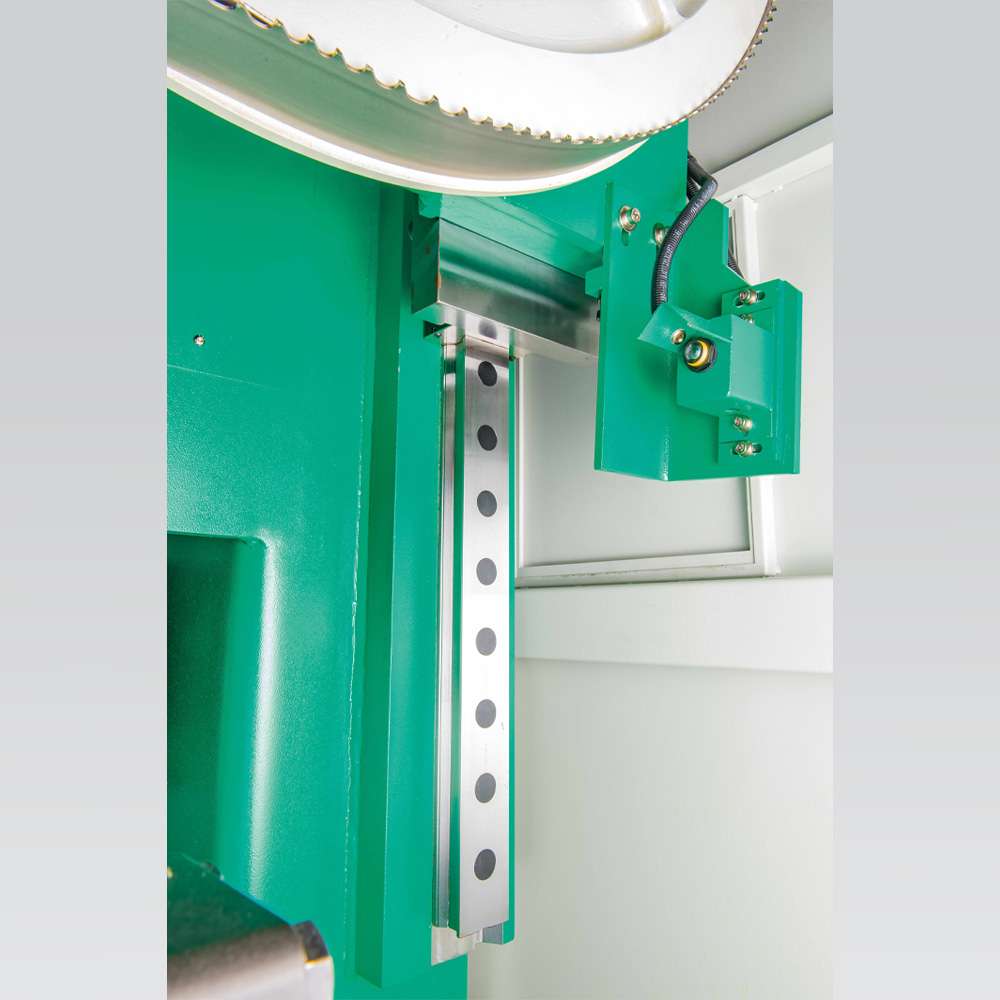

- Roller type linear guideways and blocks on the entire machine

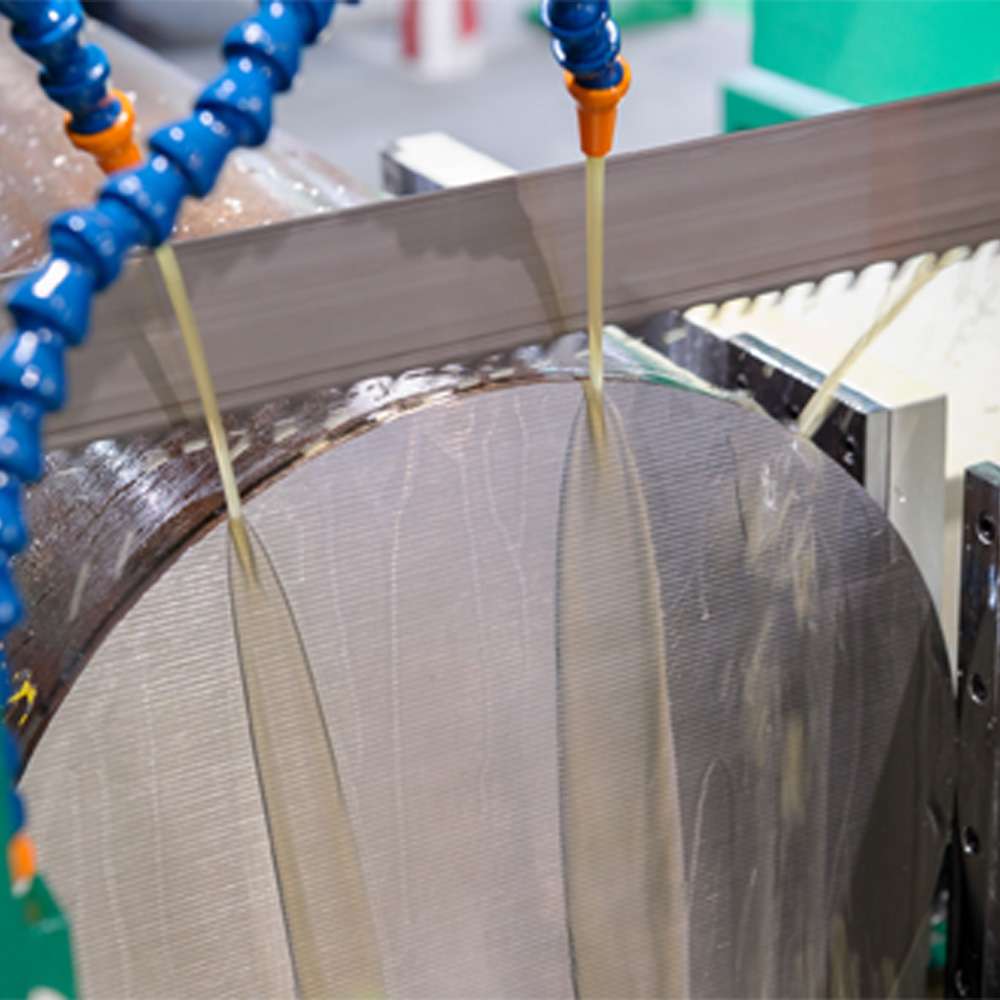

- High pressure blade washing and chip removing device
- Blade breakage detecting stop device
- Laser sensor for elevation system
- Hydraulic blade clamping device
- Compliant fully enclosed splashguard
Get in touch +44 (0)1536 410999
Gentiger GT-A4H Technical Specifications
| Manufacturer | Pre-Owned |
|---|---|
| Machine Type | Bandsaw |
| Operation Type | CNC Automatic |
| Material Type | Solid |
| Blade Size | 6900 × 54 × 1.6 |
| Blade Speed | 10 - 150 M/min |
| Motor | 11 kW |
| Coolant Motor | 0.75 Low & 1.75 High |
| Coolant Tank | 300 Litres |
| Weight | 7000 |
| Machine Dimensions | 3300 mm × 2300 mm × 2100 mm |
| Material Type(s) | Solid |
| Material(s) | Solids, Nickel Alloys, Ferrous |
| 90° | 45° Left | 45° Right | 60° Left | 60° Right | |
|---|---|---|---|---|---|
| Solid Round 90 | 430 mm | ||||
| Solid Rectangle 90 | 430 x 430 mm | ||||
| Solid Square 90 | 430 x 430 mm | ||||
