GEKA GK LASER
Machine Subcategory

Section Laser Cutting

Overview

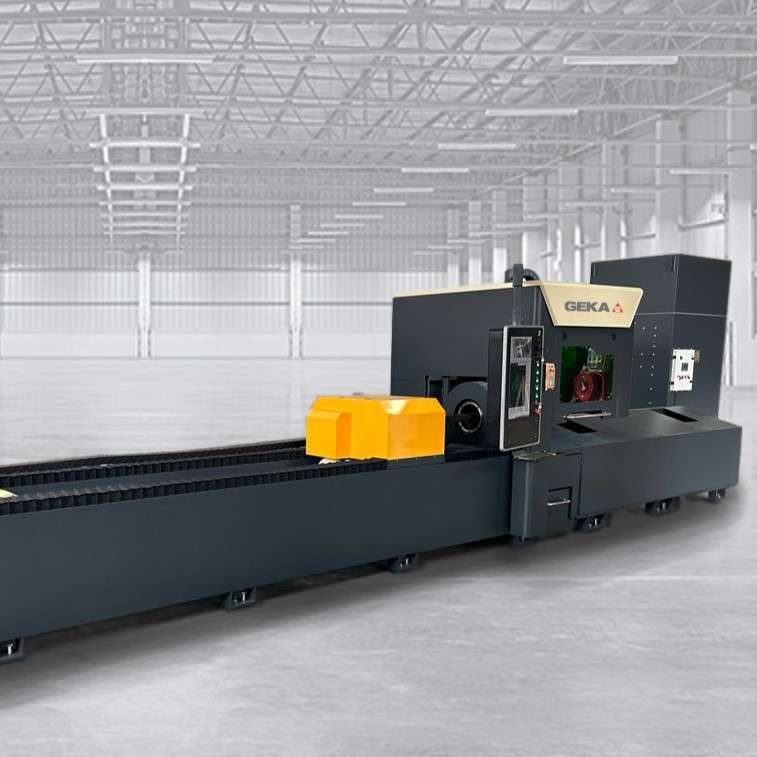

The GK LASER is designed to offer precise, efficient, and versatile solutions for cutting metal tubes of various shapes and sizes. GK Laser can process a wide range of profiles, including round, square, and rectangular tubes, as well as irregular shapes like angle profiles, UPN, and oval tubes, with a cutting capacity for tubes from 6 to 12 metres in length and up to 350mm square capacity.

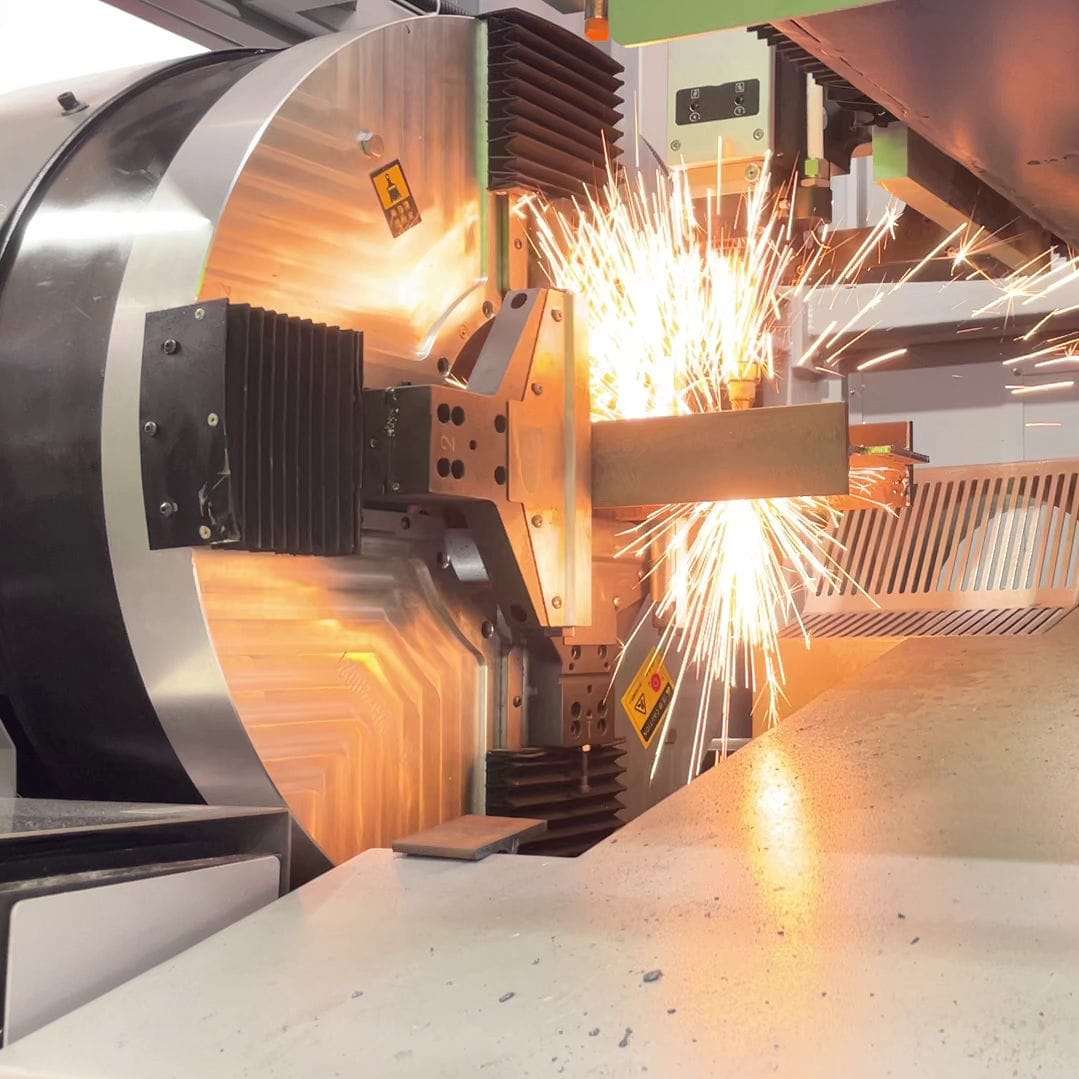

Equipped with advanced fibre laser technology, the GK LASER provides clean and accurate cuts while minimising material waste to just 150 mm thanks to its compact rear chuck design. The reinforced steel structure ensures durability, while the innovative cam-support system guarantees stability when processing long tubes, preventing deformation during cutting. Additionally, the machine is designed for ease of use, featuring an intuitive control panel and an internal cleaning system that maintains cutting quality over time.

Standard Specification



TUBE CATEGORY Round, Square, Rectangular, Oval, Triangular etc..
PIPE DIMENSIONS Ø20-365mm, L = 6m/9m/12m Ø and L both optional
FIBER LASER POWER 6,000W - 30,000W
MAX. ACCELERATION 0.8G
ROTARY SPEED 80r/min

POSSITIONING ACCURACY

±0.03mm/m
REPOSITIONING ACCURACY ±0.05mm
POWER SUPPLY 380V 50HZ / 380V 60HZ / 220V 60HZ
DIMENSIONS 26445*2800*3100
Get in touch +44 (0)1536 410999
GEKA GK LASER Technical Specifications

Notice: Function is_internal_meta_key was called incorrectly. Generic add/update/get meta methods should not be used for internal meta data, including "_weight". Use getters and setters. Backtrace: require('wp-blog-header.php'), require_once('wp-includes/template-loader.php'), include('/plugins/woocommerce/templates/single-product.php'), wc_get_template_part, load_template, require('/plugins/woocommerce/templates/content-single-product.php'), do_action('woocommerce_single_product_summary'), WP_Hook->do_action, WP_Hook->apply_filters, single_product_custom_template, prosaw_render_technical_specifications, prosaw_render_meta_row, prosaw_get_spec_value, WC_Data->get_meta, WC_Data->is_internal_meta_key, wc_doing_it_wrong Please see Debugging in WordPress for more information. (This message was added in version 3.2.0.) in /home/prosaw/public_html/wp-includes/functions.php on line 6260
Manufacturer GEKA
Machine Type Metal Forming
Operation Type Laser
SKU: 365 Category:
