GEKA Gamma Roller 150 and 160
GEKA Gamma Roller 150 and 160

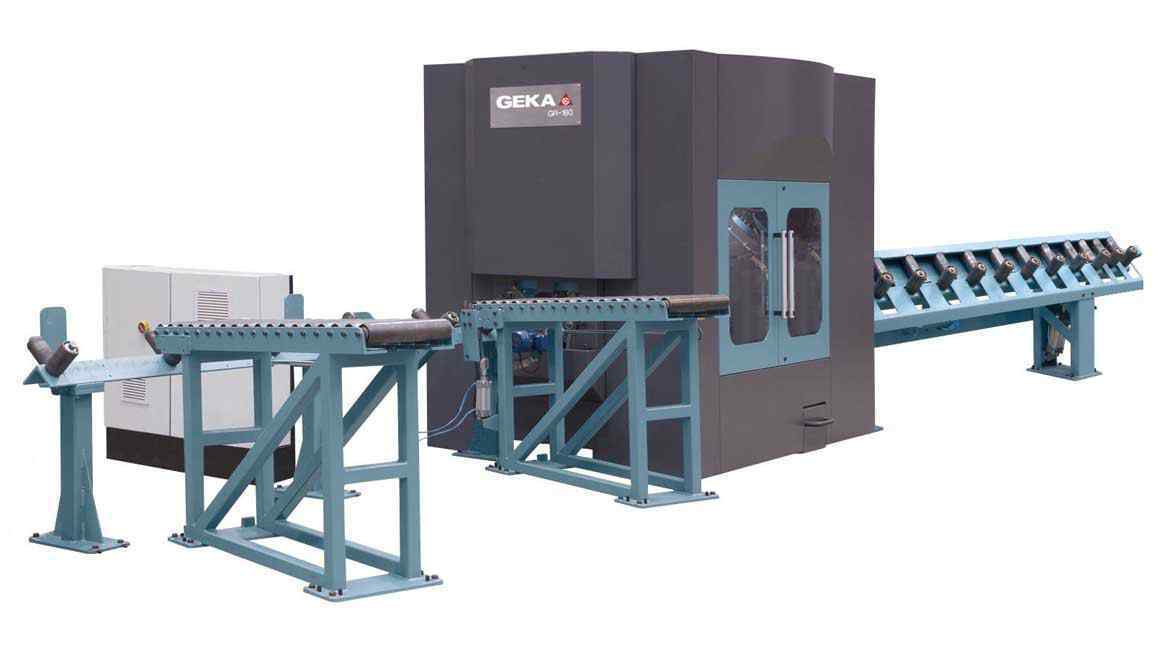

GEKA Gamma Roller 150 and 160 - Image 2

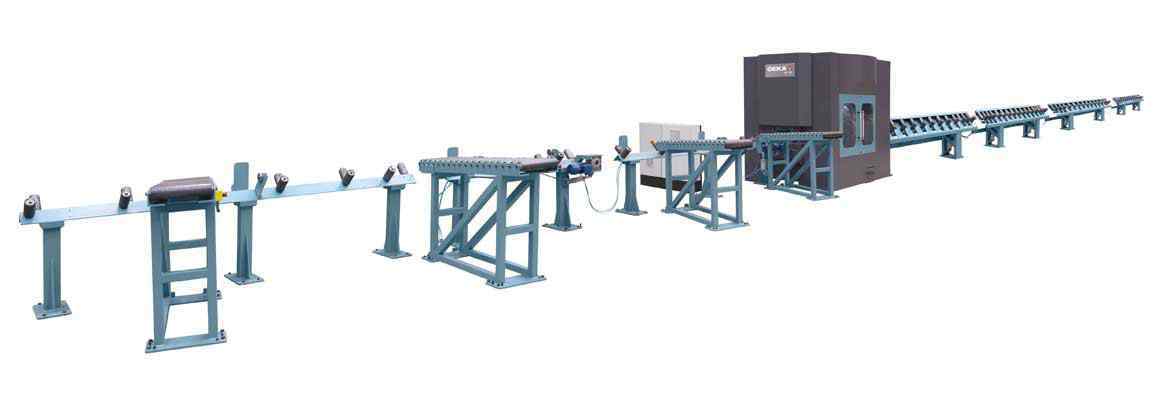

GEKA Gamma Roller 150 and 160 - Image 3
Machine Subcategory

Automatic Lines

Overview

The GEKA Gamma Roller 150 and 160 product lines are a complete automatic solution for punching, marking (standard on ALPS 160) and shearing of angles for medium and large sized steel profiles.

Standard Specification
  • Minimum angle 35x35x4mm
  • Maximum angle 150x150x15mm or 160x160x16mm
  • Minimum Flat Bar 50x5mm
  • Maximum Flar Bar 150x15mm or 160x16mm
  • Minimum channel 60x30mm
  • Maximum channel 120x60mm
  • Marking Cassette Characters 5x10 size typeface
  • No of Punches 6 (3/wing)
  • Maximum Diameter 31mm
  • Punching Force 730 kn
  • Shear station tonnage 1900 kn or 2500 kn
  • Feeder Speed Programmable up to 36 m/min
Get in touch +44 (0)1536 410999
GEKA Gamma Roller 150 and 160 Technical Specifications

Notice: Function is_internal_meta_key was called incorrectly. Generic add/update/get meta methods should not be used for internal meta data, including "_weight". Use getters and setters. Backtrace: require('wp-blog-header.php'), require_once('wp-includes/template-loader.php'), include('/plugins/woocommerce/templates/single-product.php'), wc_get_template_part, load_template, require('/plugins/woocommerce/templates/content-single-product.php'), do_action('woocommerce_single_product_summary'), WP_Hook->do_action, WP_Hook->apply_filters, single_product_custom_template, prosaw_render_technical_specifications, prosaw_render_meta_row, prosaw_get_spec_value, WC_Data->get_meta, WC_Data->is_internal_meta_key, wc_doing_it_wrong Please see Debugging in WordPress for more information. (This message was added in version 3.2.0.) in /home/prosaw/public_html/wp-includes/functions.php on line 6260
Manufacturer GEKA
Machine Type Steel Worker
Steel Flatbarshear 160 x 16mm (ALPS 160 only)
Punching Double Punch DPS 150 - 31 through 15mm, Triple Punch ALPS 160 - 31 through 16mm
Steel Angle Shear 90 150x150x15mm (DPS 150), 160x160x16mm (ALPS 160)
Steel Angle Shear Tonnage 190 tonnes (DPS 150), 250 tonnes (ALPS 160)
Punching Power 60 tonnes (DPS 150), 73 tonnes (ALPS 160)
SKU: 106 Category:
Download Datasheet

Download the datasheet for the GEKA Gamma Roller 150 and 160
