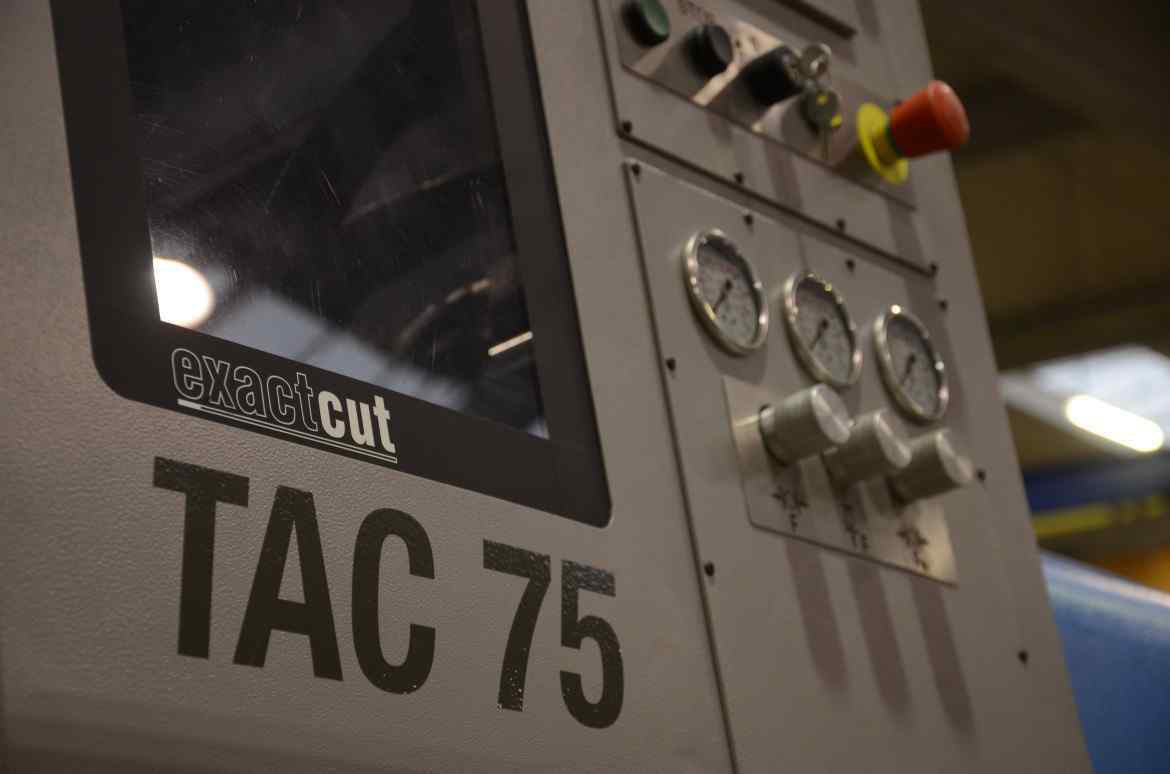

EXACTCUT TAC 75
EXACTCUT TAC 75
EXACTCUT TAC 75 - Image 2
EXACTCUT TAC 75 - Image 3
Machine Subcategory

Automatic Circular Saws

Overview

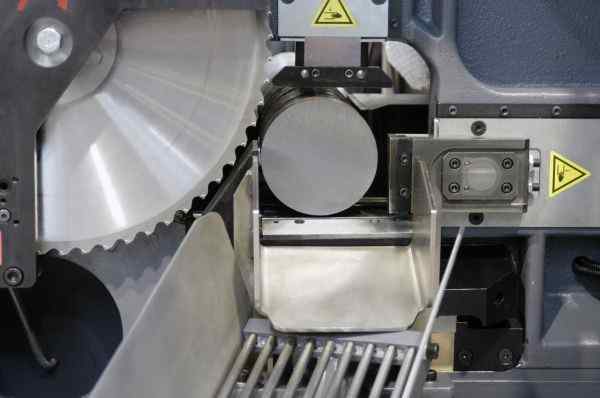

The ExactCut TAC 75 circular saw is intended for cutting both solid and profile materials at 90°.

The TAC machine series are fitted with a compact and powerful cutting unit placed on pre-tensioned linear guidance, driven by a suitably dimensioned servomotor.

Supporting components are filled with a polymer composite providing maximum vibration absorbtion and ensure long service life, high cutting precision and maximum blade life. Lubrication of the blade is provided with a 'mist spray' micronizer which is standard on every machine.

Standard Specification
  • 6m inclined magazine feeder
  • Output sorting chute (parts up to 150mm long)
  • Circular saw dimensions 1527x2180x1950 mm
  • Cutting angle 90°
  • Cutting speed 60 - 220 m/min
  • High performance suitable for medium to high quantity production
  • Three basic dimensions acc. to the maximum cutting depth
  • Intended particularly for cutting round steel bars
  • Easy and intuitive control
  • Optional peripheral devices
Get in touch +44 (0)1536 410999
EXACTCUT TAC 75 Technical Specifications

Notice: Function is_internal_meta_key was called incorrectly. Generic add/update/get meta methods should not be used for internal meta data, including "_weight". Use getters and setters. Backtrace: require('wp-blog-header.php'), require_once('wp-includes/template-loader.php'), include('/plugins/woocommerce/templates/single-product.php'), wc_get_template_part, load_template, require('/plugins/woocommerce/templates/content-single-product.php'), do_action('woocommerce_single_product_summary'), WP_Hook->do_action, WP_Hook->apply_filters, single_product_custom_template, prosaw_render_technical_specifications, prosaw_render_meta_row, prosaw_get_spec_value, WC_Data->get_meta, WC_Data->is_internal_meta_key, wc_doing_it_wrong Please see Debugging in WordPress for more information. (This message was added in version 3.2.0.) in /home/prosaw/public_html/wp-includes/functions.php on line 6260
Manufacturer FUHO
Machine Type Circular
Blade Size 250 or 285mm × 32mm bore × 1 - 3mm thick
Blade Speed Inverter controlled 60 ~ 220m/min
Motor 7.5kW
Weight 1540
Material Type(s) Solid
90° 45° Left 45° Right 60° Left 60° Right
Solid Round 90 10-75mm
Solid Square 90 10-65mm
SKU: 111 Category:
Download Datasheet

Download the datasheet for the EXACTCUT TAC 75
