BOMAR Workline 510.350DGH
Machine Subcategory
Semi-Automatic Horizontal Bandsaw
Overview

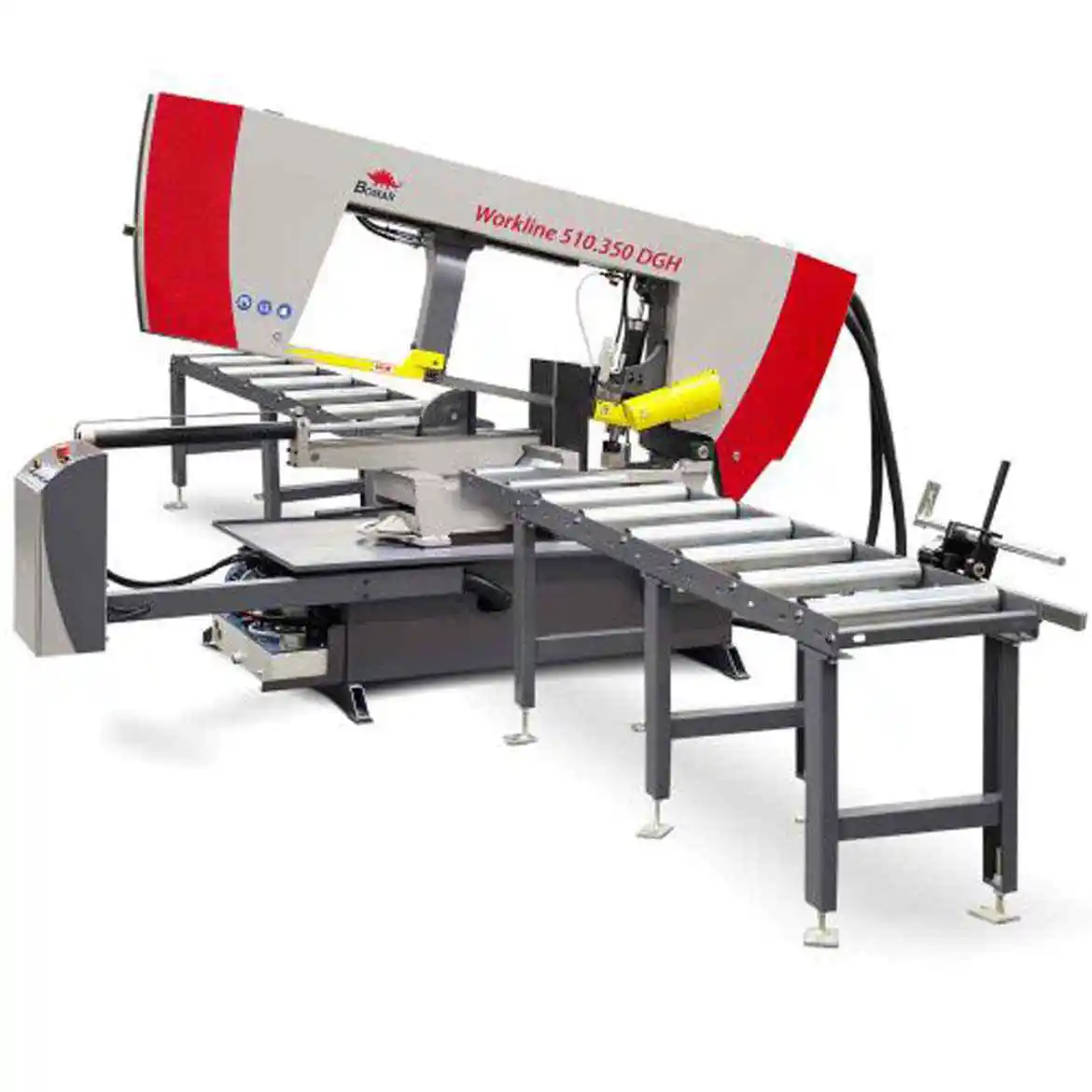

The Bomar Workline 510.350DGH is a semi-automatic mitre bandsaw ideal for the general fabricator or production of steel structures. Mitre cutting in both directions to 60° with a large easy-to-read angular scale. This machine also has a digital readout of the mitre angle, an adjustable hydraulic pressure regulation downfeed valve and variable blade speed to cope with a wide variety of cutting applications.
Standard Specification
- 2 way easy mitre cutting – 60° right, 60° left
- Easy to read mitre scale
- DRO for mitre angle
- Full stroke hydraulic vice
- Powered bow raise
- Adjustable back off valve for optimising downfeed speed relative to material mass
- Control box mounted on swinging arm
- Simple, robust push button controls
- Variable blade speed 20 to 120m/min
- Dovetail sliding vice for mitre cutting
- 34mm blade width
- Bed height: 761mm
Get in touch +44 (0)1536 410999
BOMAR Workline 510.350DGH Technical Specifications
| Manufacturer | Bomar |
|---|---|
| Machine Type | Bandsaw |
| Blade Size | 4780mm × 34mm × 1.1mm |
| Blade Speed | Inverter controlled varaible speed 20 ~ 120 m/min |
| Table Height | 761mm |
| Motor | 3kW |
| Material Type(s) | Section |
| Material(s) | Sections |
| 90° | 45° Left | 45° Right | 60° Left | 60° Right | |
|---|---|---|---|---|---|
| Round Section (mm) | 350mm | 350mm | 350mm | 270mm | 250mm |
| Rectangular Section Horizontal (mm) | 510x350mm | 415x100mm | 400x100mm | 280x100mm | 260x100mm |
| Rectangular Section Vertical (mm) | 510x350mm | 360x350mm | 340x350mm | 220x350mm | 220x350mm |
| Square Section (mm) | 350mm | 350mm | 340mm | 260mm | 240mm |
| Solid Round 90 | 250mm | ||||
| Solid Square 90 | 250mm | ||||
