BOMAR Workline 510.350DG
BOMAR Workline 510.350DG
BOMAR Workline 510.350DG - Image 2
BOMAR Workline 510.350DG - Image 3
Machine Subcategory

Manual Horizontal Bandsaw

Overview

The Bomar Workline 510.350DG is a manual mitre bandsaw ideal for the general fabricator or production of steel structures. Mitre cutting in both directions to 60° with a large easy-to-read angular scale. This machine also has a digital readout of the mitre angle and variable blade speed to cope with a wide variety of cutting applications. There is also an innovative clamping device with the Quick-Release-System.

Standard Specification
  • 2 way mitre – 60° right, 60° left
  • Easy to read mitre scale
  • DRO for mitre angle
  • Precision hydraulic down feed control

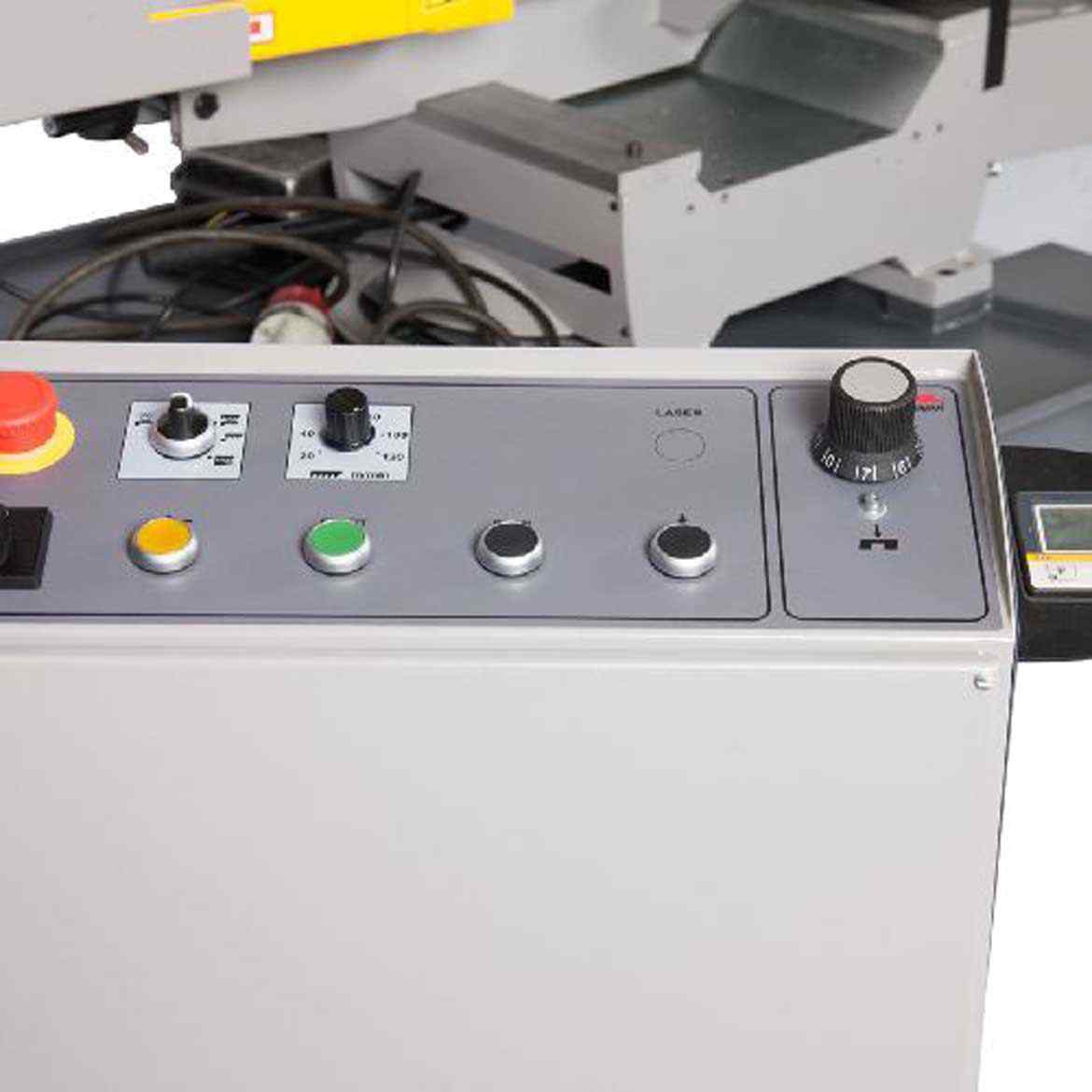

  • Pivoting control panel
  • Simple, robust push button controls
  • Variable blade speed 20 to 120 m/min
  • Quick release vice mechanism
  • Dovetail sliding vice for bow rotation
  • Blade width 34mm
  • Bed height: 761mm
Get in touch +44 (0)1536 410999
BOMAR Workline 510.350DG Technical Specifications

Notice: Function is_internal_meta_key was called incorrectly. Generic add/update/get meta methods should not be used for internal meta data, including "_weight". Use getters and setters. Backtrace: require('wp-blog-header.php'), require_once('wp-includes/template-loader.php'), include('/plugins/woocommerce/templates/single-product.php'), wc_get_template_part, load_template, require('/plugins/woocommerce/templates/content-single-product.php'), do_action('woocommerce_single_product_summary'), WP_Hook->do_action, WP_Hook->apply_filters, single_product_custom_template, prosaw_render_technical_specifications, prosaw_render_meta_row, prosaw_get_spec_value, WC_Data->get_meta, WC_Data->is_internal_meta_key, wc_doing_it_wrong Please see Debugging in WordPress for more information. (This message was added in version 3.2.0.) in /home/prosaw/public_html/wp-includes/functions.php on line 6260
Manufacturer Bomar
Machine Type Bandsaw
Blade Size 4780mm × 34mm × 1.1mm
Blade Speed Inverter controlled varaible speed 20 ~ 120 m/min
Table Height 761mm
Motor 3kW
Material Type(s) Section
Material(s) Sections
90° 45° Left 45° Right 60° Left 60° Right
Round Section (mm) 350mm 350mm 350mm 270mm 250mm
Rectangular Section Horizontal (mm) 510x350mm 415x100mm 400x100mm 280x100mm 260x100mm
Rectangular Section Vertical (mm) 510x350mm 360x350mm 340x350mm 220x350mm 220x350mm
Square Section (mm) 350mm 350mm 340mm 260mm 240mm
Solid Round 90 250mm
Solid Square 90 250mm
SKU: 70 Category:
Download Datasheet

Download the datasheet for the BOMAR Workline 510.350DG
