BOMAR Proficut 275.230GANC
BOMAR Proficut 275.230GANC

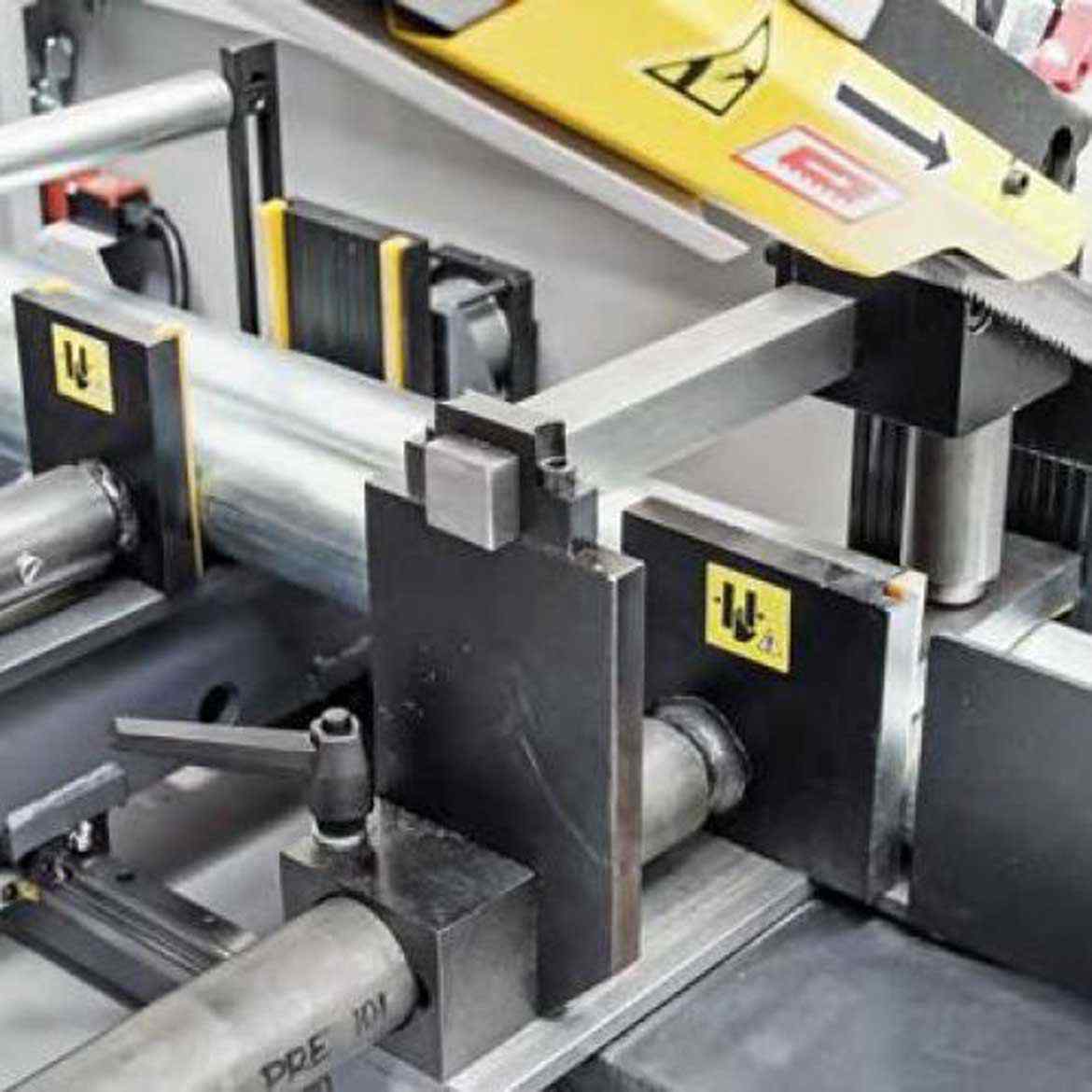

BOMAR Proficut 275.230GANC - Image 2

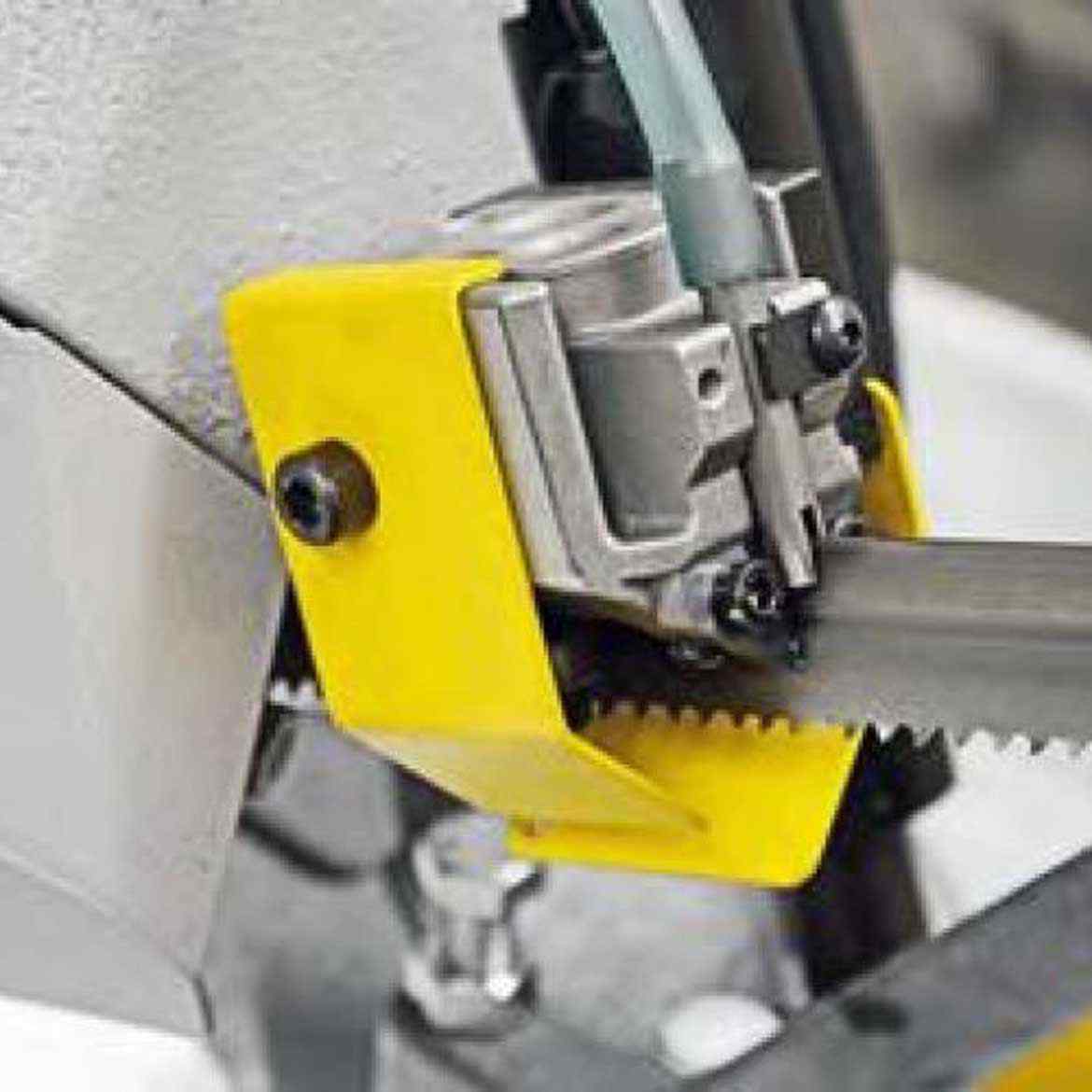

BOMAR Proficut 275.230GANC - Image 3
Machine Subcategory

Automatic Horizontal Bandsaw

Overview

The Bomar Proficut 275.230GANC is an automatic mitre bandsaw with NC controls ideal for sections and small solid material. Its saw bow rotates for mitre cutting to 60°. The hydraulic downfeed control benefits from an automatic cutting pressure control. The feeding length is 500 mm.

Standard Specification
  • Heavy duty one piece bow
  • Simple robust controls
  • NC Controls
  • Hydraulic down feed with automatic speed regulation
  • Automatic multiple stroke vice feed with 500mm single pass length
  • Heavy Duty gearbox unit
  • 2 blade speeds 40 & 80 m/min
  • Recirculating coolant pump
  • Carbide blade guidance
  • Comprehensive safety specification, guarding interlock, low voltage controls
  • Automatic shutdown if blade breaks
  • Manual setting of mitre angle
Get in touch +44 (0)1536 410999
BOMAR Proficut 275.230GANC Technical Specifications

Notice: Function is_internal_meta_key was called incorrectly. Generic add/update/get meta methods should not be used for internal meta data, including "_weight". Use getters and setters. Backtrace: require('wp-blog-header.php'), require_once('wp-includes/template-loader.php'), include('/plugins/woocommerce/templates/single-product.php'), wc_get_template_part, load_template, require('/plugins/woocommerce/templates/content-single-product.php'), do_action('woocommerce_single_product_summary'), WP_Hook->do_action, WP_Hook->apply_filters, single_product_custom_template, prosaw_render_technical_specifications, prosaw_render_meta_row, prosaw_get_spec_value, WC_Data->get_meta, WC_Data->is_internal_meta_key, wc_doing_it_wrong Please see Debugging in WordPress for more information. (This message was added in version 3.2.0.) in /home/prosaw/public_html/wp-includes/functions.php on line 6260
Manufacturer Bomar
Machine Type Bandsaw
Blade Size 2720mm × 27mm × 0.9mm
Blade Speed 2 speeds, 40 & 80 m/min
Motor 1.1kW
Weight 500
90° 45° Left 45° Right 60° Left 60° Right
Round Section (mm) 230mm 190mm 120mm
Rectangular Section Horizontal (mm) 275x180mm 190x150mm 120x100mm
SKU: 28 Category:
Download Datasheet

Download the datasheet for the BOMAR Proficut 275.230GANC

Contact Us

Call us during office hours (8:30am – 5pm, Mon – Fri) for assistance with choosing the best machine for the job

Blades & Consumables

Order blades for the BOMAR Proficut 275.230GANC direct from Prosaw
