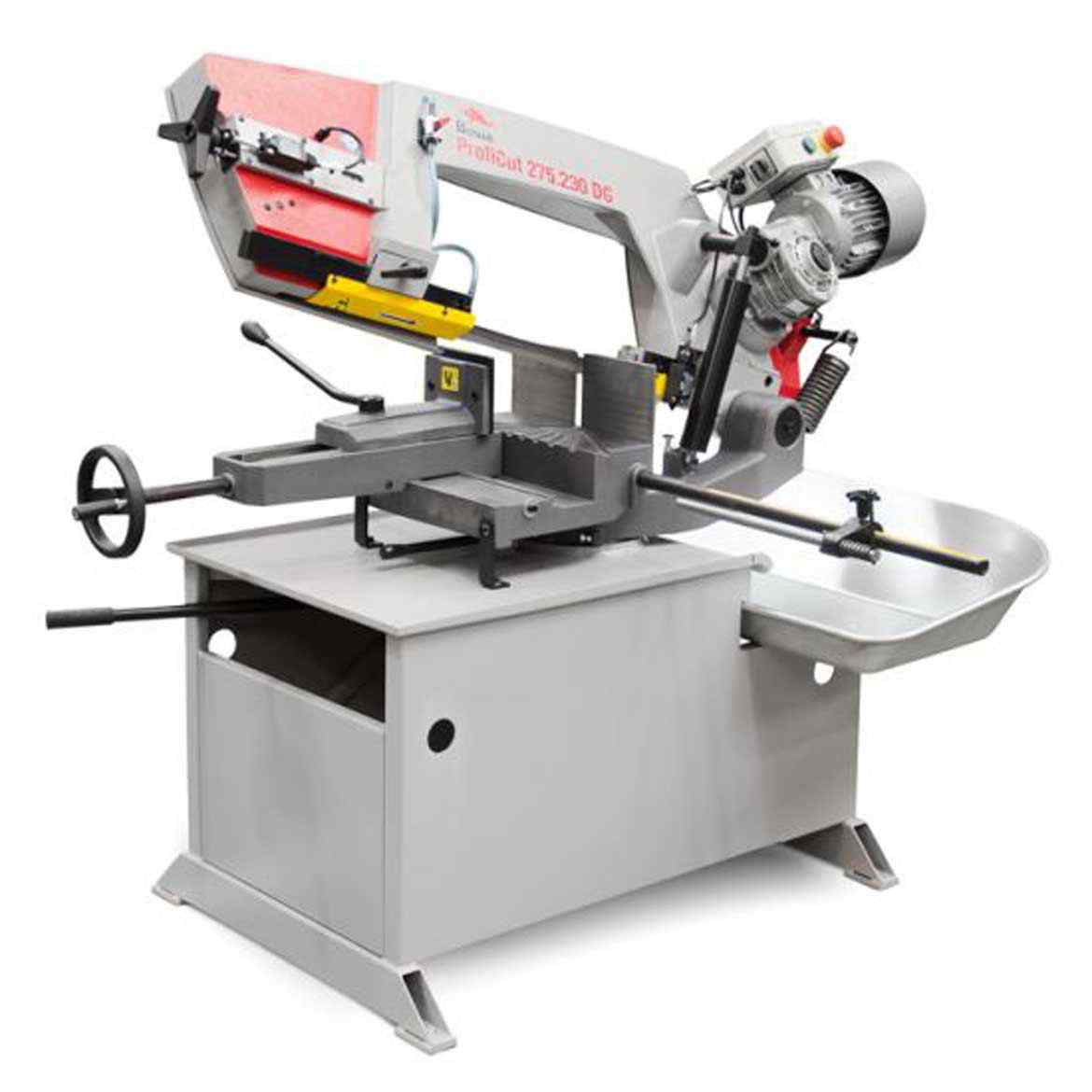

BOMAR Proficut 275.230DG
BOMAR Proficut 275.230DG
Machine Subcategory

Manual Horizontal Bandsaw

Overview

The ALL NEW Bomar Proficut 275.230DG is a manual mitre bandsaw ideal for the general fabricator or production of steel structures. Mitre cutting in both directions to 45° left 60° right with a large easy-to-read mitre scale. This machine also has 2 blade speeds to cope with a wide variety of cutting applications. There is also an innovative clamping device with the Quick-Release-System.

Standard Specification
  • Heavy duty one-piece cast bow
  • Precision control hydraulic downfeed
  • Substantial vices, quick set lever operation
  • Bow rotates 45-90-60°
  • Easy to read mitre scale
  • Carbide blade guide pads and rollers
  • Heavy duty blade tensioning unit
  • Heavy duty, 3 phase motor
  • Re-circulating coolant pump
  • Adjustable guide arm
  • Heavy duty gear train
  • Blade speed: 40 & 80 m/min
  • 500mm length stop included
Get in touch +44 (0)1536 410999
BOMAR Proficut 275.230DG Technical Specifications

Notice: Function is_internal_meta_key was called incorrectly. Generic add/update/get meta methods should not be used for internal meta data, including "_weight". Use getters and setters. Backtrace: require('wp-blog-header.php'), require_once('wp-includes/template-loader.php'), include('/plugins/woocommerce/templates/single-product.php'), wc_get_template_part, load_template, require('/plugins/woocommerce/templates/content-single-product.php'), do_action('woocommerce_single_product_summary'), WP_Hook->do_action, WP_Hook->apply_filters, single_product_custom_template, prosaw_render_technical_specifications, prosaw_render_meta_row, prosaw_get_spec_value, WC_Data->get_meta, WC_Data->is_internal_meta_key, wc_doing_it_wrong Please see Debugging in WordPress for more information. (This message was added in version 3.2.0.) in /home/prosaw/public_html/wp-includes/functions.php on line 6260
Manufacturer Bomar
Machine Type Bandsaw
Blade Size 2720mm × 27mm × 0.9mm
Blade Speed 2 speeds, 40 & 80m/min
Table Height 760mm
Material Type(s) Section
Material(s) Sections
90° 45° Left 45° Right 60° Left 60° Right
Round Section (mm) 230mm 170mm 190mm 120mm
Rectangular Section Horizontal (mm) 275×180mm 185x100mm 190x150mm 120x100mm
Rectangular Section Vertical (mm) 250x230mm 90x230mm 170x230mm 120x100mm
Square Section (mm) 230mm 150mm 180mm 100mm
SKU: 2 Category:
Download Datasheet

Download the datasheet for the BOMAR Proficut 275.230DG
