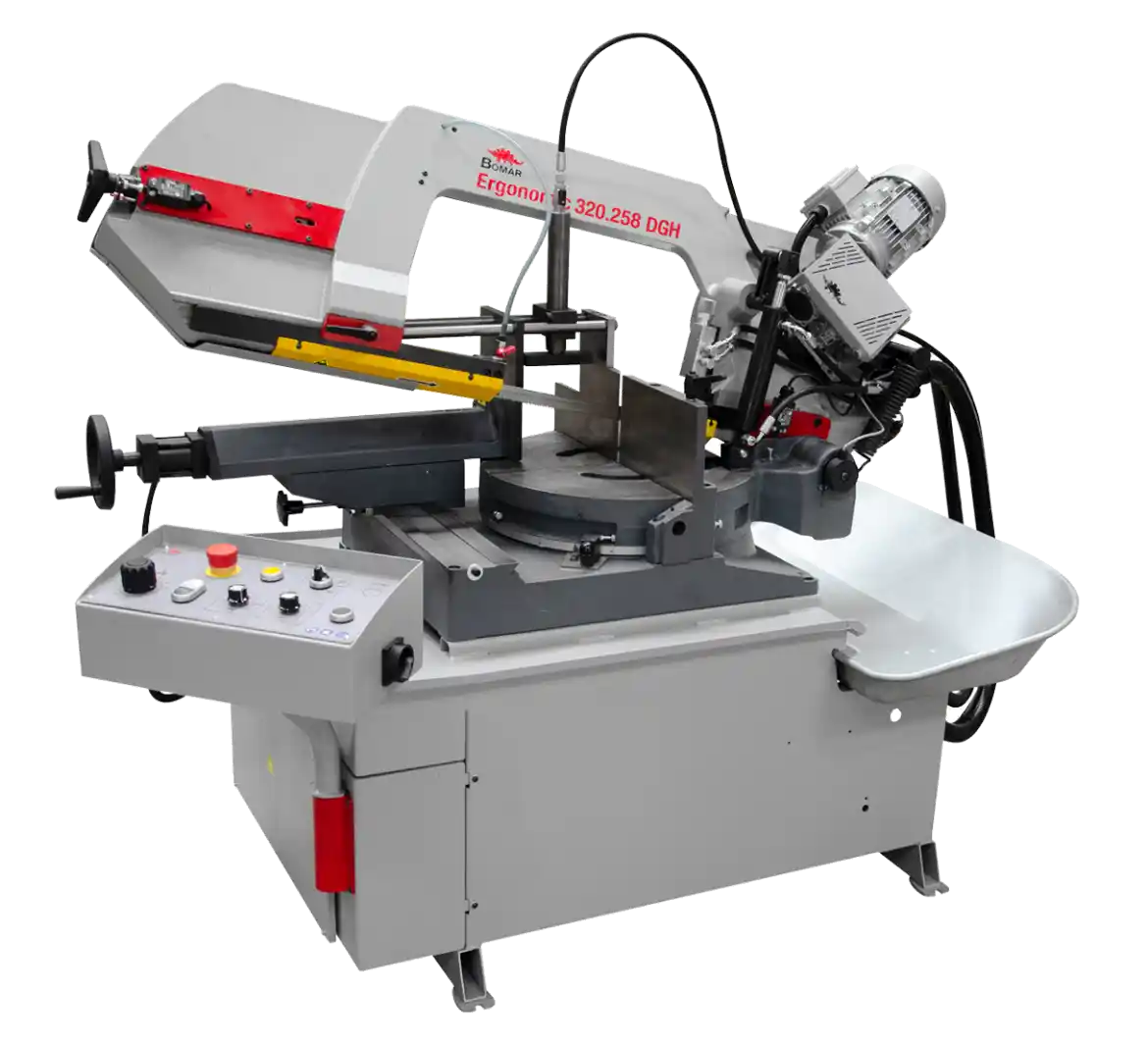

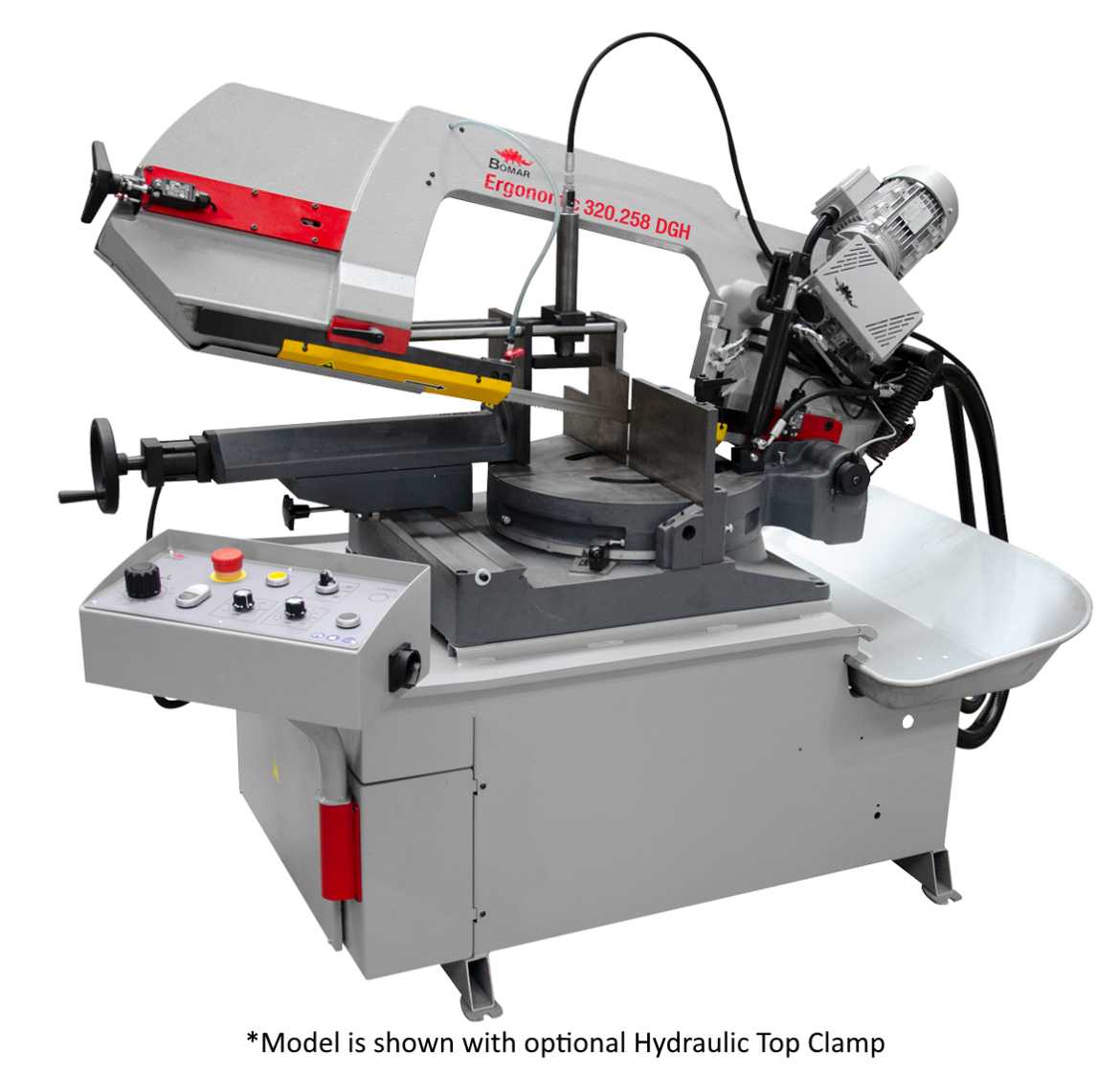

BOMAR Ergonomic 320.258DGH
Machine Subcategory
Semi-Automatic Horizontal Bandsaw
Overview
The ALL NEW Bomar Ergonomic 320.258DGH is a semi automatic mitre bandsaw ideal for the general fabricator or production of steel structures. Mitre cutting in both directions to 45° left 60° right with a large easy-to-read mitre scale. This machine also has variable blade speed to cope with a wide variety of cutting applications. There is also a hydraulic clamping device with a short stroke hydraulic cylinder.
Standard Specification
- Heavy duty one-piece cast bow
- Hydraulic-powered bow raise with selectable return height
- Hydraulic control of downfeed rate with adjustable back-off valve
- Substantial hydraulic vice with minimal opening for repetitive cut
- Bow rotates 45-0-60° with stops every 15°

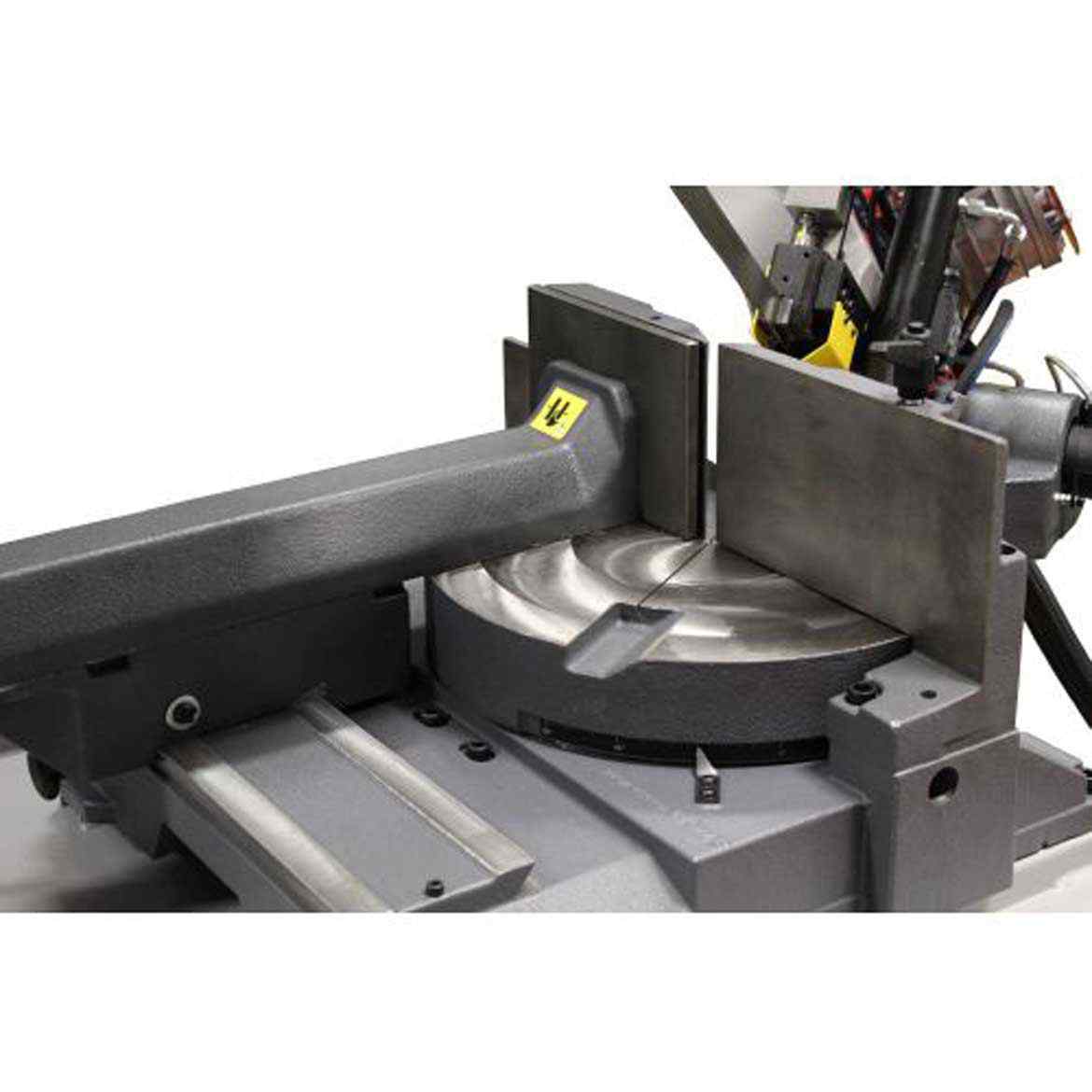

- Turntable bed with easy to read mitre scale
- Substantial vices, quick set lever operation

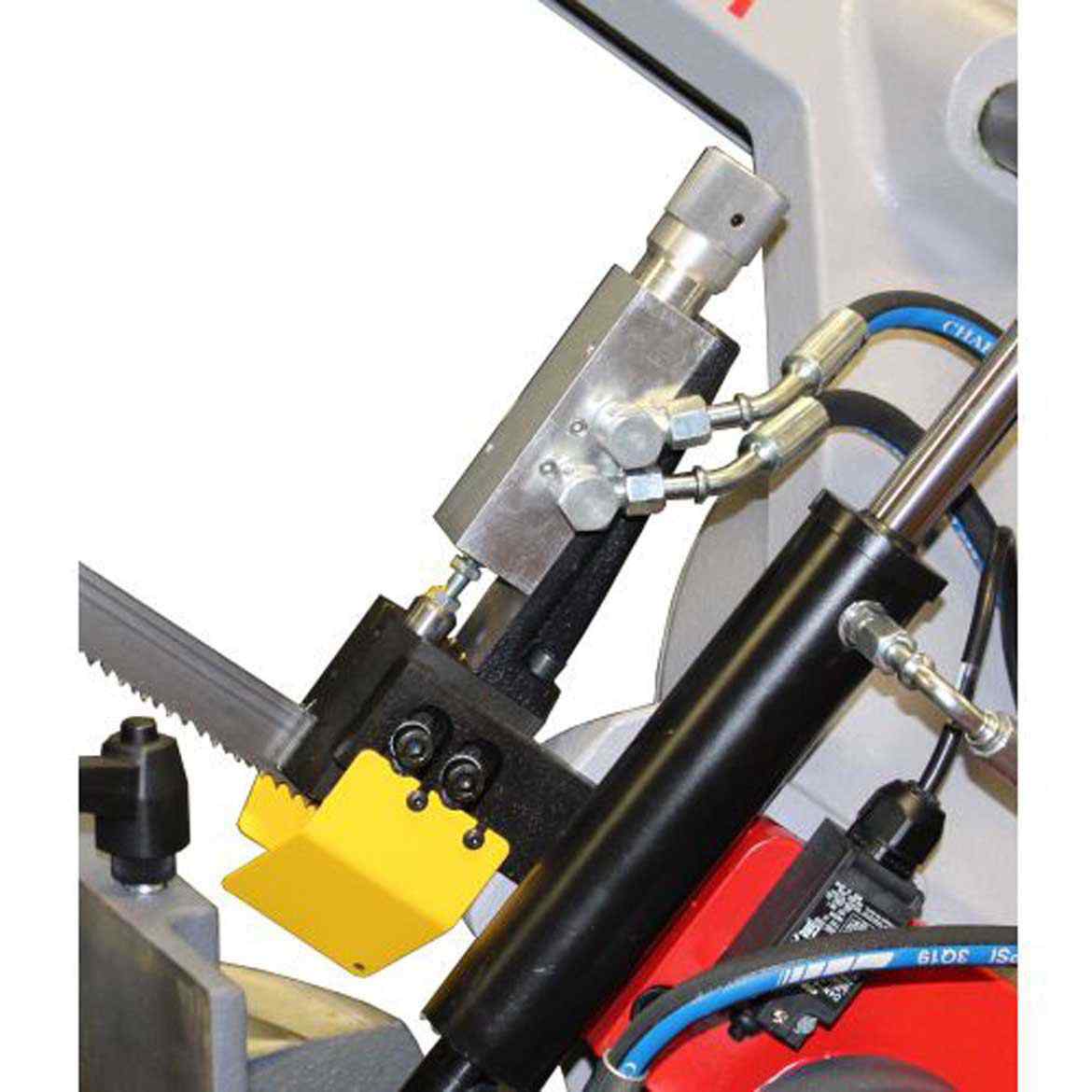

- Tungsten carbide blade guide pads and roller bearings
- Swarf brush assembly for cleaning blade
- Heavy duty blade tensioning unit with indicator
- Heavy duty, 3 phase motor
- Re-circulating coolant pump
- Adjustable guide arm
- Heavy duty gear train
- Blade speed: variable from 20 to 120 m/min
- 500mm length stop included
Get in touch +44 (0)1536 410999
BOMAR Ergonomic 320.258DGH Technical Specifications
| Manufacturer | Bomar |
|---|---|
| Machine Type | Bandsaw |
| Blade Size | 2910mm × 27mm × 0.9mm |
| Blade Speed | Inverter controlled varaible speed 20 ~ 120 m/min |
| Table Height | 760mm |
| Weight | 410 |
| Material Type(s) | Section |
| Material(s) | Sections |
| 90° | 45° Left | 45° Right | 60° Left | 60° Right | |
|---|---|---|---|---|---|
| Round Section (mm) | 258mm | 185mm | 210mm | 135mm | |
| Rectangular Section Horizontal (mm) | 320x100mm | 195x100mm | 210x100mm | 135x100mm | |
| Rectangular Section Vertical (mm) | 275x230mm | 150x250mm | 185x245mm | 135x110mm | |
| Square Section (mm) | 250mm | 170mm | 195mm | 110mm |
