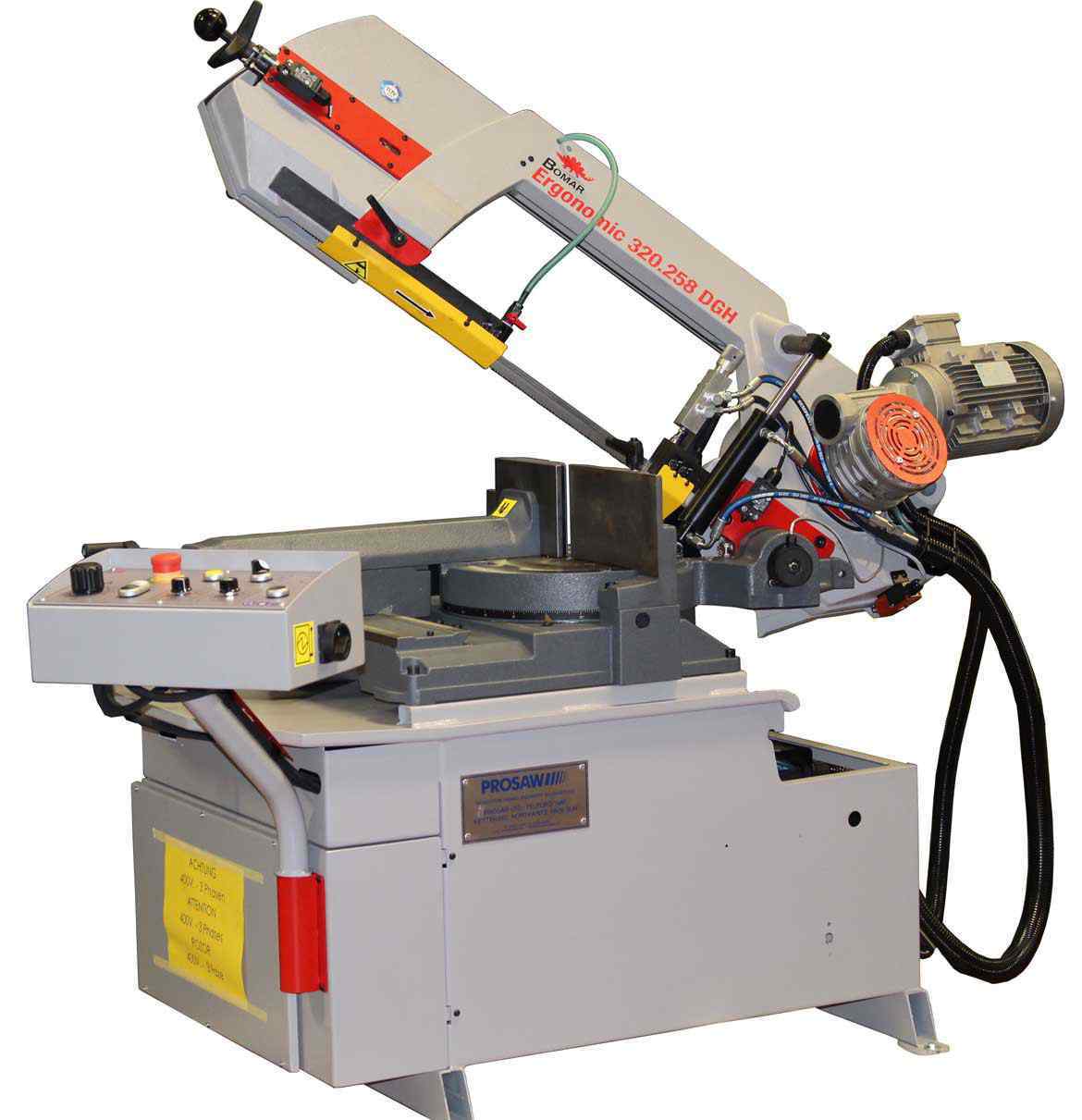

The ALL NEW Bomar Ergonomic 320.258DGH is a semi automatic mitre bandsaw ideal for the general fabricator or production of steel structures. Mitre cutting in both directions to 45° left 60° right with a large easy-to-read mitre scale. This machine also has variable blade speed to cope with a wide variety of cutting applications. There is also a hydraulic clamping device with a short stroke hydraulic cylinder.

• Heavy duty one-piece cast bow

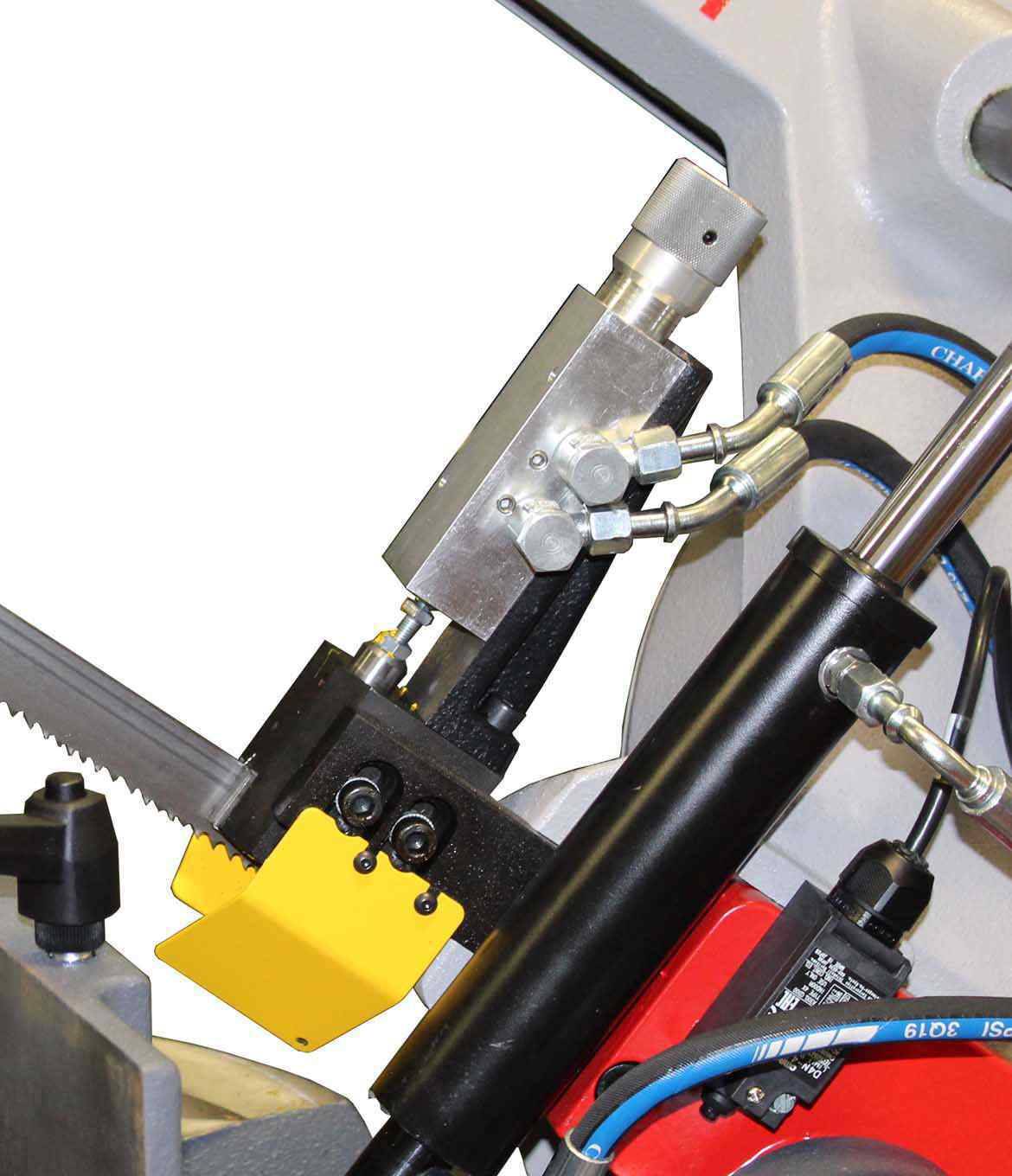

• Hydraulic-powered bow raise with selectable return height
• Hydraulic control of downfeed rate with adjustable back-off valve
• Substantial hydraulic vice with minimal opening for repetitive cut
• Bow rotates 45-0-60° with stops every 15°

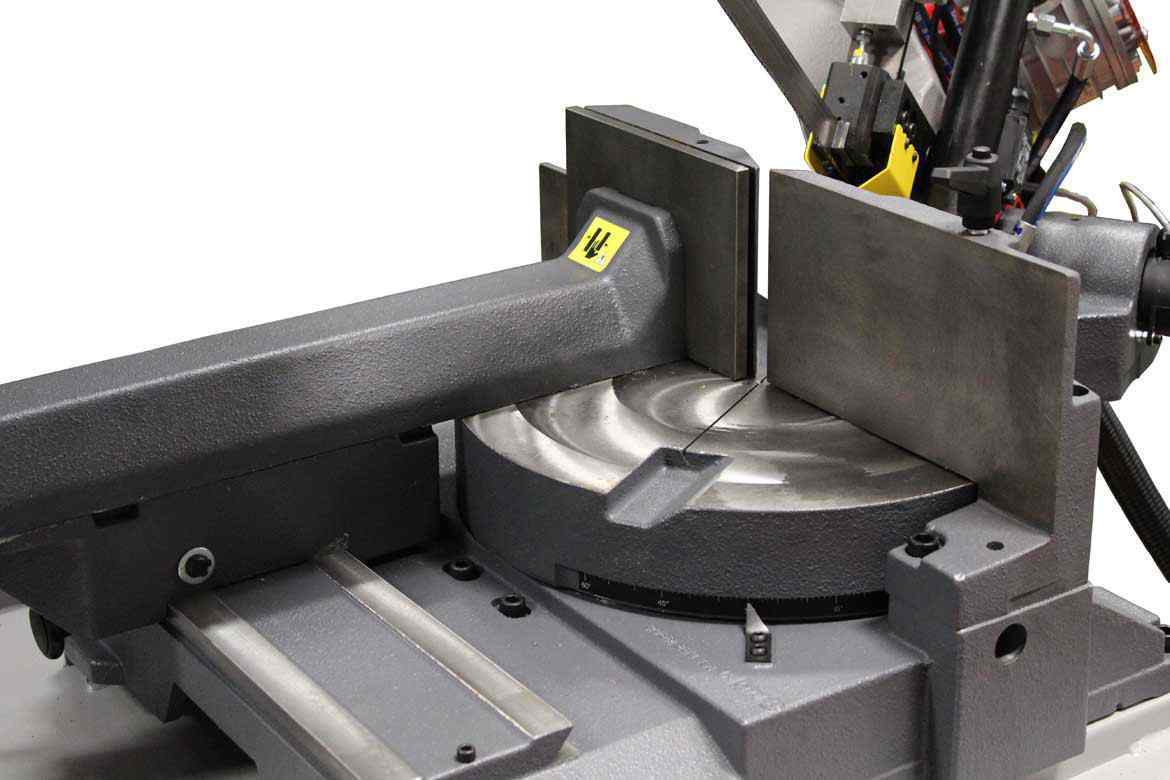

• Turntable bed with easy to read mitre scale
• Substantial vices, quick set lever operation
• Tungsten carbide blade guide pads and roller bearings
• Swarf brush assembly for cleaning blade
• Heavy duty blade tensioning unit with indicator
• Heavy duty, 3 phase motor
• Re-circulating coolant pump
• Adjustable guide arm
• Heavy duty gear train
• Blade speed: variable from 20 to 120 m/min
• 500mm length stop included
