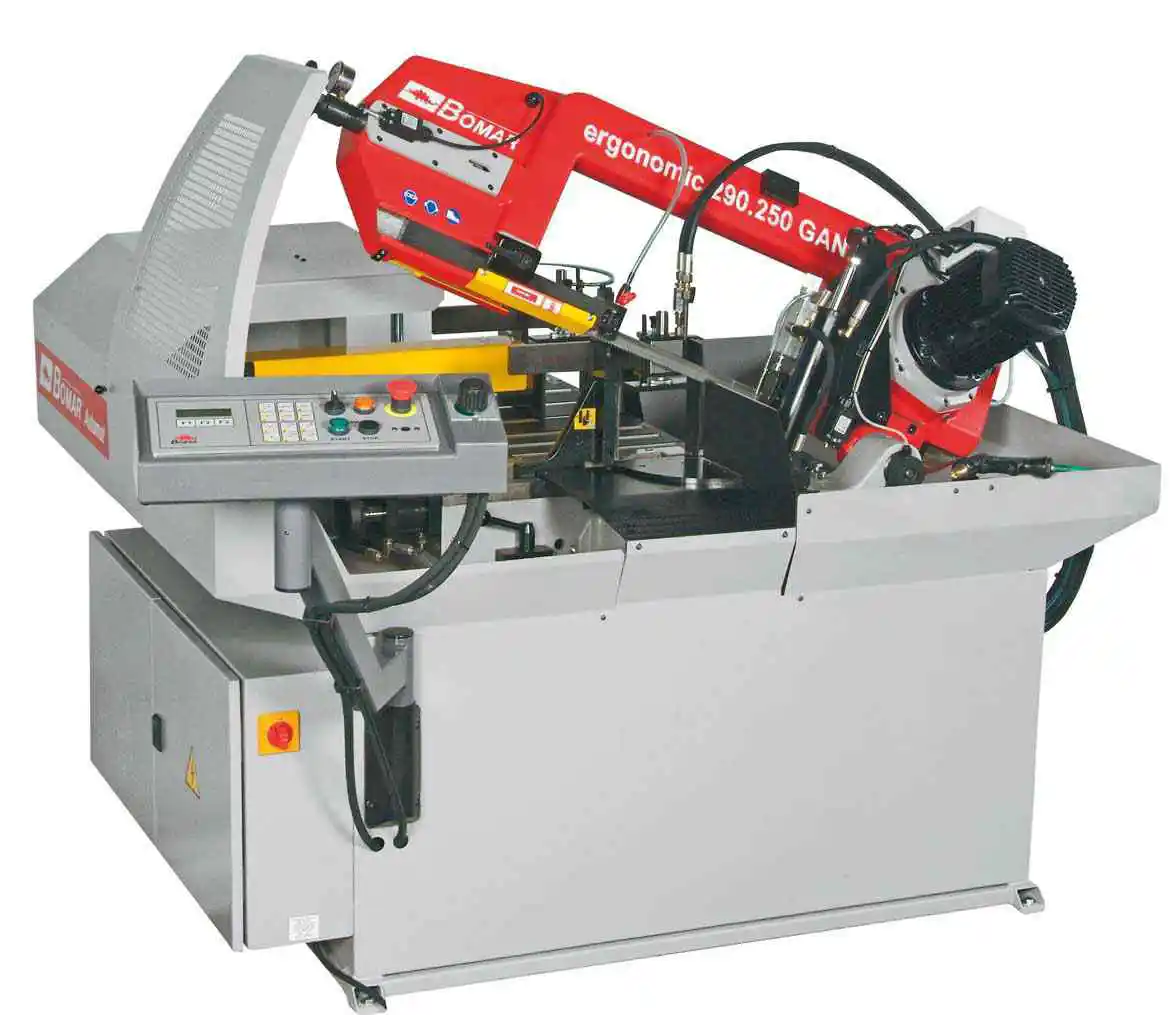

The Bomar Ergonomic 290.250GANC is an automatic mitre bandsaw with NC controls ideal for sections and small solid material. Its saw bow rotates for mitre cutting to 60°. The hydraulic downfeed control benefits from an automatic cutting pressure control. The feeding length is 600 mm.

• Robust, one piece, cast iron saw bow

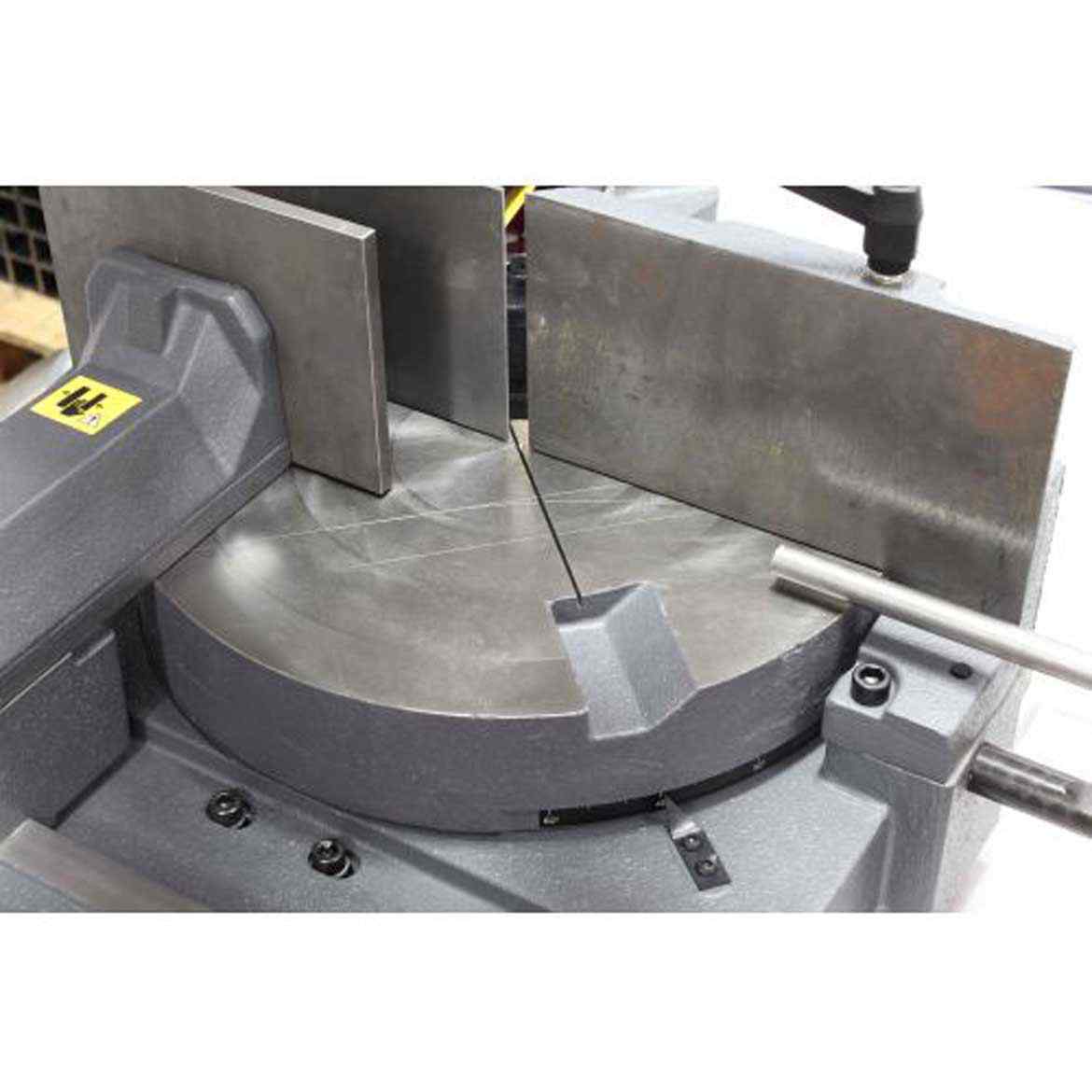

• Saw bow rotates for mitre cutting up to 60° (45° in auto mode)

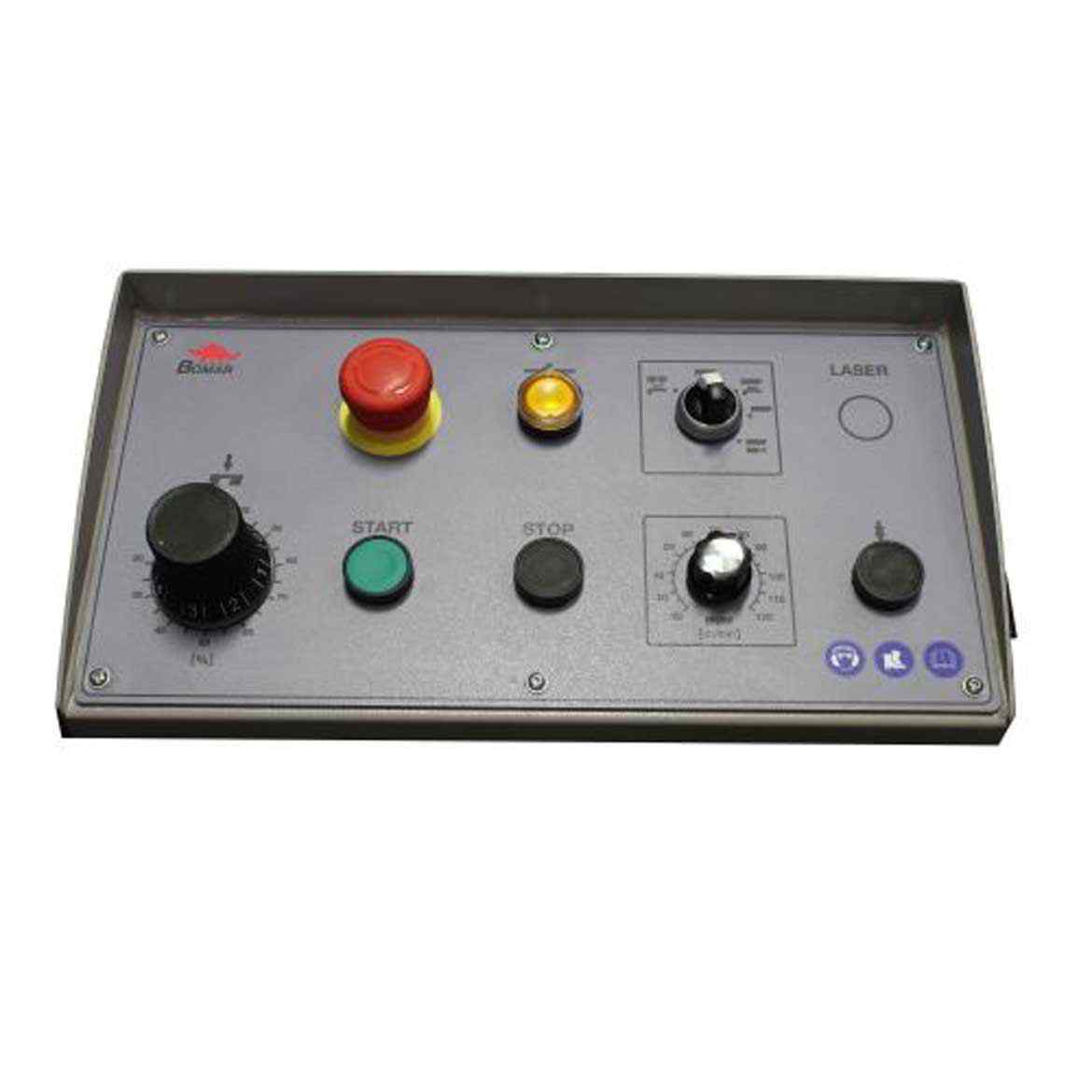

• NC Controls
• 99 lines for programming, fault diagnostics, machine status report
• Positive hydraulic downfeed with automatic pressure sensing control
• 600mm single pass vice feed length, multiple feed for longer lengths
• Encoder head height setting to reduce cycle times
• Tungsten Carbide pads and roller bearings for accurate cuts
• Swarf brush assembly for cleaning blade
• Heavy duty blade tensioning unit with indicator
• Heavy duty, 3 phase motor
• Recirculating coolant pump
• Moveable guide arm adjustable according to section size
• Heavy duty gear train
• 2 blade speeds
