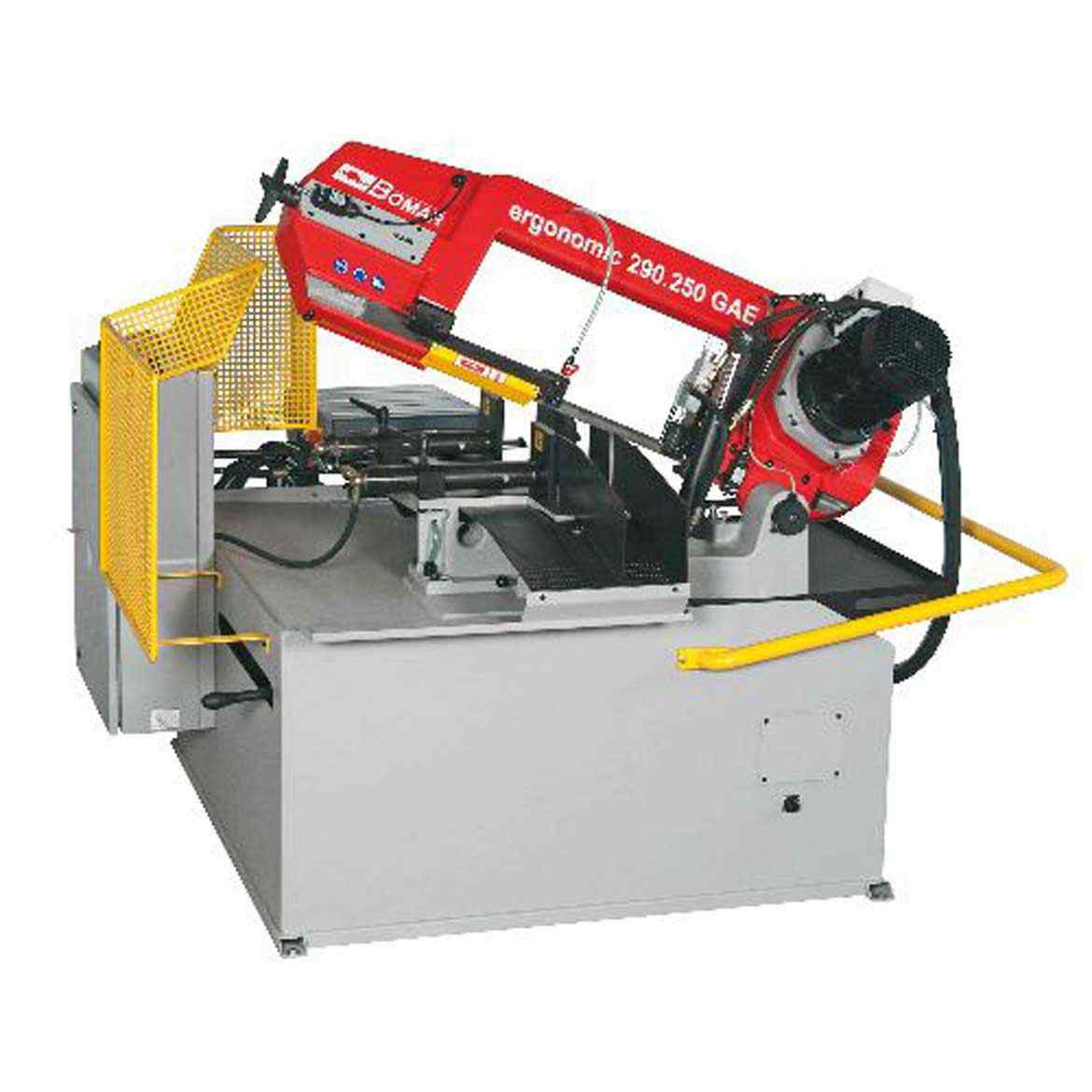

BOMAR Ergonomic 290.250GAE
Machine Subcategory
Automatic Horizontal Bandsaw
Overview
The Bomar Ergonomic 290.250GAE is an automatic bandsaw with mitre designed for cutting sections and small solid material. Its robust, one piece cast iron bow rotates to 45°. This machine also features a heavy duty hydraulic vice and a hydraulic downfeed control with an automatic cutting control and a material feeding length of 500mm.
Standard Specification
- Robust, one piece, cast iron saw bow
- Positive hydraulic downfeed with automatic pressure sensing control
- 500mm single pass vice feed length, multiple feed for longer lengths
- Encoder head height setting to reduce cycle times
- Tungsten Carbide pads and roller bearings for accurate cuts
- Swarf brush assembly for cleaning blade
- Heavy duty blade tensioning unit with indicator
- Heavy duty, 3 phase motor
- Recirculating coolant pump
- Moveable guide arm adjustable according to section size
- Heavy duty gear train
- 2 blade speeds
Get in touch +44 (0)1536 410999
BOMAR Ergonomic 290.250GAE Technical Specifications
| Manufacturer | Bomar |
|---|---|
| Machine Type | Bandsaw |
| Blade Size | 2910mm × 27mm × 0.9mm |
| Blade Speed | 2 speeds, 40 & 80 m/min |
| Table Height | 760mm |
| Motor | 1.5kW |
| Weight | 565 |
| 90° | 45° Left | 45° Right | 60° Left | 60° Right | |
|---|---|---|---|---|---|
| Round Section (mm) | 250mm | 210mm | 120mm | ||
| Rectangular Section Horizontal (mm) | 290x230mm | 220x80mm | 120x100mm | ||
| Rectangular Section Vertical (mm) | 290x230mm | 190x230mm | 120x100 | ||
| Square Section (mm) | 240mm | 190mm | 100mm |
