BOMAR Easycut 275.230 DG
BOMAR Easycut 275.230 DG
BOMAR Easycut 275.230 DG - Image 2
BOMAR Easycut 275.230 DG - Image 3
BOMAR Easycut 275.230 DG - Image 4
BOMAR Easycut 275.230 DG - Image 5
Machine Subcategory

Manual Horizontal Bandsaw

Overview

The ALL NEW Bomar Easycut 275.230DG is a manual mitre bandsaw ideal for the general fabricator.

Mitre cutting in both directions to 45° left 60° right with a large easy-to-read mitre scale. This machine also has 2 blade speeds to cope with a wide variety of cutting applications.

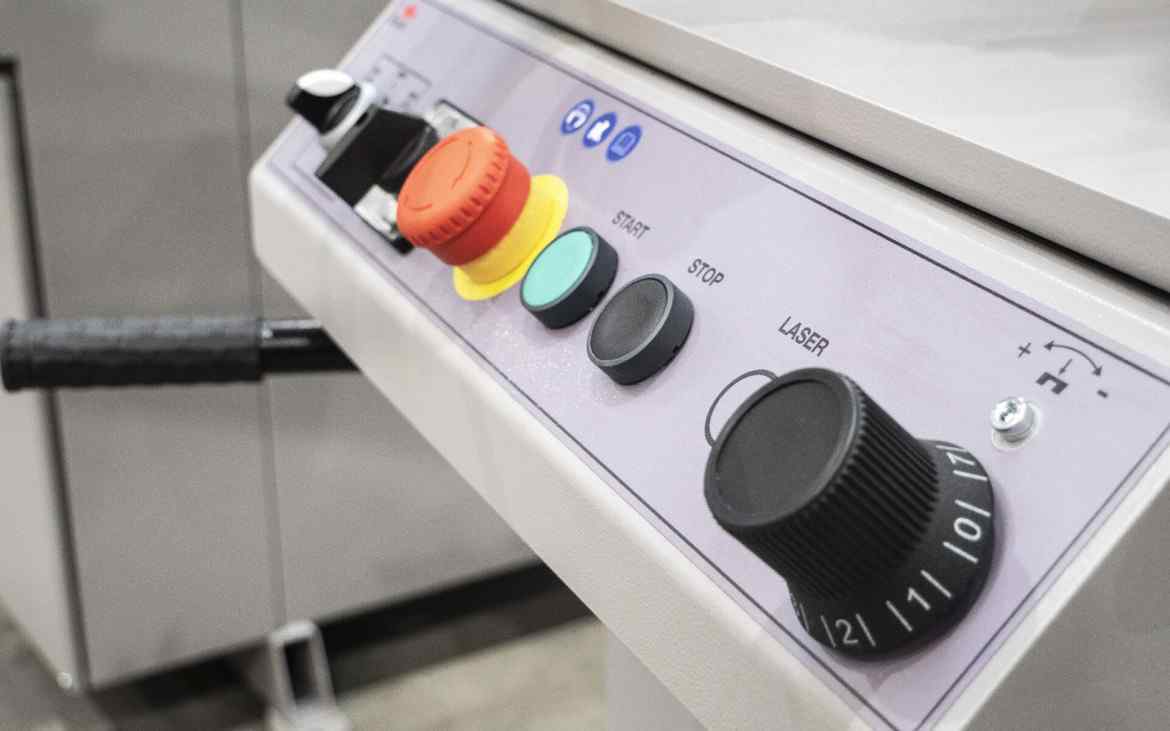

Machine controls are at the front of the machine and there is also an innovative clamping device with the Quick-Release-System.

Standard Specification
  • Heavy duty one-piece cast bow
  • Precision control hydraulic downfeed
  • Turntable vice bed

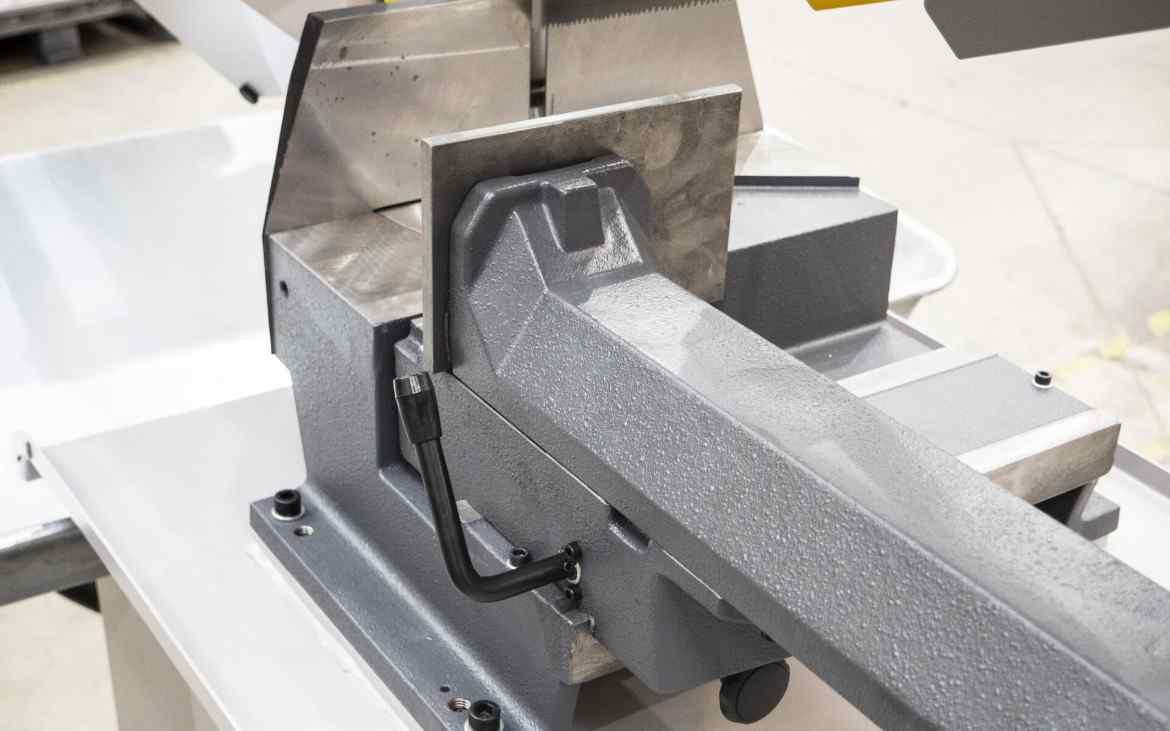

  • Substantial vices, quick set lever operation
  • Bow rotates 45-90-60°
  • Easy to read mitre scale
  • Carbide blade guide pads and rollers
  • Heavy duty blade tensioning unit
  • Heavy duty, 3 phase motor
  • Re-circulating coolant pump
  • Adjustable guide arm
  • Heavy duty gear train
  • Blade speed: 40 & 80 m/min
Get in touch +44 (0)1536 410999
BOMAR Easycut 275.230 DG Technical Specifications

Notice: Function is_internal_meta_key was called incorrectly. Generic add/update/get meta methods should not be used for internal meta data, including "_weight". Use getters and setters. Backtrace: require('wp-blog-header.php'), require_once('wp-includes/template-loader.php'), include('/plugins/woocommerce/templates/single-product.php'), wc_get_template_part, load_template, require('/plugins/woocommerce/templates/content-single-product.php'), do_action('woocommerce_single_product_summary'), WP_Hook->do_action, WP_Hook->apply_filters, single_product_custom_template, prosaw_render_technical_specifications, prosaw_render_meta_row, prosaw_get_spec_value, WC_Data->get_meta, WC_Data->is_internal_meta_key, wc_doing_it_wrong Please see Debugging in WordPress for more information. (This message was added in version 3.2.0.) in /home/prosaw/public_html/wp-includes/functions.php on line 6260
Manufacturer Bomar
Machine Type Bandsaw
Operation Type Manual
Material Type Section
Blade Size 2720mm × 27mm × 0.9mm
Blade Speed 40 & 80 M/Min
Table Height 978mm
Material Type(s) Section
Material(s) Sections, Non-Ferrous, Ferrous
90° 45° Left 45° Right 60° Left 60° Right
Round Section (mm) 230mm 170mm 190mm 120mm
Rectangular Section Horizontal (mm) 270x190mm 190x100mm 190x150mm 120x110mm
Rectangular Section Vertical (mm) 210x230mm 100x220mm 170x220mm 100x110mm
Square Section (mm) 230mm 150mm 180mm 100mm
SKU: 295 Category:
Download Datasheet

Download the datasheet for the BOMAR Easycut 275.230 DG
