BOMAR AL500A

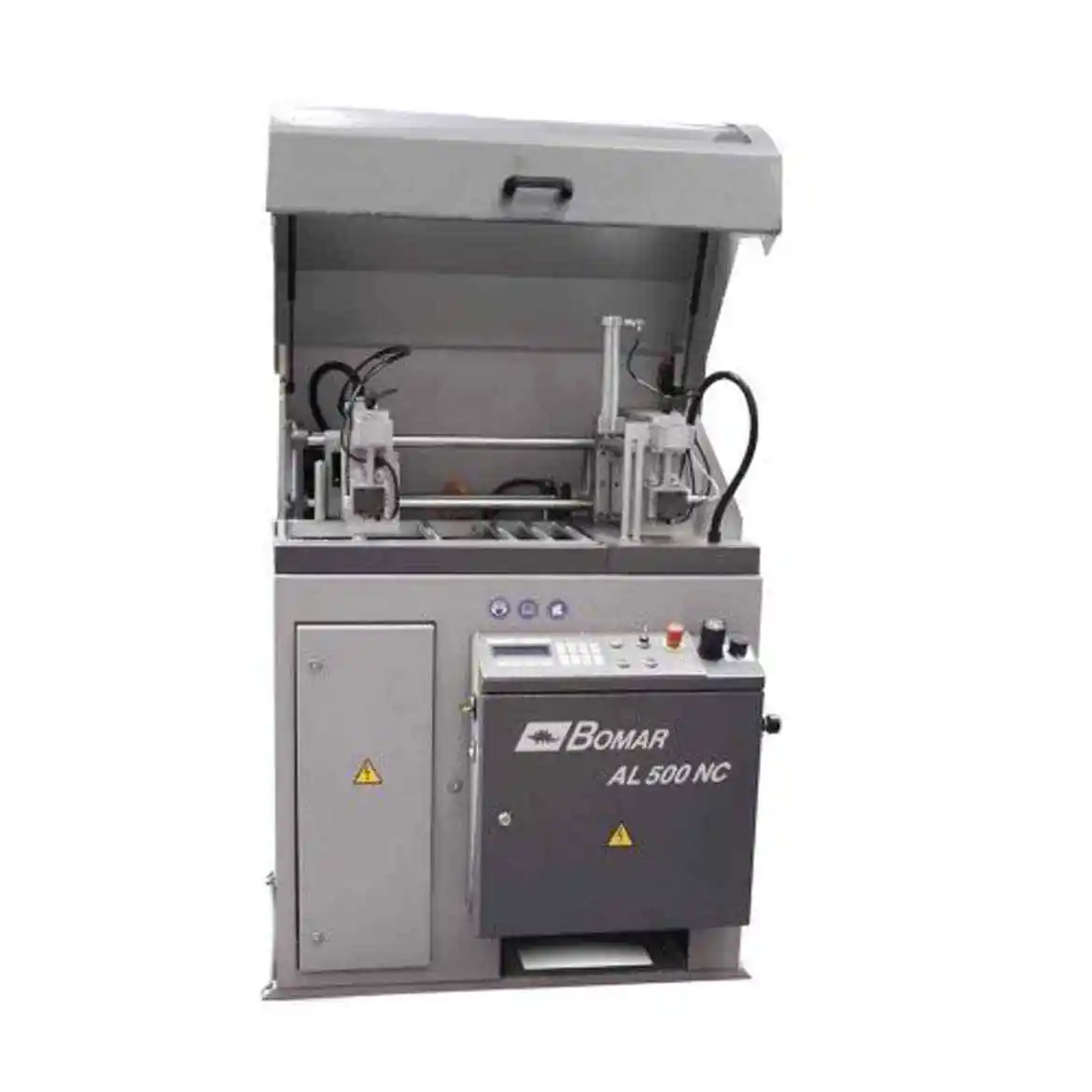

BOMAR AL500A

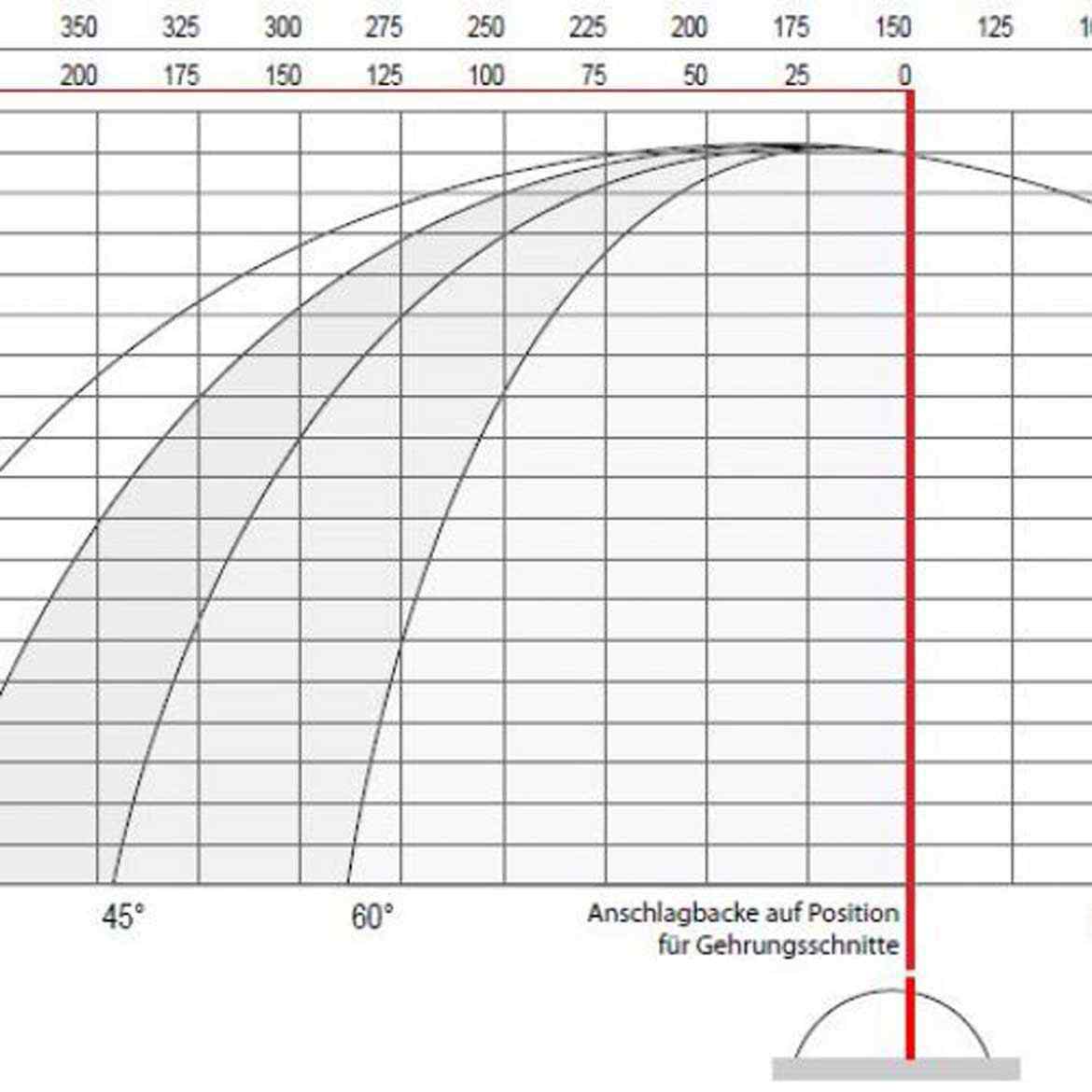

BOMAR AL500A - Image 2

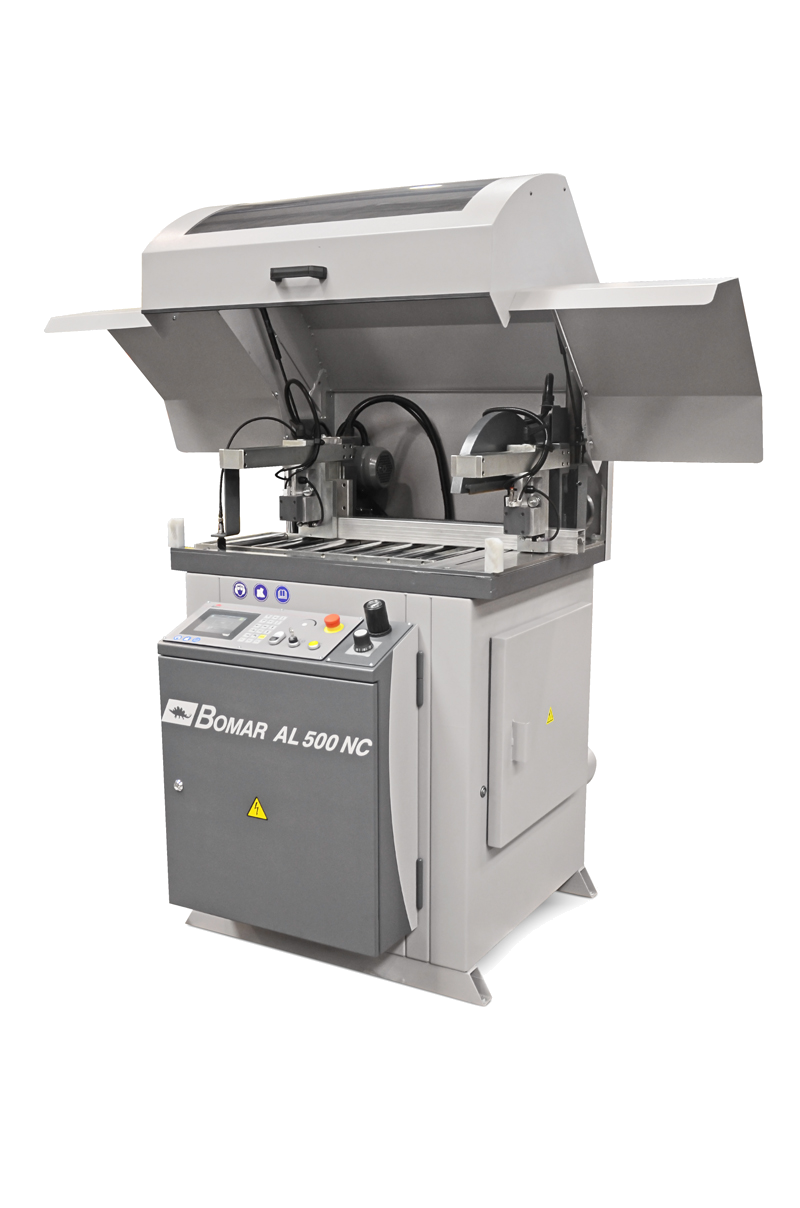

BOMAR AL500A - Image 3
Machine Subcategory

Automatic Circular Saws

Overview

Vice Feed Automatic Aluminium Profile Saw. Fully programable with ball-screw feeding for high accuracy and speed.

Standard Specification
  • Vibration-free cutting
  • Large work table
  • NC Controls
  • Precise variable control of the blade feed & the cutting height
  • Blade fully retracts at end of cut
  • Accurate, ball screw material feed
  • 500mm single pass feed length
  • Multiple material pass up to 9999mm
  • Twin pneumatic clamps securely hold irregular material both sides of the blade
  • Mist spray lubrication with volume control
  • Noise reducing, interlocked safety hood encloses cutting area
  • Safety guards mounted on the hood to inhibit access to the blade
  • Large door at the side of the machine allows for easy blade change
  • Twin ports fitted to allow for connection of a swarf extractor
  • 500mm Tungsten carbide tipped blade, 2000rpm
Get in touch +44 (0)1536 410999
BOMAR AL500A Technical Specifications

Notice: Function is_internal_meta_key was called incorrectly. Generic add/update/get meta methods should not be used for internal meta data, including "_weight". Use getters and setters. Backtrace: require('wp-blog-header.php'), require_once('wp-includes/template-loader.php'), include('/plugins/woocommerce/templates/single-product.php'), wc_get_template_part, load_template, require('/plugins/woocommerce/templates/content-single-product.php'), do_action('woocommerce_single_product_summary'), WP_Hook->do_action, WP_Hook->apply_filters, single_product_custom_template, prosaw_render_technical_specifications, prosaw_render_meta_row, prosaw_get_spec_value, WC_Data->get_meta, WC_Data->is_internal_meta_key, wc_doing_it_wrong Please see Debugging in WordPress for more information. (This message was added in version 3.2.0.) in /home/prosaw/public_html/wp-includes/functions.php on line 6260
Manufacturer Bomar
Machine Type Aluminium
Blade Size 500mm × 30mm × 4.0mm
Blade Speed 2,000 RPM (51 m/sec)
Table Height 1060mm
Motor 4.0kW
Weight 550
Material Type(s) Section
Material(s) Sections, Aluminium, Non-Ferrous, PVC
SKU: 8 Categories: ,
Download Datasheet

Download the datasheet for the BOMAR AL500A
